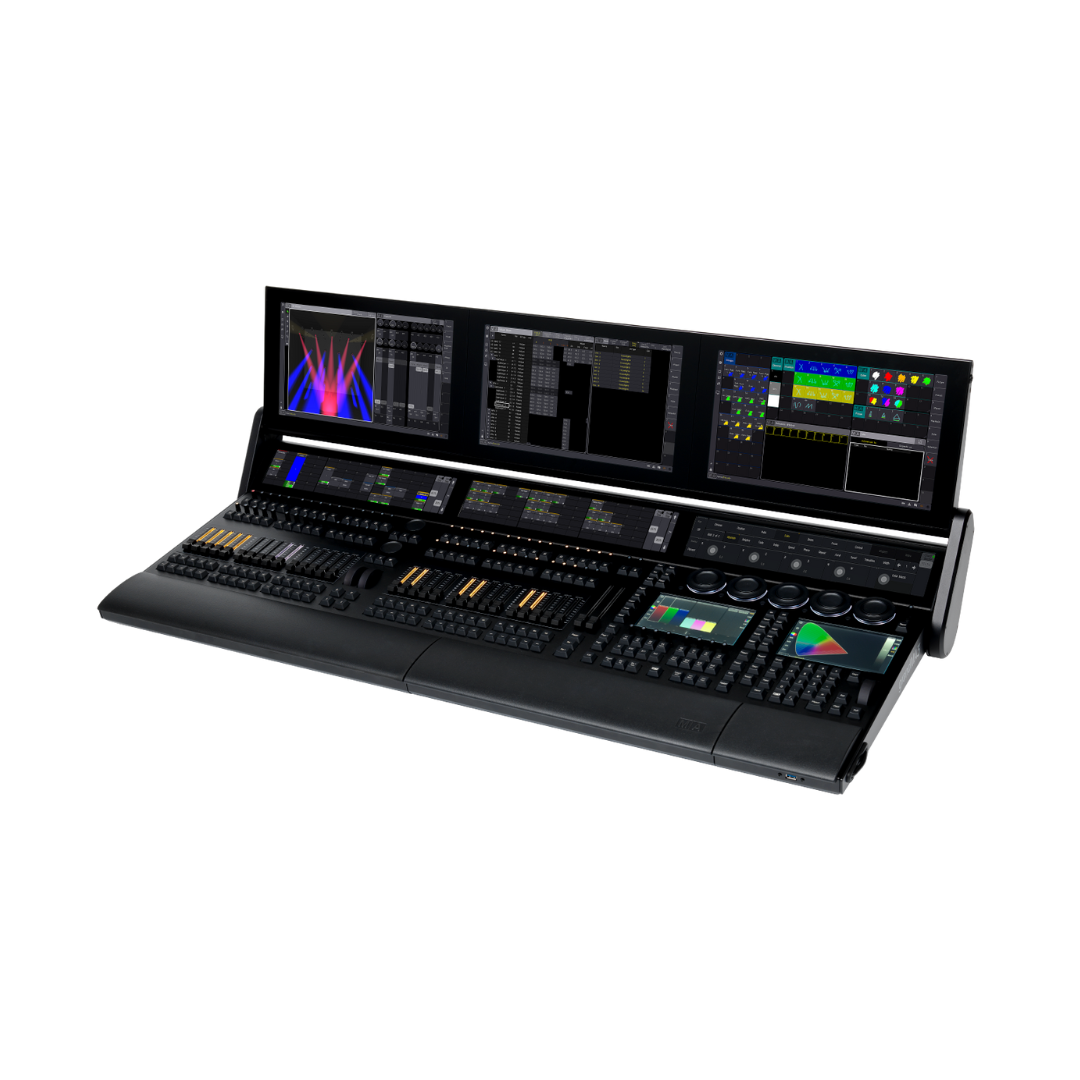

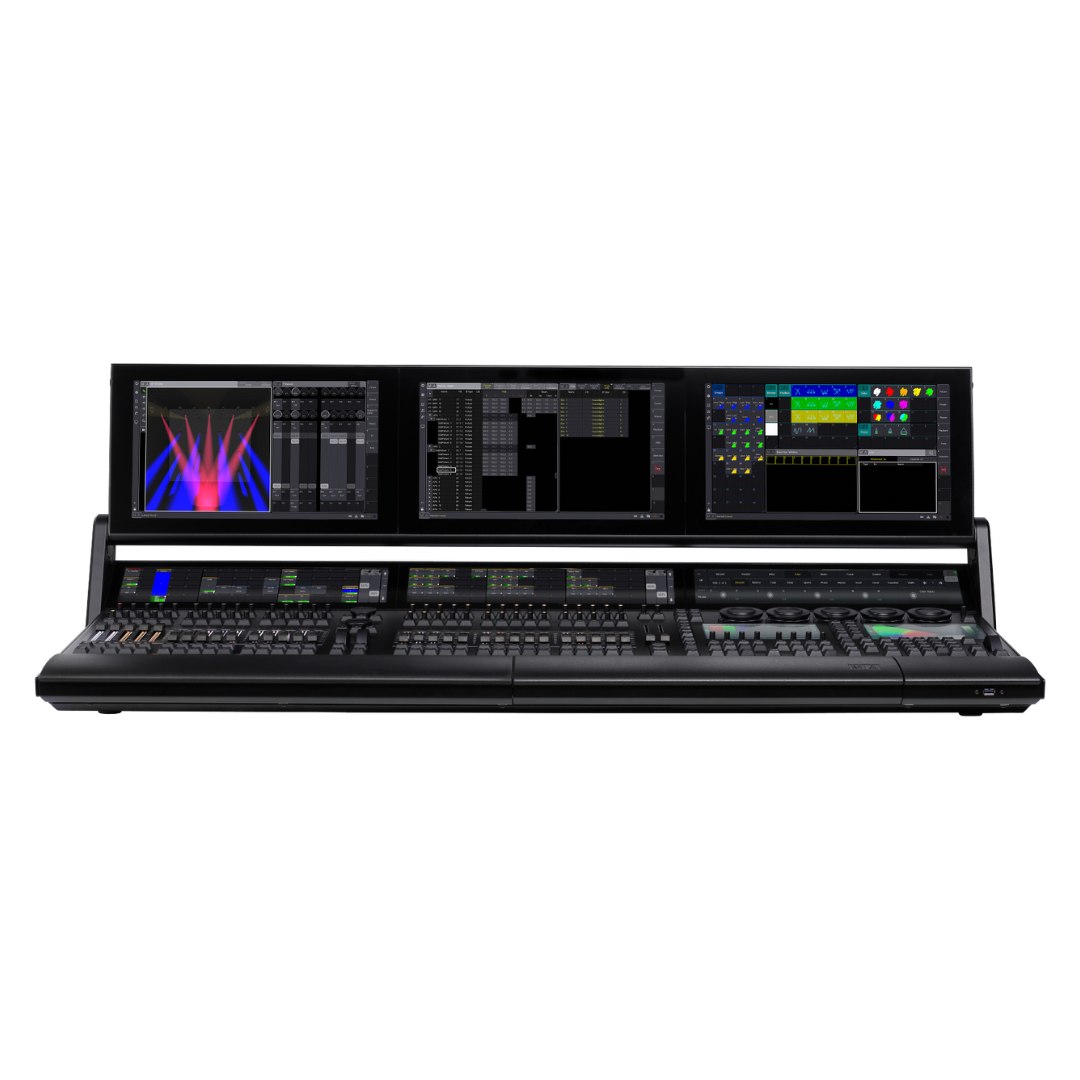

The grandMA3 full-size console offers a powerful and flexible lighting control solution with 120 physical playbacks, 16 assignable x-keys, and dedicated master and custom areas. Its large multi-touch screen provides instant access to programming tools and is fully customizable. The console supports up to 250,000 parameters, making it suitable for large-scale productions. It’s compatible with both grandMA2 and grandMA3 software, and its ergonomic design features quiet operation and long-lasting components. The intuitive interface, with dual encoders and color-coded faders, allows for efficient and precise control.

Features

• Real-time control for up to 250 000 parameters per session in connection with grandMA3 processing units
• 6 DMX outputs, 1 DMX input
• 3 internal foldable monitor multi-touch screens
• 3 internal letterbox multi-touch screens
• 2 internal multi-touch command screens
• 2 external multi-touch screens can be connected
• 2 multipurpose level wheels
• 2 multipurpose single encoder
• 71 rotary RGB backlit encoder
• 5 backlit dual encoders
• 30 backlit motorized 60 mm faders
• 120 separate playbacks
• 16 assignable x-keys
• Integrated keyboard drawer
• Built-in uninterruptible power supply (UPS)
• 3 etherCON connectors, 6 USB connectors
• 2 backlit motorized A/B faders 100 mm
• Individually backlit and dimmable silent (clickless) keys

Technical Specifications

PARAMETERS

• 20480 (HTP/LTP)

PARAMETERS MODE2

• 8192 (HTP/LTP)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

• AC 100 – 240 V; 50/60 Hz

POWER

• max. 300 VA

OPERATING TEMPERATURE

• 0 °C up to 40 °C

DIMENSIONS

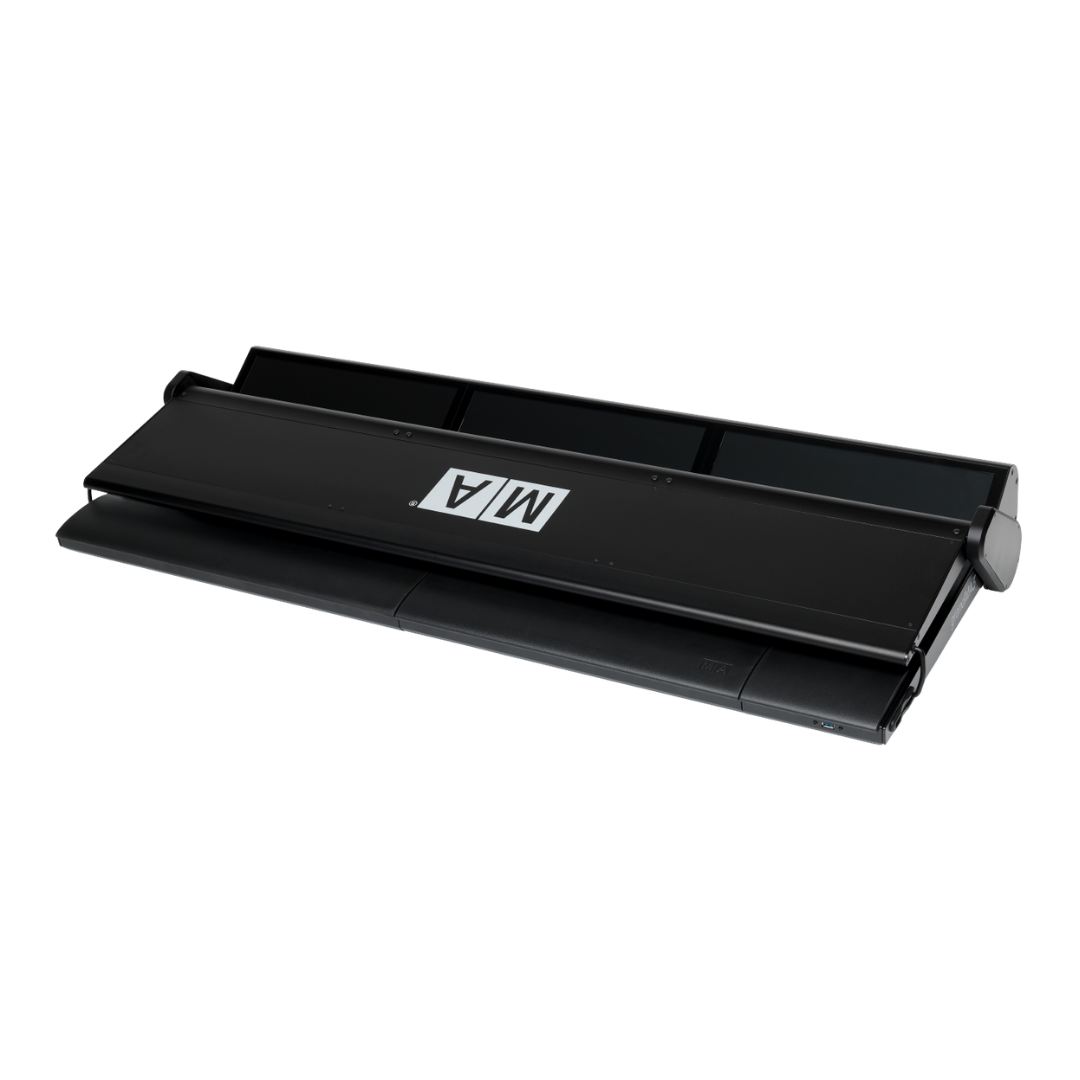

• 1 256 x 539 x 181 mm (width x depth x height, folded and drawer closed)
• 1 256 x 584 x 409 (max. 450) mm (width x depth x height, unfolded for operation)
• 1 256 x 871 x 255 mm (width x depth x height, maximally unfolded and drawer opened)


NET WEIGHT

• 44 kg

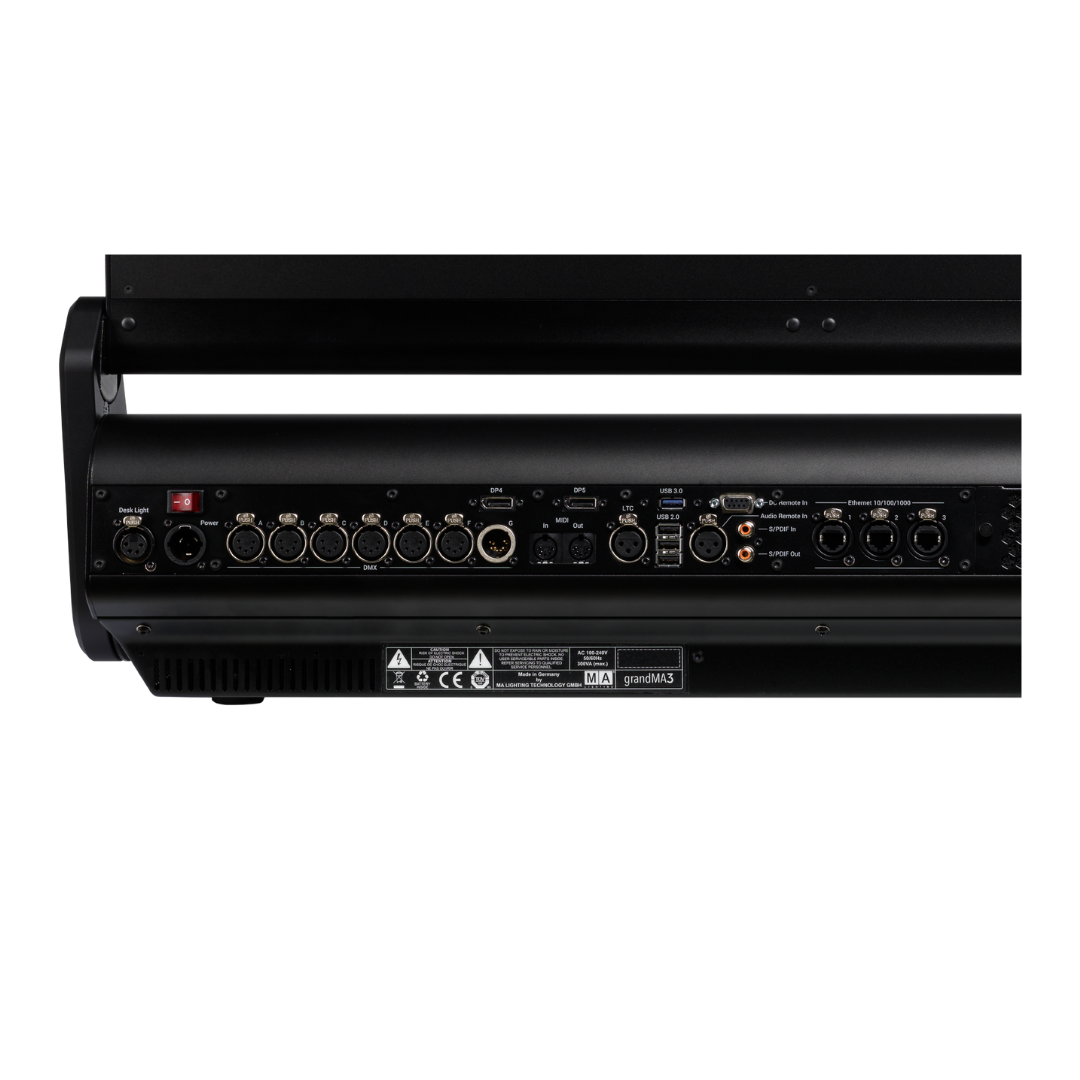

CONNECTORS

• 1 x powerCON TRUE1
• 3 x etherCON/RJ45
• 6 x DMX512-A Out (5pin XLR female)
• 1 x DMX512-A In (5pin XLR male)
• 1 x MIDI In (5pin DIN female)
• 1 x MIDI Out (5pin DIN female)
• 1 x Linear Timecode (3pin XLR female)
• 1 x Audio In (3pin XLR female)
• 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 2 x DisplayPort 1.2 for external screens
• 2 x S/PDIF In and Out
• 3 x USB 2.0 (type A)
• 3 x USB 3.0 (type A)
• 2 x LED desk light (4pin XLR female)
