Features

• Real-time control for 4 096 parameters – in combination with the pre-installed grandMA3 onPC software
• 2 DMX outputs, 1 DMX input
• 2 external multi-touch screens can be connected
• 1 internal multi-touch command screen
• 2 RJ45 connectors
• 6 USB connectors
• Various control interfaces

Technical Specifications

PARAMETERS

• 4096 (HTP/LTP)

PARAMETERS MODE2

• not applicable (no mode2)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

• AC 100 – 240 V; 50/60 Hz

POWER

• max. 100 VA

OPERATING TEMPERATURE

• 0 °C up to 40 °C

DIMENSIONS

• 482 x 249 x 87 mm (width x depth x height)


NET WEIGHT

• 4 kg

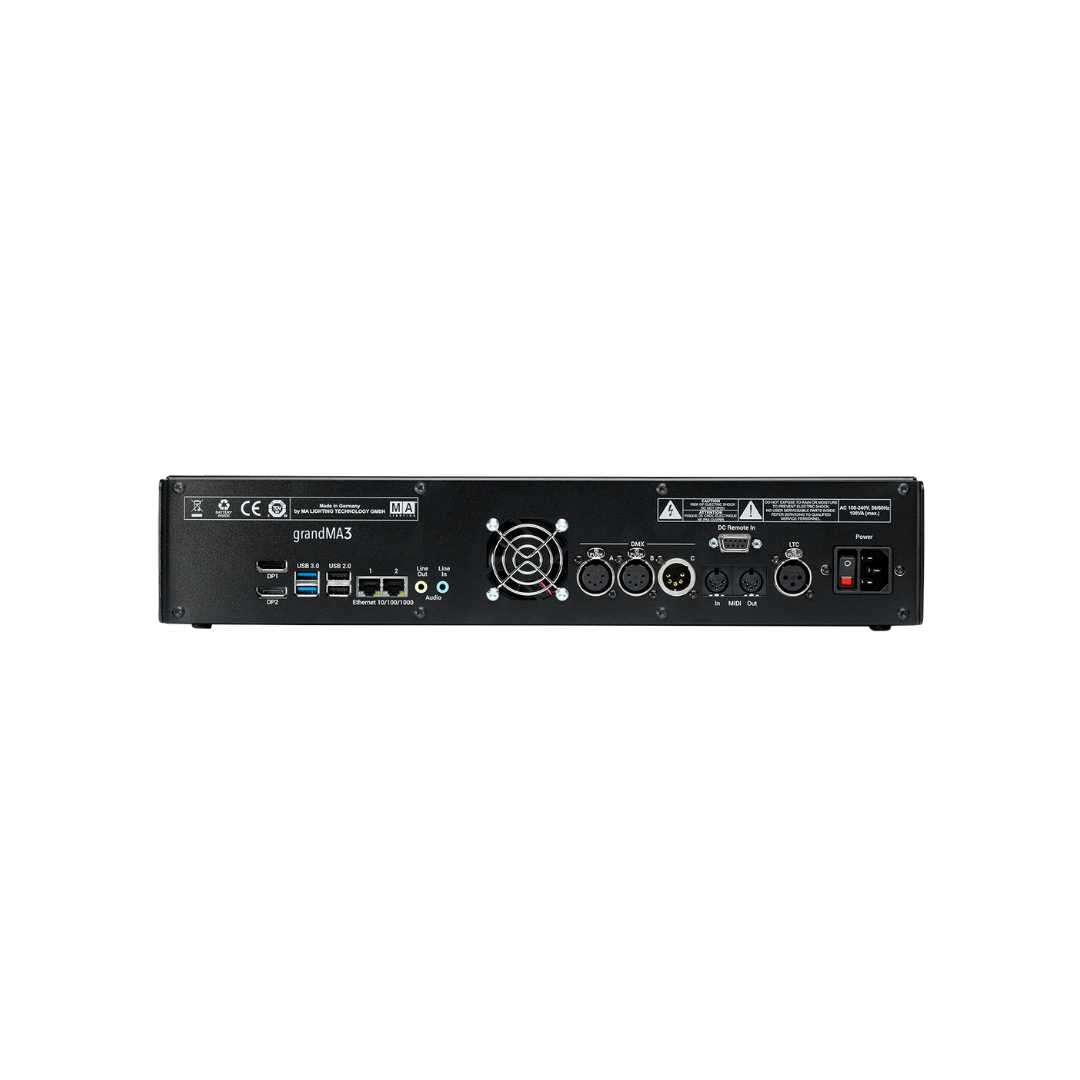

CONNECTORS

•  1 x IEC-60320 C14 cord
• 2 x RJ45
• 2 x DMX512-A Out (5pin XLR female)
• 1 x DMX512-A In (5pin XLR male)
• 1 x MIDI In (5pin DIN female)
• 1 x MIDI Out (5pin DIN female)
• 1 x Linear Timecode (3pin XLR female)
• 1 x Audio In (mini jack 3.5mm)
• 1 x Audio Out (mini jack 3.5mm)
• 1 x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 2 x DisplayPort 1.2 for external screens
• 4 x USB 2.0 (type A)
• 2 x USB 3.0 (type A)
