The MADRIX STELLA 8 is the second-generation flagship of the STELLA range: an 8-port DIN-rail controller for DMX512 and RDM, built to handle high bandwidths in data-intensive lighting-control networks.

Each of the 8 ports can be freely set as an input or an output, so a single unit can act as an Art-Net or sACN node, a DMX-IN source, a booster, a merger, a splitter, or a protocol converter. Configuration is handled through a modern, mobile-friendly web interface with no additional software required.

With full RDM support as both controller and responder, plus Packet Multitasking that allows DMX and RDM to run simultaneously, STELLA 8 pairs naturally with MADRIX RADAR for 24/7 device monitoring. All RDM devices connected to STELLA 8 are unlocked in RADAR at no extra cost.

Product variants

Pairs well with

Technical Specifications

Description

Key Features

8x DMX ports, input or output selectable per port (8x 512 DMX channels)
Art-Net (I, II, 3, 4 incl. ArtSync) and Streaming ACN (sACN / ANSI E1.31)
Full RDM support as controller and responder, incl. ArtRdm over Art-Net
Real-time merging from up to 8 sources with automatic or manual HTP/LTP and zero delay
Booster, merger, splitter and protocol converter functions in one device
1 GBit/s network with 2x RJ45 and PoE (802.3af) support
Web GUI with password protection, presets, patterns, snapshots and source priority
Live monitoring tools: Port Watcher, DMX Watcher and Device Watcher
Galvanic isolation and high-speed current limiters for surge protection
Firmware updates and advanced bootloader for long-term future proofing

Technical Specifications

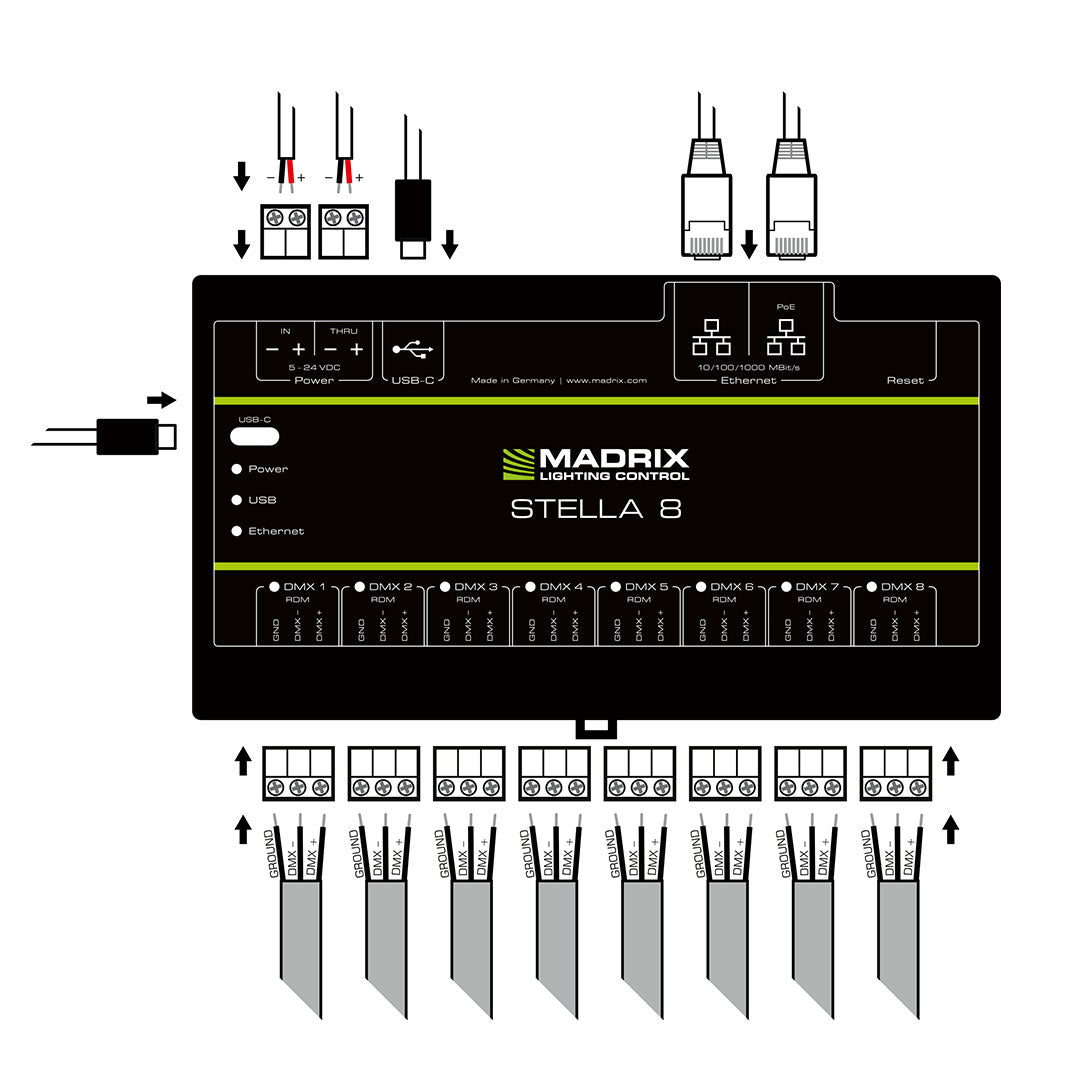

Power: DC 5 V - 24 V via 2-pin screw terminal (1x IN, 1x THRU), 5 V USB (2x USB-C), or PoE 802.3af-2003; power backups possible
Power Consumption: Up to 5 W (1,000 mA) in normal operation, 1.6 A max. fused

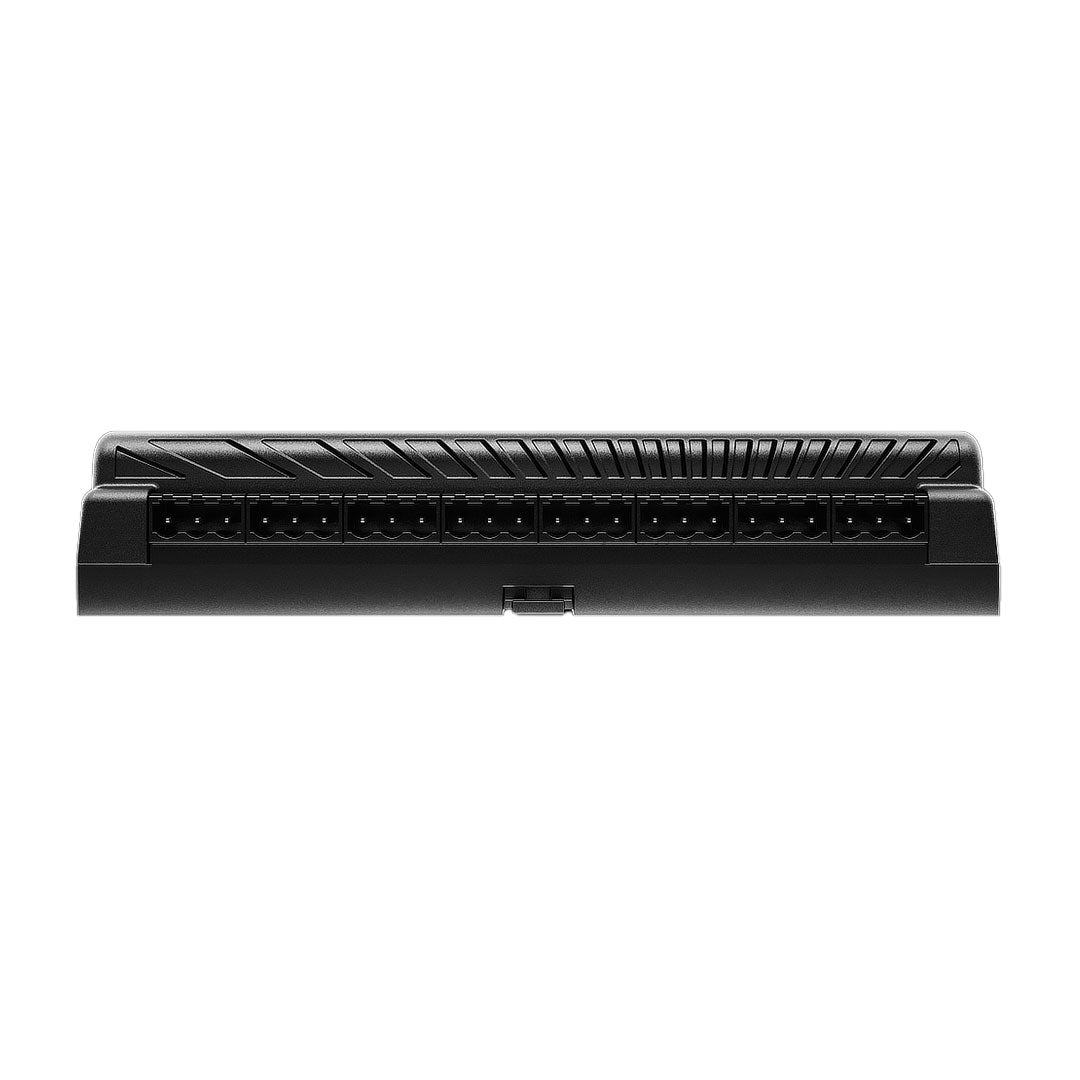

DMX Ports: 8x via 3-pin pluggable screw terminals

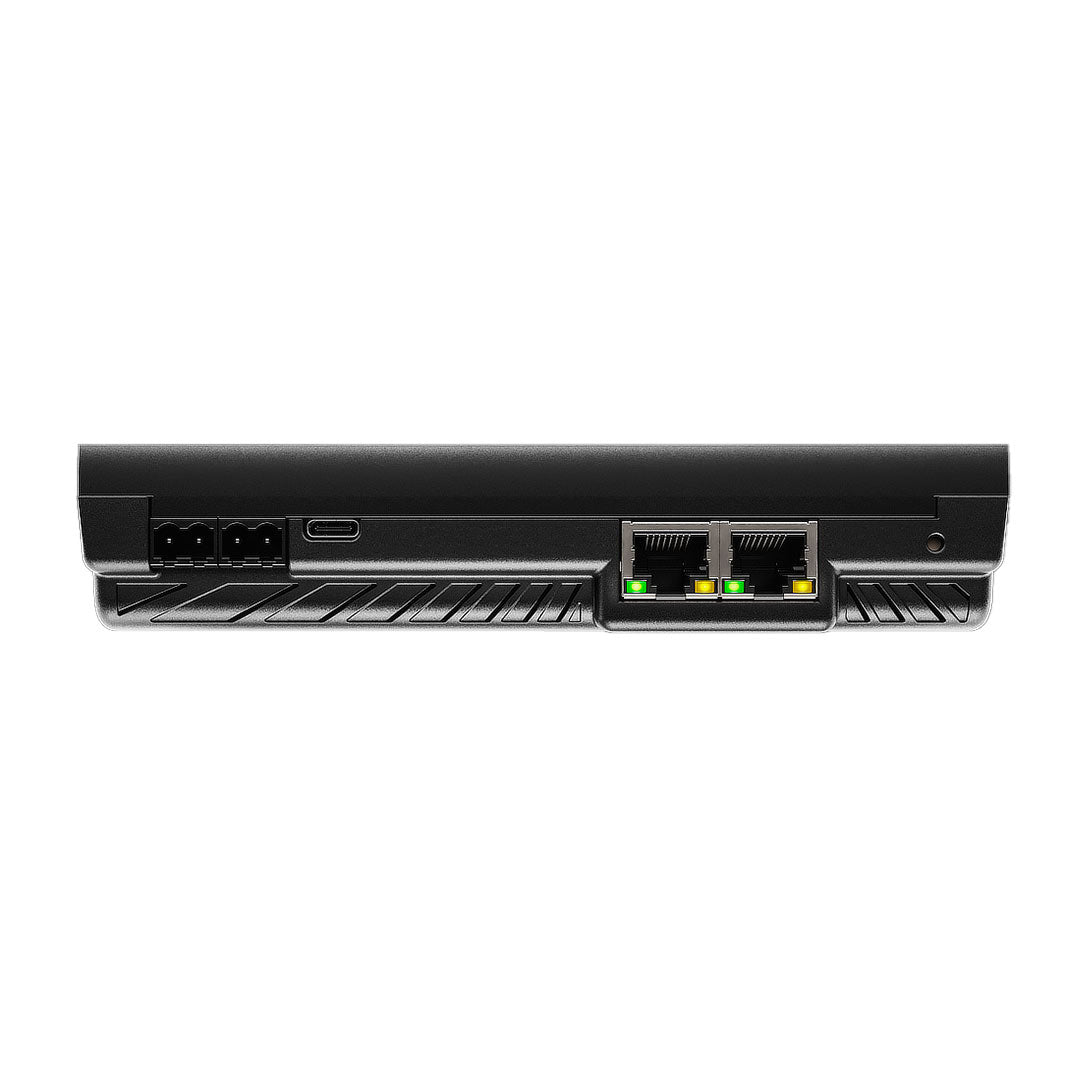

Ethernet: 2x RJ45, Auto MDI-X, daisy-chain support, 10/100/1000 MBit/s, Network over USB
USB: 2x USB-C (USB 1.1 / 2.0)
RDM Responders: Up to 170 discovered per port

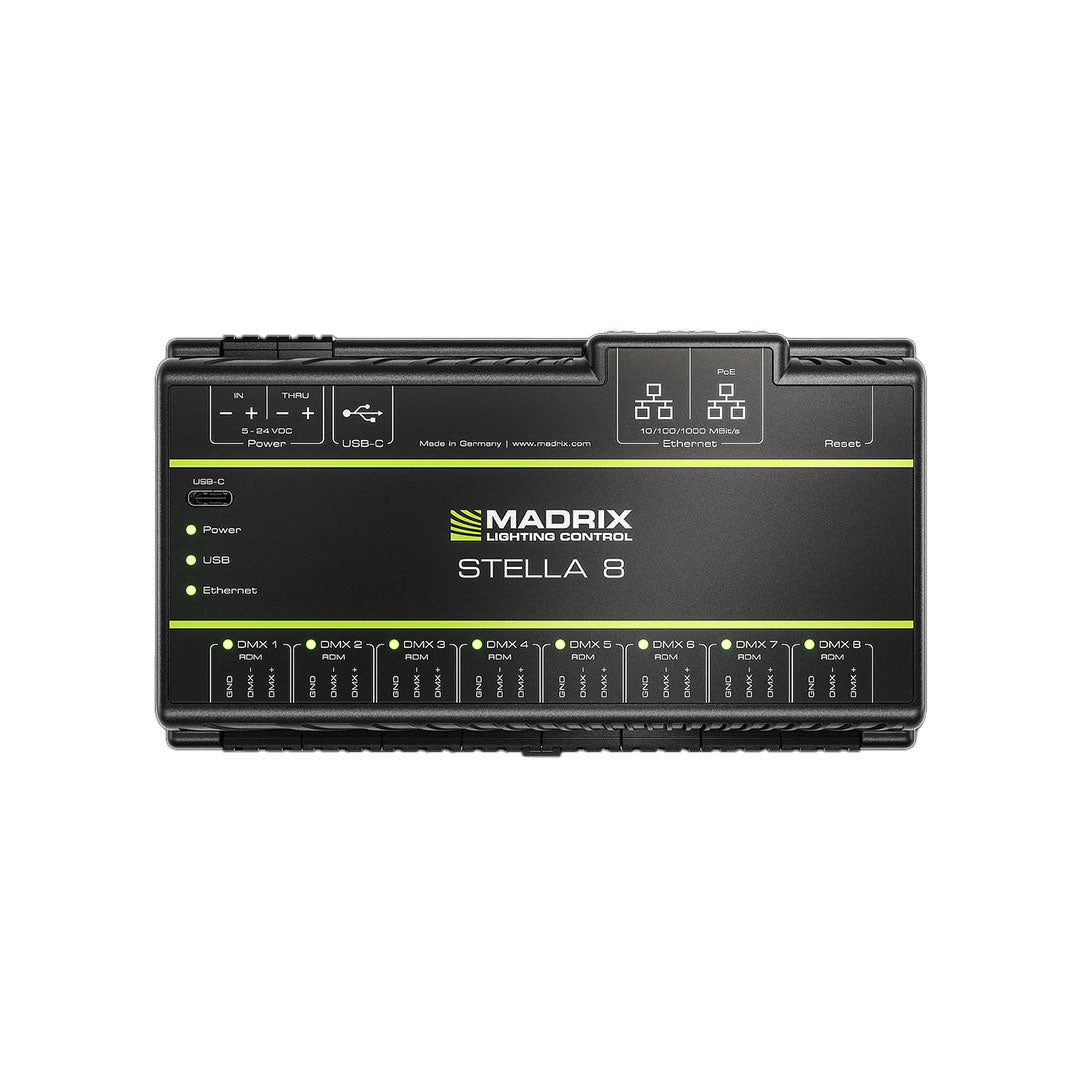

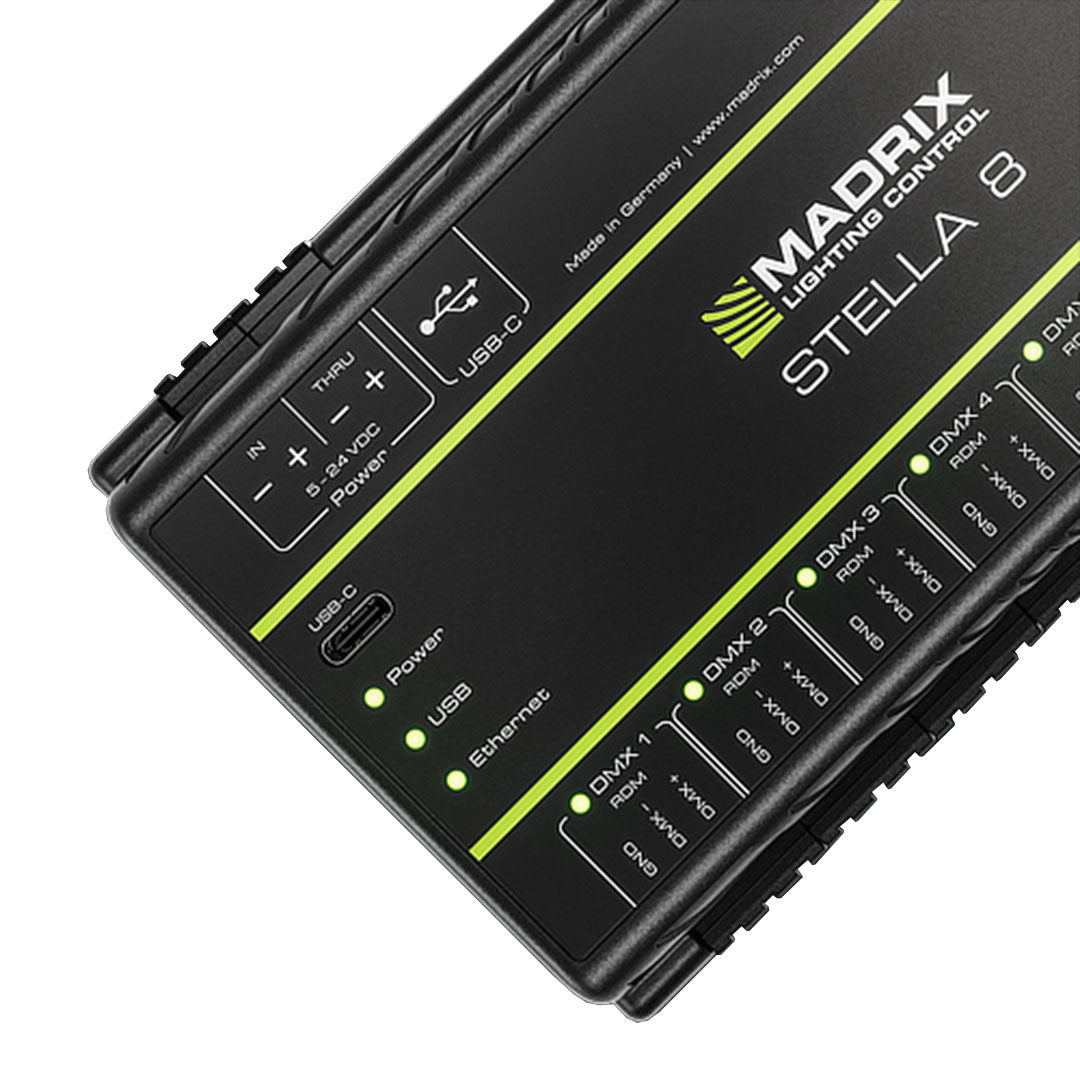

Handling: 12 status LEDs plus 4 network status LEDs

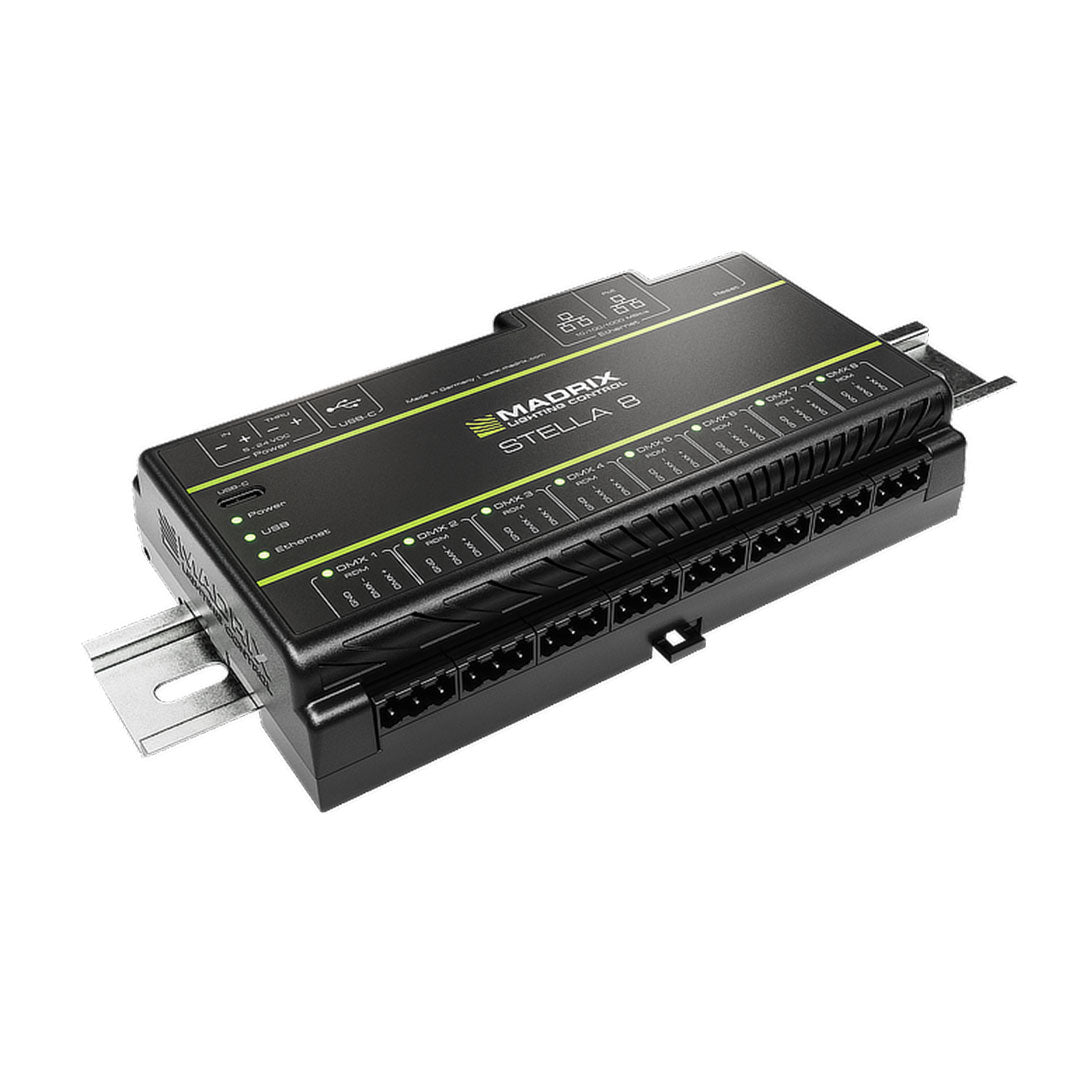

Case: Non-conductive, V-0 flammability rating (UL94), for 35 mm DIN rail or wall mounting

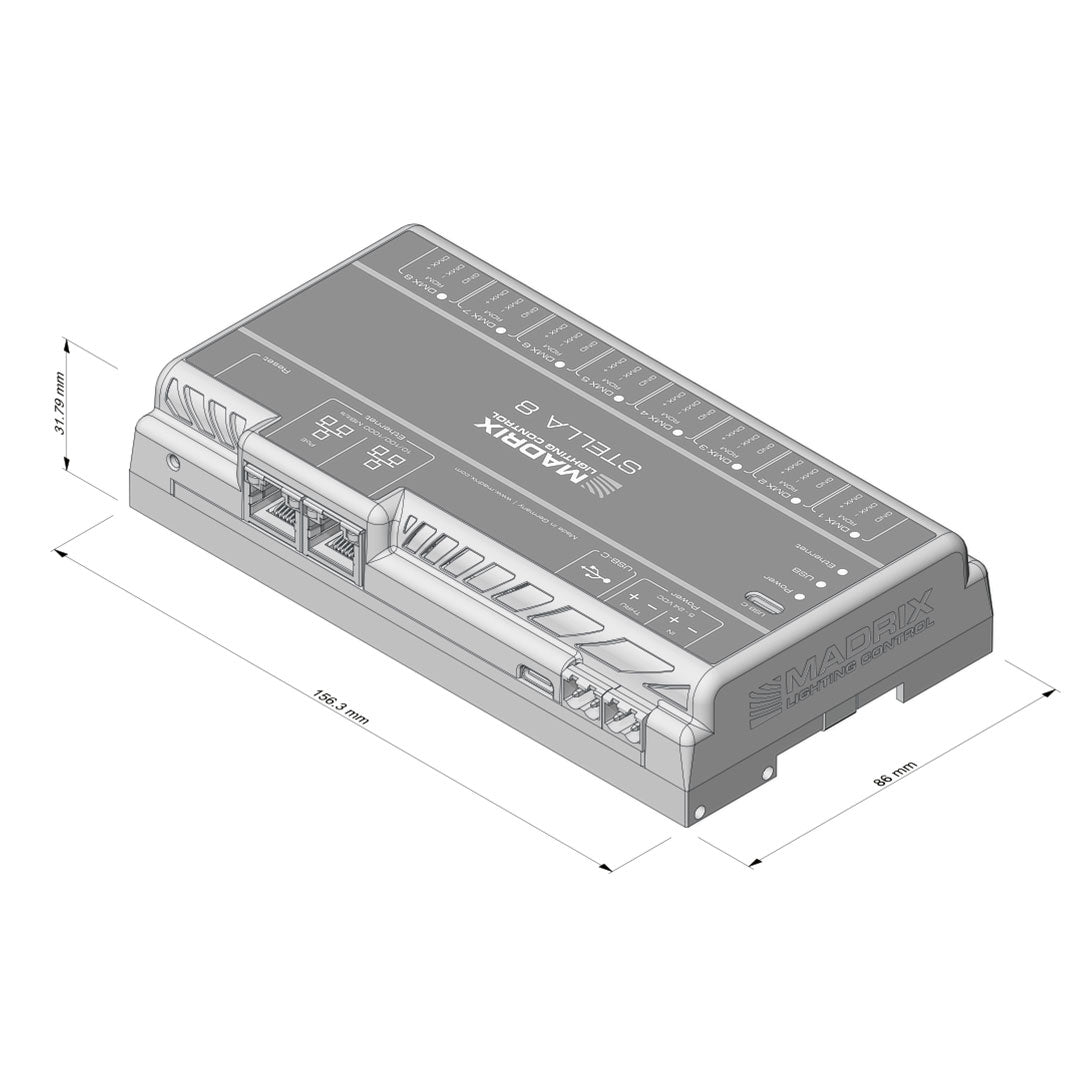

Dimensions: 86 x 156.3 x 31.79 mm (3.39" x 6.15" x 1.25")
Weight: 206 g / 260 g incl. screw terminals and wall mounts
Operating Temperature: -10 °C to 70 °C
Relative Humidity: 5 % to 80 %, non-condensing
IP Rating: IP20
Certificates: CE, FCC, UL
Warranty: 5 years limited manufacturer's warranty
