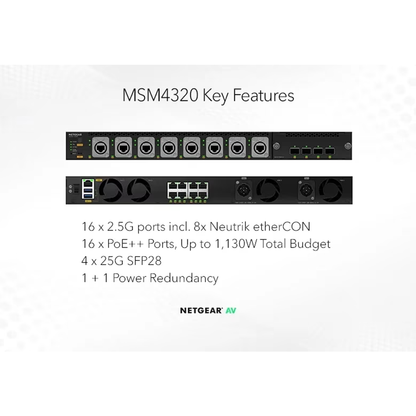

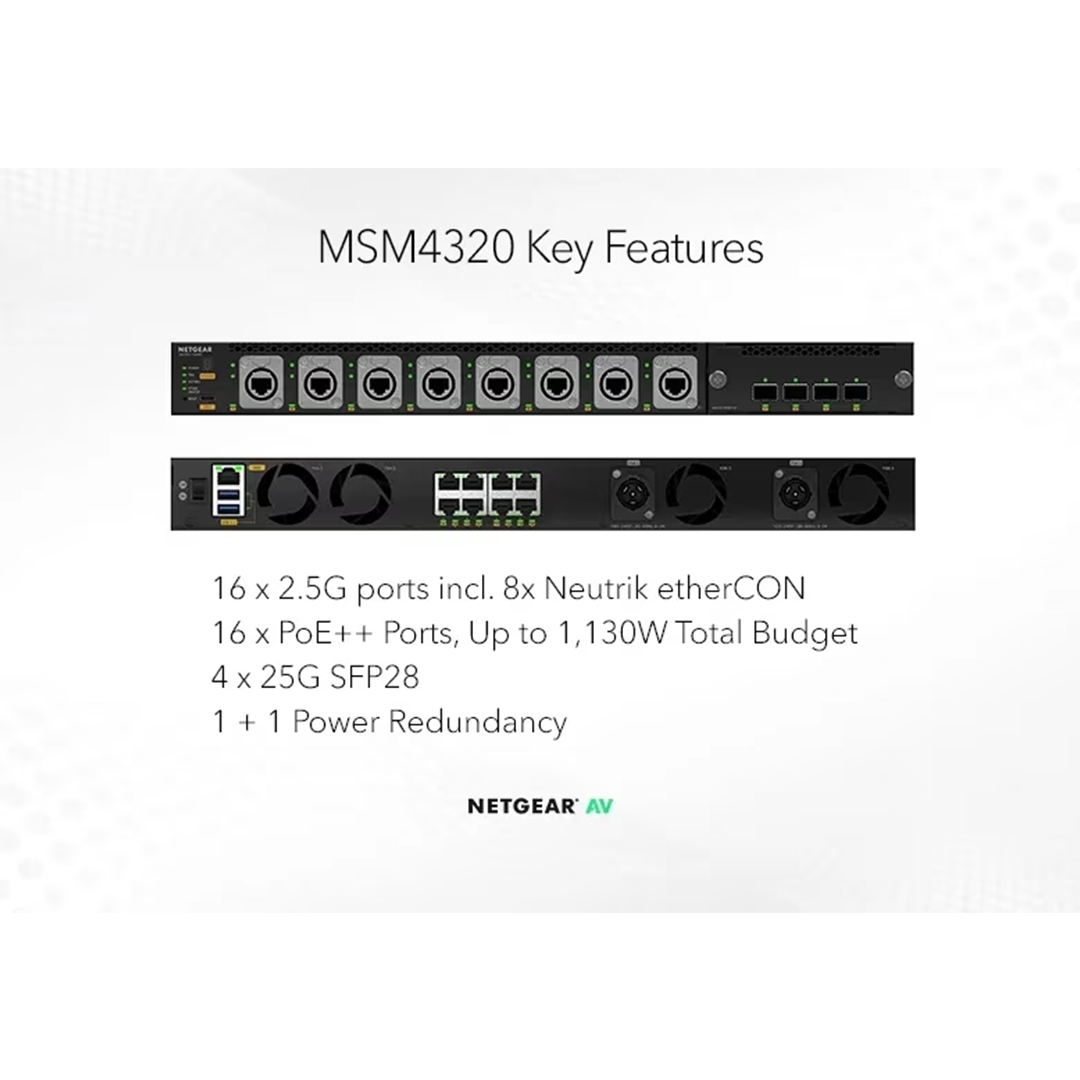

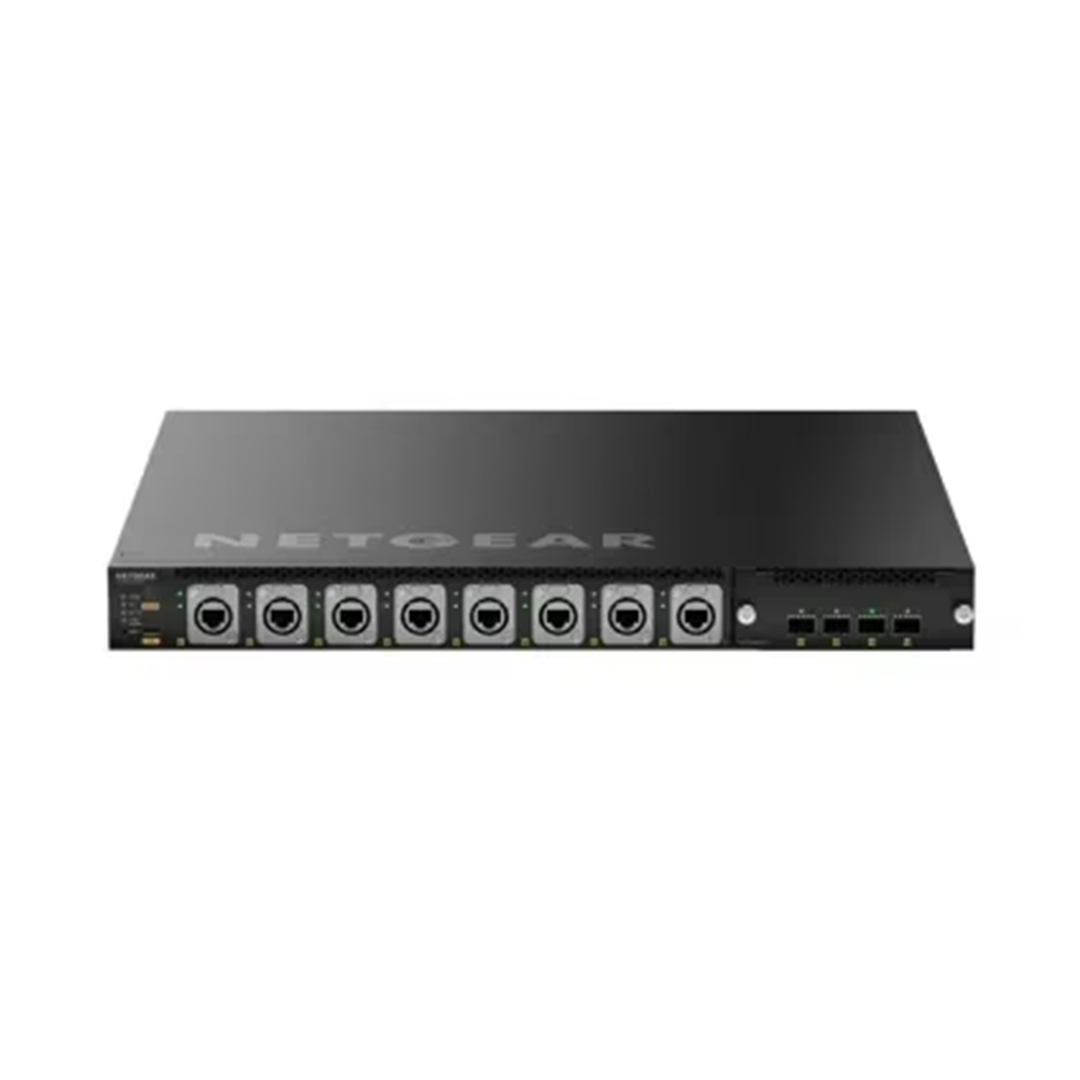

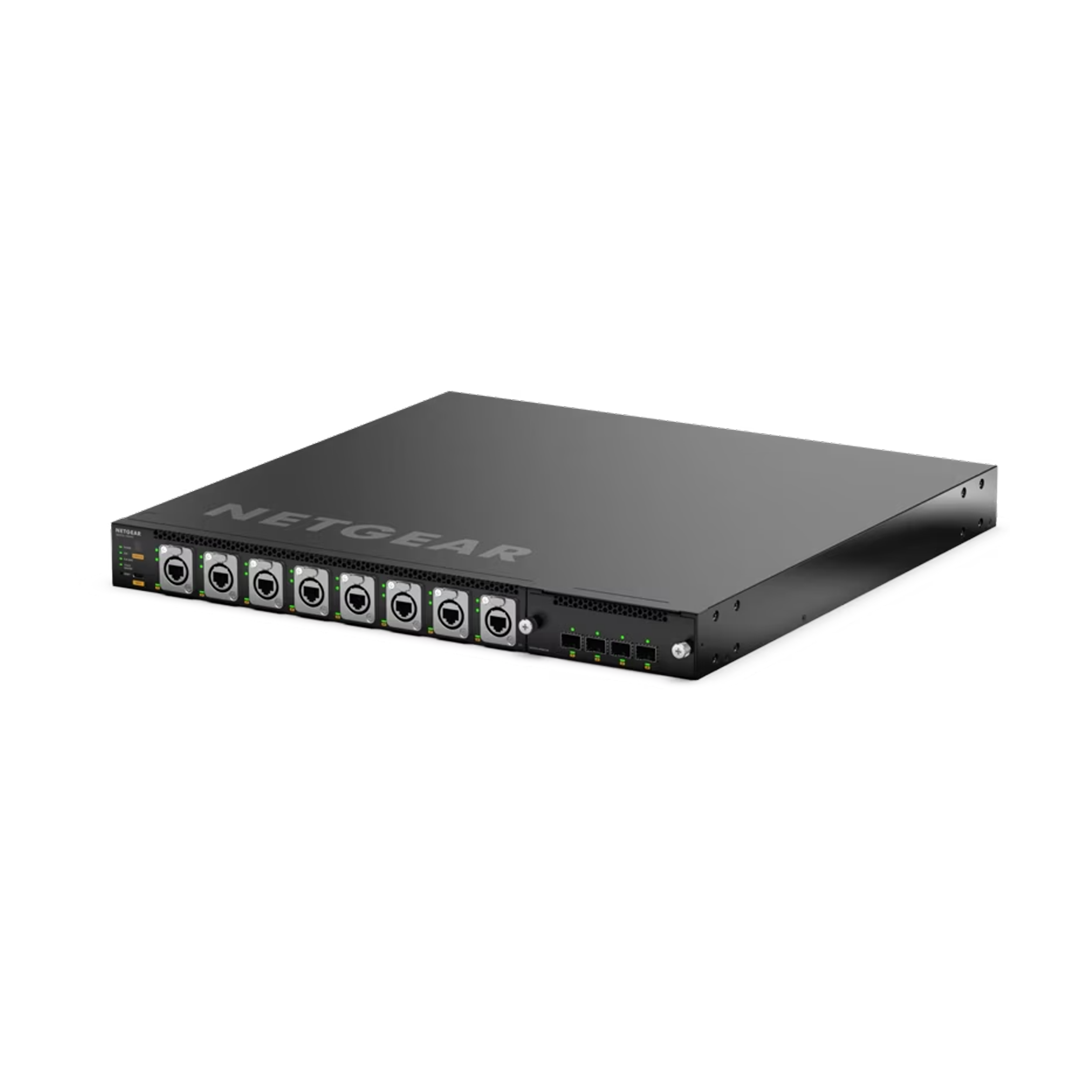

Port Configuration:

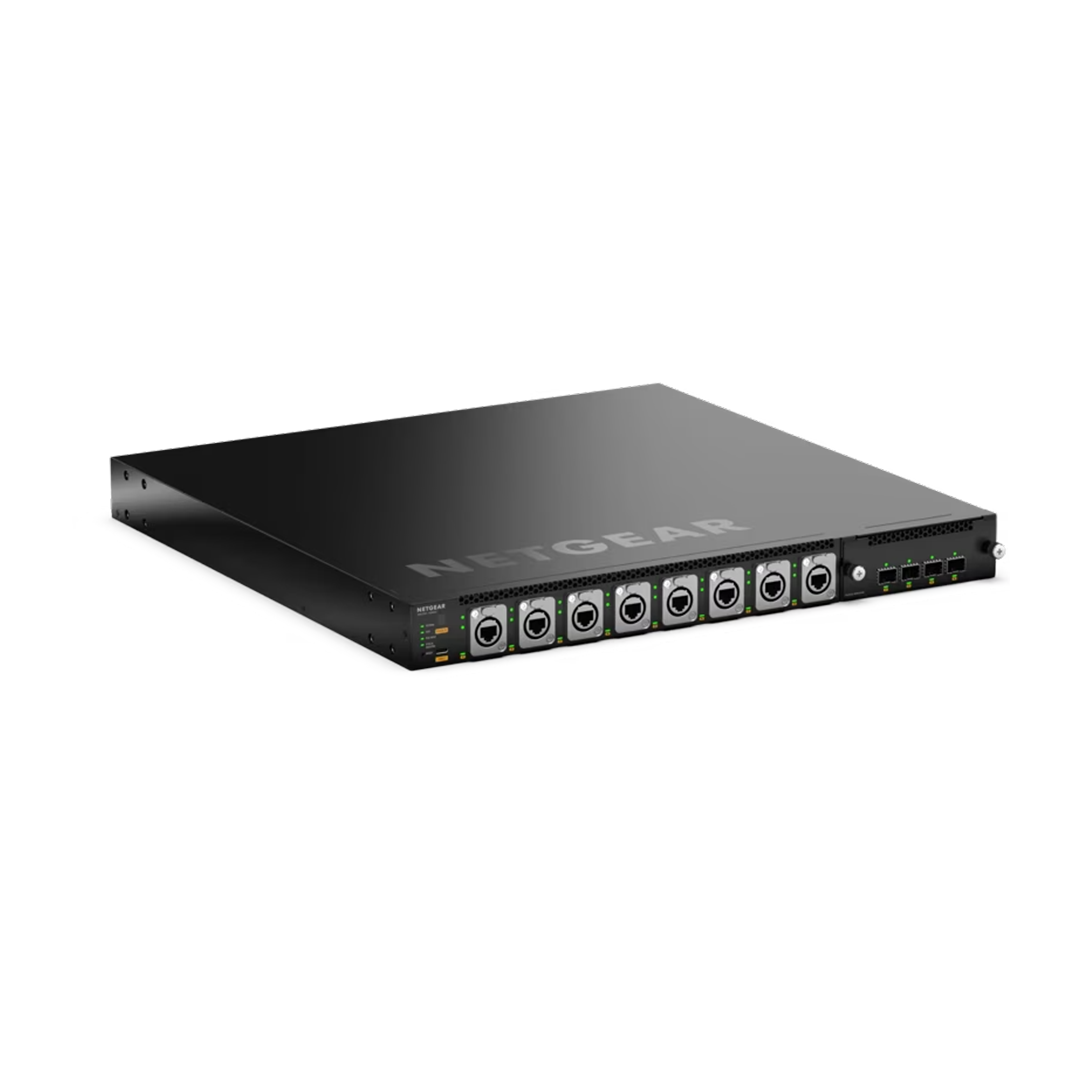

• 16 × 2.5G PoE++ (including 8 × Neutrik etherCON)

• 4 × 25G SFP28 uplinks


PoE Budget:

• Total: Up to 1,130W

• Redundant Base Budget (1+1): 530W


Hardware & Design:

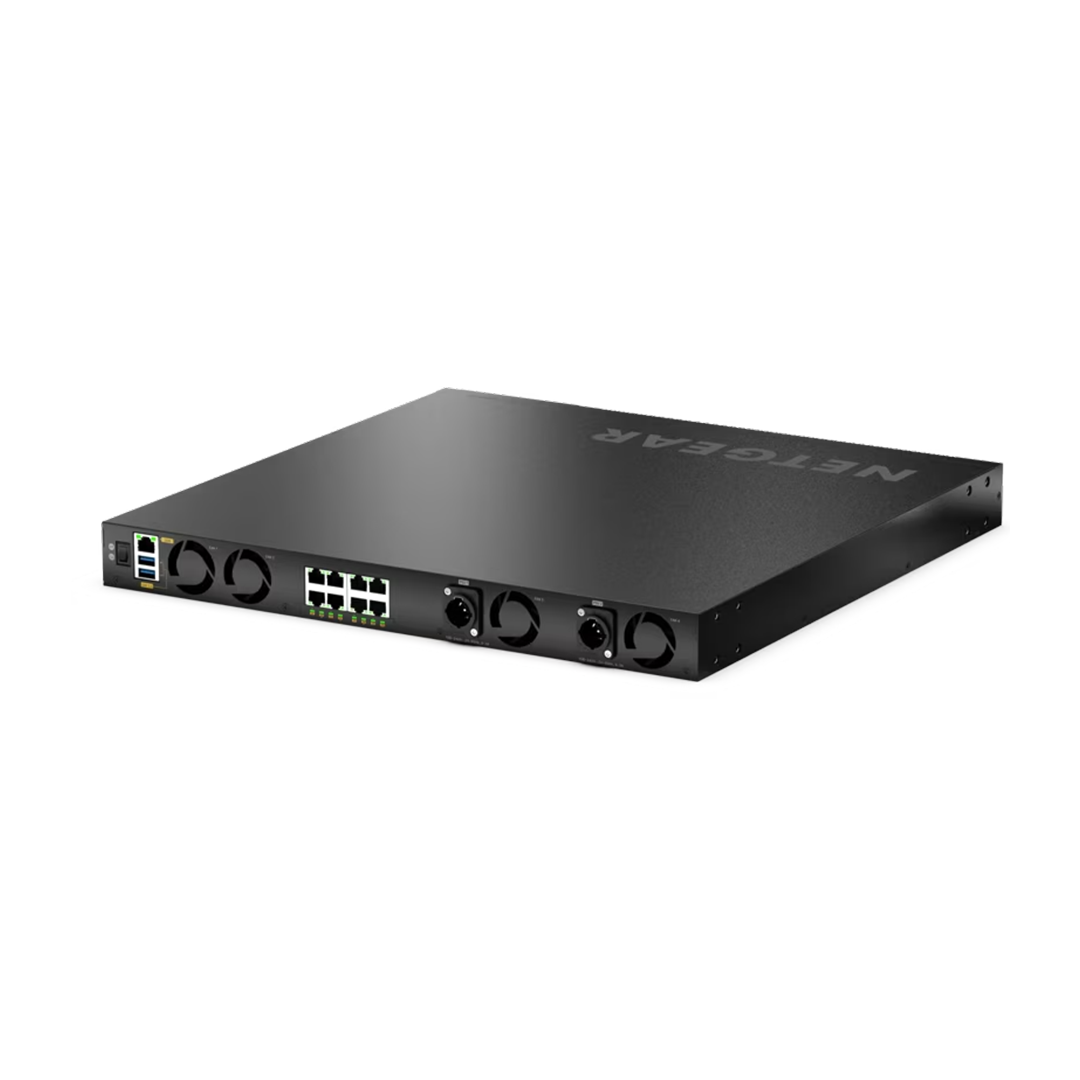

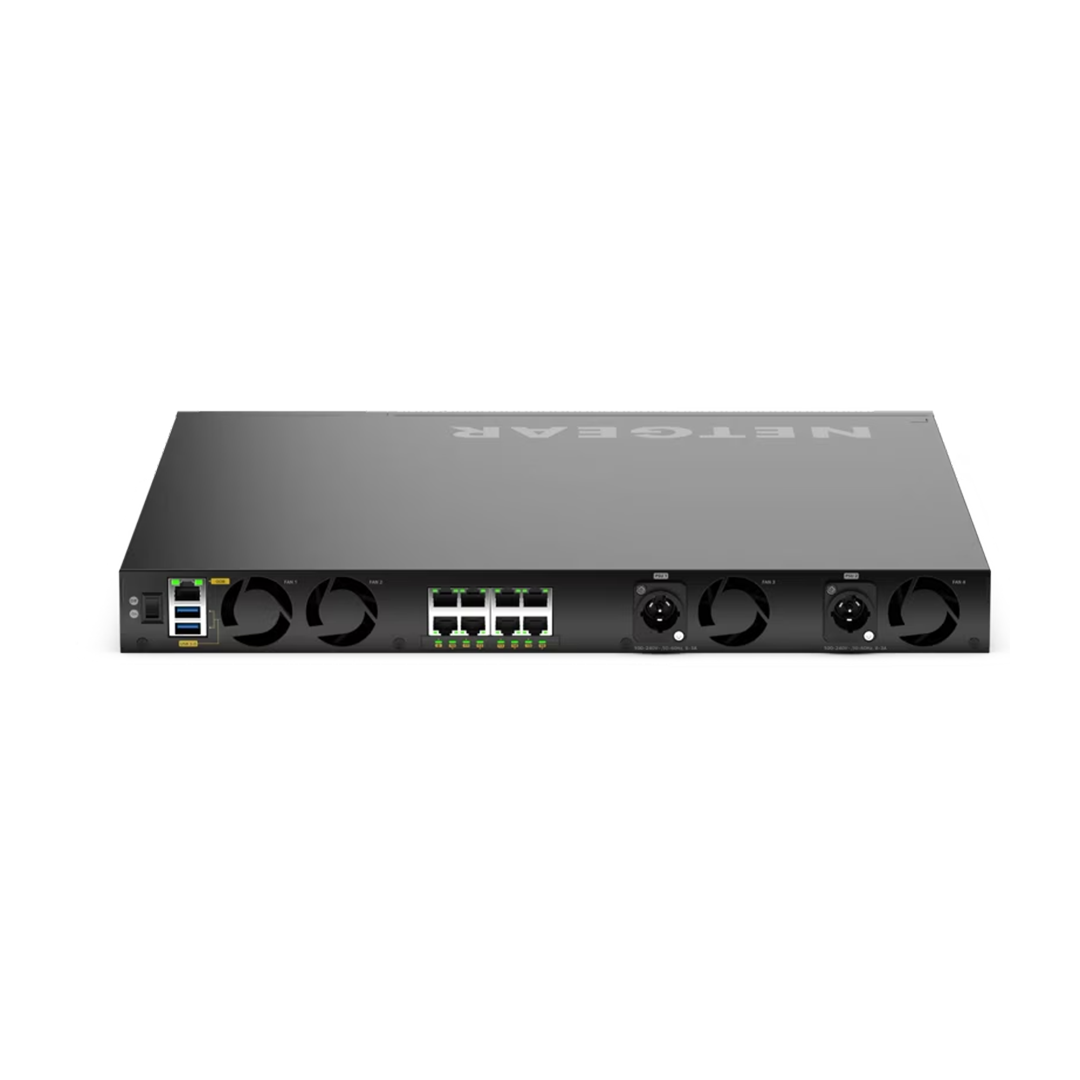

• Dual internal 800W PSUs with Neutrik powerCON connectors

• Ships with APM414V interface card (4 × 25G SFP28)

• Dimensions: 440mm (W) × 432mm (D) × 43.2mm (H)

• Weight: 7.85 kg (17.31 lb)


Optional Interface Cards:

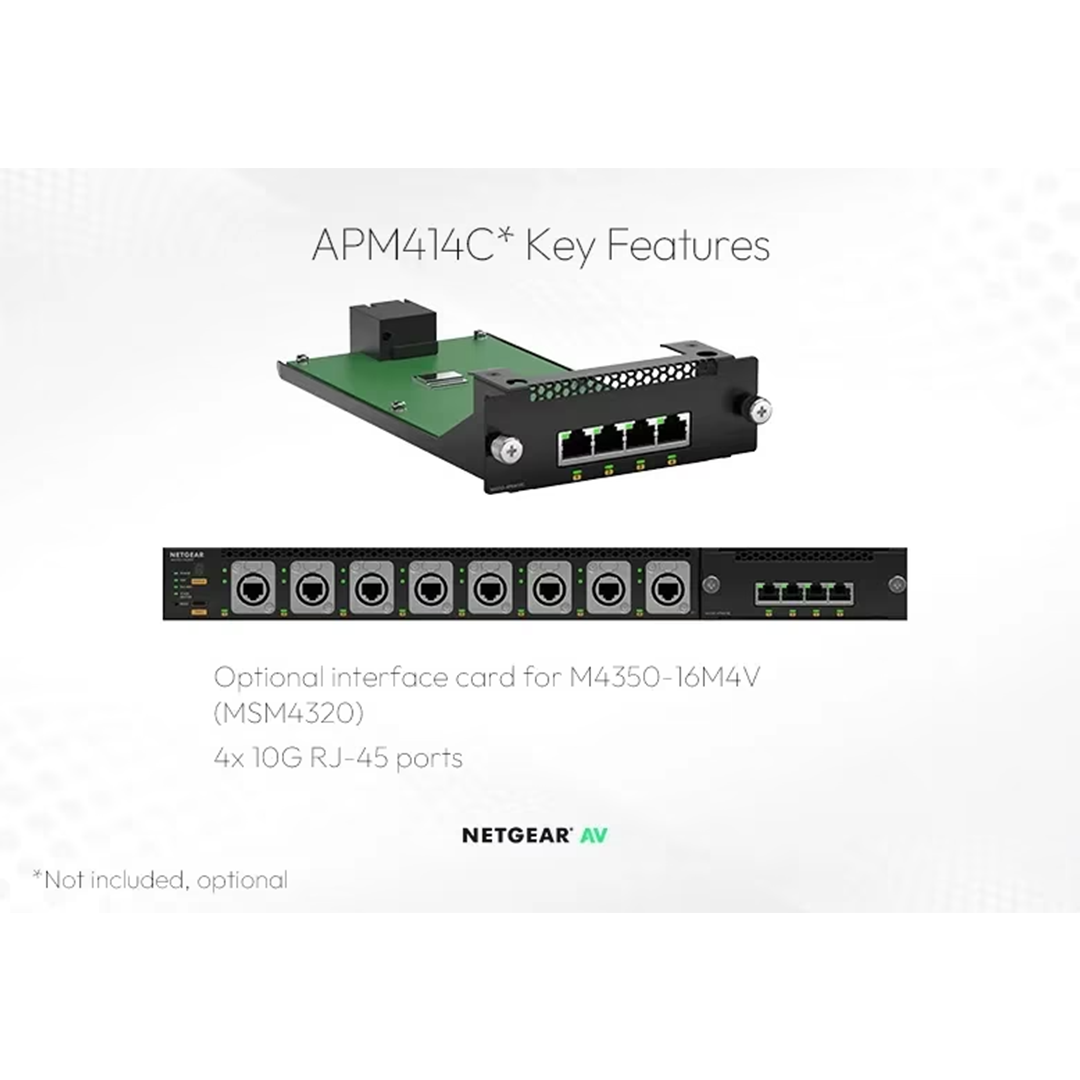

• APM414C: 4 × 10G RJ45

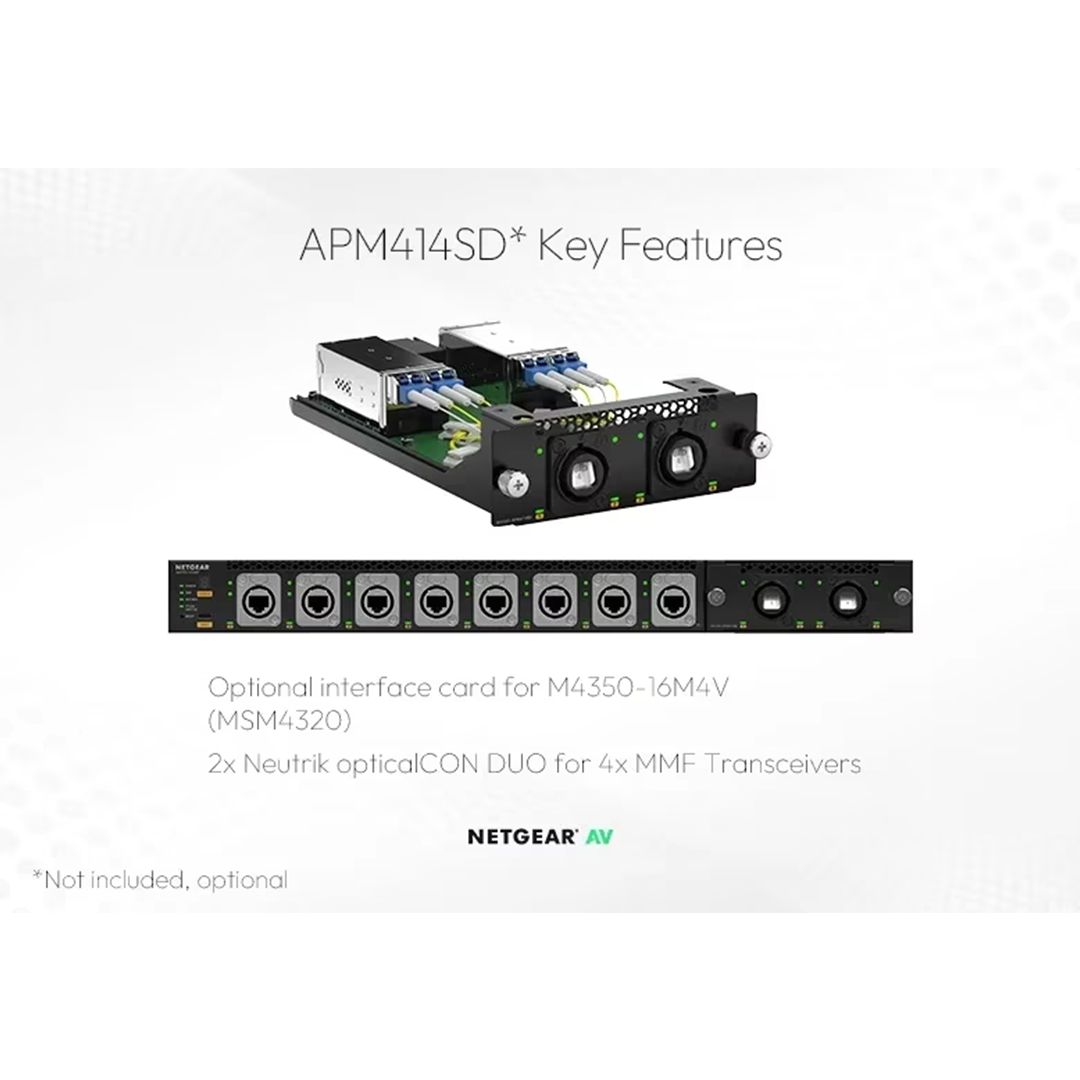

• APM414SD: 2 × Neutrik opticalCON DUO (MMF)

• APM414LD: 2 × Neutrik opticalCON DUO (SMF)


Performance & Features:

• Virtual Chassis stacking with non-stop forwarding (NSF) & hitless failover

• Layer 3 support: static, policy-based, and dynamic routing

• NETGEAR IGMP Plus™, AV OS™, and Engage™ Controller for rapid AV deployment

• SMPTE ST 2110 Grandmaster & Boundary Clock (AES67 / ST2059-2 support)

• Multi-color LED port identification via AV OS™

• Jumbo Frame Support: Yes, up to 12 KB

• AVB Support: Yes, included


Acoustics:

• Quiet Mode: 35.6 dB @ 25ºC


Power Consumption:

• With Max PoE: 1359.8W / 4,639.64 Btu/hr

• Without PoE: 109.6W / 373.96 Btu/hr

• Standby (no port connection): 50.6W / 170.60 Btu/hr


Power Supply:

• Internal only

• 2 × 800W internal PSUs (included)


Warranty:

• NETGEAR ProSAFE® Limited Lifetime Hardware Warranty

• Lifetime Next Business Day Hardware Replacement
