Key Features

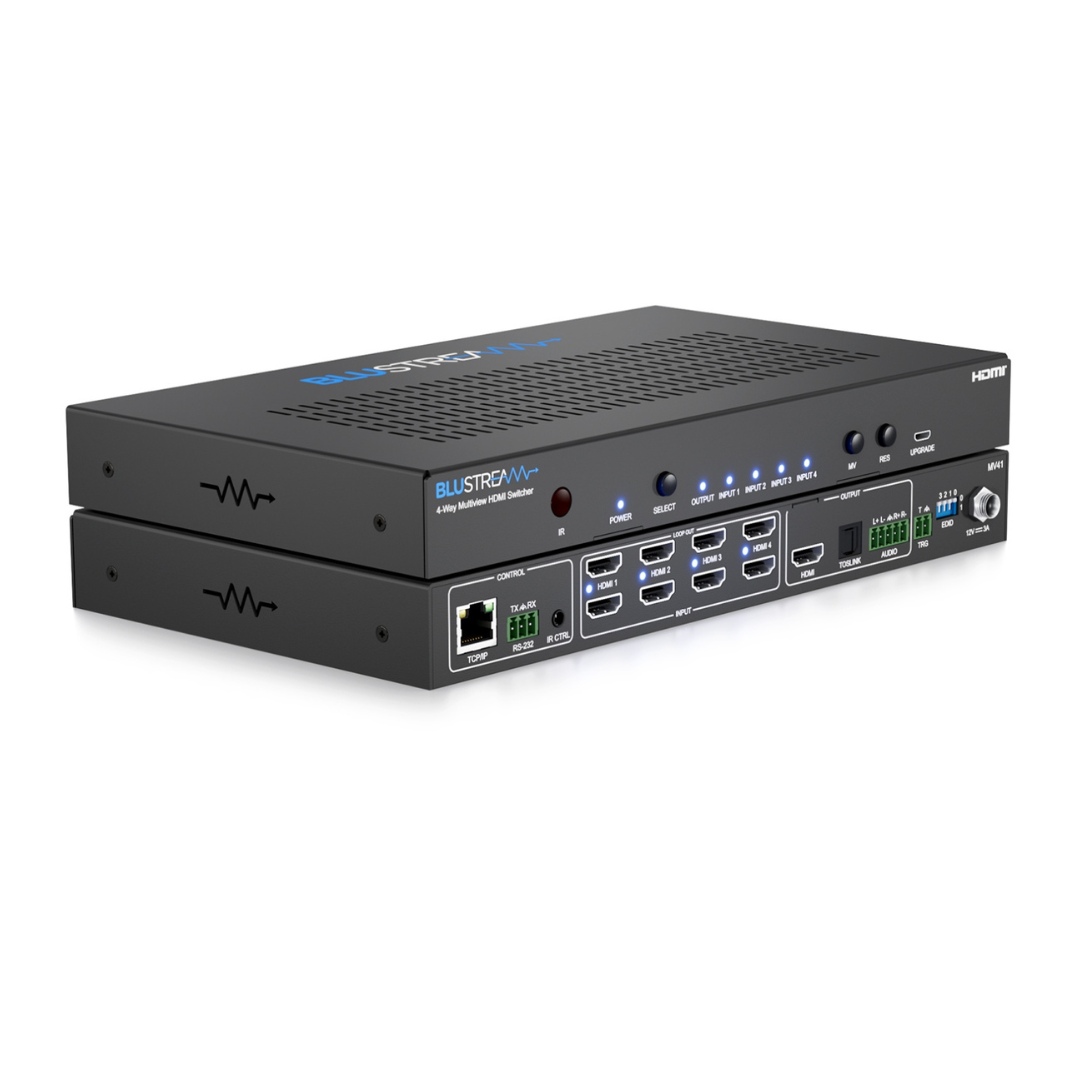

• Advanced 4x HDMI input switch with multi-view HDMI output
• Features 4x HDMI loop out for integrating local displays or cascading to multiple devices
• Supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts with pre-defined and customisable configurations
• Supports video down-scaling and HDR to SDR conversion on HDMI multiview output
• Supports HDMI2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio, and optical digital outputs concurrently
• Analogue L/R audio outputs support both balanced and unbalanced audio signals
• Control via front panel, IR, RS-232, TCP/IP, web-GUI and 12V trigger
• Supplied with Blustream 5V IR receiver and remote control
• 3rd party drivers available for all major control brands
• HDCP2.3 compliant with advanced EDID management

Specifications

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female
• Video Output Connectors: 5 x HDMI Type A, 19-pin, female
• Audio Output Connectors: 1 x Optical (S/PDIF), 1 x 5-pin Phoenix connector
• TCP/IP Control: 1 x RJ45, female
• RS-232 Port: 1 x 3-pin Phoenix connector
• 12V Trigger Port: 1 x 2-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• Firmware Upgrade: 1 x Micro-USB UART port
• Dimensions (W x D x H): 265mm x 152mm x 30mm
• Shipping Weight: 1.5kg • Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
• Power Supply: 12V/3A DC, screw connector
