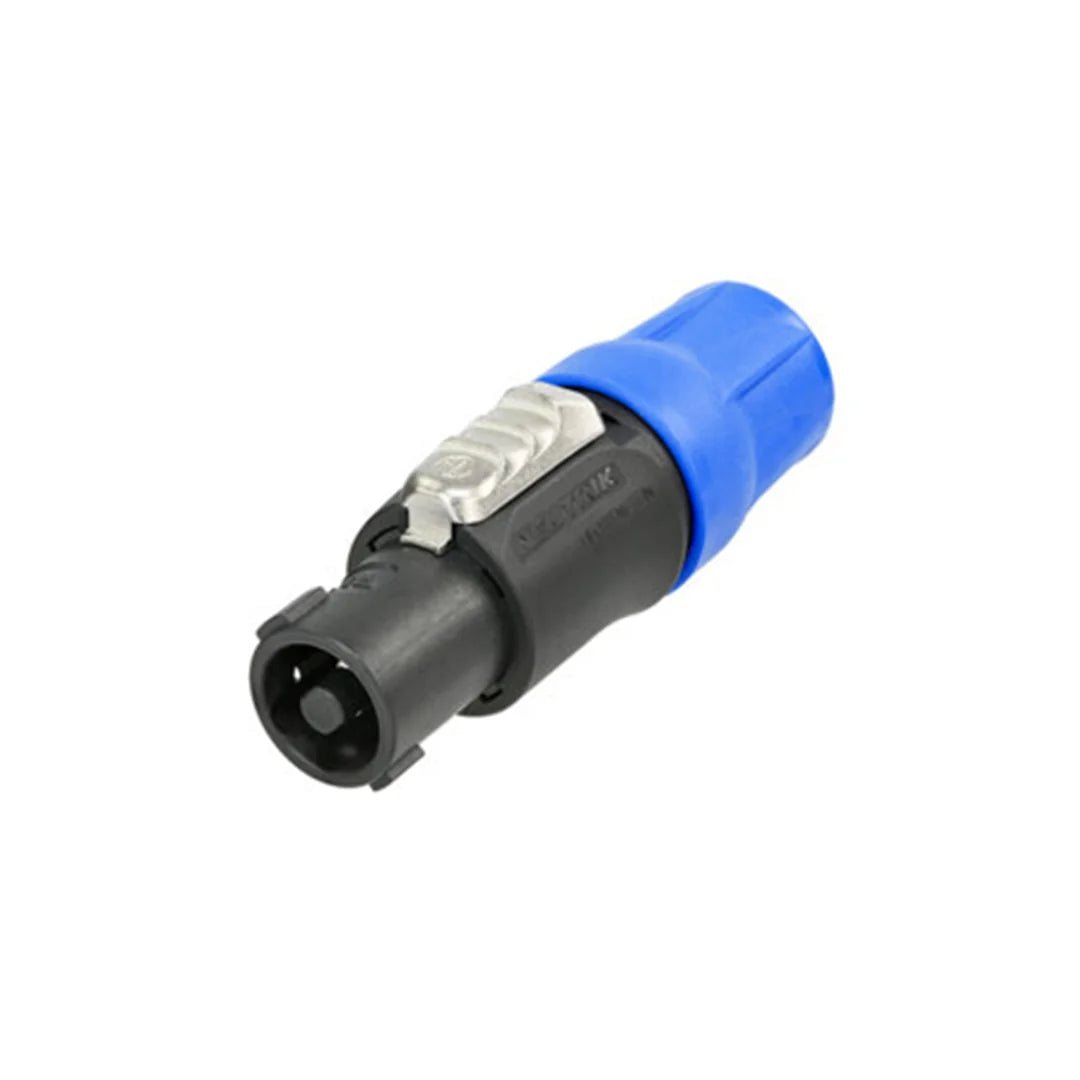

ProductTitle: NL4FCTitle: SpeakON FemaleConnection Type: SpeakONGender: Female

ElectricalContact resistance: ≤ 3 mΩ (after lifetime)Dielectric strength: 4 kVdc (peak)Insulation resistance: > 1 GΩ (after damp heat)Rated current per contact: 30 A rms continuousRated current per contact: 40 A audio signal, duty cycle 50%Rated voltage: 250 V ACAttention: SpeakON is NOT to be used as an AC mains or power supply connector

MechanicalCable O.D.: 6 – 15 mmCable retention: ≥ 220 N (subject to cable O.D. and material)Lifetime: > 5000 mating cyclesWire size: 4 mm²Wire size (AWG): 12 AWGWiring: Screw terminals or solderingLocking device: Quick Lock (latch)

MaterialContact plating: 4 µm AgContacts: Brass (CuZn39Pb3)Insert: PBTP 20% GRLocking element: Zinc diecast (ZnAl4Cu1)Shell: Polyamide (PA 6 30% GR)Strain relief: Polyacetal (POM)

EnvironmentalFlammability: UL 94 V-0Solderability: Complies with IEC 68-2-20Temperature range: -30 °C to +80 °C
