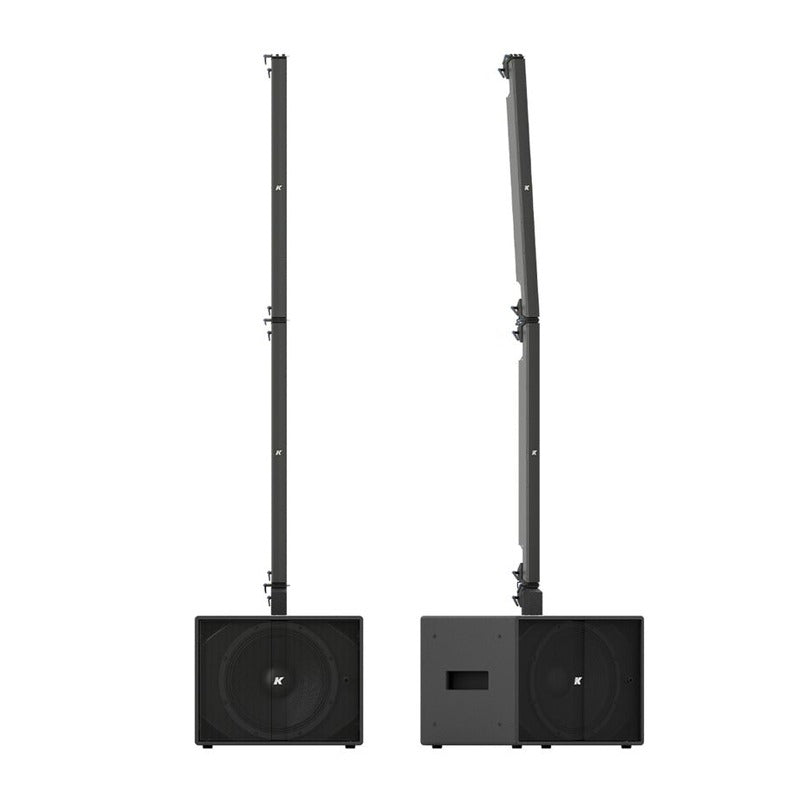

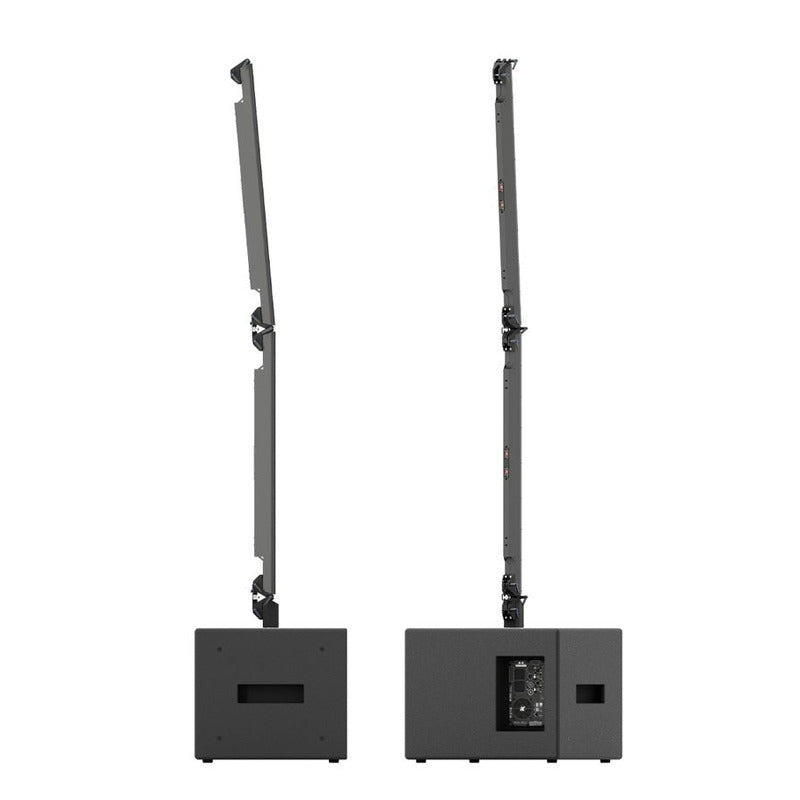

The Pinnacle-KR202 II is composed of:

• 1xThunder-KS2 Iself-powered subwoofer
• 1xThunder-KS2P Ipassive subwoofer
• 4xKobra-KK102 Ipure 2" line array column
• 4x K-JOINT3
• 2x K-FOOT3

The self-powered Thunder-KS2 I subwoofers withDSPare designed to be the core devices in the sound reinforcement system: the dedicatedK-array Connectmobile appprovides a user-friendly interface for the remote control, the DSP parameters and to boost the system performance.

K-framework3is themanaging and control softwarededicated to professionals and operators looking for a powerful tool for designing and managing a large number of units over a wired LAN in demanding applications.

Technical Specifications:

KOBRA-KK102 I

GENERAL

• Type: Line array
• Transducers: 16 x 2" neodymium magnet woofers
• Frequency Response: 150 Hz - 18 kHz (-6 dB) (1)
• Max SPL: 126 dB (peak) (2)
• Rated Power: 400 W
• Coverage: V. 7° - 35° | H. 120°
• Connectors: SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
• Nominal Impedance: 8 Ω / 32 Ω selectable

HANDLING AND FINISHES

• Dimensions (W x H x D): 59 x 1000 x 81 mm (2.3 x 39.4 x 3.2 in)
• Weight: 4.8 kg (10.6 lb)
• Material: Stainless Steel
• Colors: Black, White, Custom RAL
• Finishes: 24K Gold, Polished, Brushed

REGULATIONS

• IP Rating: IP64 (3)
• EN54-24: EN 54-24:2008 compliant

THUNDER-KS2 I

GENERAL

• Type: Active subwoofer
• Transducers: 18" neodymium magnet woofer
• Frequency Response: 35 Hz - 150/450 Hz (-6 dB) crossover dependant (1)
• Crossover: DSP-controlled, Low Pass @ 150 Hz, preset dependant
• Max SPL: 137 dB (2)
• Coverage: Omni
• Coverage:Line Input: 2x XLR-F analog / AES3Line Output: 2x XLR-M Link analog / AES3Speaker Output: 2x SpeakON NL4Mains: powerCON TRUE1 TOPNetworking and Data: 1x RJ45 | 4x USB-A
• Nominal Impedance: 8ohm subwoofer
• Controllers: Wi-Fi dedicated Mobile APP | K-framework3 via wired Ethernet connection

HANDLING AND FINISHES

• Dimensions (W x H x D): 650 x 500 x 580 mm (25.6 x 19.7 x 22.8 in) (3)
• Weight: 37,6 kg (82.9 lb)
• Material: Polyurea coated birch plywood
• Colors: Black/White/Custom RAL

REGULATIONS

• IP Rating: IP53 (4)

AMPLIFIER

• Amp Module: 4-ch Class D
• Output Power: 4 x 1500W @ 4ohm (5)
• Power Consumption: 600 W @ 8 Ω load, Pink noise, 1/4 rated power

THUNDER-KS2P I

GENERAL

• Type: Passive subwoofer
• Transducers: 18" neodymium magnet woofer
• Frequency Response: 35 Hz - 150/450 Hz (-6 dB) crossover dependant (1)
• Crossover: External DSP-controlled, Low Pass @ 150 Hz up to 450 Hz, preset dependant
• Max SPL: 137 dB (2)
• Rated Power: 1400W peak
• Coverage: Omni
• Coverage: 2 x Speakon NL4
• Nominal Impedance: 8ohm

HANDLING AND FINISHES

• Dimensions (W x H x D): 650 x 500 x 580 mm (25.6 x 19.7 x 22.8 in) (3)
• Weight: 34 kg (75 lb)
• Material: Polyurea coated birch plywood
• Colors: Black/White/Custom RAL

REGULATIONS

• IP Rating: IP54 (4)
