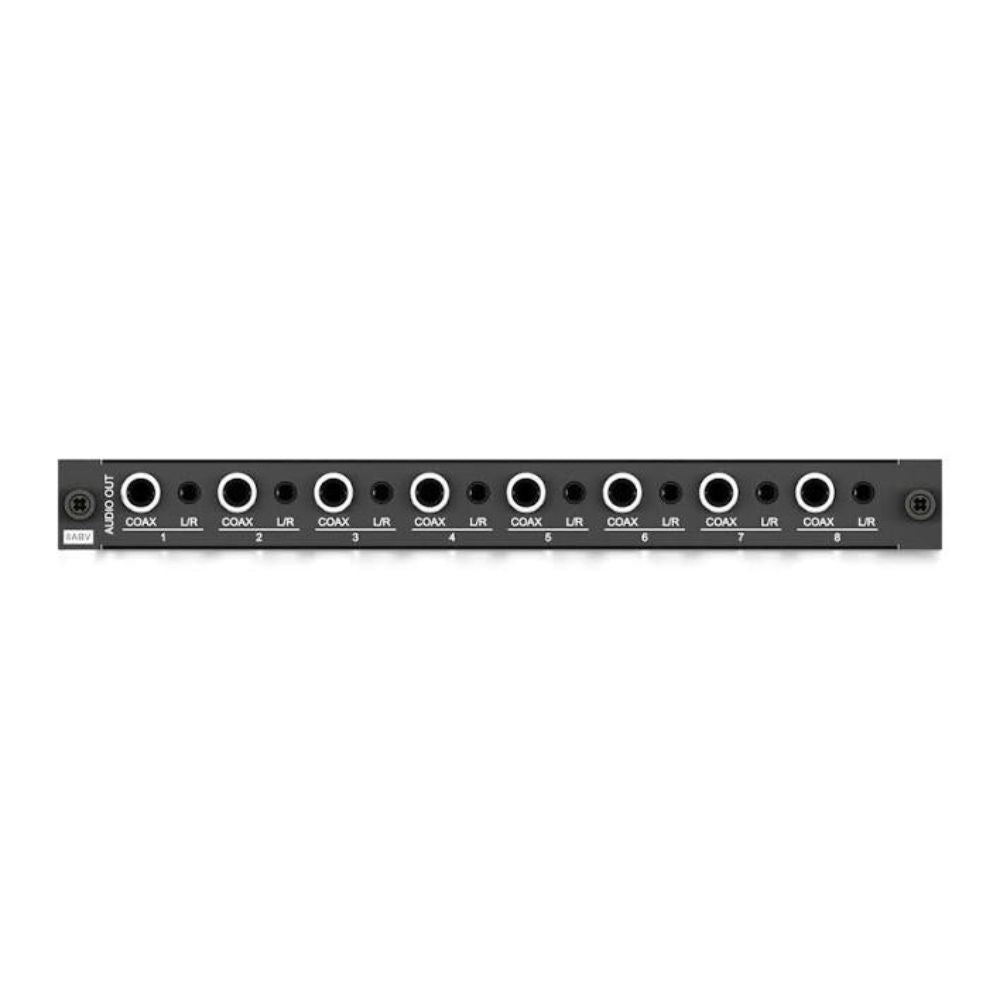

PRO-8ABV - 8 Dual Output Audio Breakout Board With Variable Line Level Control

Name: PRO-8ABV - 8 Dual Output Audio Breakout Board With Variable Line Level Control
Brand: Blustream
SKU: PRO-8ABV

Brand: Blustream

Categories: HDBaseT™ Matrix, Video Signal Distribution

SKU: PRO-8ABV

Dhs.589.01 excl. VAT

The PRO-8ABV audio breakout board offers 8 x simultaneous coaxial digital and variable line level analogue L/R audio outputs and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Product variants

Available

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Pairs well with

Technical Specifications

Description

• Features 8 x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analogue L/R audio outputs
• Analogue audio outputs include variable line level control (supports 2ch PCM)
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• Audio Output Connectors: 8 x RCA (S/PDIF), 8 x Analogue Left / Right audio (3.5mm stereo jack)
• Card Dimensions (W x H x D): 182mm x 22mm x 177mm
• Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
