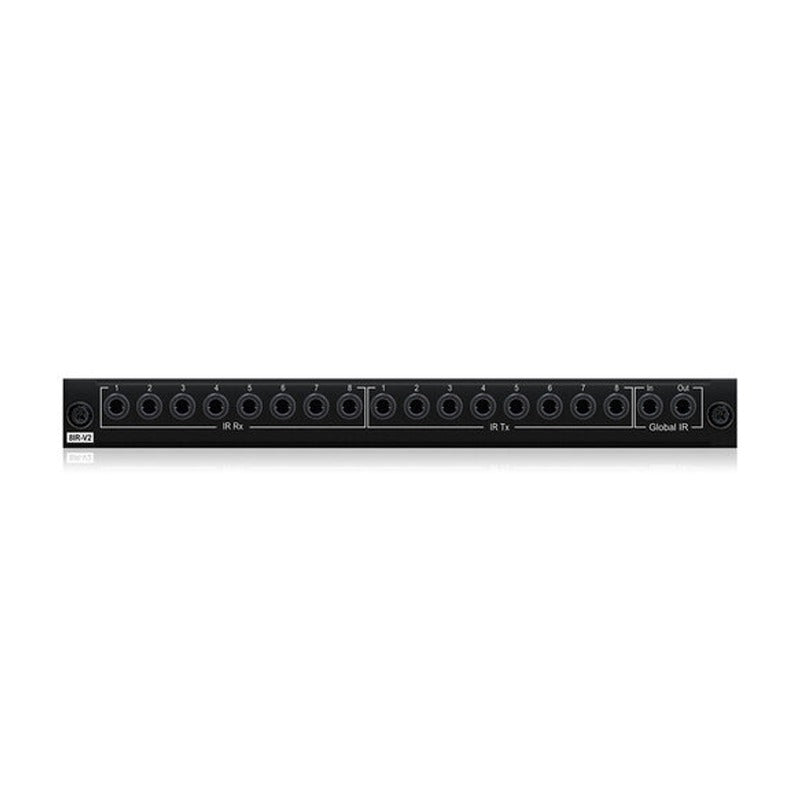

PRO-8IR-V2 - Bi-Directional 5V/12V IR Control Board

Name: PRO-8IR-V2 - Bi-Directional 5V/12V IR Control Board
Brand: Blustream
SKU: PRO-8IR-V2
Price: 548.48 AED
Availability: InStock

Dhs.548.48

Brand: Blustream

Categories: Cables & Connectors, Video Signal Distribution

SKU: PRO-8IR-V2

The PRO-8IR-V2 IR routing board offers selectable 5V or 12V IR distribution with 8 x IR outputs for routed control of local source hardware and 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers. The PRO-8IR-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Product variants

Available

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Need Help:

Pairs well with

PRO-8IR-V2 - Bi-Directional 5V/12V IR Control Board

Dhs.548.48

Technical Specifications

Description

Key Features

8 x IR outputs for routed control of local source hardware
8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers
Selectable 5V or 12V IR distribution (12V IR requires compatible IR hardware and HDBaseT™ receivers)
Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Specifications

IR Input Ports: 9 x 3.5mm stereo jack
IR Output Ports: 9 x 3.5mm mono jack
Card Dimensions (W x H x D): 202mm x 22mm x 177mm
Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
