Technical Specifications

Description

Key FeaturesΒ

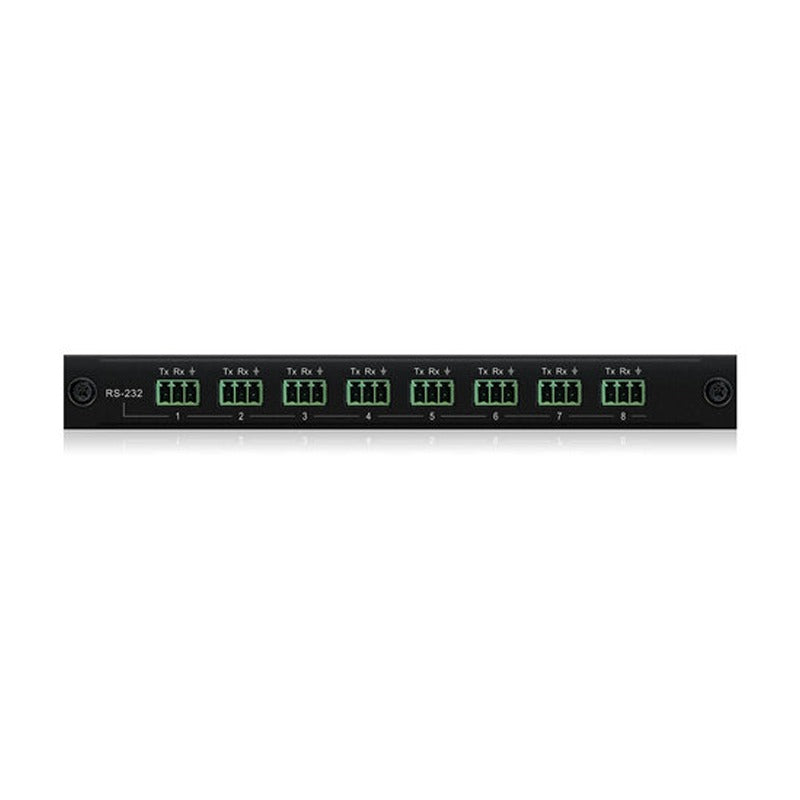

  • Features 8 x Bi-directional RS-232 ports for serial communication to corresponding Blustream HDBaseTβ„’ zone receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Specifications

  • RS-232 serial ports: 8 x 3-Pin Phoenix connector
  • Card Dimensions (W x H x D): 190mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32Β°F to 104Β°F (0Β°C to 40Β°C)
  • Storage Temperature : -4Β°F to 140Β°F (-20Β°C to 60Β°C)
