Key Features

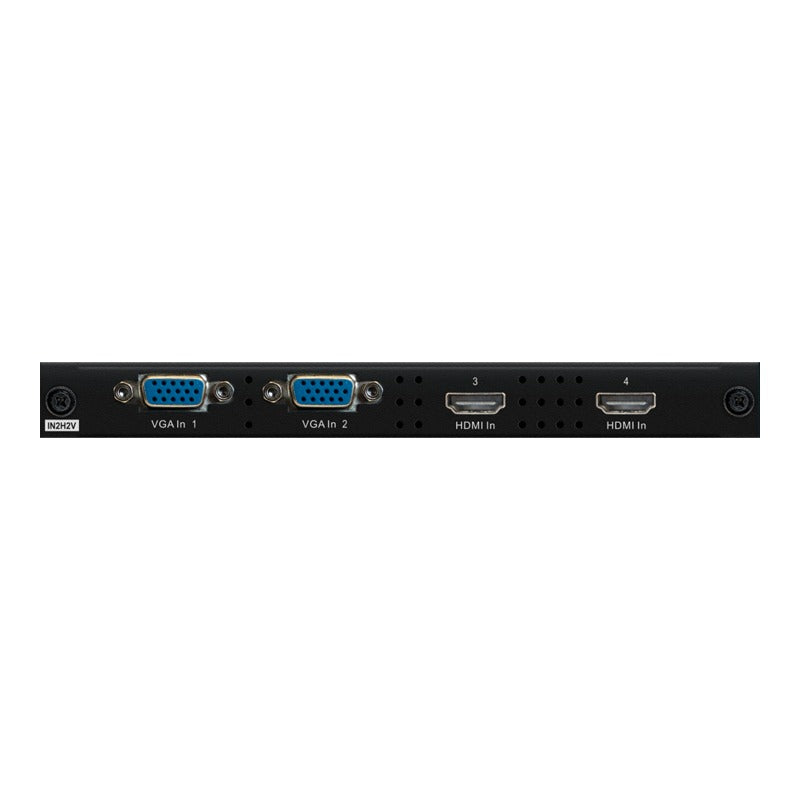

• Features 2x HDMI and 2x VGA inputs which can be independently routed to video output cards
• Supports up to 4K UHD video (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• HDCP2.2 Support

Specifications

• Video Input Connectors:2x HDMI Type A, 19-pin, female, 2x VGA
• Card Dimensions (W x H x D):170mm x 22mm x 182mm
• Dimensions Including Connections (W x H x D):190mm x 22mm x 188mm
• Shipping Weight:5kg
• Operating Temperature:32°F to 104°F (0°C to 40°C)
• Storage Temperature :-4°F to 140°F (-20°C to 60°C)
