Key Features

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Supports 4K UHD video up to 40m @ 4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Control of Matrix via front panel, RS-232, TCP/IP and Web GUI
• Features 8 x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analogue L/R audio outputs
• 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers
• Quick release card module fittings allowing simple population of input and output cards
• Supports PoC (Power over Cable) when used with compatible HDBaseT™ input / output cards
• Web interface module for control and configuration of matrix
• 3rd Party drivers available for all major home control brands
• Advanced EDID management
• HDCP 2.2 compliant

Specifications

• Rack Mountable: 2U rack height, rack ears included
• Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
• Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 24V/6A DC

Box Contents

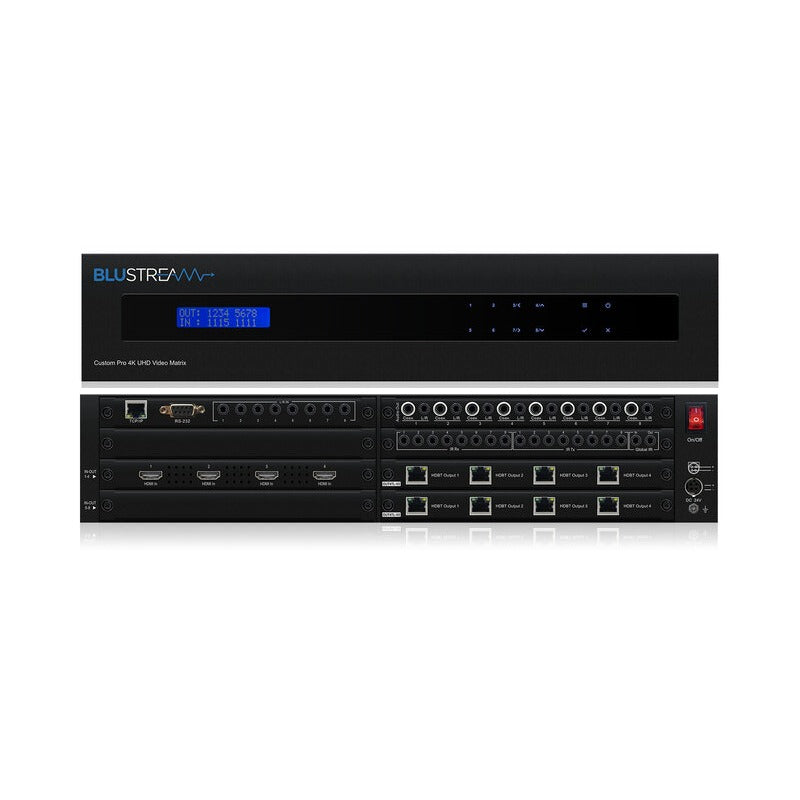

• 1 x PRO48HBT70 Matrix
• 1 x 24V/6A Power Supply
• 1 x Remote Control
• 1 x Rack Mounting Kit
• 1 x Quick Reference Guide
