High-performance

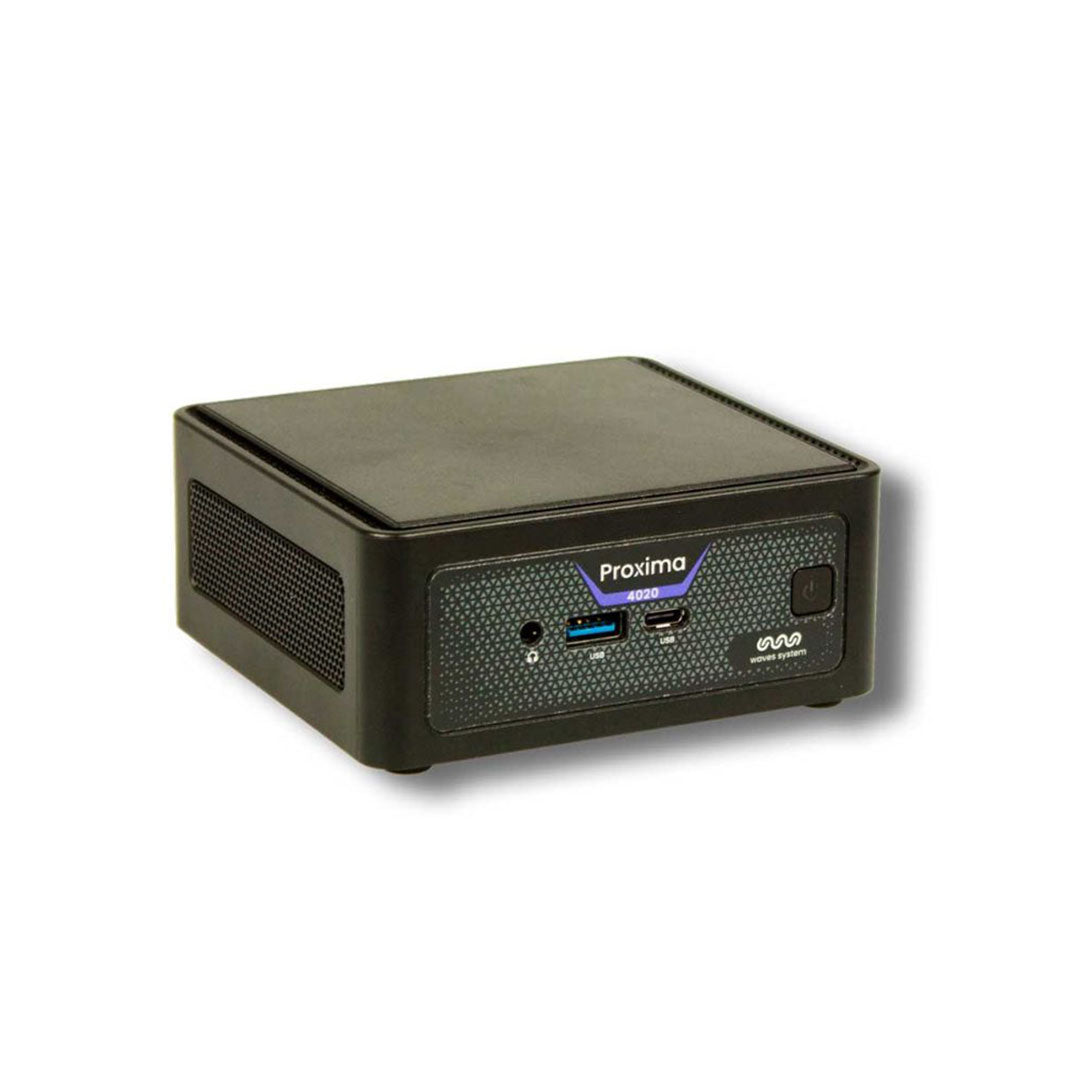

The Proxima 4020 media server is equipped with the most intuitive composer on the market. Connect to the composer from your remote office and easily create a video projection with 2 video projectors. Soft-edge and synchro frame deliver exceptional results. The composer also includes a 15×15 warping grid to conform the video to a 3D structure. The NDI input allows you to import outputs from other machines, such as generative and interactive video engines. Perfect loops and fade transitions ensure broadcast continuity.
Integrated with other systems
The OSC API lets you wake up or put the server to sleep, as well as launching pre-recorded sequences.
Compact
The compact format of the Proxima 4020 media server is ideal for small installations.
Reliable and easy to install
The Proxima 4020 media server is designed for 24/7 operation. It is robust against power cuts. The Linux OS is mastered, and updates are at the customer’s initiative. The product comes with a 3-year warranty.
Proxima 4020 4040 4060
Mapped outputs 2 4 6
Video acquisition card – Optional Optional

Applications

• Museums, theme parks,
  retail outlets, escape games: video mapping installations, object mapping.
• Restaurants: video
  projection on tables.
• Events: product
  launches, music-driven videos.

Specifications

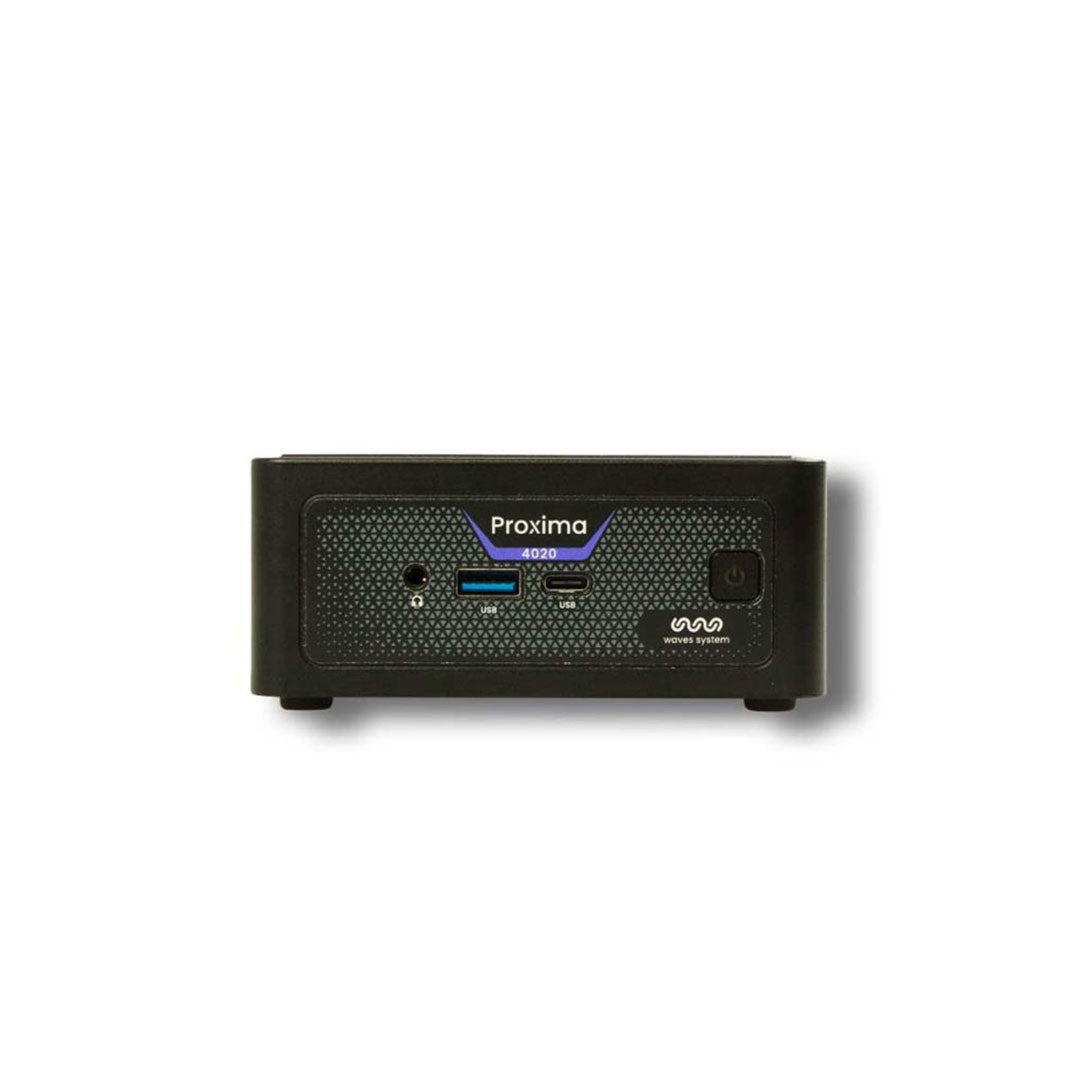

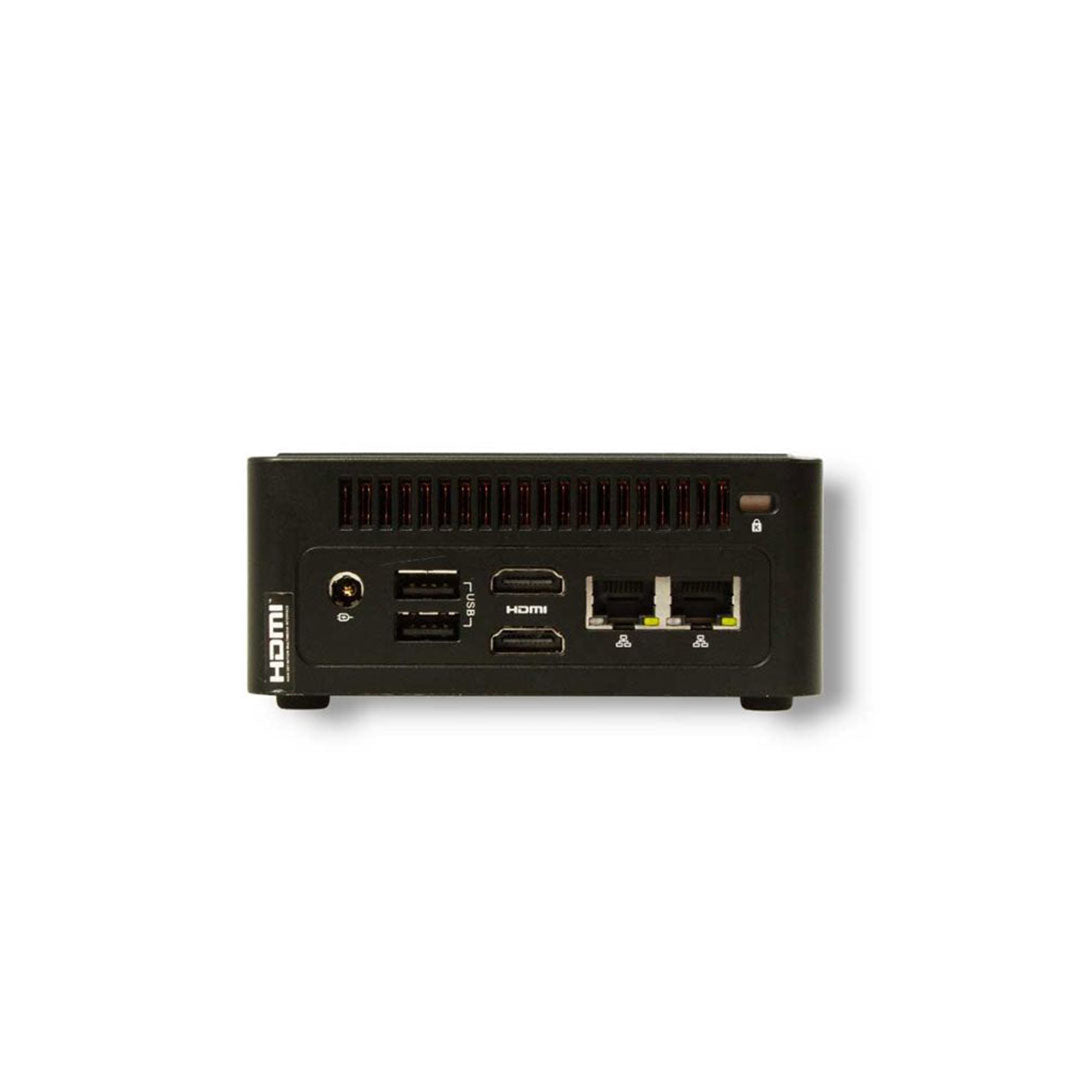

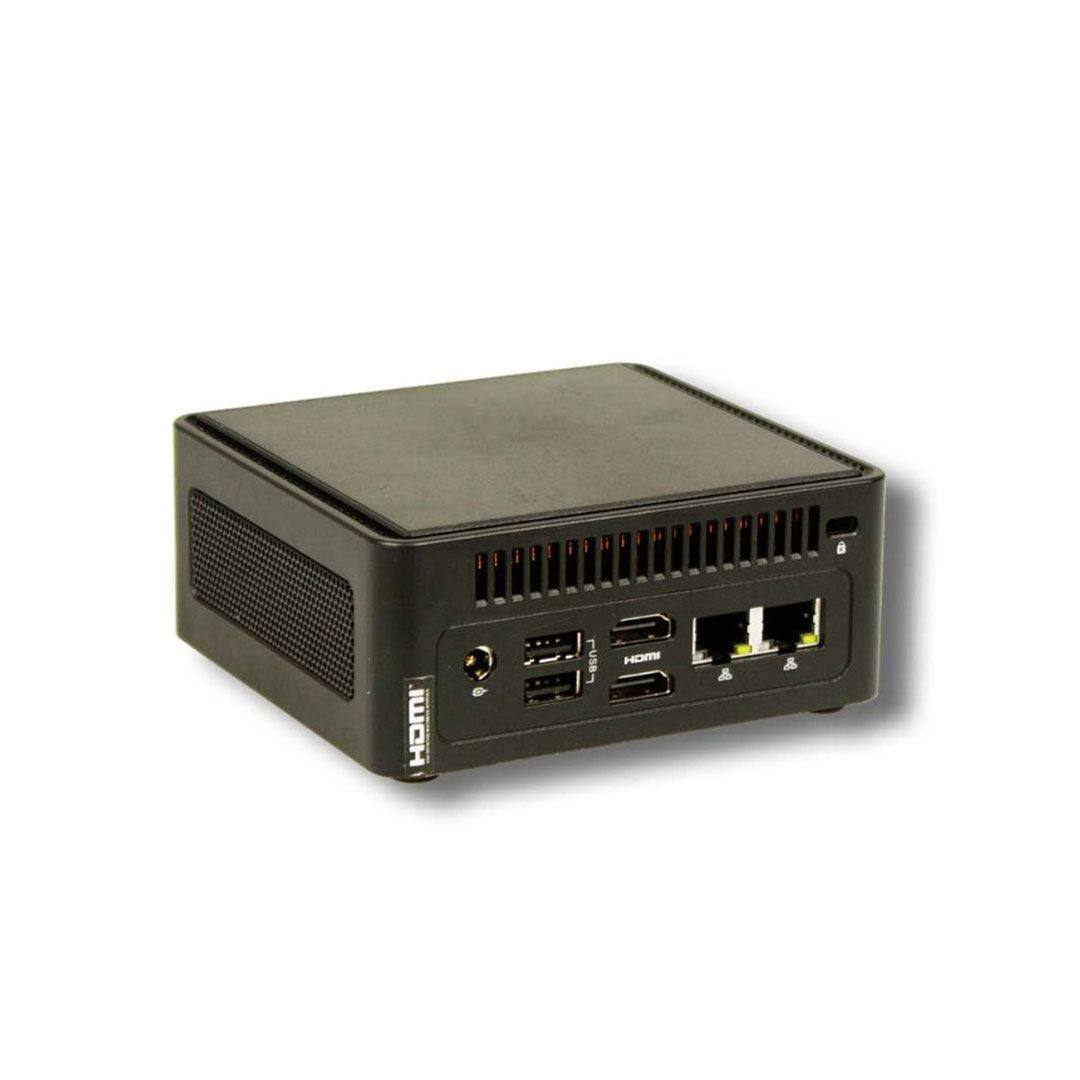

• Interface and connectivity
• 2 HDMI 2.1 video outputs, A-type connector (up to
• 2xWUXGA@60Hz)
• Power switch and clear CMOS buttons
• Stereo audio output on a standard 3.5 mm (TRS) jack
• 2.5 Gbps Ethernet on RJ45 connector with status LEDs (Network, Activity)
• 1 Gbps Ethernet on RJ45 connector with status LEDs (Network, Activity)
• 1 USB Host 4.0 Super Speed (10 Gbps), type-C receptacle
• 1 USB Host 3.2 Gen 2 Super Speed (10 Gbps), type-A receptacle for HID mouse, keyboard and Audio Class 2.0
• 2 USB Host 2.0 High Speed (480 Mbps), type-A receptacle

Video output formats supported

• WUXGA (1920 x 1200), 50/60 Hz
• 1080p (1920 × 1080), 24/50/60 Hz
• 1080i (1920 × 1080), 50/60 Hz
• 720p (1280 × 720), 50/60 Hz
• Dynamic range : HDR10 compatible

Supported media container formats

• Video:
  . mp4 (MPEG-4)
  .mkv (Matroska)
  .mov (QuickTime)
• Image:
  .jpg or .jpeg (Joint Photographic Experts Group) (ISO/IEC-10918)
  .png (Portable Network Graphics)
  .bmp (Bitmap)
• Audio:
  .wav (WAV)
  .mp3 (MPEG-Layer 3)
  .ogg, .opus (OGG)
  .m4a (MPEG-4 Audio)
  .mka (Matroska)

Supported multimedia codecs

• Video :
  H.265 HEVC MP-10@L5.1 up to 4K×2K@60fps
  H.264 AVC HP@L5.1 up to 1080p@60fps and 4K×2K@30fps
  HAP, HAP Alpha, HAP Q
  Motion JPEG
• Image:
  JPEG (ISO/IEC-10918)
  PNG
  BMP
• Audio:
  LPCM: up to 2 channels, 16/24-bit, up to 96kHz
  MP3 : MPEG-1/2 Audio Layer III, mono/stereo, up to 48kHz, CBR (Constant Bit Rate) or VBR (Variable Bit Rate), with or without ID3v1/2 metadata

Storage media

• Internal storage media: 1 TO SSD NVME M. 2
• RAM: 2×8 Go-DIMM DDR5 5600 MHZ

Network

• On-board web server:
  Web administration page: configuration
  OSC API & UDP /OSC server for video control
  HTTP API & Embedded HTTP server for server control
  Wake On Lan
• TCP /IP server for machine shutdown (Q1 ’24)
• On-board NTP client for clock synchronisation
• IPv4 and IPv6
• IPv4 : static addresses or DHCP
• On-board mDNS identification service (Zeroconf)

On-board clock

• Time retention without power supply: up to 2 months

Audio amplifiers

• Headphone output (Maximum output power)
  2 × 15 mW at 32 Ω
  2 × 30 mW at 16 Ω
• THD+N :
  0.014% for 2 × 5 mW, 32 Ω, 1 kHz
  0.016% for 2 × 10 mW, 32 Ω, 1 kHz
  0.022% for 2 × 10 mW, 16 Ω, 1 kHz
  0.028% for 2 × 20 mW, 16 Ω, 1 kHz

Power supply

• Nominal voltage: 100-240 V AC – 50/60 Hz

Current consumption

• Typical power consumption when reading from internal server memory: 3 A

Thermal information

• Operating ambient temperature: 0 to +40 °C
• Storage temperature: -40 to +85 °C

Dimensions

• Width: 117,5 mm
• Height: 47,85 mm
• Depth: 110 mm
• Weight : 572 g
