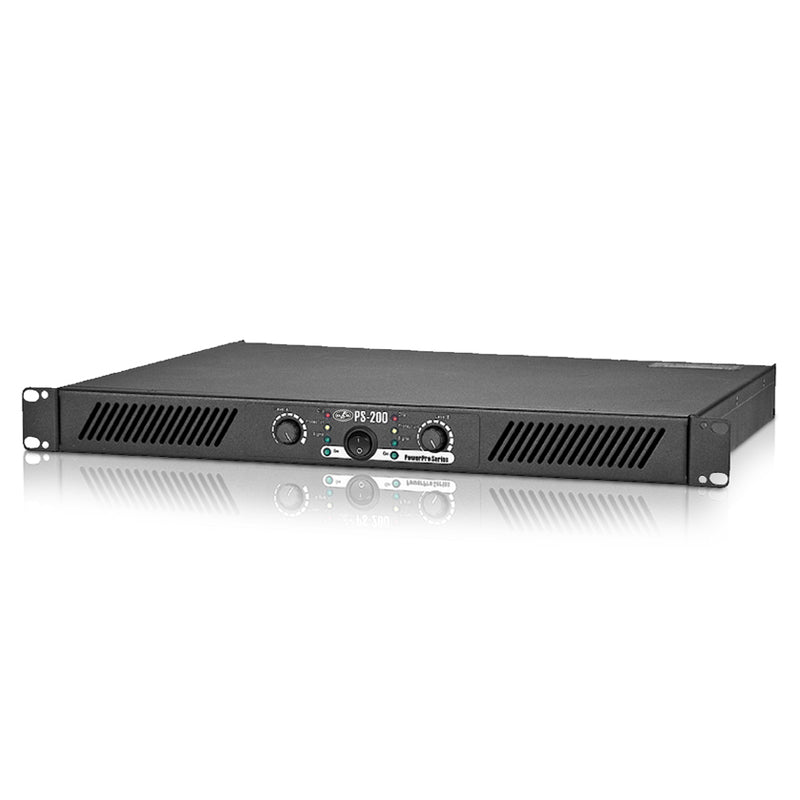

The PS-200 is a stereo amplifier which incorporates a rugged 1 unit all-steel chassis ensuring structural rigidity and protecting components. The low-noise fans offer both quiet and cool operation while the high energy toroidal transformer saves weight. The amplifier incorporates rear located switches which permit ground lift, operational mode selection (bridge, stereo or parallel) and input sensitivity selection.

Stereo Mode (both channels driven)
8 ohms EIA 1 kHz 1% THD 70 W
4 ohms EIA 1 kHz 1% THD 100 W
Bridge Mono Mode
8 ohms EIA 1 kHz 1% THD 200 W
Frequency Response 20 Hz-20 kHz +1/-1 dB
Signal to Noise Ratio (20 Hz-20 kHz) -90 dB
Distortion (SMPTE-IM) Less than 0.5%
Bridge Mono Mode
140V or 240V Less than 0.5%
Damping Factor @ 8 ohms Greater than 100
Input Sensitivity @ 4 ohms 0.775 V/1.0 V/1.44 V
Voltage Gain (input 0.775 V) 28.2 dB
AC Requirements 230 VAC 50 Hz
Dimensions (H x W x D) 4.4 x 48.2 x 38.6 cm
1.75 x 19 x 15.2 in
Weight 8 kg (17.6 lb)
