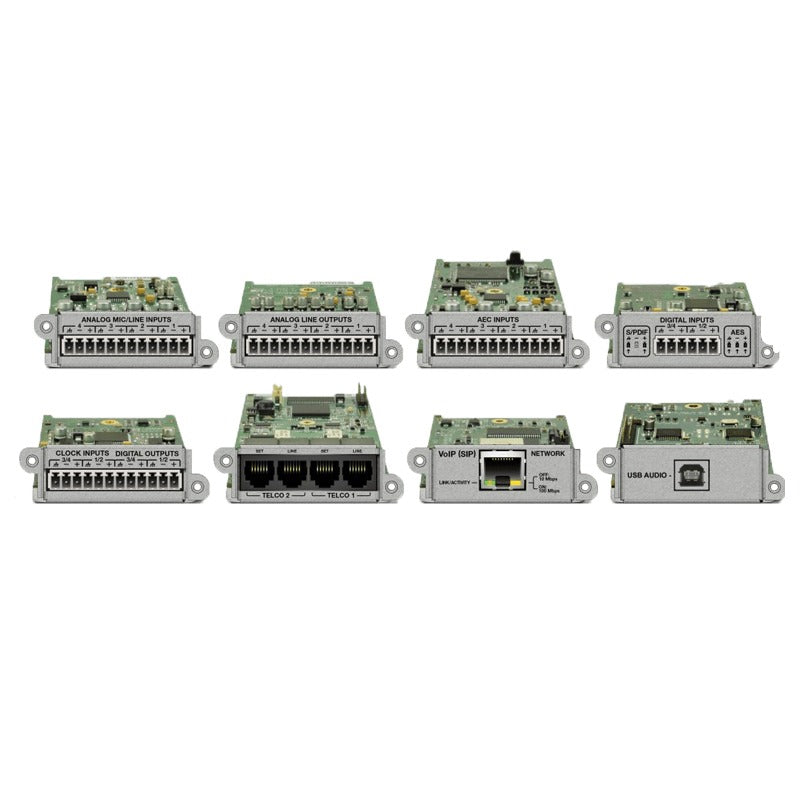

Radius and Edge Expansion Cards

Name: Radius and Edge Expansion Cards
Brand: Symetrix
SKU: 80-0062

Brand: Symetrix

SKU: 80-0062

Input-output: 4 Channel Analog Input Card

Product variants

Available

Pairs well with

Radius and Edge Expansion Cards

4 Channel Analog Input Card

Technical Specifications

Description

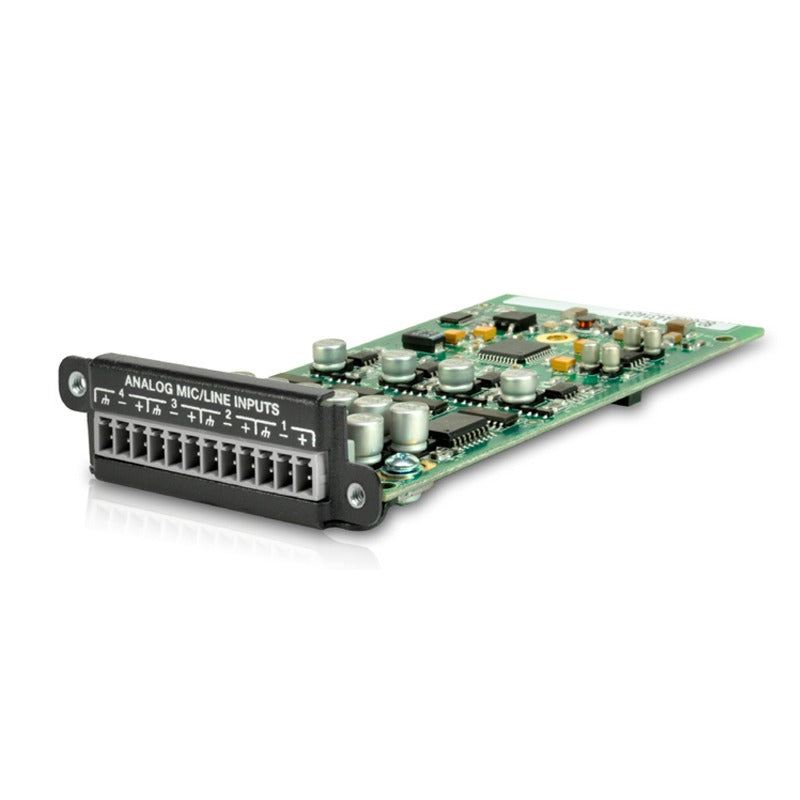

Mic and/or line level inputs.
4 channels per card.
+48v phantom power @10mA.
Signal matching. 5 analog gain settings with +/-24dB of digital trim.
Extended dynamic range A/D converters. >115 dB.
Easy wiring. 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs
Field swappable by qualified technicians.

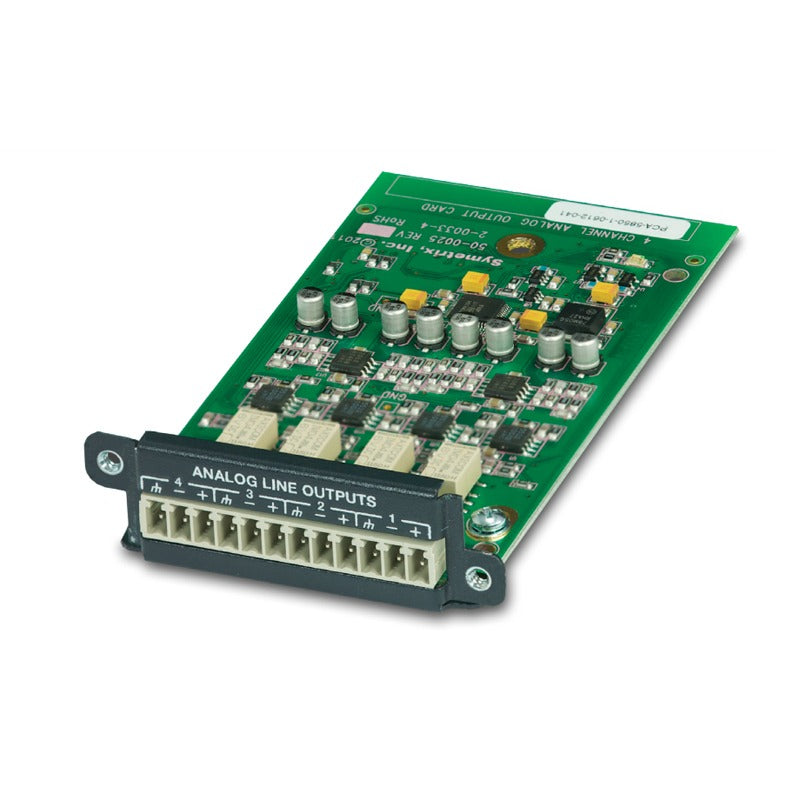

Analog line outputs.
4 channels per card.
High output levels for long cable runs. Up to +24 dBu.
Digital trim. +12dB down to full off.
Extended dynamic range D/A converters. >117 dB.
Easy wiring. 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs.
Field swappable by qualified technicians.

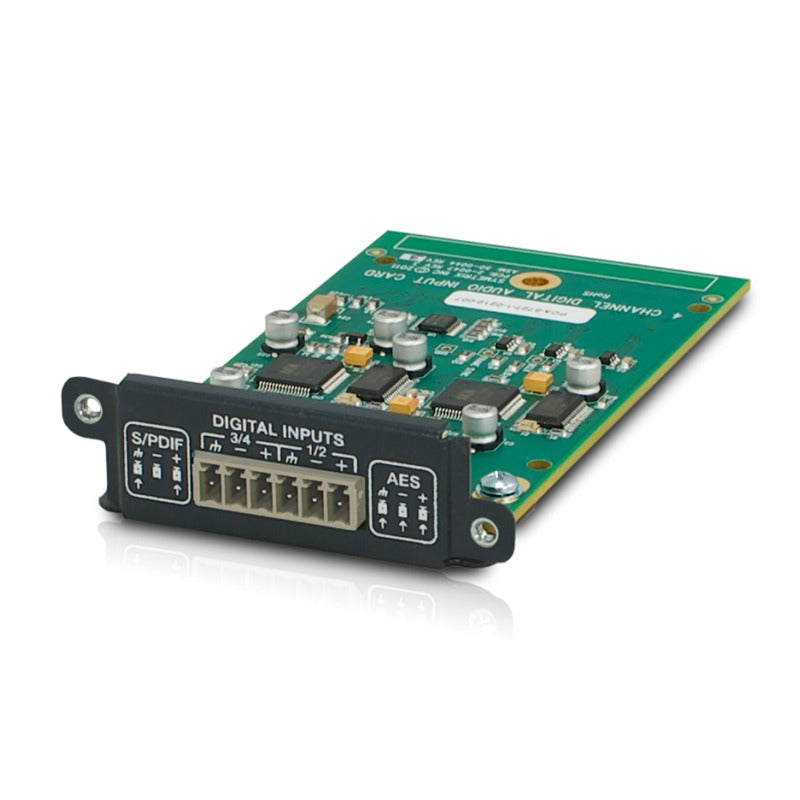

4 channels (2 stereo pairs).
Pro or consumer – AES/EBU or S/PDIF.
Connect to any source – sample rate converts 12 to 192 kHz input signal to 48k internal clock.
Level matching – +/-24dB digital trim.
Field swappable by qualified technicians.

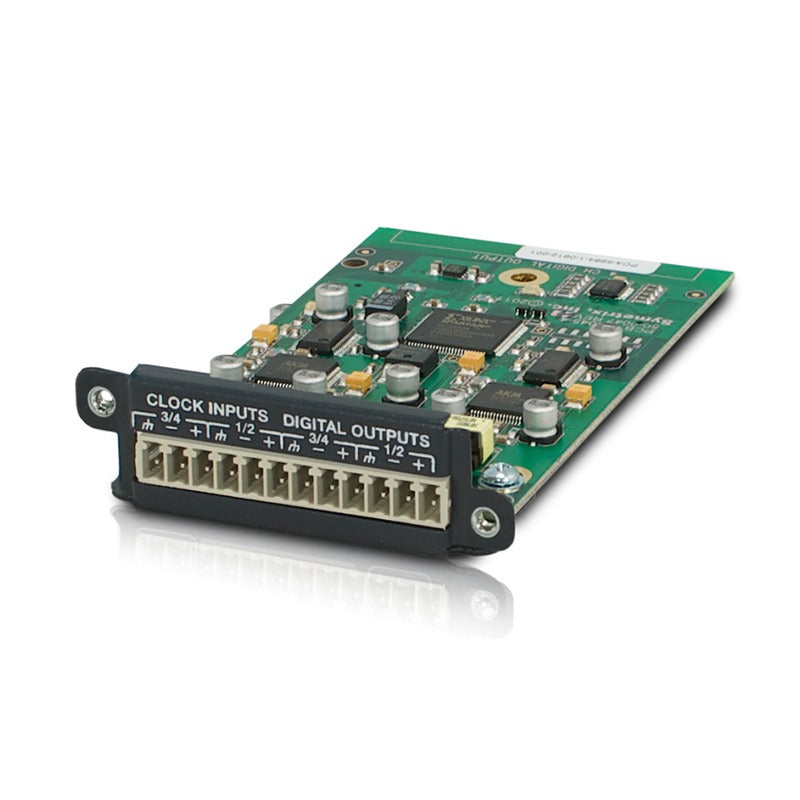

4 channels (2 stereo pairs).
Pro or consumer – AES/EBU or S/PDIF.
Flexible output sample rates – defaults to 48kHz or can be externally clocked from 12 to 192kHz.
Output trim – +12dB to full off.
Easy wiring – 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs.
Field swappable by qualified technicians.

Wideband dedicated processing.

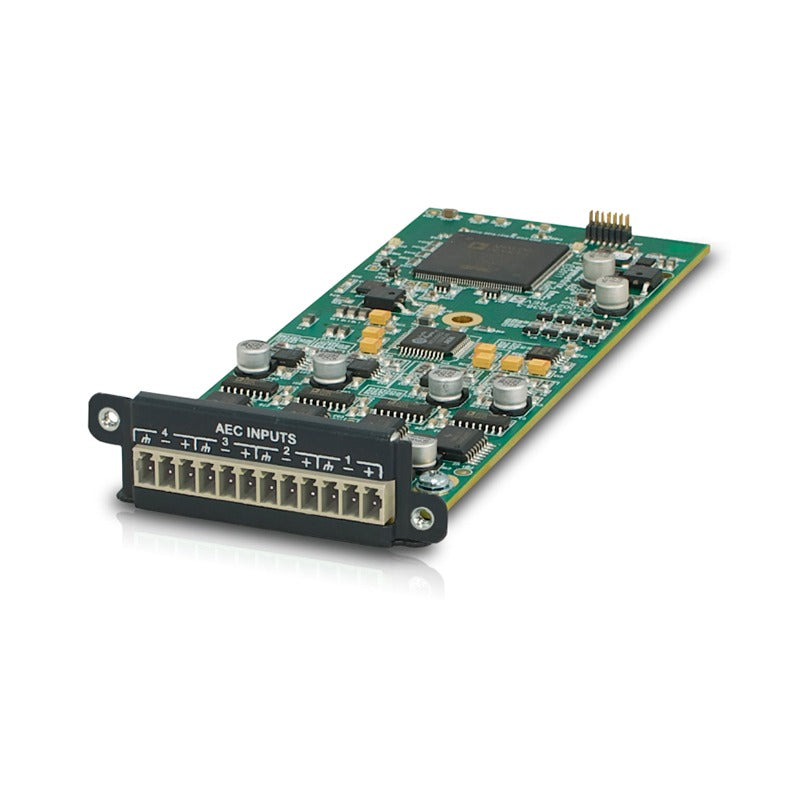

Zero-latency direct outputs and discrete reference inputs per AEC channel.
AEC processing available to the card’s direct inputs or internally routed sources.
11 mS AEC latency, up to 300mS tail length, and greater than 100 dB/S convergence time.
Field swappable by certified technicians.

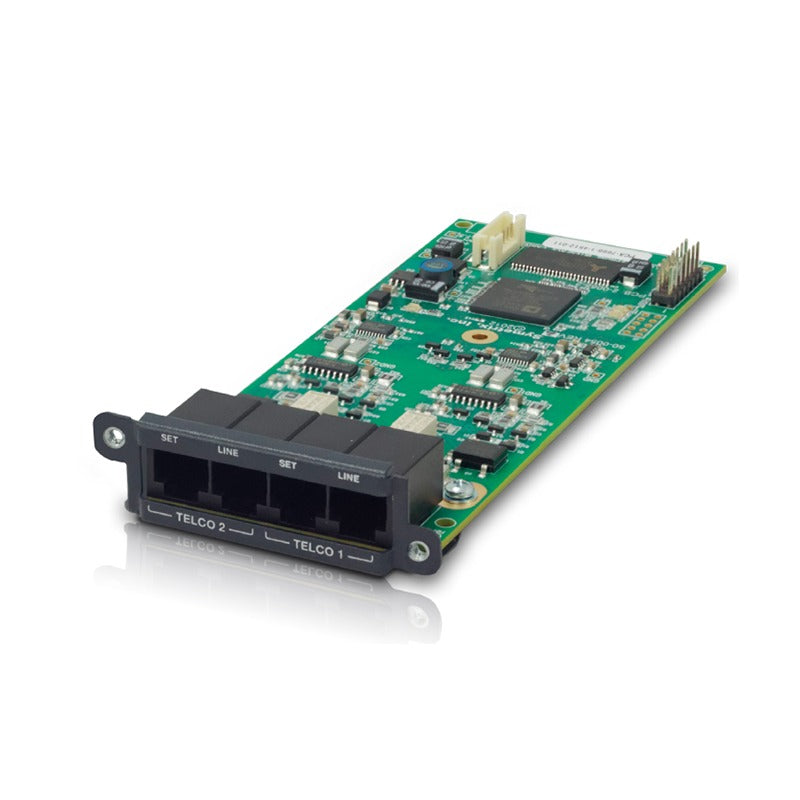

2 PSTN (POTS) lines – telco connections via RJ11.
Multiple applications – teleconferencing, paging, remote monitoring, broadcast.
Deskset functionality – answer, dial, redial, speed-dial, ignore (DND), decode (DTMF), ID callers, detect progress, monitor line status and faults, + more.
Compliance – EN 55103-1, EN 55103-2, FCC Part 15, FCC Part 68, RoHS, FCC47-CFR Part 68, ACTA TIA-968-B, TIA-1096, IC CS-03 Part I, DC-01(E).
Field swappable by qualified technicians.Note: The 2 Line Analog Telephone Interface Card is only for use in North America at this time.

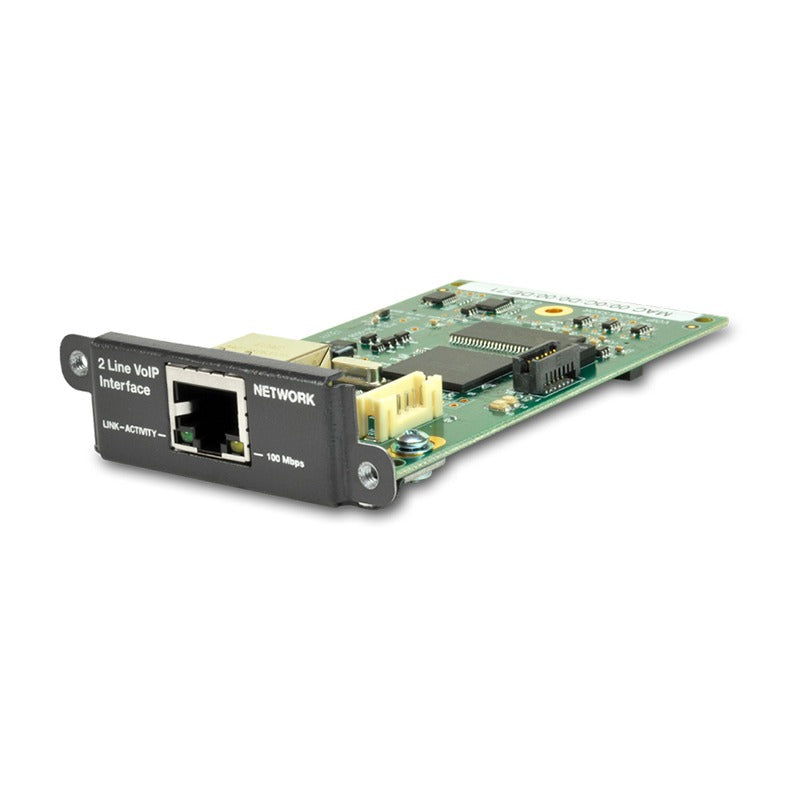

Natively integrates with Cisco, AVAYA, and Asterisk SIP-based call platforms. Supports both narrow and wide-band audio codecs and is capable of a broad range of telephony functions including dial, hold, resume, transfer, do not disturb, and conference.
A diversity of applications – well suited for conferencing, paging, remote monitoring, and broadcast.
Best-in-class deployment and administration – easy to deploy and manage. The intuitive configuration software is accessible from both the AV and VoIP LANs giving AV integrators and IT/VoIP administrators easy access for configuration and maintenance.
Market-leading open standards interoperability – Designed for enhanced interoperability while leveraging and complementing existing IT investments, the card delivers high-definition voice quality and a superior unified communications experience.
Multiple Control Options – SymVue application builder and extensive third-party control support allow for intuitive end-user operation while reducing the amount of time needed to develop application-specific user interfaces. An expanded series of Crestron certified control modules, including a VoIP Dialer Module, can be found in the Crestron Application Market.

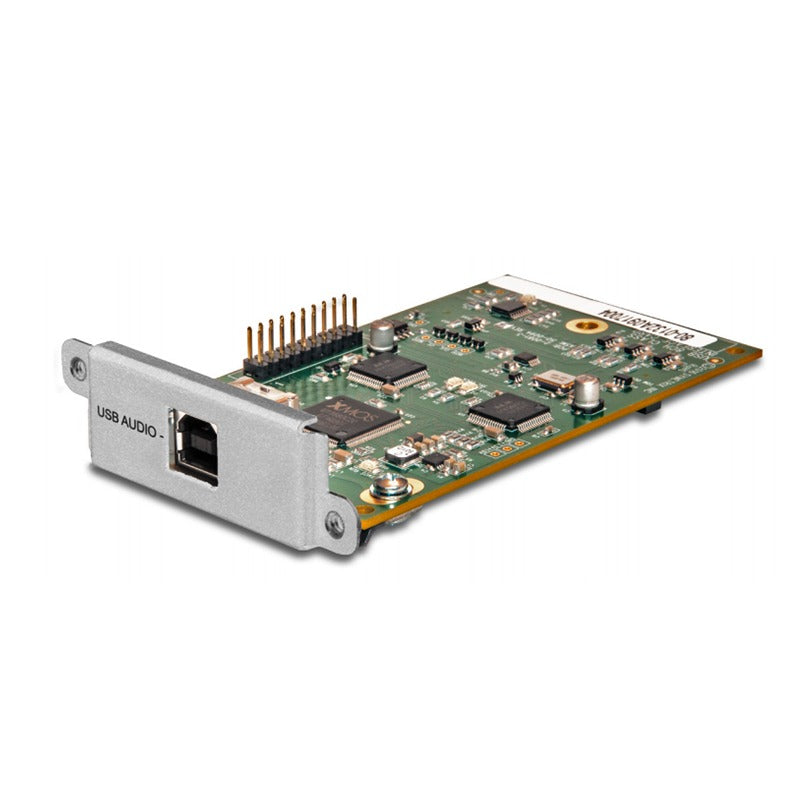

Adds up to 16 channels of USB audio I/O to a Radius DSP, or up to 64 channels to an Edge DSP, bridging computer-based soft codecs or recording and playback software to the expansive Dante™ network audio ecosystem.
Multiple distinct modes of operation including two speakerphone modes for conferencing, along with a 2×2 and 8×8 line I/O mode for multitrack recording and playback.
Speakerphone and 2×2 line modes are class 1 USB (driverless) for quick and problem-free plug-and-play connectivity and provide the ability to utilize a soft codec’s AEC or disable it in favor of Symetrix’ award-winning AEC.
8×8 line I/O mode utilizes Class 2 USB. Windows drivers are included.
A high-retention Type B USB connection provides a robust and standard direct connection between the DSP and computer.
