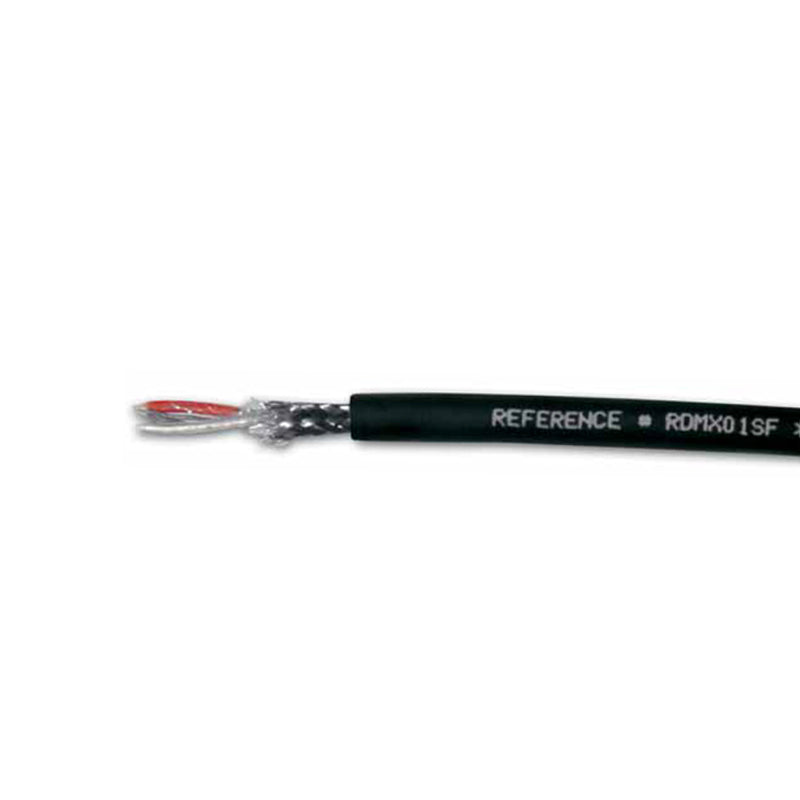

DMX 120 Ohm, Super flex cableData transmission RS485 protocol, light control (DMX)

• Conductor material :Bare copper
• Insulation material :Polythen red/nat + tape (sep + filler)
• Outer shield material :Tinned copper braid, coverage > 90% + drain wire
• Outer jacket material :Flex PVC grey 7005
• Conductor DC resistance :< 87 Ohm/Km
• Shield DC resistance:< 16 Ohm/Km
• Insulation resistance:> 10000 Mohm*Km
• Capacit. Cond./Cond.:46 pF/m
• Impedance:120 Ohm
• Overall diameter :5.90 mm
• Operating temperature range:-25 / +70 Deg. Celsius
