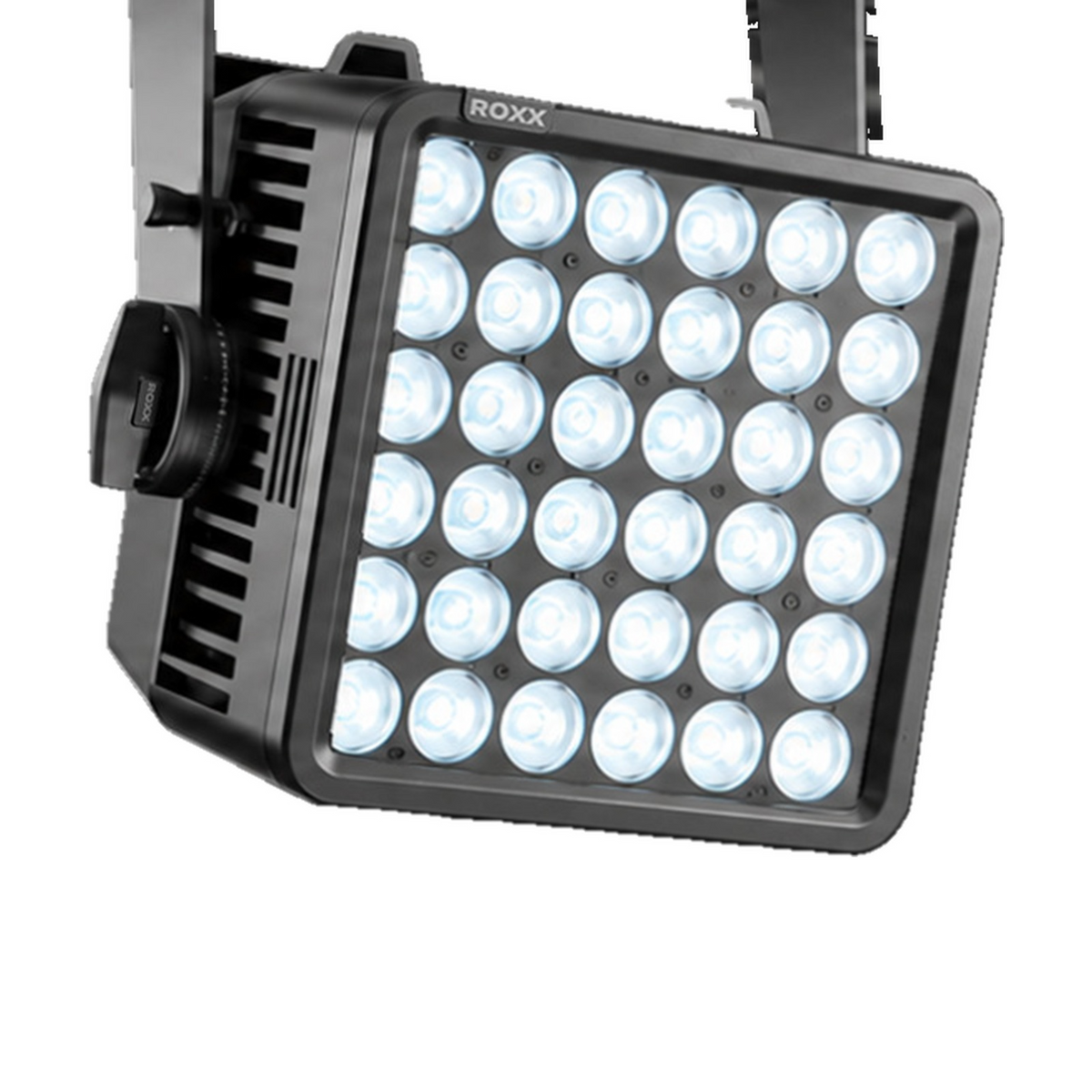

Light Source:

• 36 x 6.7 W single-white LEDs, 5600 K

LED Expected Lifetime:

• 50,000 hours

Luminous Flux:

• 17,160 lm

Illuminance at 5 m (native):

• 23,186 lx

Optical System:

• TIR lens

Beam Angle (native):

• 8°

Beam Angles with Magnetic Filters:

• up to 55°

CRI / Ra:

• 90

TLCI:

• 90

TM-30-15:

• Rf 88.5 / Rg 99.1

Efficacy at Full Load (max.):

• 66 lm/W

Dimming:

• 16-bit

LED PWM Frequency:

• selectable 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz

DMX Channels:

• 1 / 2 / 3 / 4

DMX Modes:

• 4

DMX I/O:

• IP65 XLR 5-pin male/female

AC Power, max.:

• 90 - 285 V, 50/60 Hz

AC Power, nominal:

• 100 - 260 V, 50/60 Hz

Power Supply:

• Built-in electronic switch-mode, auto-ranging

Electrical Protection:

• Overload protection with automatic recovery

Max. Inrush Current:

• 50 A

Max. Power Consumption:

• 274 W

Standby Power:

• 6.7 W

Max. Power Through @ 100 V:

• 19 A (ETL) / 12 A

Max. Power Through @ 230 V:

• 10 A (ETL) / 13 A

Power Factor:

• 0.92 PF (230 V) / 0.99 PF (100 V)

IP Rating:

• IP65

Net Dimensions W x H x D (mm):

• 285 x 310 x 235

Net Weight (kg / lbs):

• 7.84 / 17.3

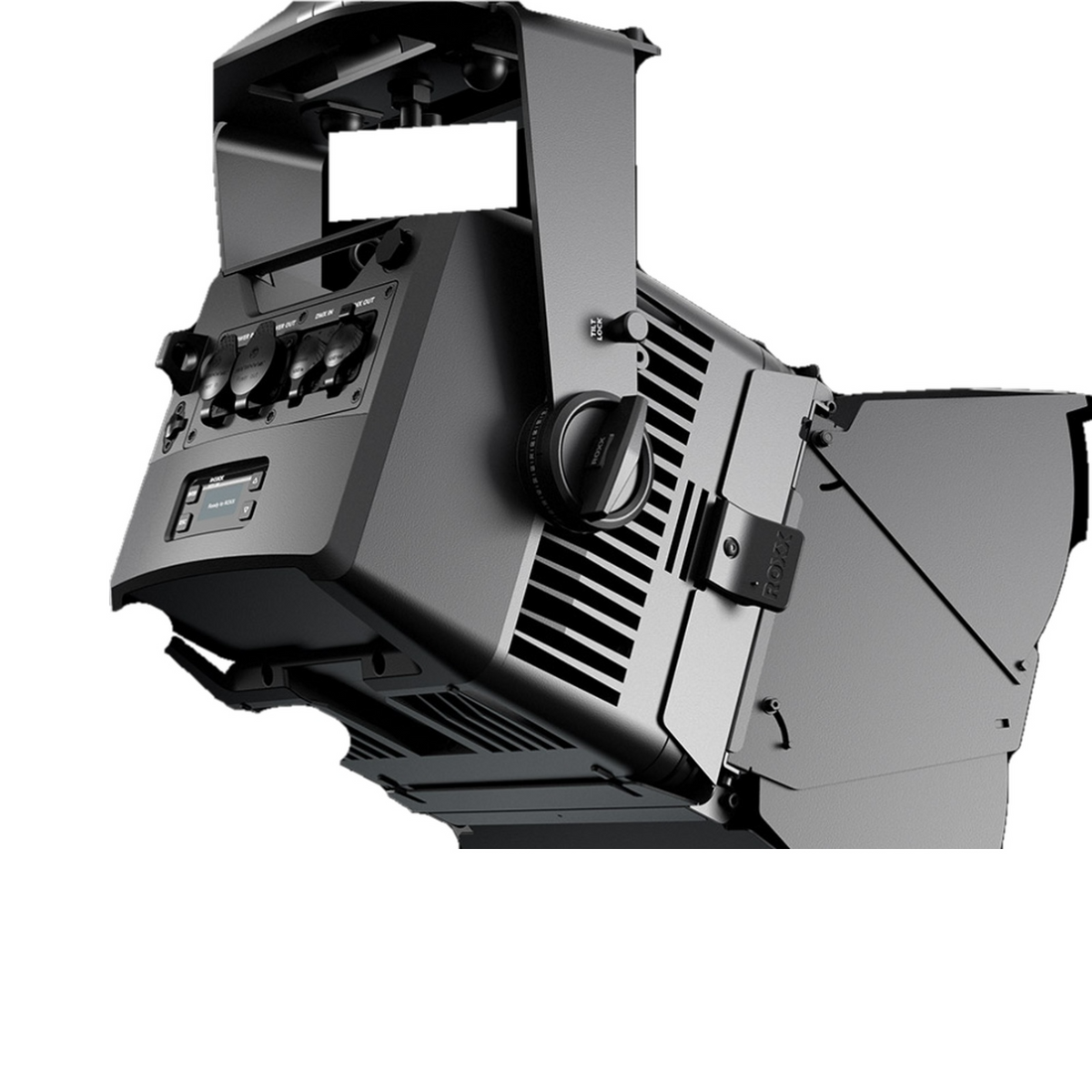

Accessories:

• 8-way barndoor, magnetic filters, KEY Vertical Mount (all optional)
