Features

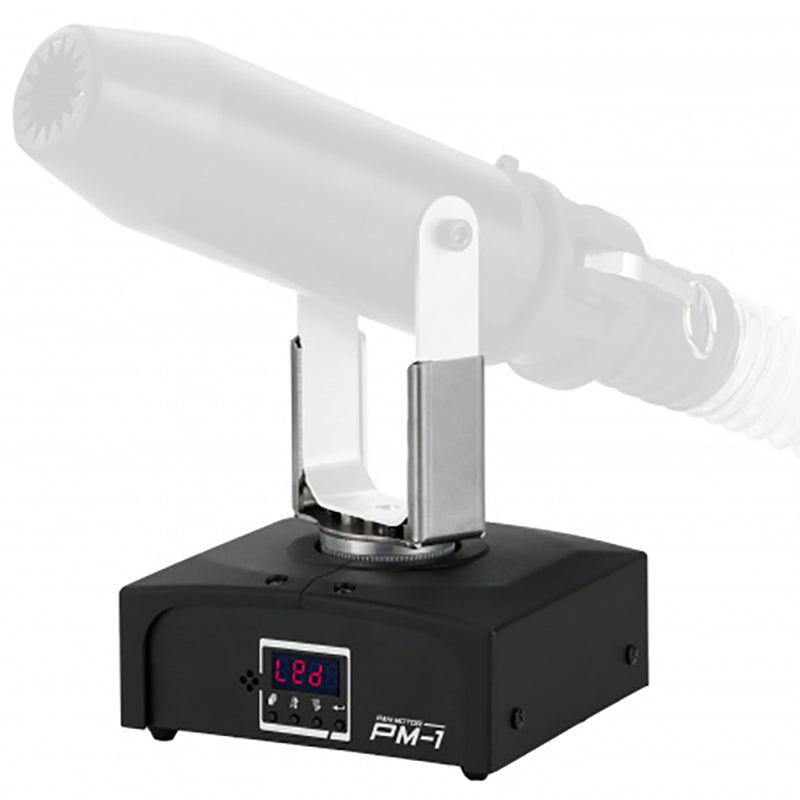

• Optional PM-1 pan motor with 120 degrees pan to increase the coverage area
• Blower built into flight case keep the noise level at the minimum
• Extreme high output
• Adjustable snowflake size
• Road case for outdoor operation and provide extra protection

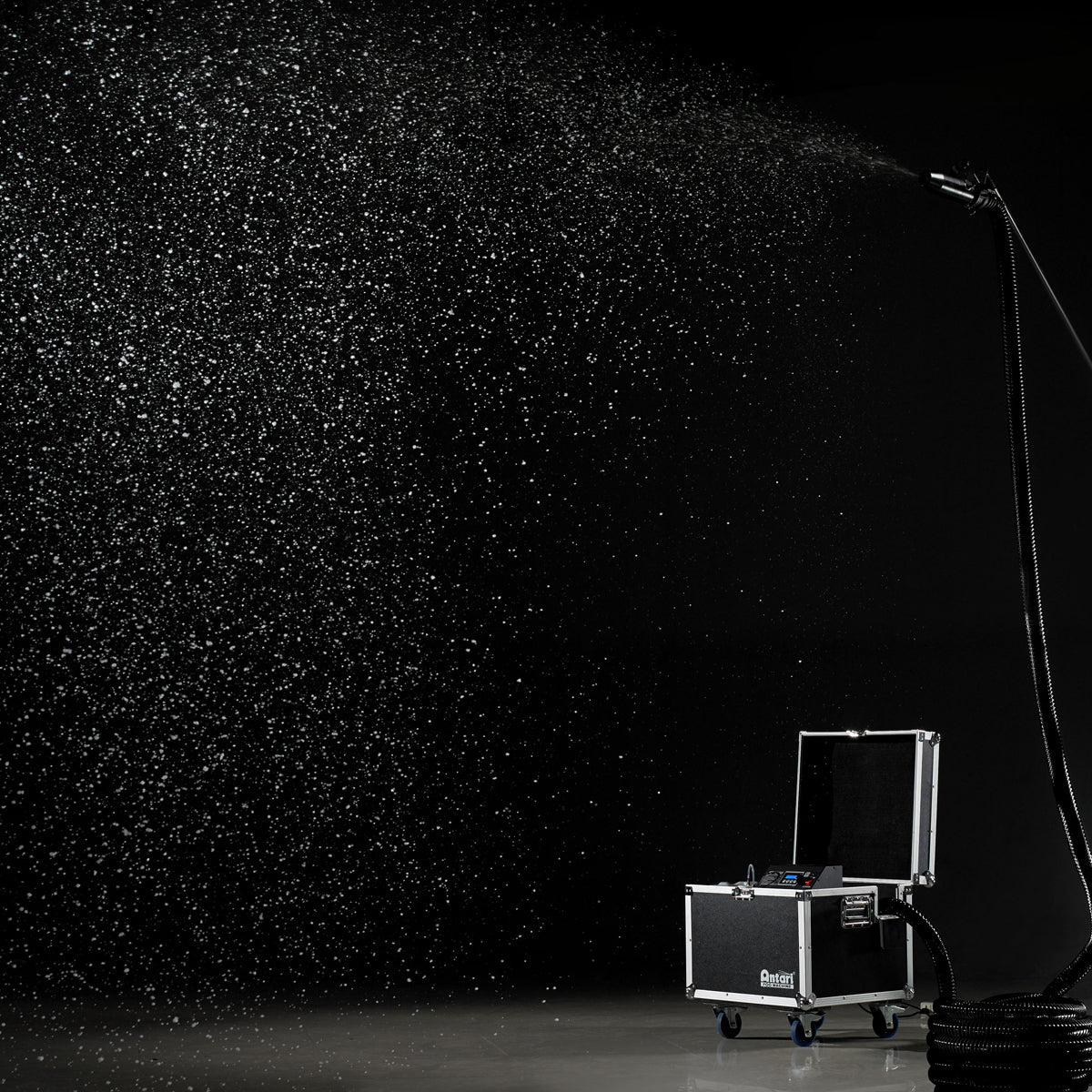

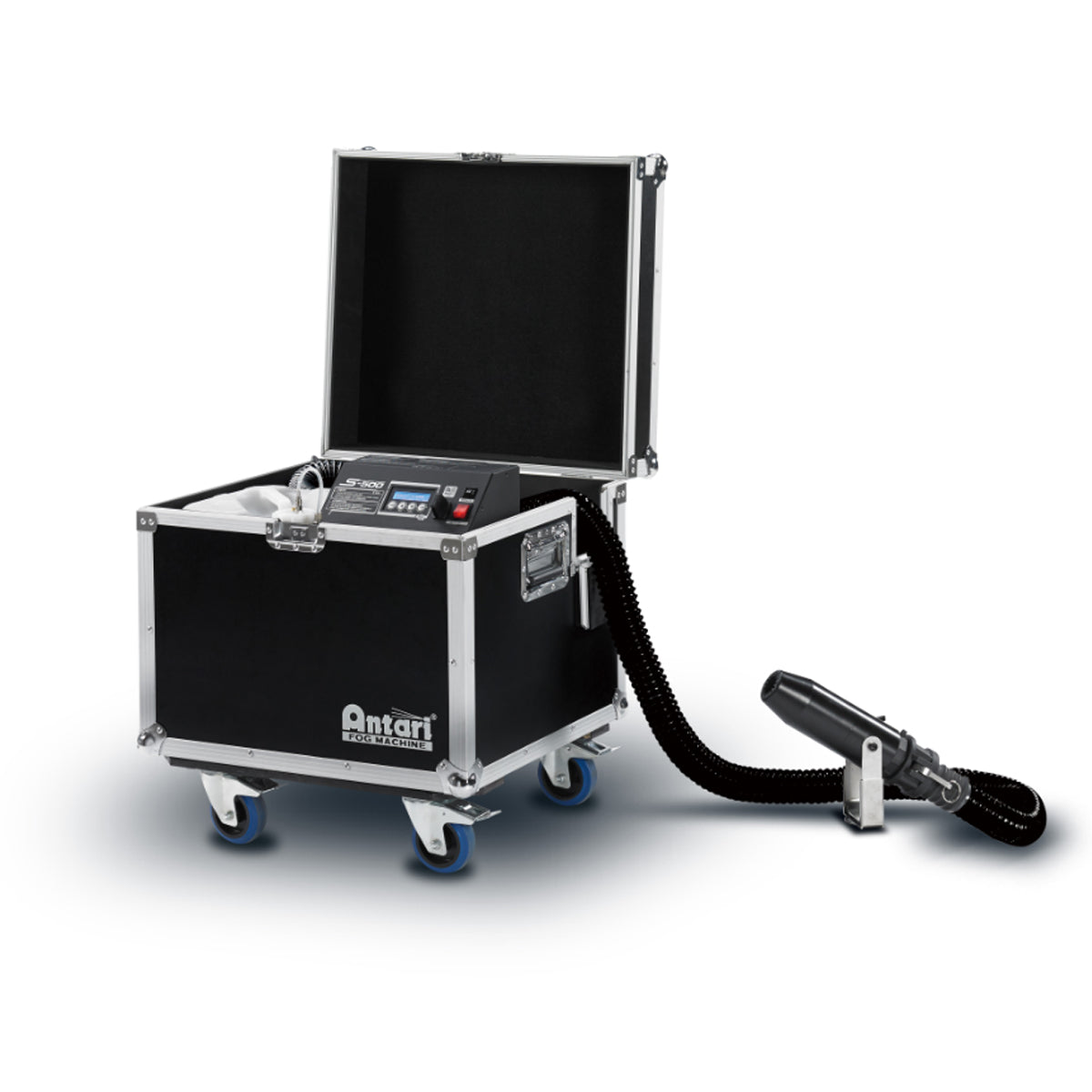

The S-500 main body and 20-Liter fluid tank are placed inside a road case with wheels.The nozzle is connected by a 10-Meter long hose and it can be easily rigged on a standard truss or tripod stand. Air and snow fluids are delivered to the nozzle via the 10-Meter hose. Users can adjust the air volume and fluid flow rate to get the right snow effects needed, from fine snow to blizzards.

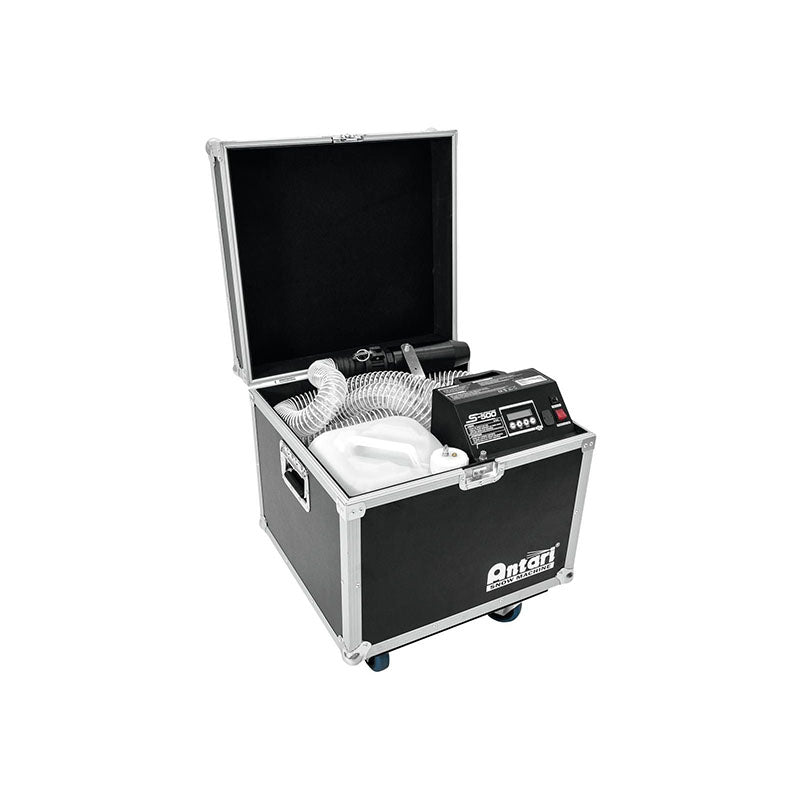

The functions of S-500L are exactly the same as S-500. The only two differences between S-500L and S-500 are S-500L comes with a 20-Meter hose in a larger case. The “L” of S-500L stands for “Large”.

SPECIFICATION

• Input Voltage: US model : AC 100 – 120V, 50 / 60 Hz 7.5A | EU model : AC 220 – 240V, 50 / 60 Hz 4.0A
• Rated Power: 900W
• Fluid Consumption: 400 ml/min (100% Output)
• Fluid Tank Capacity: 20 Liters (5.28 Gallon)
• Compatible Fluid: Antari SL-20 Regular Snow And Foam Fluid
  Antari SL-20A Premium Snow Fluid
  Antari SL-20N Superior Snow Fluid
  Antari SL-20AN Extra Dry Snow Fluid
  Antari SL-20H Super Dry Snow Fluid
  Antari SL-20C Antifreze Snow Fluid
  Antari SL-20UV UV Snow Fluid
• Ambient Temp. Range: 5°C – 40°C (41°F – 104°F)
• Control Methods: Manual
  Timer
  DMX 512
  Wireless (Optional)
  Wireless DMX (Optional)
  Cable Remote (Optional)
• DMX Channels: 2 Channel
• Interface: Neutrik powerCON(Power)
  XLR 3-Pin & 5-Pin (DMX)
  XLR 4-Pin (Remote)
• Included Accessories: S-500 : S-500-HOSE 10 Meter Standard Hose
  S-500L : 500-HOSE 10 Meter Standard Hose + ST-10 10 Meter Extension Hose
• Optional Accessories: TIMO-W-DMX-PCBR Wireless DMX
  WTR-20 Wireless Module
  TIMO-WTR-70 2in1 Wireless Module (Wireless+W-DMX)
  SC-3 Cable Remote
  ST-10 10 Meter Extension Hose
  PM-1 Pan Motor
• Dimension: S-500
  L592 W551 H651 mm
  L23.31 W21.69 H25.63 inch
  S-500L
  L803 W603 H651 mm
  L31.61 W23.74 H25.63 inch
• Weight: S-500
  37.2 kg
  82.01 lbs
  S-500L
  46.4 kg
  102.29 lbs
