Technical Specifications

Description

CAPACITY & COMPATIBILITY

  • Launcher Heads: 4 x High-Conductivity Firing Ports
  • Cannon Compatibility: Universal support for 40cm, 60cm, and 80cm Electric Confetti/Streamer Cannons
  • Consumables: Requires standard nitrogen-powered electric cartridges (not included)

PERFORMANCE

  • Vertical Reach: 6m – 12m (Dependent on cannon size)
  • Horizontal Projection: Up to 10m (Confetti) / 20m (Streamers)
  • Coverage Range: 180° Multi-directional adjustable firing heads
  • Trigger Precision: Ultra-low latency firing mechanism for instant "Zero-Delay" execution
  • Firing Modes: Individual head trigger, sequential chase, or simultaneous "Full Blast" launch

CONTROL & PROGRAMMING

  • Display: Integrated LCD digital menu for address and mode selection
  • Control Protocols: DMX 512/Remote/Manual control (operated via the display screen)
  • DMX Channels: 8 Channels (Full independent control of each head + sequence macros)
  • System Diagnostics: 4 x Individual LED Status Indicators for real-time connectivity and error detection

ELECTRICAL

  • Input Voltage: AC 110V - 240V / 50-60Hz
  • Power Consumption: 150W
  • Safety Protection: Integrated replaceable fuse

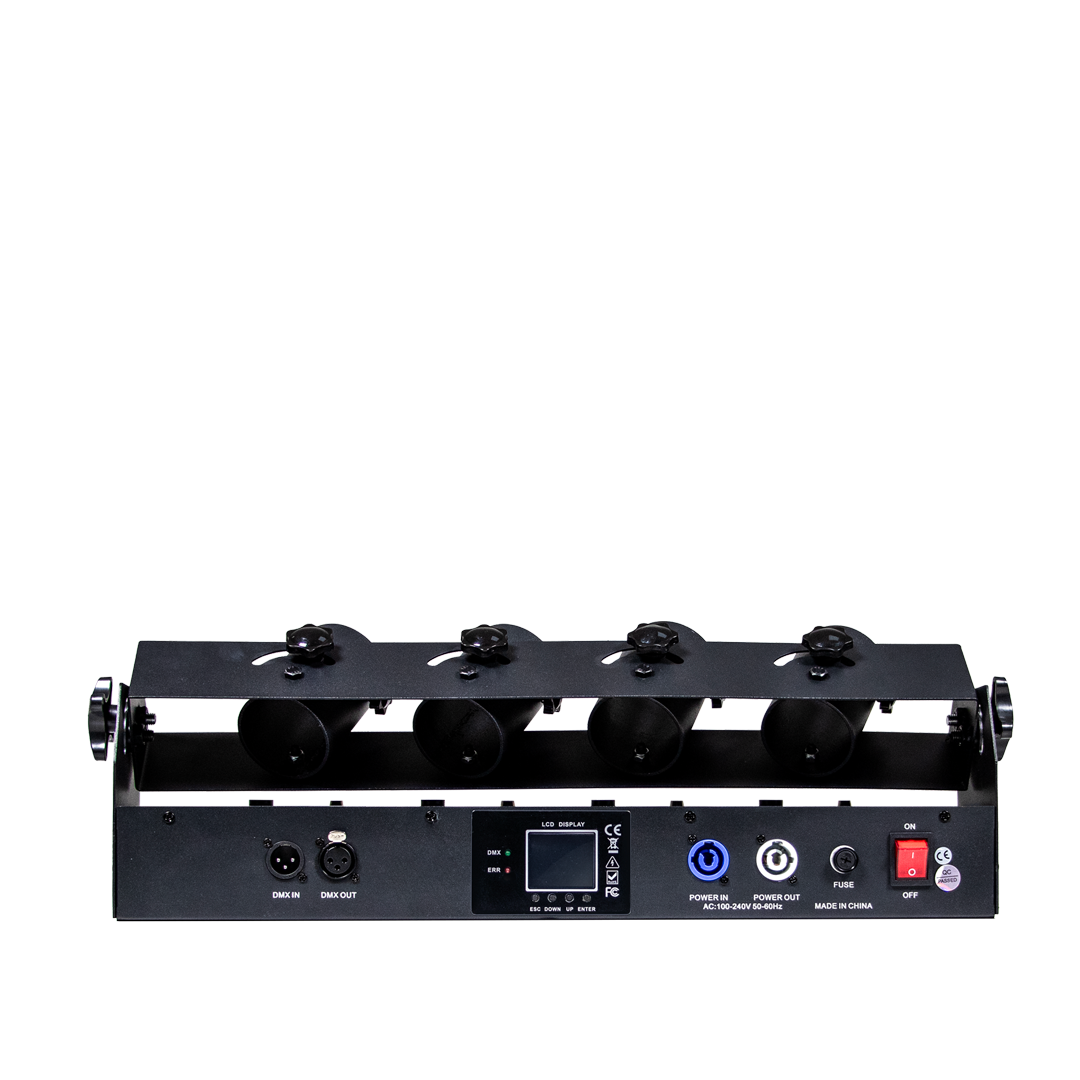

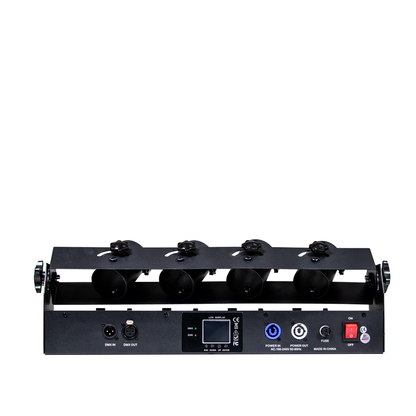

CONNECTIONS

  • DMX Connections: 3-pin signal line DMX interface
  • Power Connections: Industrial Locking Power Connector (PowerCON compatible) In/Out for power linking

PHYSICAL

  • Dimensions: 565 × 115 × 220 mm
  • Net Weight: 5.7 kg
  • Chassis: Reinforced Heavy-Duty Steel
  • Finish: Corrosion-resistant Matte Black Powder Coat
