Key Features

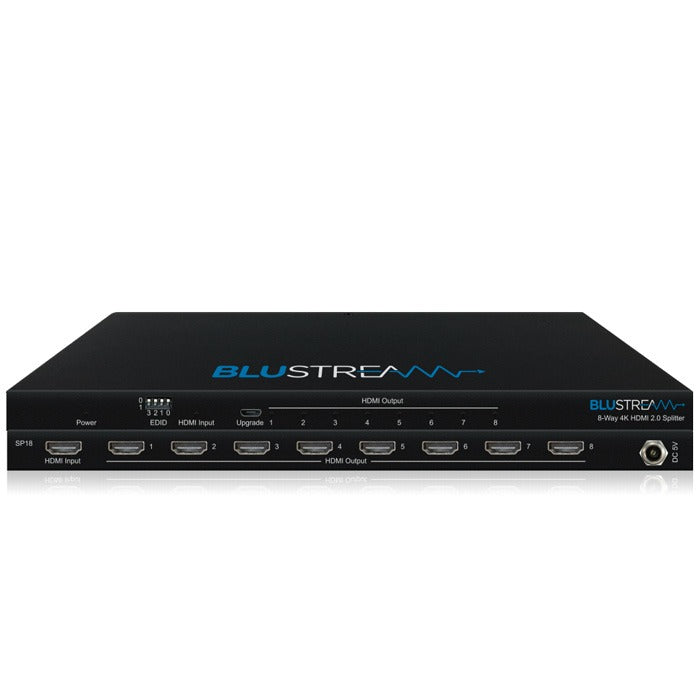

Features 1 x HDMI input that is replicated to 8 x HDMI outputs

Supports HDMI 2.0 18Gbps specification including HDR

Supports up to 4K UHD 60Hz 4:4:4

Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

Advanced EDID management

HDCP 2.2 Support

Specifications

Video Input Connectors: 1 x HDMI Type A

Video Output Connectors: 8 x HDMI Type A

EDID: 4-pin DIP switch

Dimensions (W x D x H): 273mm x 109mm x 13mm

Shipping Weight: 0.7kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power Supply: 5V/4A DC

Box Contents

• 1 x SP18
• 1 x 5V/4A DC Power Supply
• 1 x Quick Reference Guide
