Technical Specifications

Description

Key Features
• Features 2 x HDMI inputs which can be switched to single HDMI output
• Supports full HDMI 2.0 specification 4K UHD video (4K 60Hz 4:4:4) with HDR
• HDCP 2.2 compliant
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Auto or manual switching capabilities. Auto switching from TMDS or 5V HPD
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• HDMI audio breakout to phoenix balanced / unbalanced analogue audio and optical (S/PDIF) digital outputs concurrently

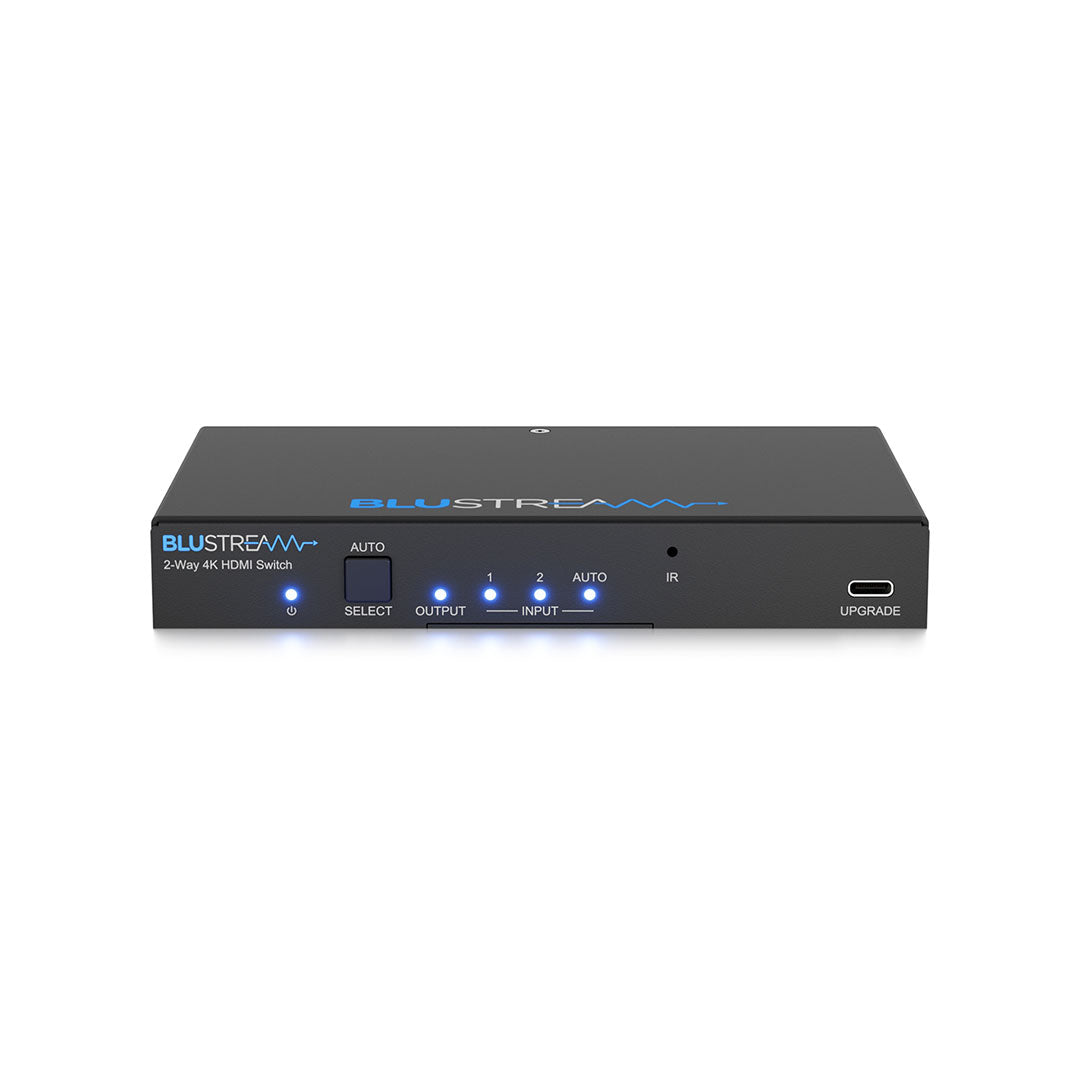

• Control via RS-232, front panel, and IR
• Advanced EDID management
• Auto-standby mode

Product Specifications
• Casing dimensions (W x H x D): 234mm x 23mm x 94mm
• Dimensions including connections (W x H x D): 234mm x 32mm x 99mm
• Shipping weight: 0.8kg
• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

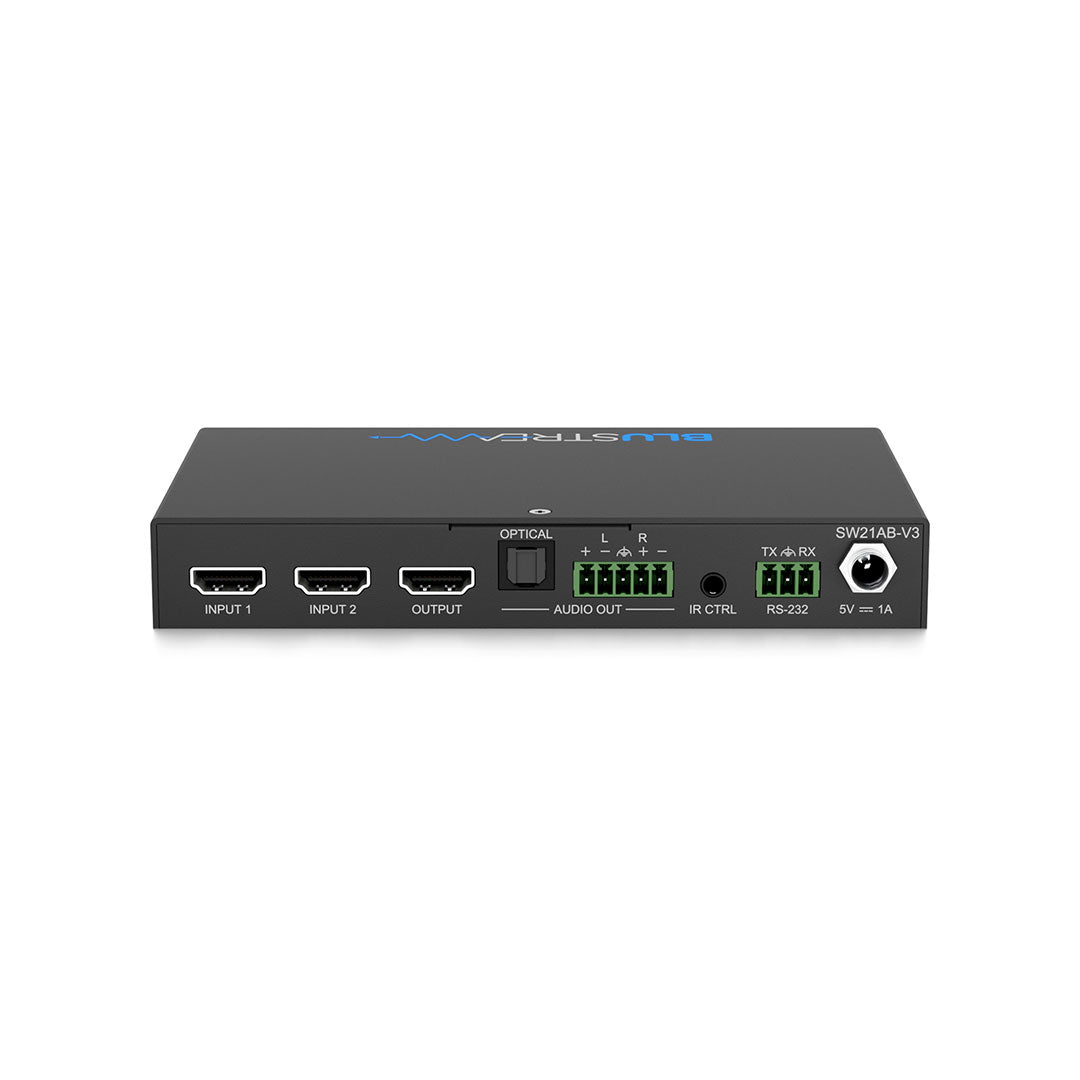

• Video Input Connectors: 2 x HDMI Type A, female
• Video Output Connectors: 1 x HDMI Type A, female
• Audio Output Connectors: 1 x Optical (S/PDIF) & 1x 5-pin Phoenix analogue audio
• IR Input Ports: 1 x 3.5mm stereo jack (5V)
• Power Supply: 5V/1A DC, screw barrel

Box Contents
• 1 x SW21AB-V3
• 1 x REMSW41V3 (no battery)
• 1 x 5V / 1A DC Power Supply
• 1 x IRR Receiver (5V)
• 1 x Quick Reference Card
