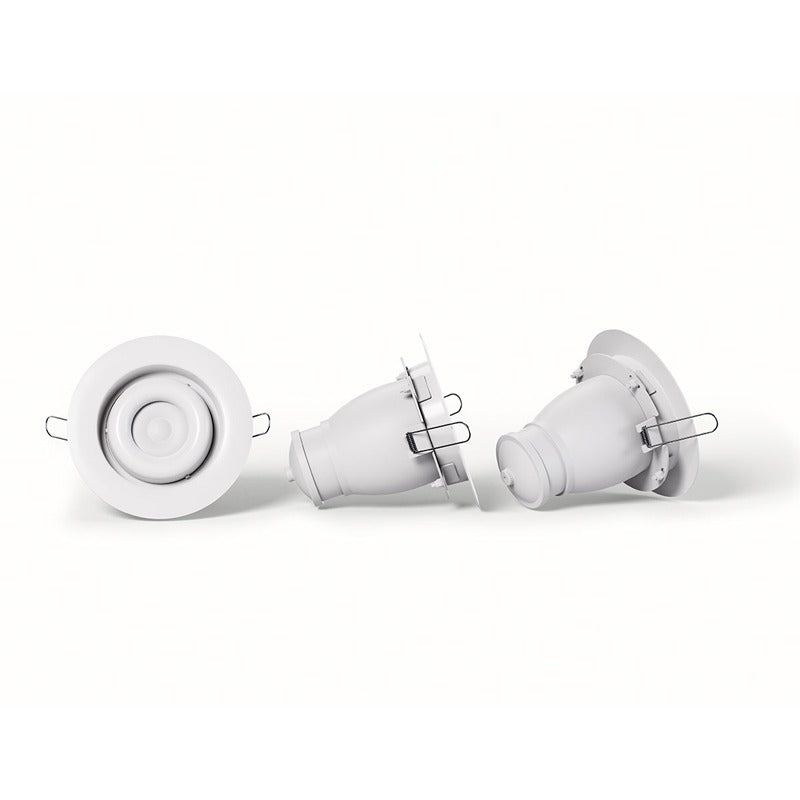

Tornado-KT2C - 2” Point Source Ceiling Mount

Name: Tornado-KT2C - 2” Point Source Ceiling Mount
Brand: K-Array
SKU: KT2CW

Brand: K-Array

Categories: Special Applications

SKU: KT2CW

The Tornado-KT2C is a ceiling point source speaker, featuring a proprietary 2” high-efficiency transducer with a neodymium magnet structure and a suspension engineered for maximum linear excursion and minimum residual interference. The loudspeaker delivers an impressive maximum peak SPL of 107 dB, and has a wide operating frequency range from 150 Hz to 18 kHz with very low distortion. The Tornado-KT2C comes with ceiling brackets for flushed-mount installations.

Pa_color: white

white

Product variants

On Demand

Pairs well with

Technical Specifications

Description

All Tornado-KT2C components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.

Technical Specifications:

GENERAL

Type: Point source
Transducers: 2" neodymium magnet woofer
Frequency Response: 150 Hz – 18 kHz (-6 dB)(1)
Max SPL: 107 dB (peak)(2)
Rated Power: 18 W
Coverage: V. 90° | H. 90°
Connectors: 4PIN euroblock connector (included)
Nominal Impedance: 8 Ω / 32 Ω selectable

HANDLING AND FINISHES

Dimensions (W x H x D): 125 x 125 x 119 mm (4.92 x 4.92 x 4.69 in)
Weight: 0.65 kg (1.43 lb)
Material: Aluminum

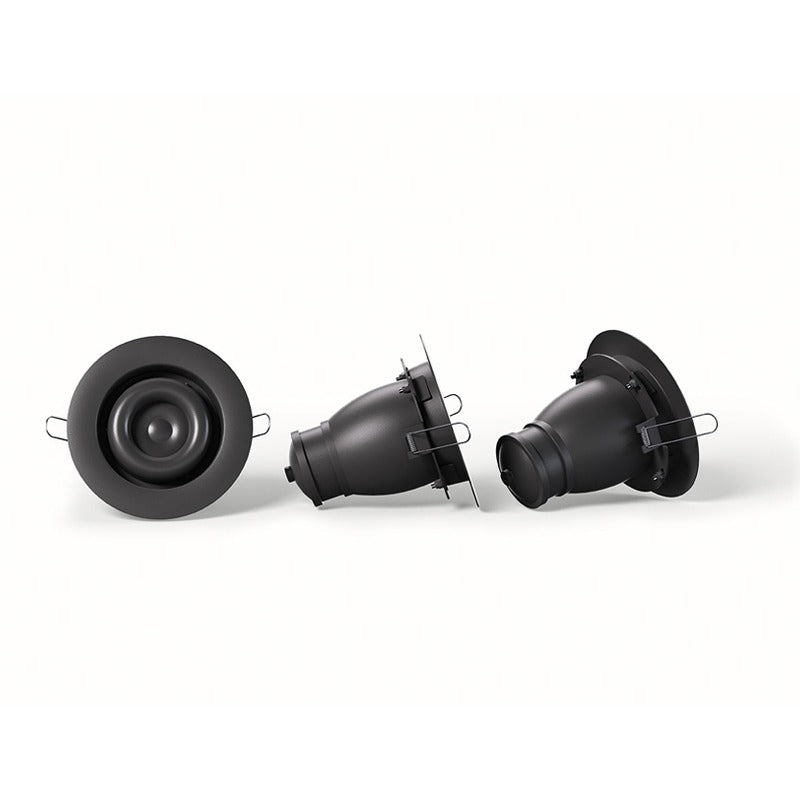

Colors: Black, White, Custom RAL

REGULATIONS

IP Rating: IP65
EN54-24: EN 54-24:2008 compliant

(1) With dedicated preset.(2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.New materials and design are introduced into existing products without previous notice.See specification for EN 54-24 applications in products user's guide
