Name: USB Dante® Audio Encoder / Decoder - DEP chipset, 2ch in and out
Brand: Blustream
SKU: DA11USB-V3

Brand: Blustream

Categories: Video Signal Distribution

SKU: DA11USB-V3

DA11USB-V3 delivers enhanced audio performance through an upgraded board design, offering improved digital conversion and exceptional signal clarity. It simultaneously encodes two channels of USB audio into a Dante® digital signal and decodes Dante® back to two channels of USB audio using advanced DEP (Dante Embedded Platform) technology. The result is superior audio reproduction and reliable distribution for a wide range of professional applications.

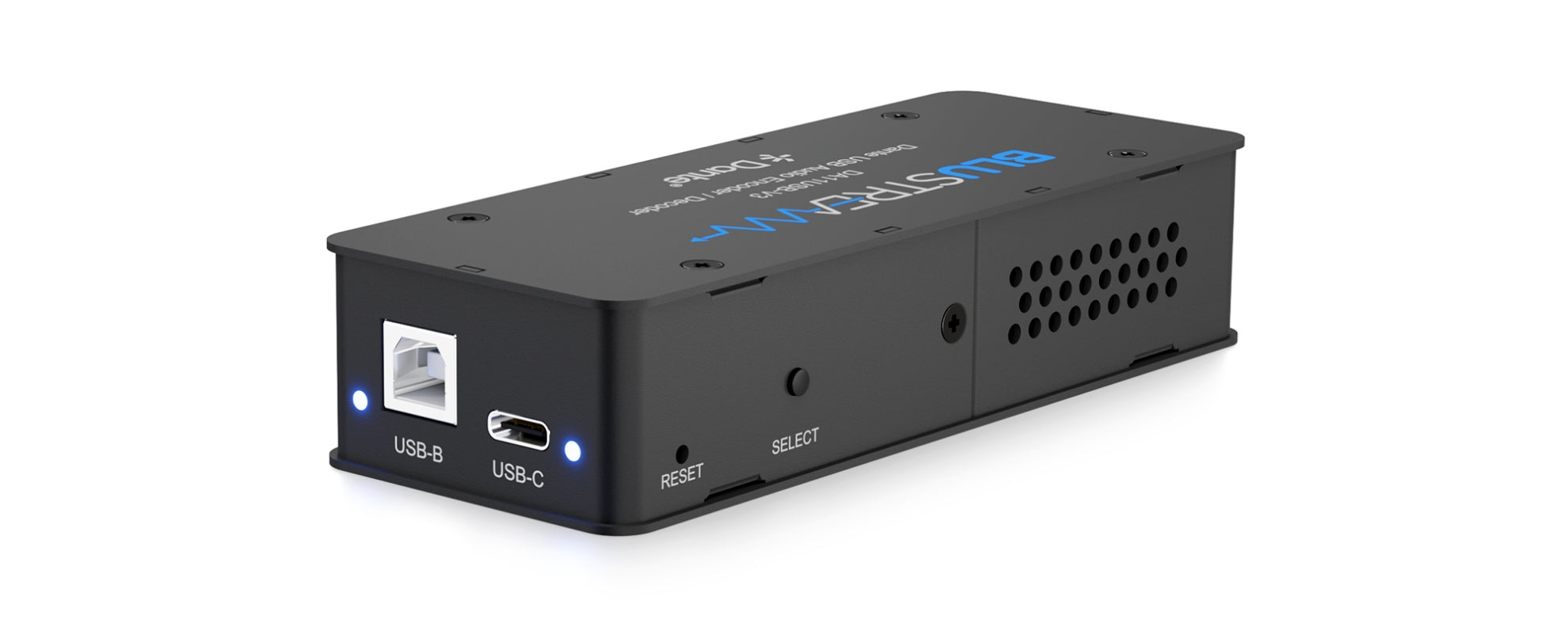

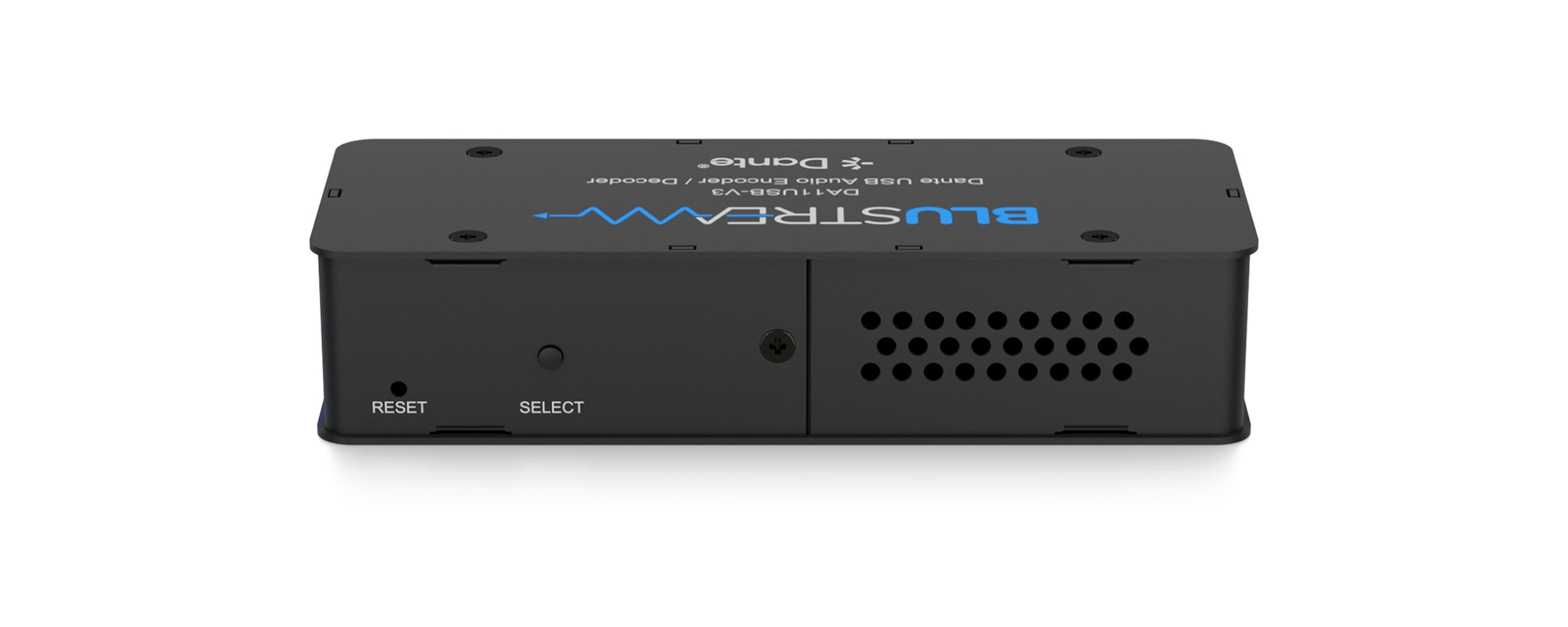

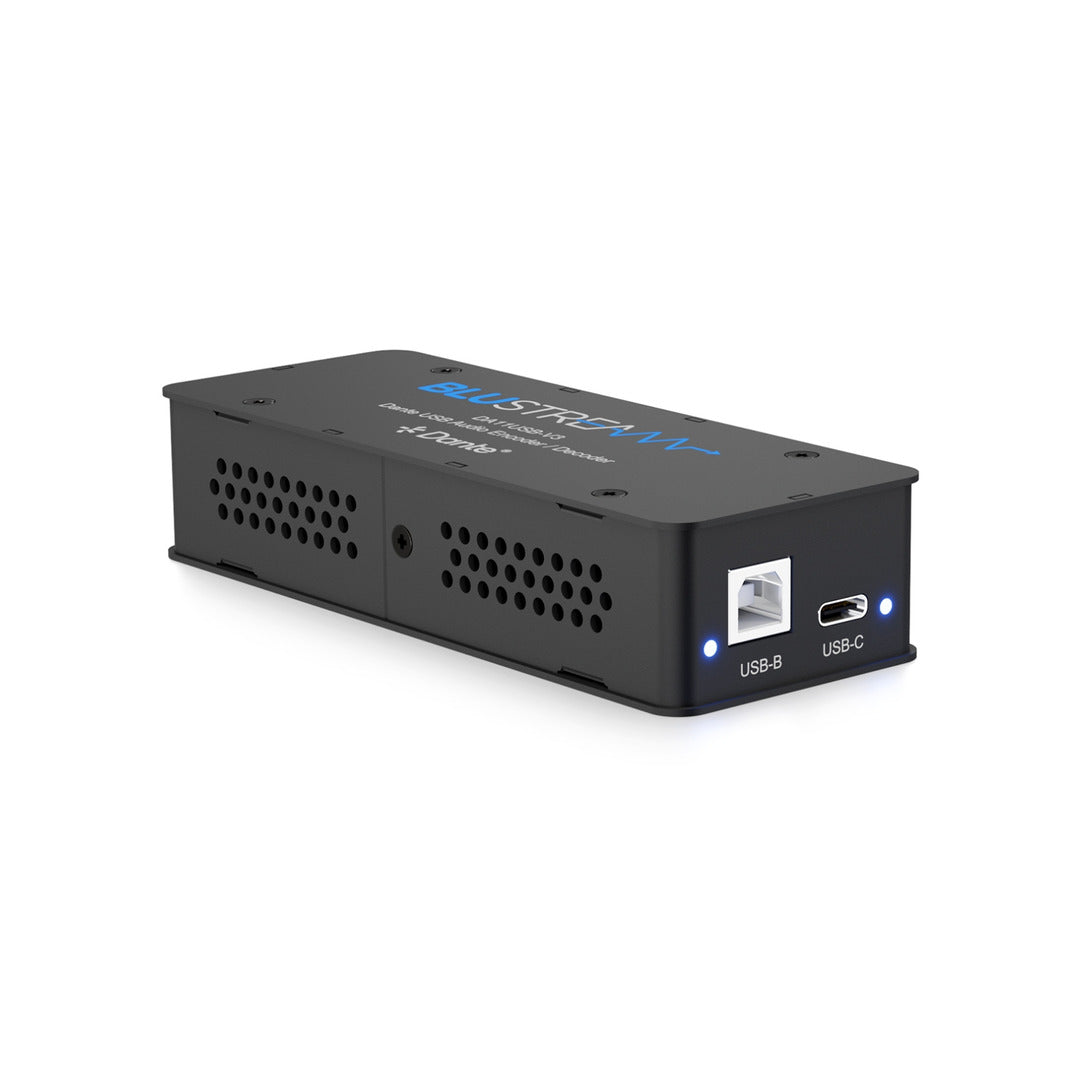

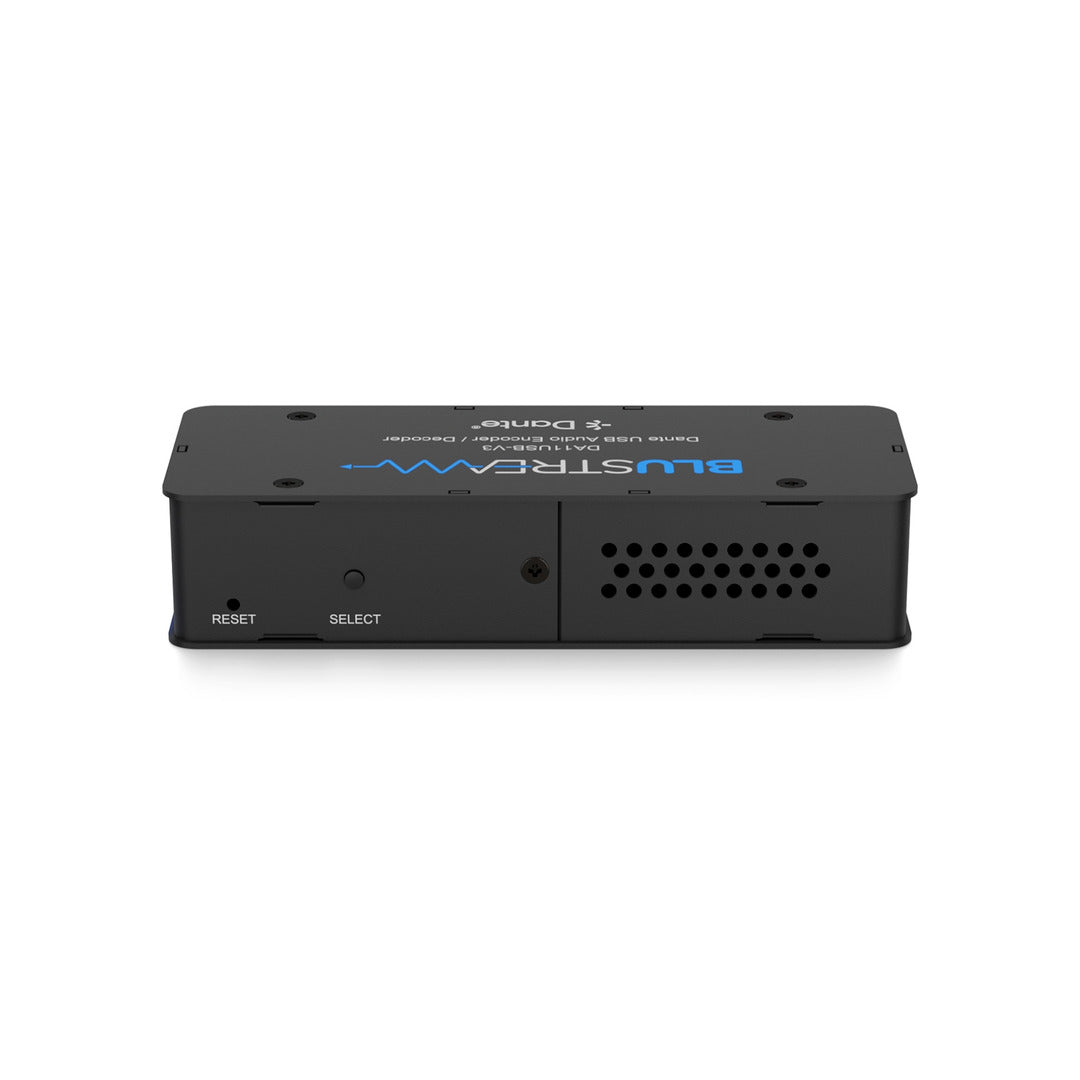

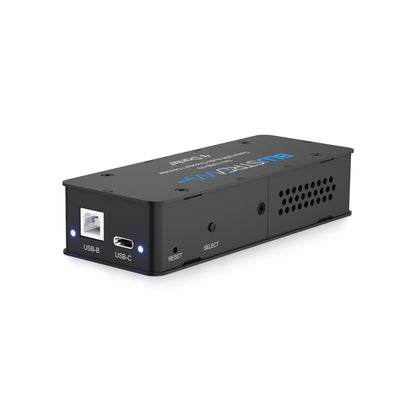

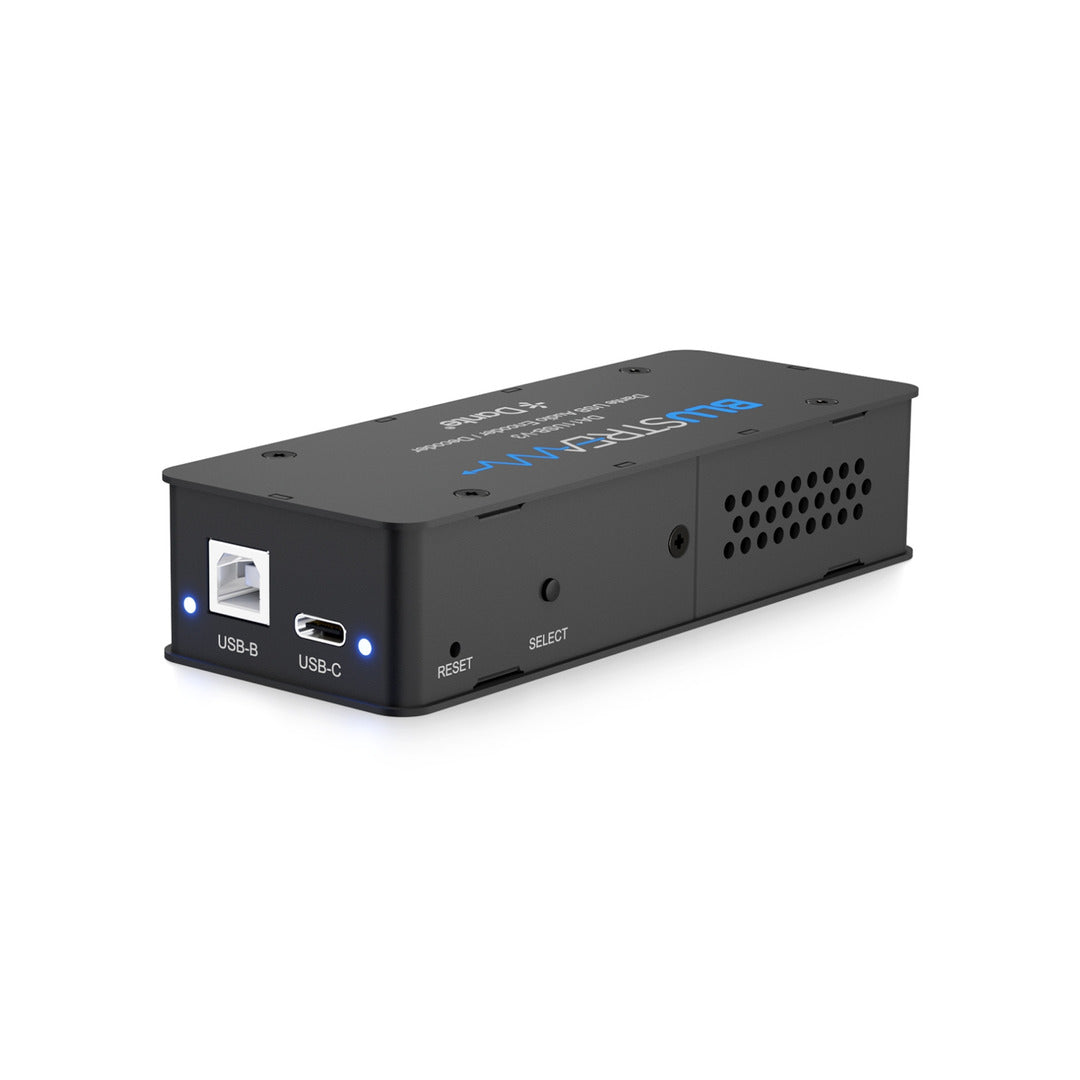

Designed for flexibility, the DA11USB-V3 includes both USB Type-B and USB-C connections, selectable via a side-panel button or API command. This plug-and-play device can be powered via PoE or 5V USB and also supports AES67 RTP audio transport, ensuring broad interoperability across modern audio networks.

Product variants

Pairs well with

Technical Specifications

Description

Key Features
• Encodes 2ch USB audio to Dante® digital signal
• Decodes a Dante® digital signal to 2ch USB audio
• Selectable USB audio between USB Type-B and USB-C inputs
• Utilises DEP (Dante® Embedded Platform) technology for direct API control via Dante network interface
• Compliant with USB Audio Device Class Specification V1.0
• Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 5V USB for when network switch does not support PoE

Specifications

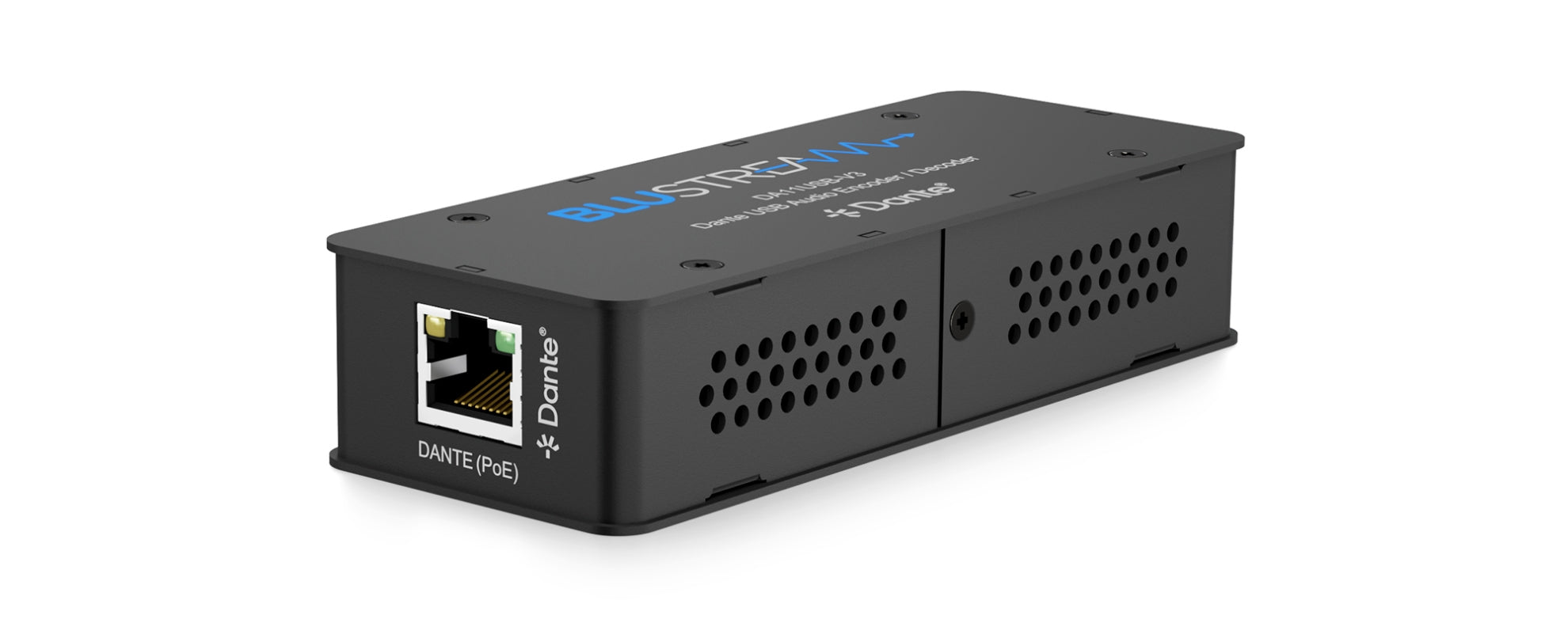

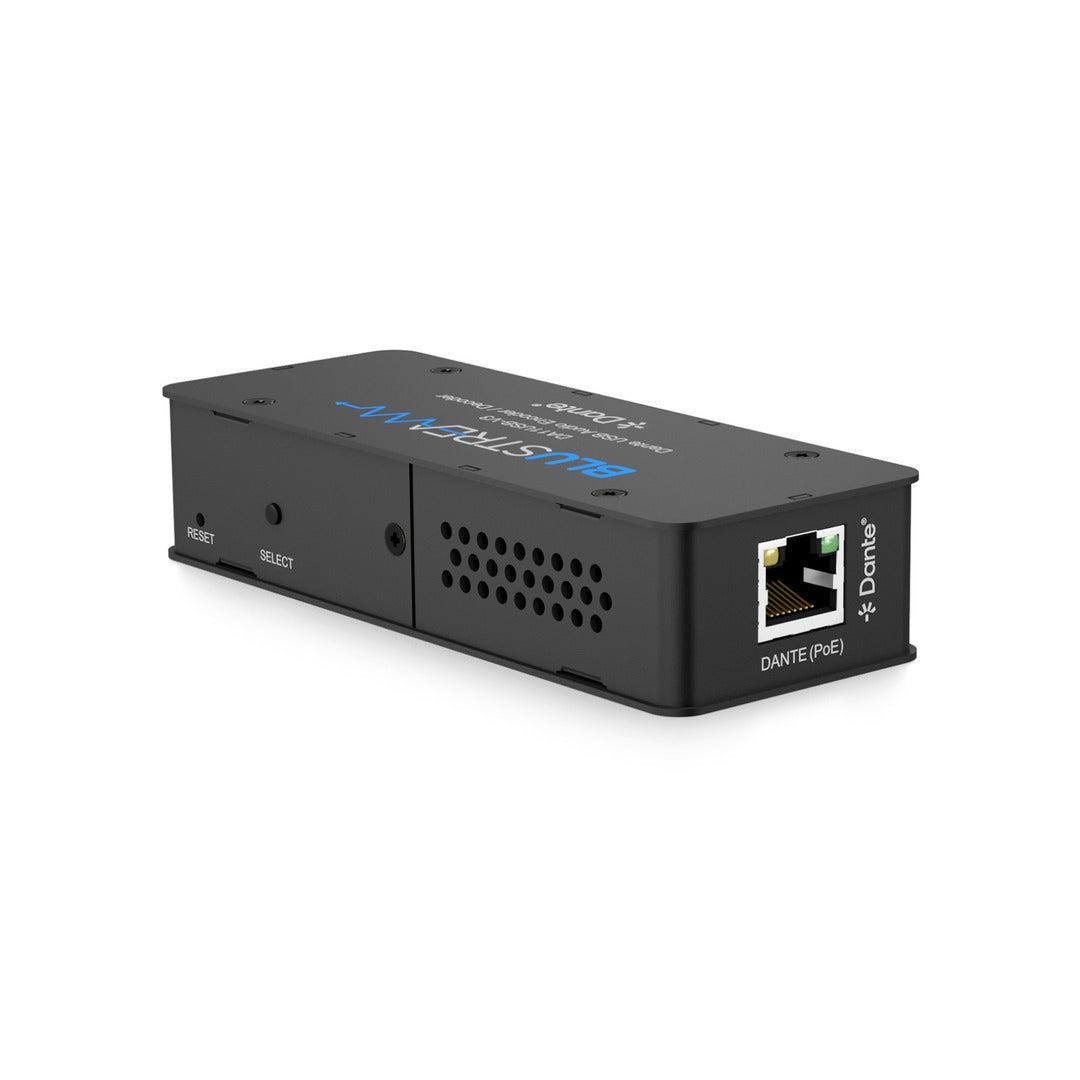

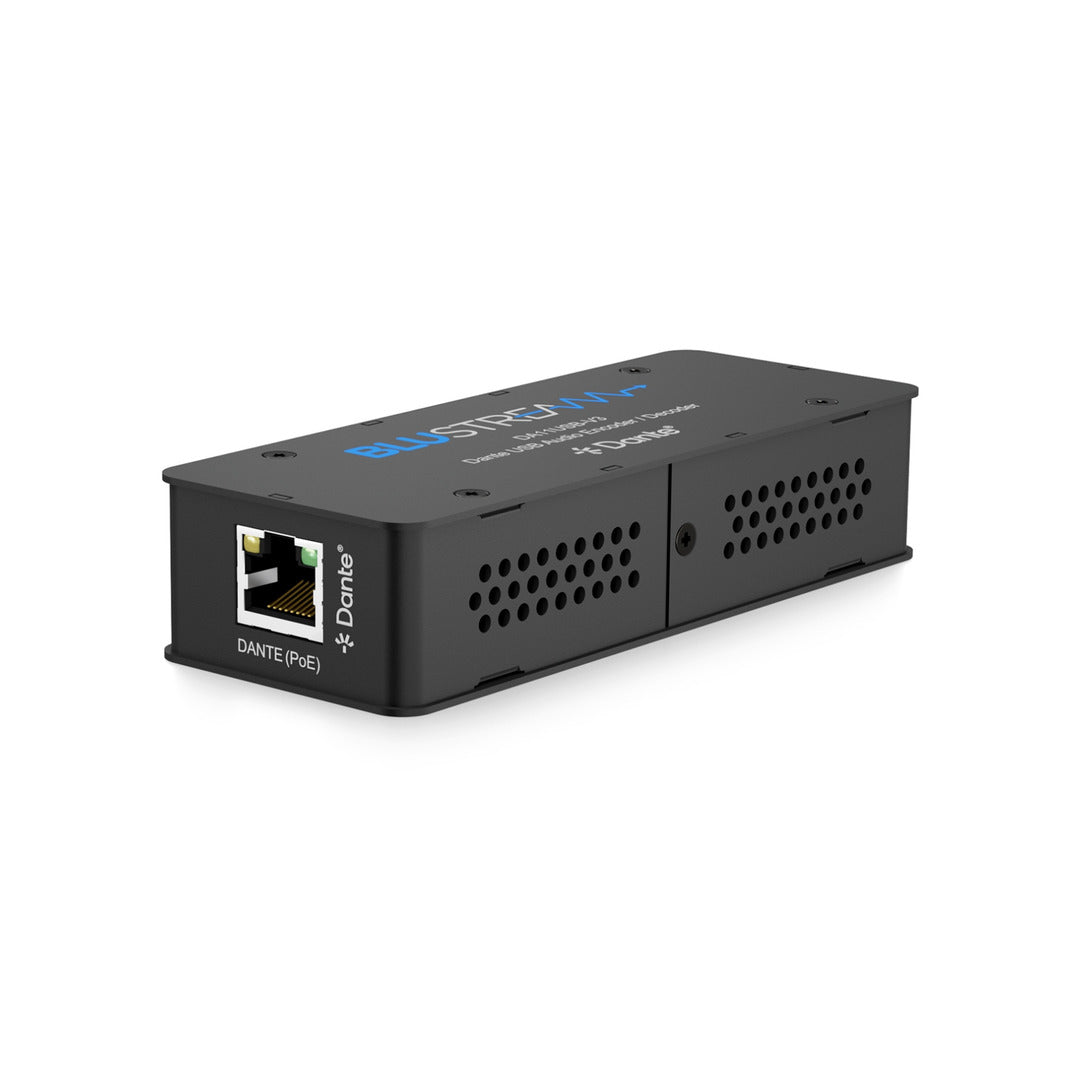

• Audio Input Connectors: 1 x RJ45, female (100Mbps Dante® network), 1 x USB Type B female, 1 x USB Type C female
• Audio Output Connectors: 1 x RJ45, female (100Mbps Dante® network), 1 x USB Type B female, 1 x USB Type C female
• Casing Dimensions (W x H x D): 120mm x 26mm x 47mm without feet
• Shipping Weight: 0.3kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: Class 3 IEEE 802.3af PoE or 5v USB

Box Contents
1 x DA11USB-V3
1 x USB-A to USB-B 1m Cable
1 x USB-C to USB-C 1m Cable
1 x Quick Reference Card

Downloads

DA11USB-V3_Datasheet.pdf
