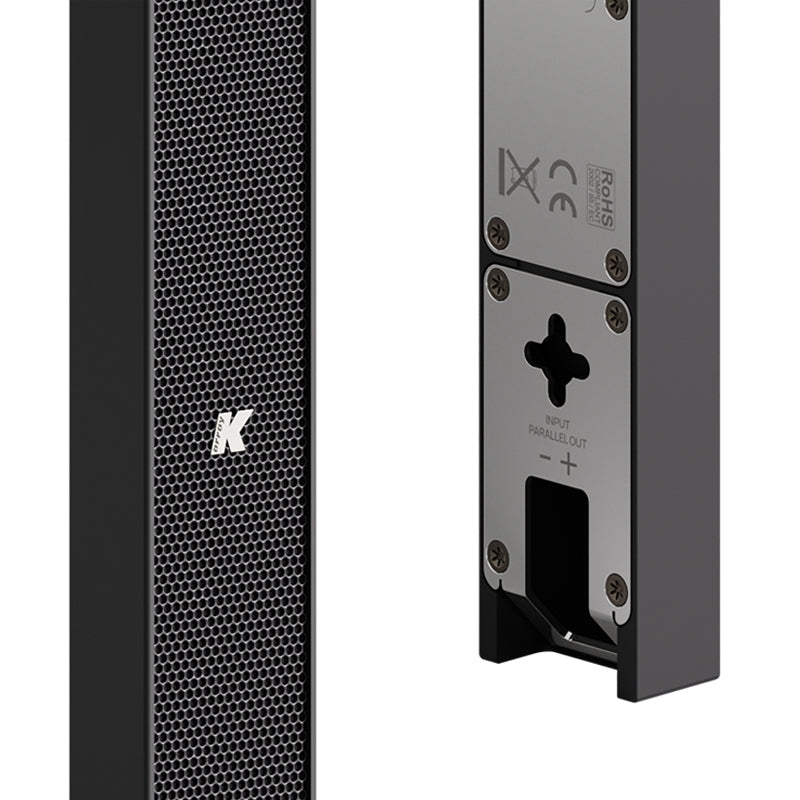

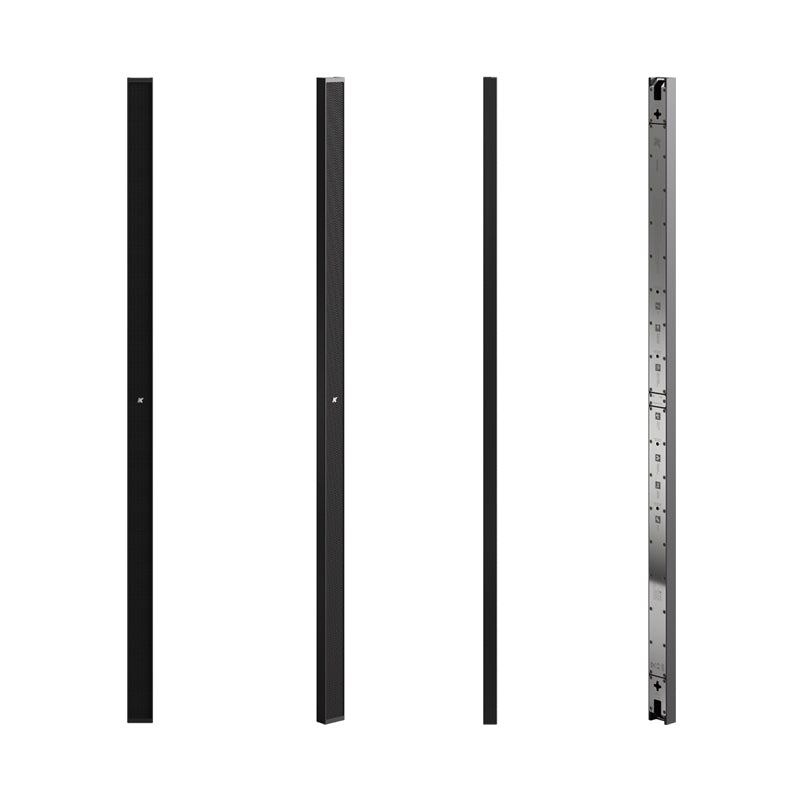

Theframelesschassis of the Vyper-KV102 II suites a clean bracket less installation on any flat surface.The sixteen closely-spaced cone drivers provide trueline arraycharacteristics: phase coherence,low distortionandfocused listeningin both the near field and at a distance from the speaker.

Two different values ofimpedance(8Ω – 32Ω) allow to connect up to 8x Vyper-KV102 II loudspeakers at 32Ω impedance to the same 4Ω amplifier output channel, which eliminates the need for 70V lines for wide distributed installed systems where pristine sound, intelligibility and elegance are mandatory.

Key Features:

• 16x 1” Neodymium magnet woofers
• 120 dBpeak max SPL
• Pure Array Technology
• 7° vertical dispersion, 140° horizontal coverage
• 8Ω – 32Ω selectable load impedance
• Visually discreete
• Modular capabilities allow the joining of more units for long array
• IP65 suitable for indoors and outdoors installations with included IP accessory
• Aluminum chassis
• Available in black, white and custom RAL color
• 24K Gold, Polished and Brushed premium finishes available

Technical Specifications:

GENERAL

• Type: Line array
• Transducers: 16x 1” Neodymium magnet woofers
• Frequency Response: 150 Hz - 18 kHz (-6 dB)(1)
• Max SPL: 120 dB peak(2)
• Rated Power: 300 W
• Coverage: V. 7° | H. 140°
• Connectors: 2PIN euroblock connector (included)
• Nominal Impedance: 8 Ω - 32 Ω
• Weight: 1,8 kg (3.96 lb)

HANDLING AND FINISHES

• Dimensions (W x H x D): 40 x 1000 x 22 mm (1.6 x 39.3 x 0.9 in)
• Material: Aluminum
• Colors: Black, White, Custom RAL
• Finishes: 24K Gold, Polished

REGULATIONS

• IP Rating: IP65

Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m
