Museums, theme parks, retail outlets, escape games: video mapping installations, object mapping.
Restaurants: video projection on tables.
Events: product launches, music-driven videos.High-performance
The Proxima 4040 media server is equipped with the most intuitive composer on the market. Connect to the composer from your remote office and easily create a video projection with 4 video projectors. Soft-edge and synchro frame deliver exceptional results. The composer also includes a 15×15 warping grid to conform the video to a 3D structure. The NDI input allows you to import outputs from other machines, such as generative and interactive video engines. Perfect loops and fade transitions ensure broadcast continuity.

Integrated with other systems
The OSC API lets you wake up or put the server to sleep, as well as launching pre-recorded sequences.

Compact
The rack format of the Proxima 4040 media server is ideal for large installations.

Reliable and easy to install
The Proxima 4040 media server is designed for 24/7 operation. It is robust against power cuts. The Linux OS is mastered, and updates are at the customer’s initiative. The product comes with a 3-year warranty.

Proxima 4020 4040 4060
Mapped outputs 2 4 6
Video acquisition card – Optional Optional

Applications

• Museums, theme parks, retail outlets, escape games: video mapping installations, object mapping.
• Restaurants: video projection on tables.
• Events: product launches, music-driven videos.

Specifications

Mapping

• Positioning, rotation, scaling, snapping, cropping, managing the opacity of display areas and masks
• 15×15 warping and real-time media slicing
• Ability to import own shaders

Blending & Warping

• 4 corner warping, Bezier deformation and up to 15 x 15 grid per video output
• Edge blending in horizontal or vertical
• Generation of a calibration grid
• Orientation 0°, 90°, 180°, 270°

Containers & Codec

• .mp4 / .mov / .mkv
• .jpg / .png / .tiff
• .wav / .mp3
• HAP
• H.265 / H.264
• Motion JPEG

Control & Interactivity

• Unlimited number of interactive playlists and sequences
• Control through keyboard, UDP (OSC) and Art-Net protocols
• Configuration through a remote web administration
• Composer remotely accessible on the local network

OS & Licence

• Debian 12 “bookworm”
• Lifetime license

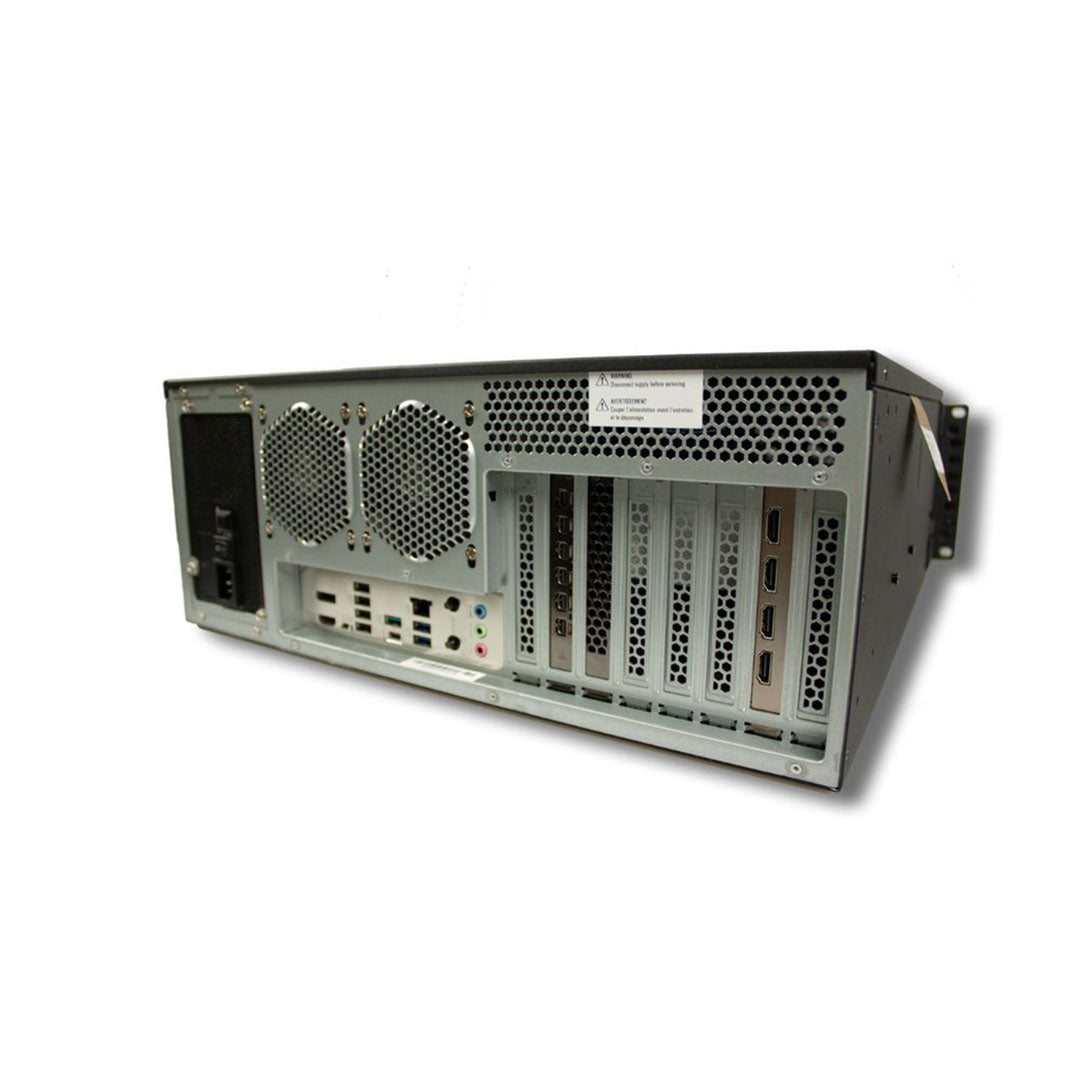

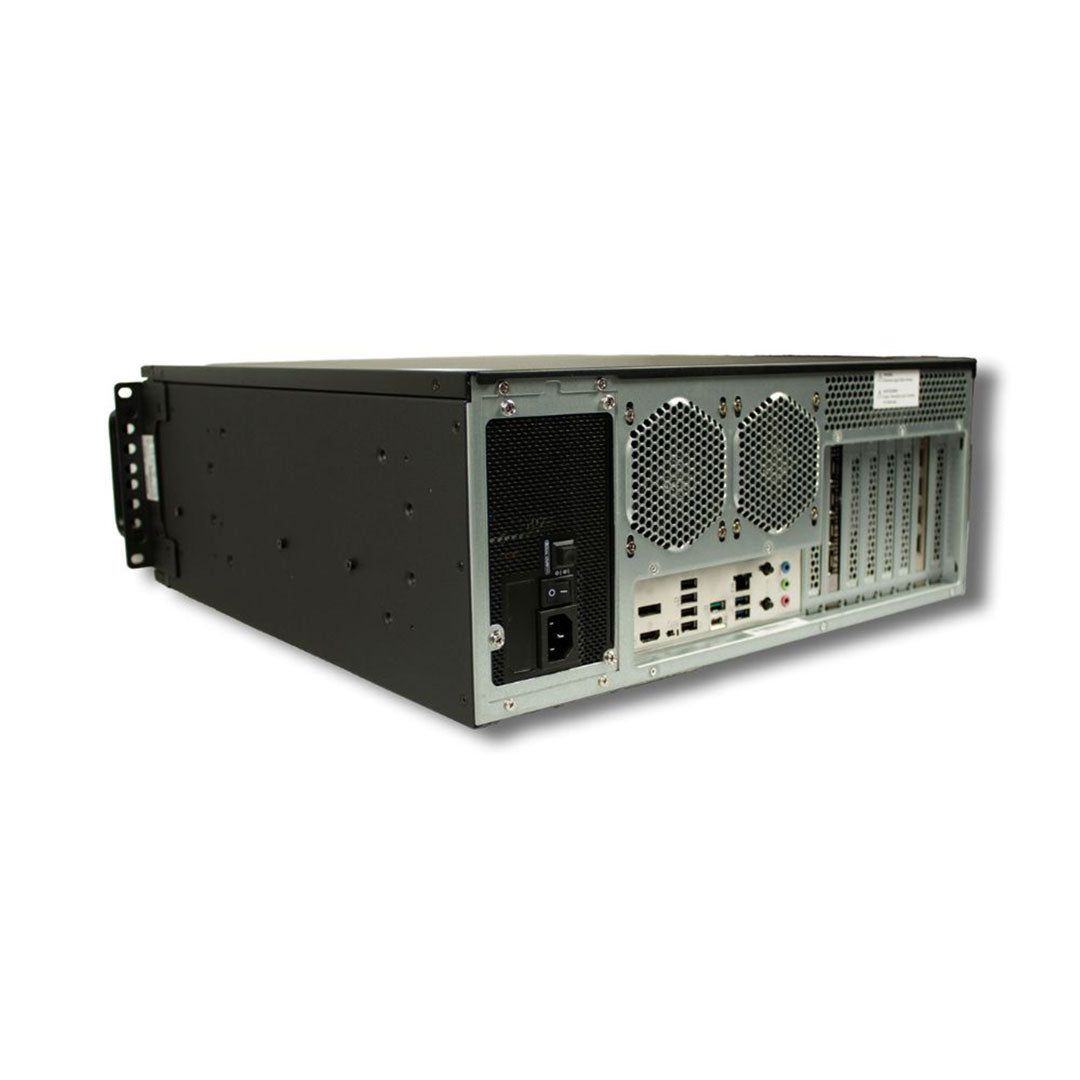

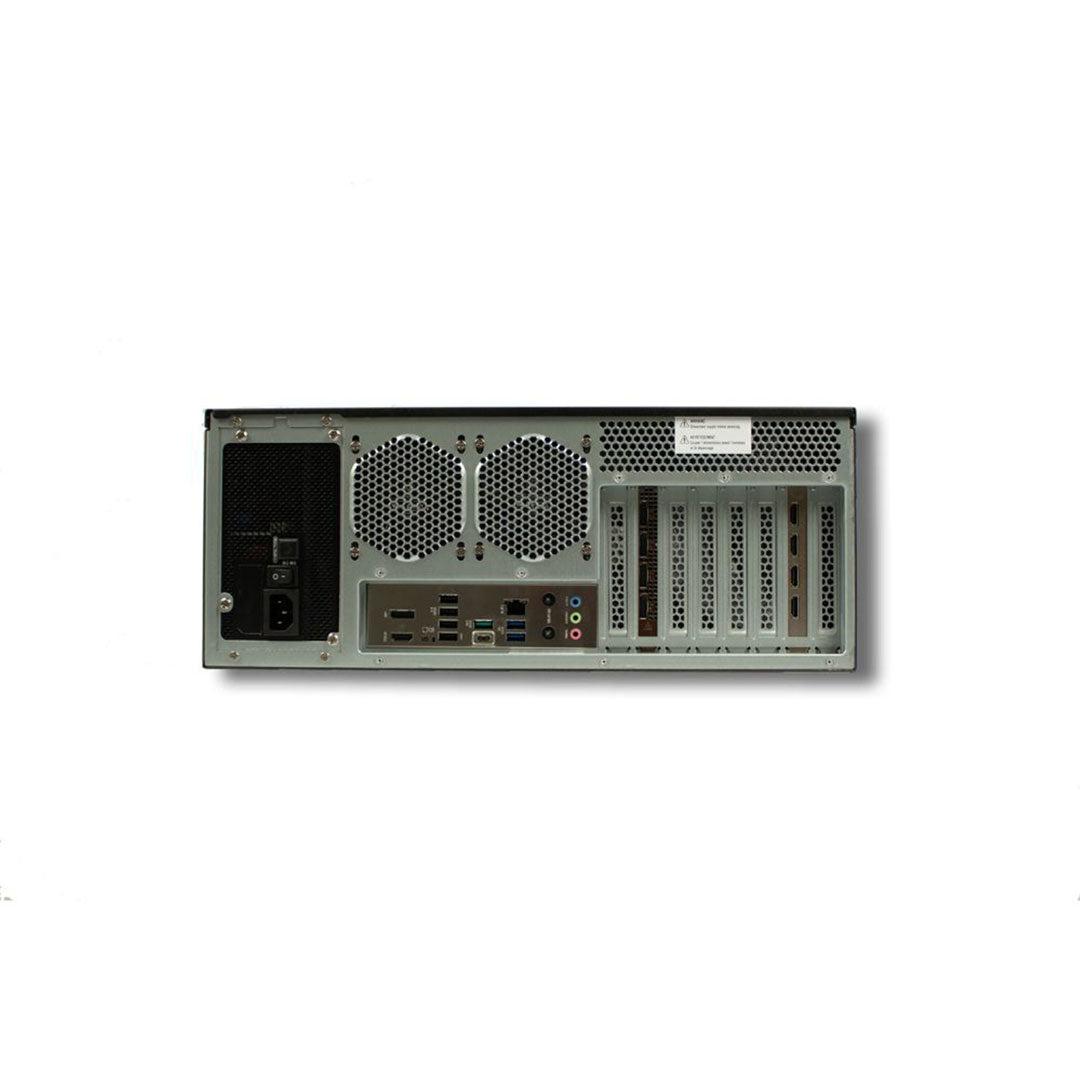

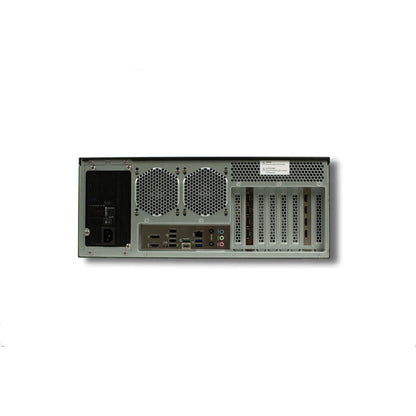

Interfacing & Connectivity

• 4 DisplayPort™ 1.4 with DSC outputs, up to 4x @3840x2160px (4K), 1x @7680x4320px (8K)
• Power switch and clear CMOS buttons
• Stereo audio output on a standard 3.5 mm (TRS) jack
• 1 S/PDIF optical output, TOSLINK receptacle connector
• 1x 2.5 Gbps Ethernet on RJ45 connector with status LEDs (Network, Activity)
• 1x 1 Gbps Ethernet on RJ45 connector with status LEDs (Network, Activity) (available if optional Decklink not mounted)
• 4 USB Host 3.2 Gen 1, type-A receptacle for HID mouse, keyboard and Audio Class 2.0
• 2 USB Host 3.0 High Speed (5 Gbps), type-A receptacle in front panel
• Optional Blackmagic Design DeckLink Quad HDMI Recorder

Hardware

• AMD Ryzen 9 Processor
• Motherboard supporting 2 GPU at X16
• Pro grade graphic card AMD Radeon Pro W7500

Storage & Memory

• 1 TB SSD NVMe M.2
• 2×16 GB SO-DIMM DDR5 5600 MHz

Network

• OSC API & Embedded UDP/OSC server for video control
• Wake On Lan
• HTTP API & Embedded HTTP server for server control
• Input NDI stream: RGB, RGBA, BGR, BGRA and UYVY, unlimited resolution, max 60 fps
• Output NDI stream: RGBA, canvas resolution, max 60 fps
• Embedded NTP client to synchronize the clock
• IPv4 and IPv6
• IPv4: static or DHCP address

Misc.

• AC Power supply 100V-240V / 9-4.5A / 50-60Hz

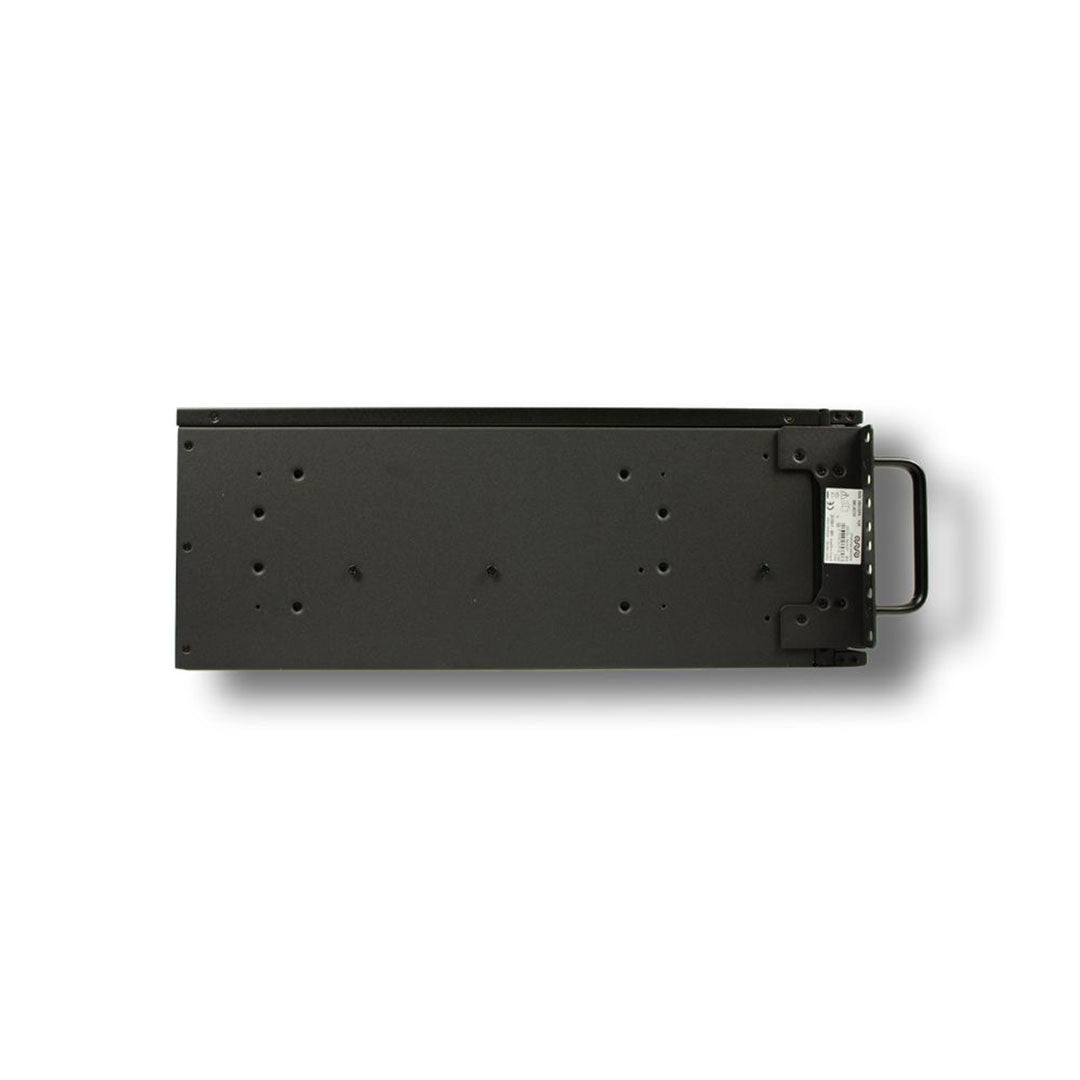

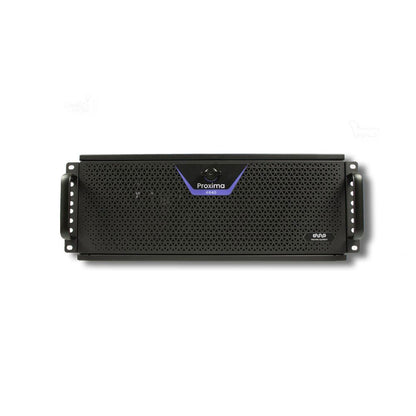

• 19-inch / 4U rackable
• Width: 440 mm – Depth: 468 mm – Height: 176 mm
• Weight: 13.9 kg
• CE, FCC
