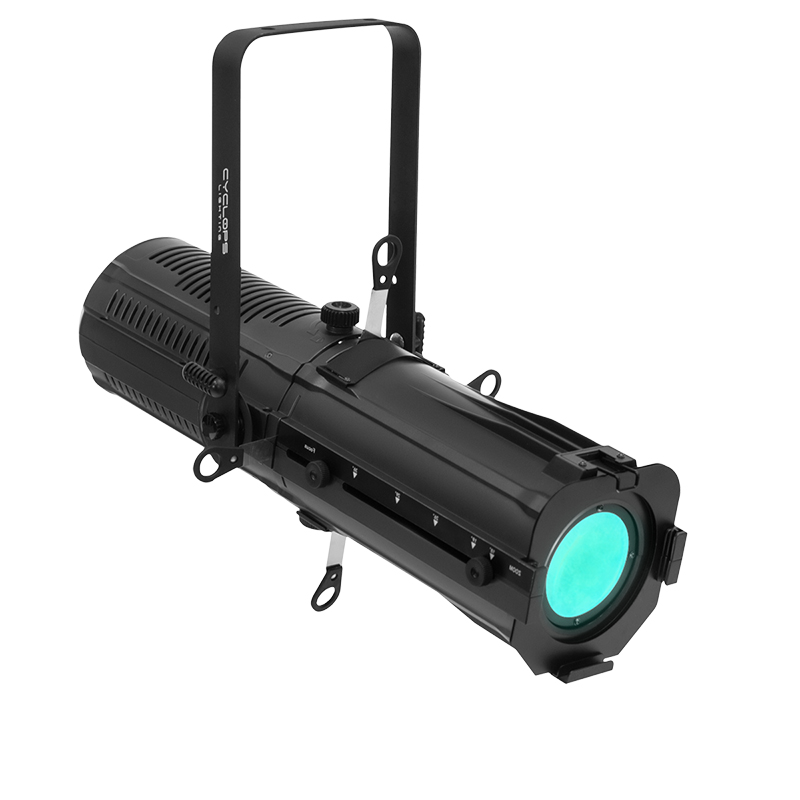

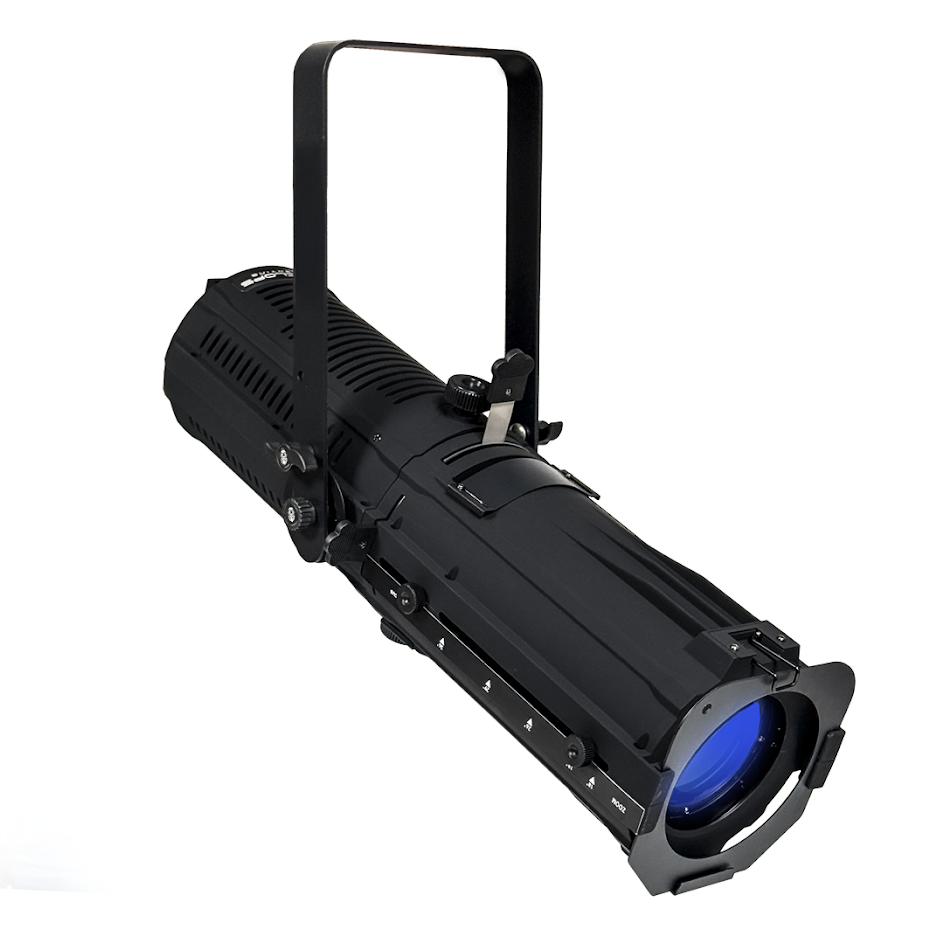

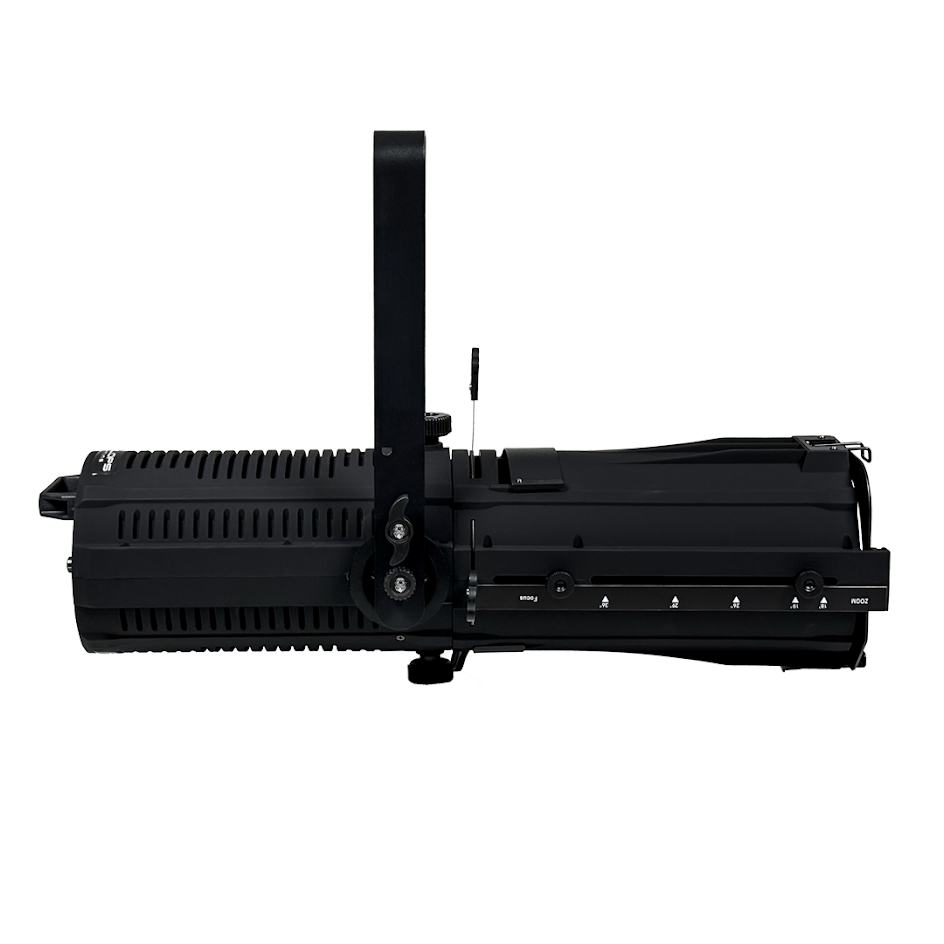

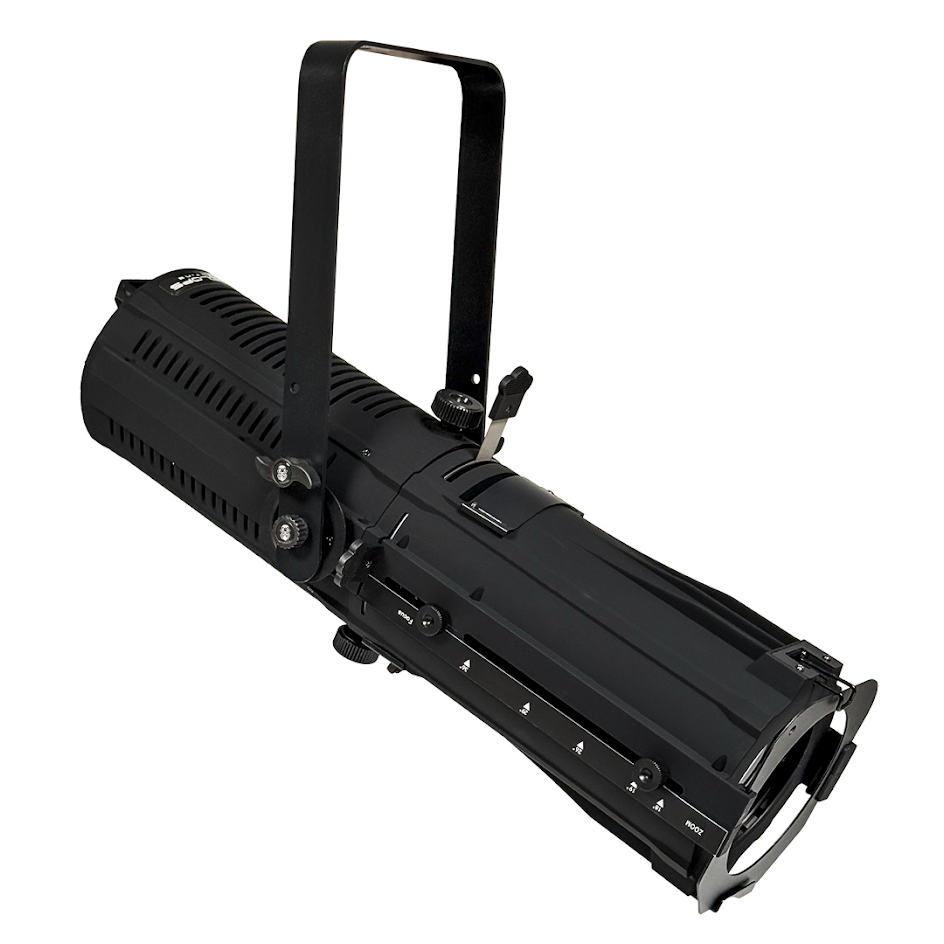

PR 350S - 350 watts RGBAYC LED Profile Spot

Product Description

SOURCE

• Light source: 350 watts RGBAYC LED
• Light Output: 5,000 Lux @ 5m @ 18°
• LED life expectancy: 50, 000 Hrs
• CRI: 85
• TLCI: 95

OPTICAL SYSTEM

• Manual zoom
• Zoom range: 18° to 38°
• Optional Fresnel lens adapter 25°-50° (PMMA)

• Optional Iris and Gobo holder

KEY FEATURES

• 5 Dimmer curves
• Color mixing: RGBAYC
• White temperature macros
• Strobe
• Video flicker free with selectable PWM
• Intelligent temperature control
• Silent operation



COLOR

• Color Mixing: 6-color RGBAYC (Red, Green, Blue, Amber, Yellow, Cyan)
• Color Temperature Macros: 2,700K to 8,000K

DYNAMIC EFFECTS

• Strobe Effect: Yes, with increasing speed
• Color Fading: Yes, via DMX (12CH mode)
• Color Macros: Color jump and color fading with speed control

CONTROL & PROGRAMMING

• Display: LCD display with Menu, Up, Down, and Enter buttons
• Rotary Knob: Multi-function knob for dimmer, strobe, and menu navigation
• Control Protocols: Rotary, DMX 512, RDM, Art-Net
• Control Channels: 2, 8, or 12 Channels
• Dimming Curves: 5 selectable curves (Standard, Stage, TV, Architecture, Theatre) plus Custom
• PWM: Selectable PWM for video flicker-free operation


ELECTRICAL

• Input Voltage: AC100-240V, 50-60Hz
• Power Consumption: 350 Watts LED source (Studio mode silent option at 200W)

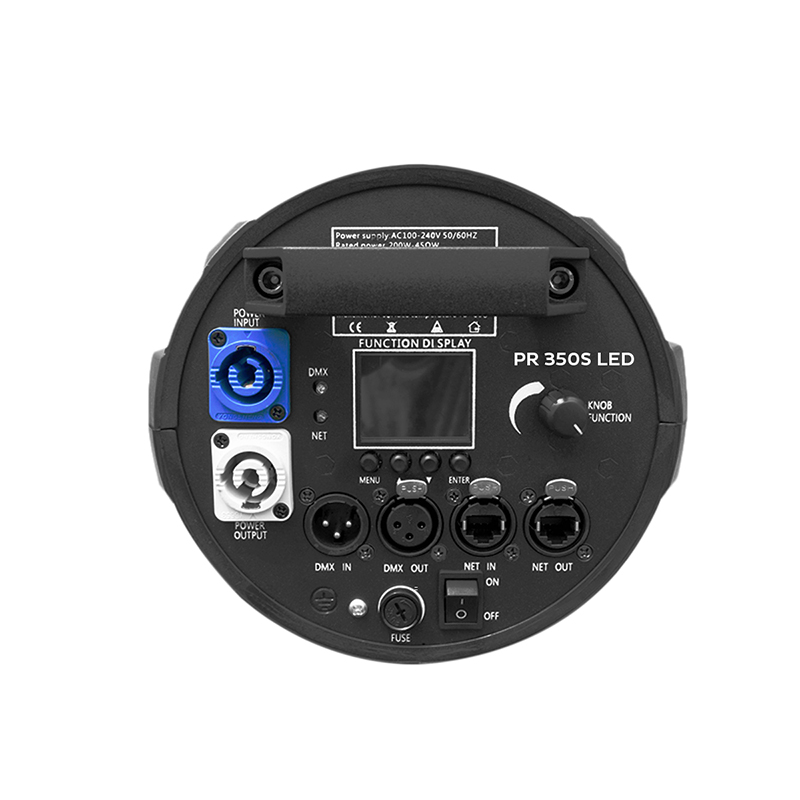

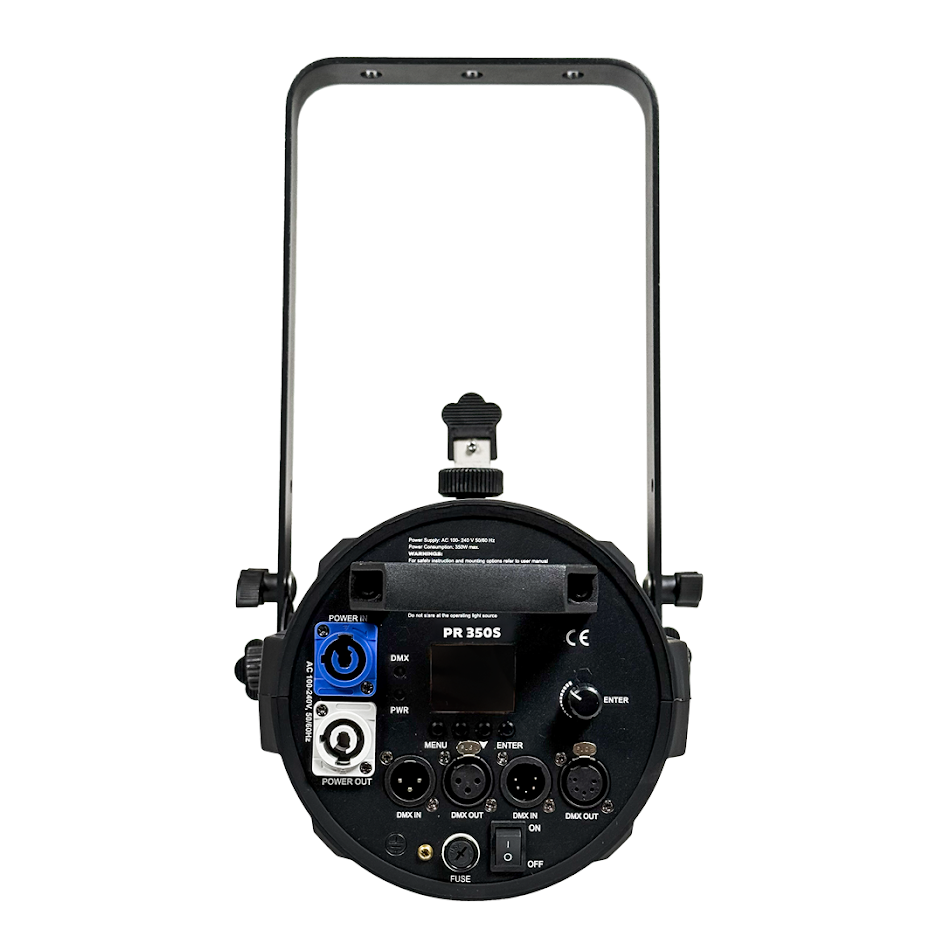

CONNECTIONS

• Power Connections: PowerCon In/Out (Supports power linking up to 6 units)
• DMX Connections: 3-pin XLR In/Out (male and female)
• Network Connections: Dual RJ45 connectors for Art-Net data transmission

PHYSICAL

• Dimensions: 745 x 294 x 294 mm
• Net Weight: 8.7 Kg (including lens)
• Housing Color: Black
• IP Rating: IP20
