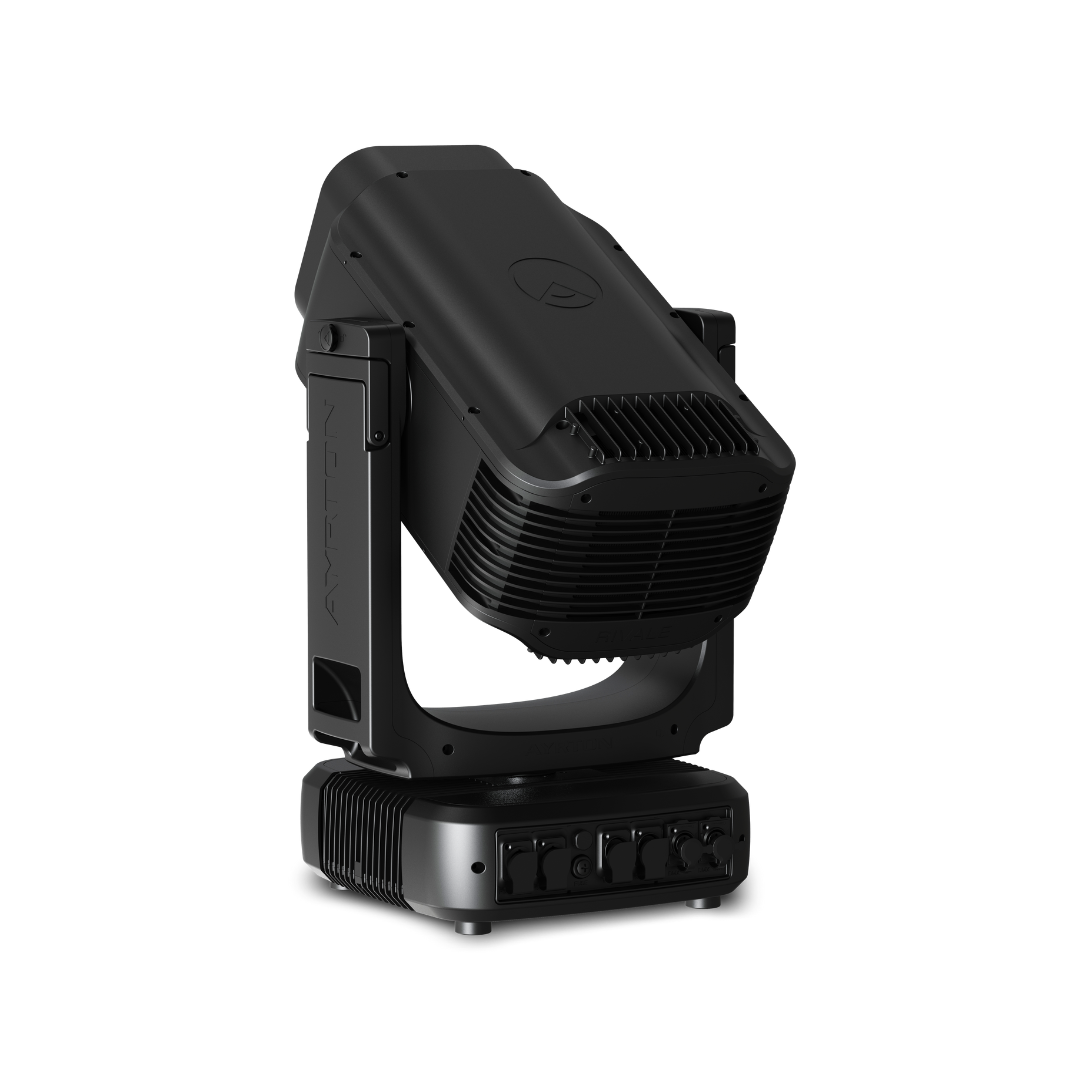

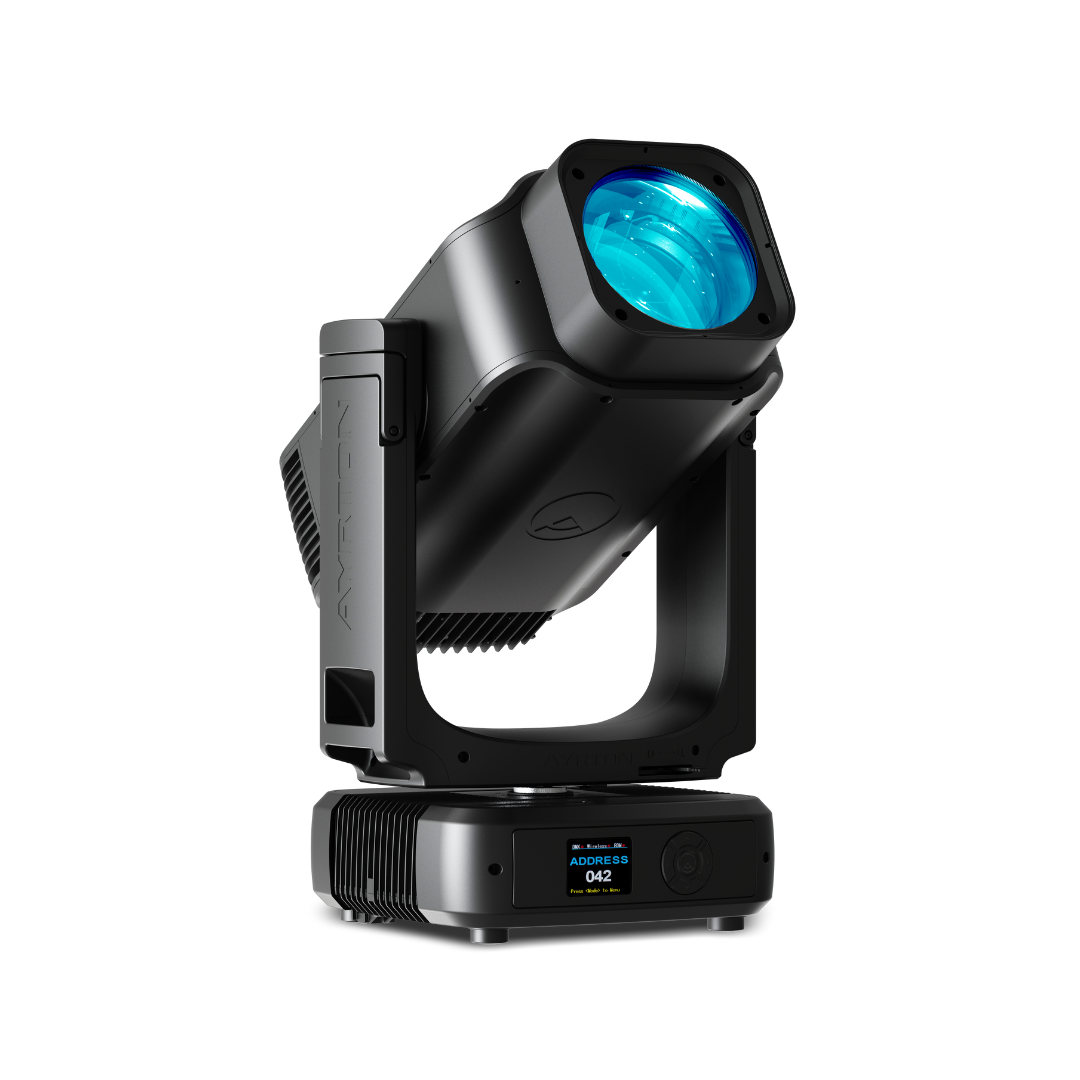

Rivale Profile - LED Moving Head

Product Description

The automotive world has always been a valuable source of inspiration for AYRTON. Pushing the limits requires attention to detail, using innovative materials and state-of-the-art technology, and a maximum reduction in weight for accomplishing exceptional feats. Weight determines performance. RIVALE PROFILE weighs only 28.5 kg.

This light-weight luminaire, AYRTON’S most versatile to date, is capable of outstanding performance unprecedented for a product in this category. Developed for mixed use indoors and outdoors and in all conditions, RIVALE PROFILE, with its unique visual signature, is unparalleled on the market. RIVALE PROFILE has been designed to push the limits of versatility. It foreshadows the style of our future line and establishes the AYRTON name as a « no-compromise » brand. Equipped with a 160 mm frontal lens, RIVALE PROFILE can produce an ultra-intensive beam of 4° close to that of AYRTON’S famous « LT » versions. The proprietary optical system has 13 lenses, delivering an 13:1 zoom ratio and a zoom range of 4° to 52°. It offers continuous rotation of the pan and tilt movement.

It is equipped with a brand new 450 W high-efficiency LED module calibrated at 6500 K that offers a luminous flux of 27,000 lumens with optimal positioning on a black body to obtain perfect light neutrality.

RIVALE PROFILE adopts a brand new high-definition progressive CMY colour mixing system that allows a perfect reproduction of pastel colours when the filter is added and regardless of the selected colour combination. A variable Deep RED channel optimizes the colour rendering index at low levels and offers a progressive red with a high level of saturation for specific needs. A progressive CTO and a seven-position colour wheel complete the palette of tools dedicated to creating colour. RIVALE PROFILE is factory equipped with a wheel of seven rotating gobos, a wheel of eight fixed gobos, a framing section that allows the precise positioning of each shutter blade on 100% of the surface with a rotation of +/- 90°, a iris diaphragm, a monochromatic effect wheel, two combinable rotating prisms and two frost filters. RIVALE PROFILE is a unique projector that successfully boasts performance, creativity, subtlety and power.

Key Features:

• 3 Series – Source: 450 W – 6500 K
• Lumens: 27,000
• Native CRI: greater than 70
• Beam Aperture: 4° to 52°
• Frontal Lens: 160 mm

Technical Specifications:

OPTICS

• 13-element 13:1 zoom high-resolution optic system
• Beam aperture: 4° to 52°
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 160 mm frontal lens

LIGHT SOURCE

• 35,000 lumens white light engine
• Total luminaire output: up to 27,000 lumens (integrating sphere measurement,
• Fan mode AUTO)
• Colour temperature output: 6500 K
• CRI: greater than 70
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video recorded events

MOVEMENT

• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation

COLOURS

• Sophisticated colour mixing system providing CMY color mixing
• Variable CTO colour temperature correction
• Variable deep Red channel
• Fixed colour wheel with seven complementary colours

GOBOS

• Indexable rotating gobo wheel with seven high precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Fixed gobo wheel with 8 high-precision glass gobos, plus open position
• Gobo diameter: 25.2 mm
• Image diameter: 20.0 mm
• Gobo thickness: 1.1 mm

FRAMING SYSTEM

• 4 individually positionable barndoors on a 100% surface area in all positions
• Rotation of the barndoors module: +/- 90°

IRIS DIAPHRAGM

• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open

FROST

• 2 frost filters one light, one heavy

EFFECTS

• Focusable graphic animation effect-wheel with continuous rotation in both directions
• 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear

DIMMER / STROBE

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

HARDWARE FEATURES

• Graphic LCD display for addressing and special functions settings, with flip function
• 5 menu buttons to set the functions
• Excess temperature protection
• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
• IP65 XLR 5 pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet connection
• IP65 PowerCON TRUE1 male and female connectors for power connection

CONTROL

• DMX 512 protocol, through IP65 DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• ArtNet™ & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Choice of 3 DMX modes (from 44 to 70 DMX channels)

POWER SUPPLY

• Electronic supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 750 W maximum

COOLING SYSTEM

• Advanced liquid cooling system
• IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes with a new Super Silent Mode
• Safety protection against temperatures excesses

HOUSING

• Moving-head skeleton made of aluminium and steel metal plates
• Base in die-cast composite alloy
• Heatsinks in aluminium and copper
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Four-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)

INSTALLATION

• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point

OPERATING PARAMETERS

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45° C (113° F)
• Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
• Minimum usage distance: 2.0 m (6.56 ft)

COMPLIANCE

• EU (EMC & LVD):
  EMC Directive 2014/30/EU
  LVD Directive 2014/35/EU
• US (Safety & EMC):
  UL 1573
  FCC Part 15, Subpart B:2018

SIZE

• Product: 360 x 667 x 320 mm (l x h x d)
• Flight-case foam: 485 x 565 x 560 mm (l x h x d)

WEIGHT

• Product: 28.5 kg

PRODUCT CODES

• 012321: RIVALE PROFILE – CLASSICAL IP65 3 SERIES
