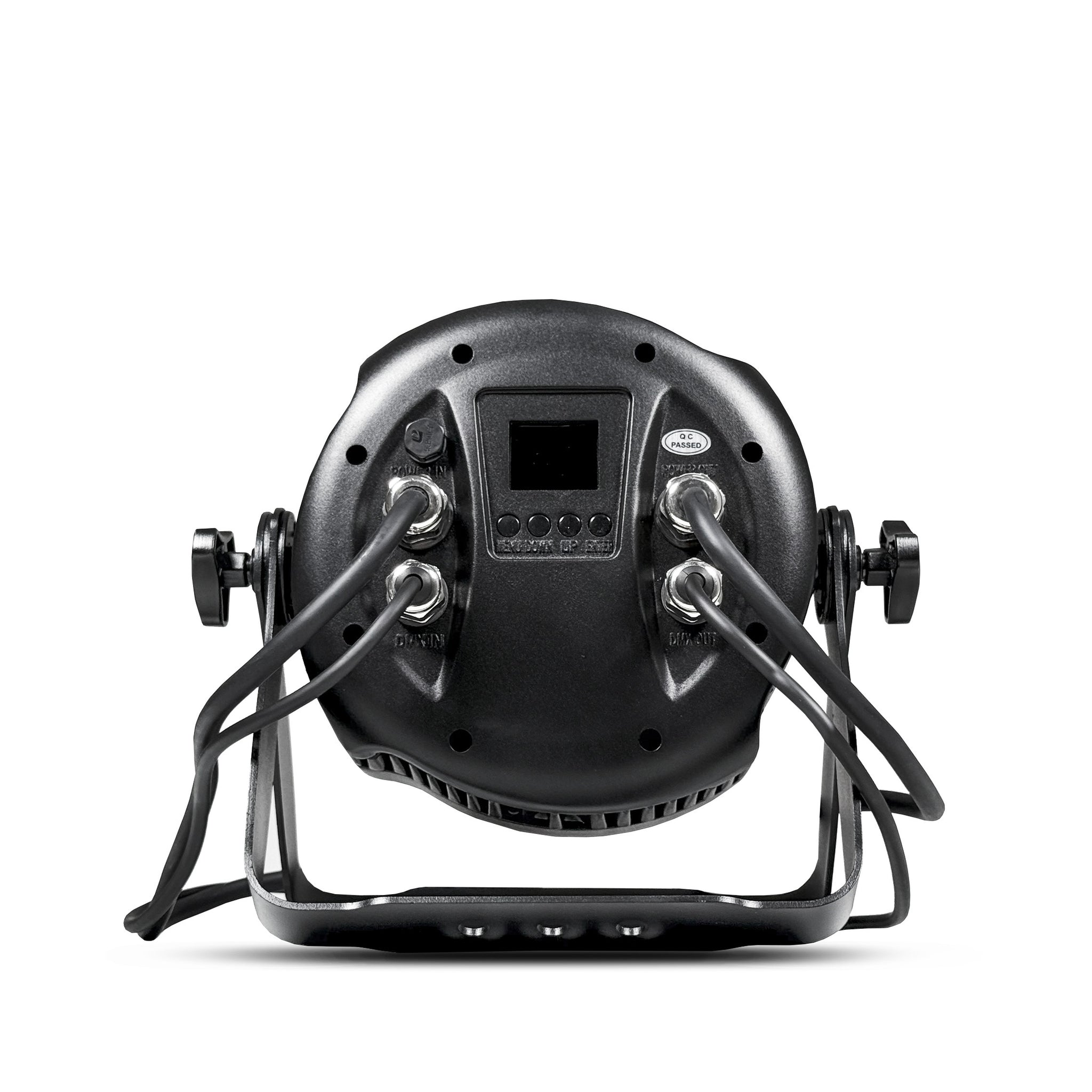

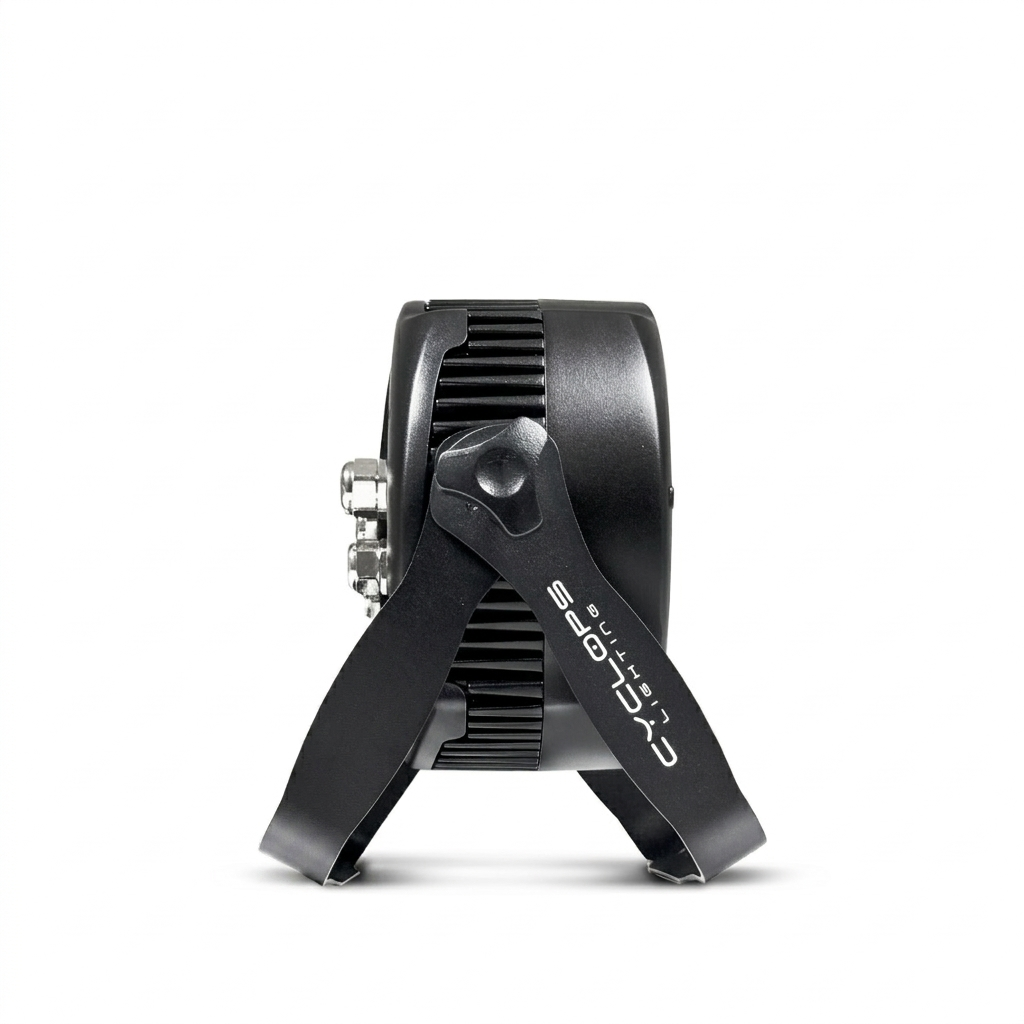

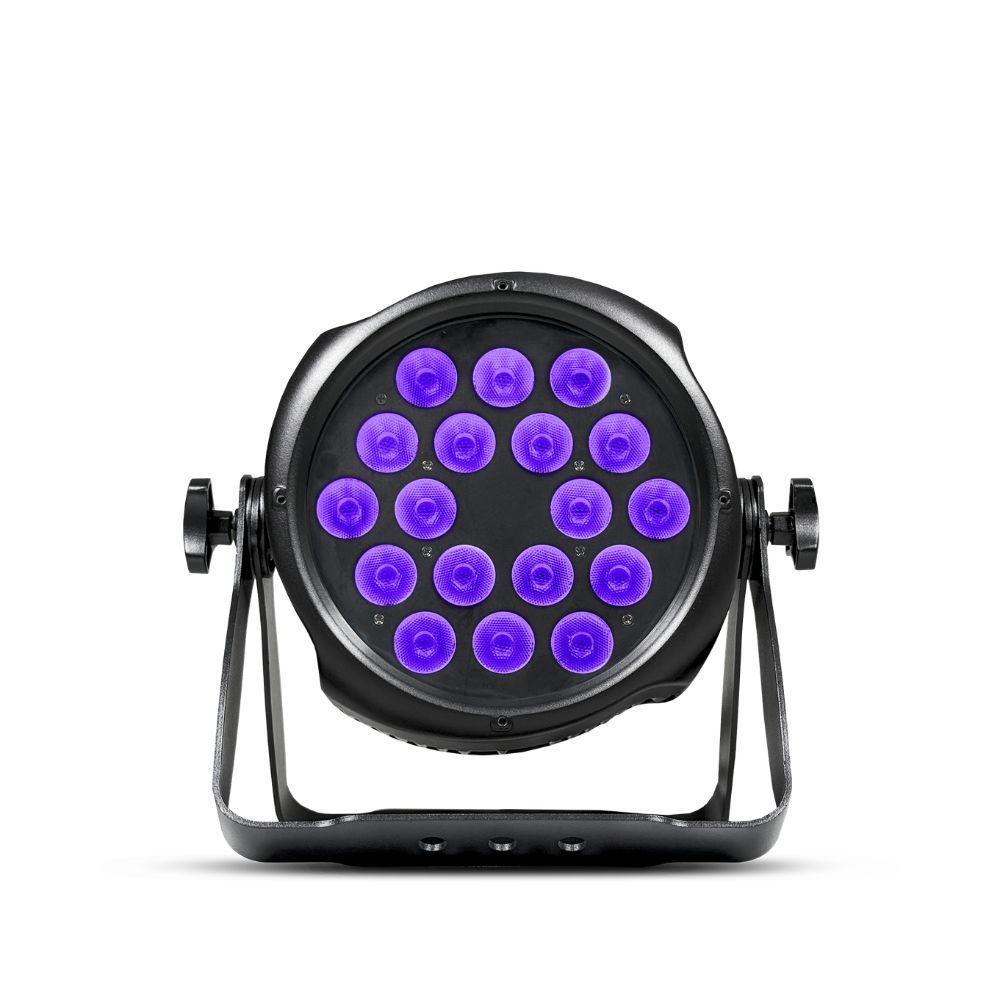

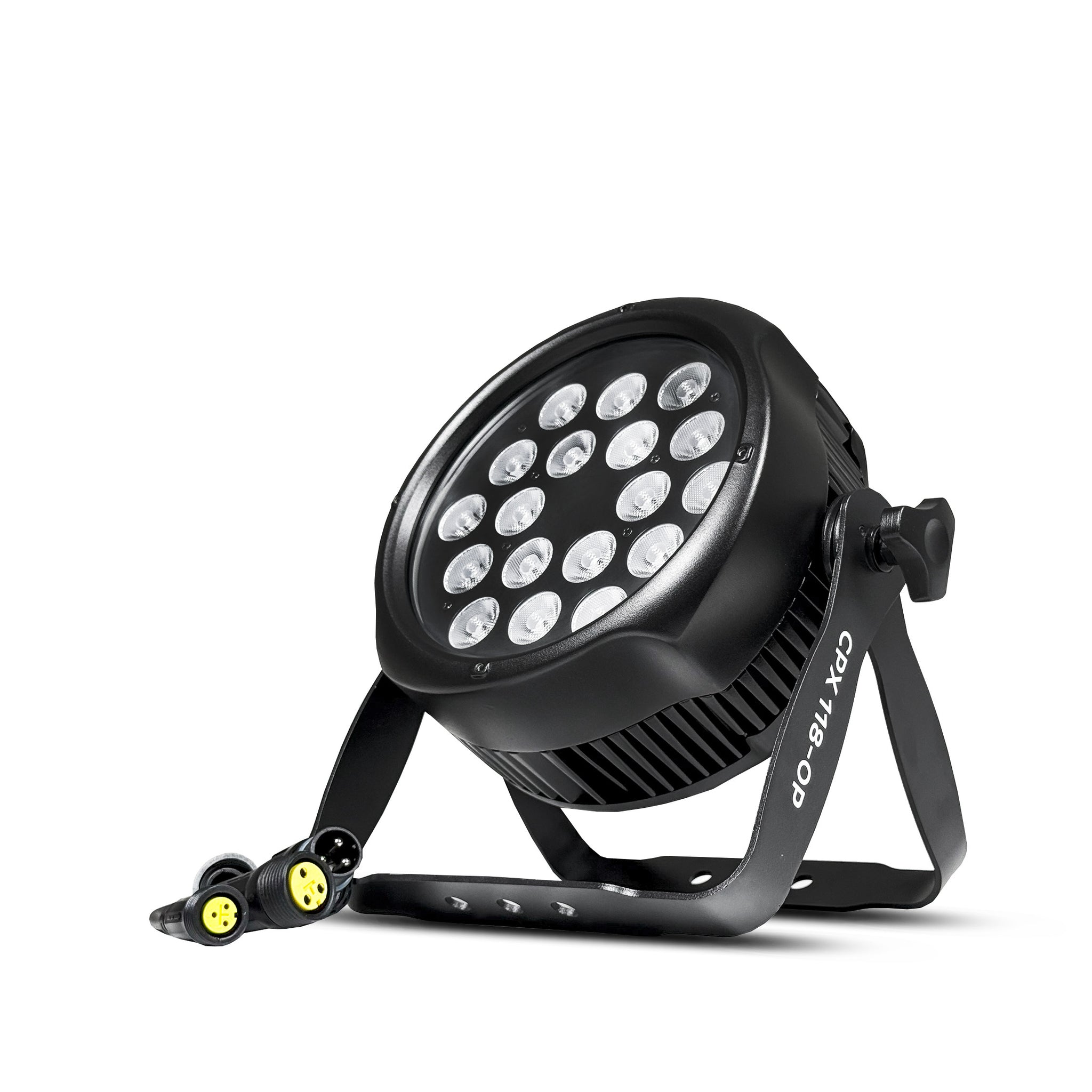

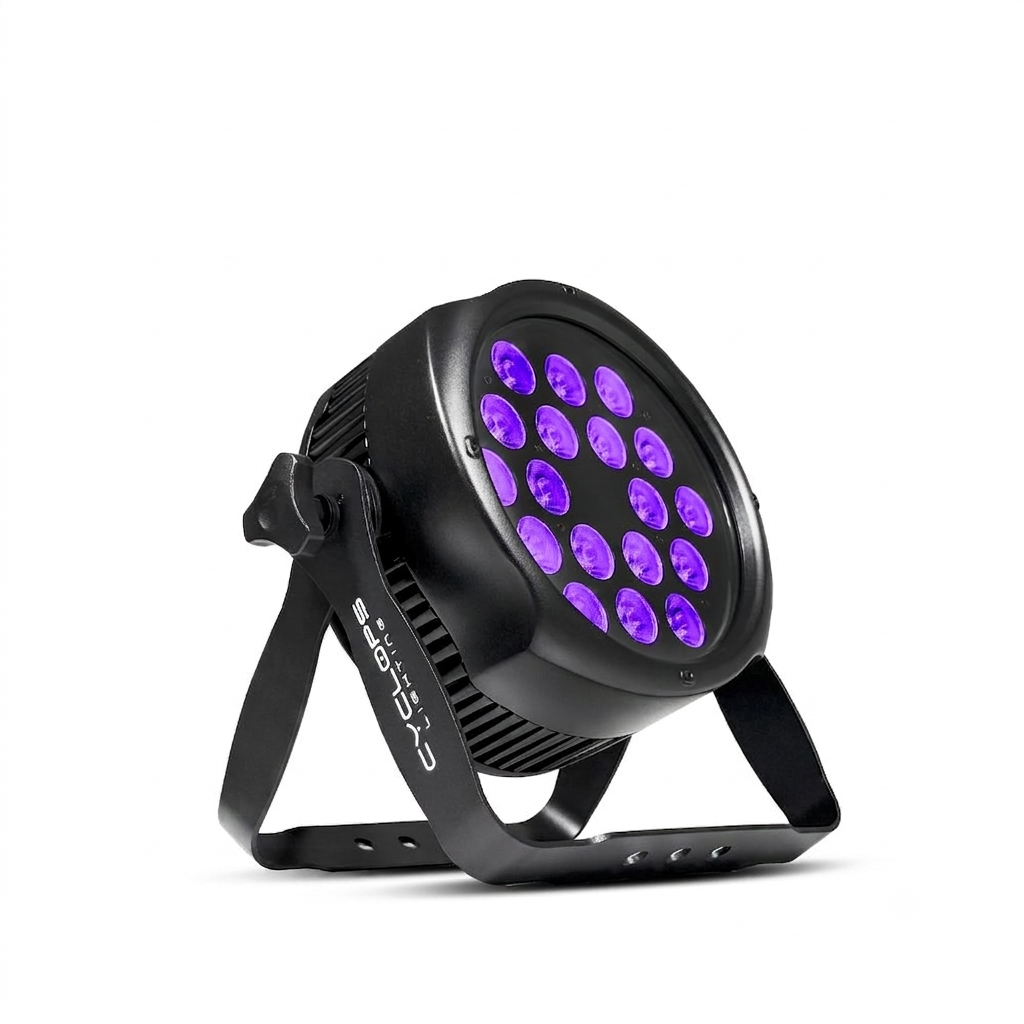

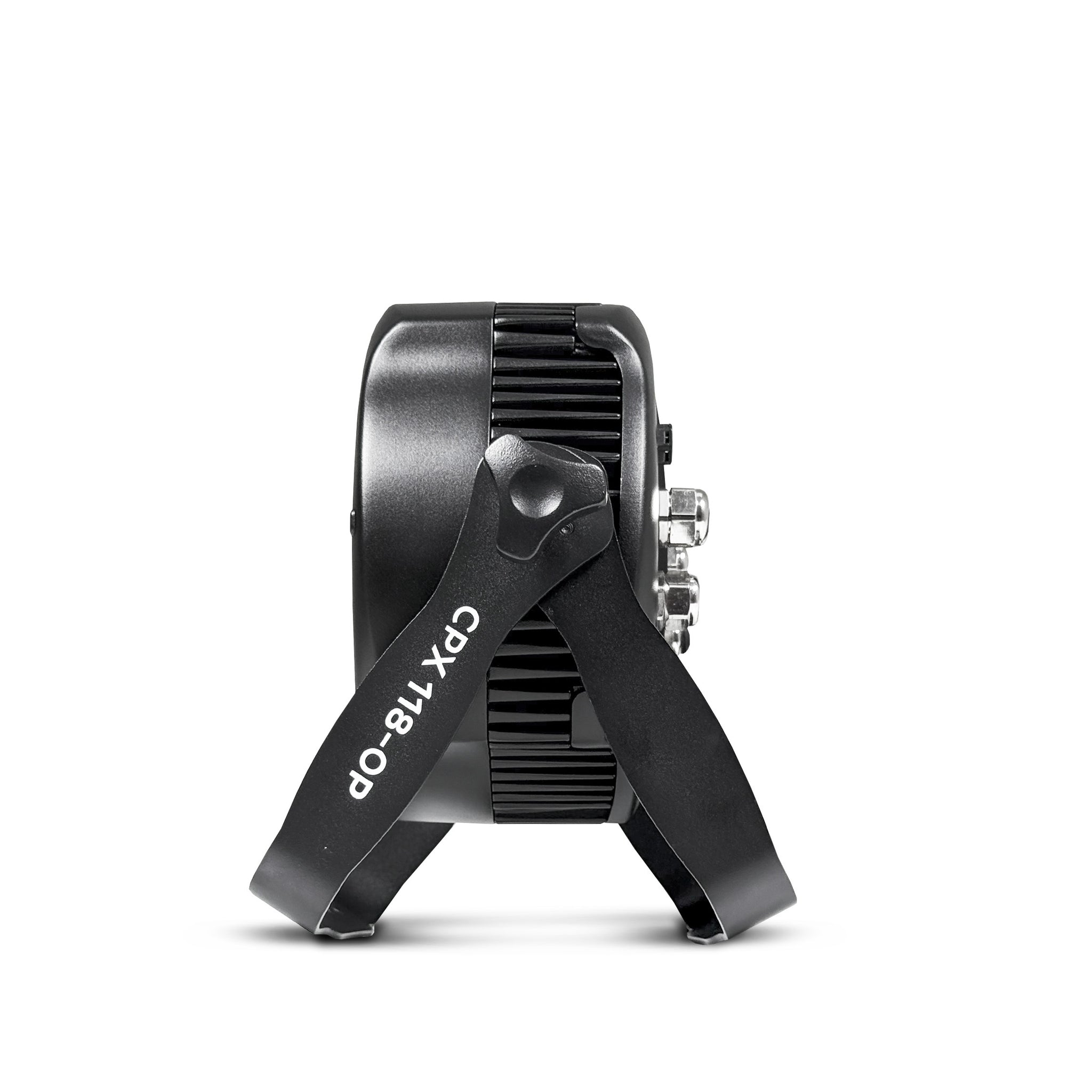

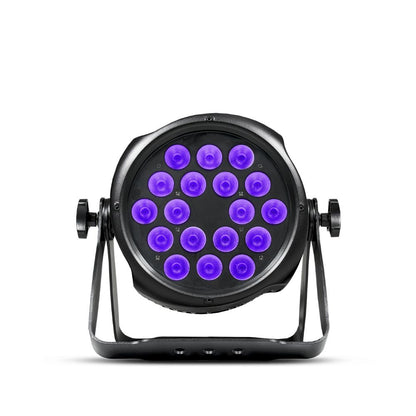

CPX 118OP is an 18 x 5 watts outdoor Ultraviolet LED Par. It’s a bright waterproof UV Par, ideal for black light applications in stages, events and outdoor applications.

SOURCE

• Light source: 18 x 5 watts UV LEDs
• LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

• Beam angle: 25°
• Light output: 7,000 Lux @ 2m @ 10°

DYNAMIC EFFECTS

• Color: Ultraviolet
• Strobe and fade effect
• Built-in dynamic macros

CONTROL & PROGRAMMING

• Control protocols: DMX, Master Slave, Auto Run
• Display: TFT displayer with 4 buttons
• Control channels: 1, 2, 5 CHs

ELECTRICAL

• Input voltage: 100-240V/50-60Hz
• Power consumption: 95 watts

CONNECTIONS

• DMX connections: IP DMX In/Out Cables with 3 pin screw lock connectors
• Power connections: IP Power In/Out Cable, 3 pin screw lock connectors

 PHYSICAL

• Dimensions: 280.32 x 142.56 x 288.28mm
• Net weight: 5 Kg
• Color: Black
• Housing: Aluminum
• IP rating: 65
• Operating temperature: -20°C/45°C
