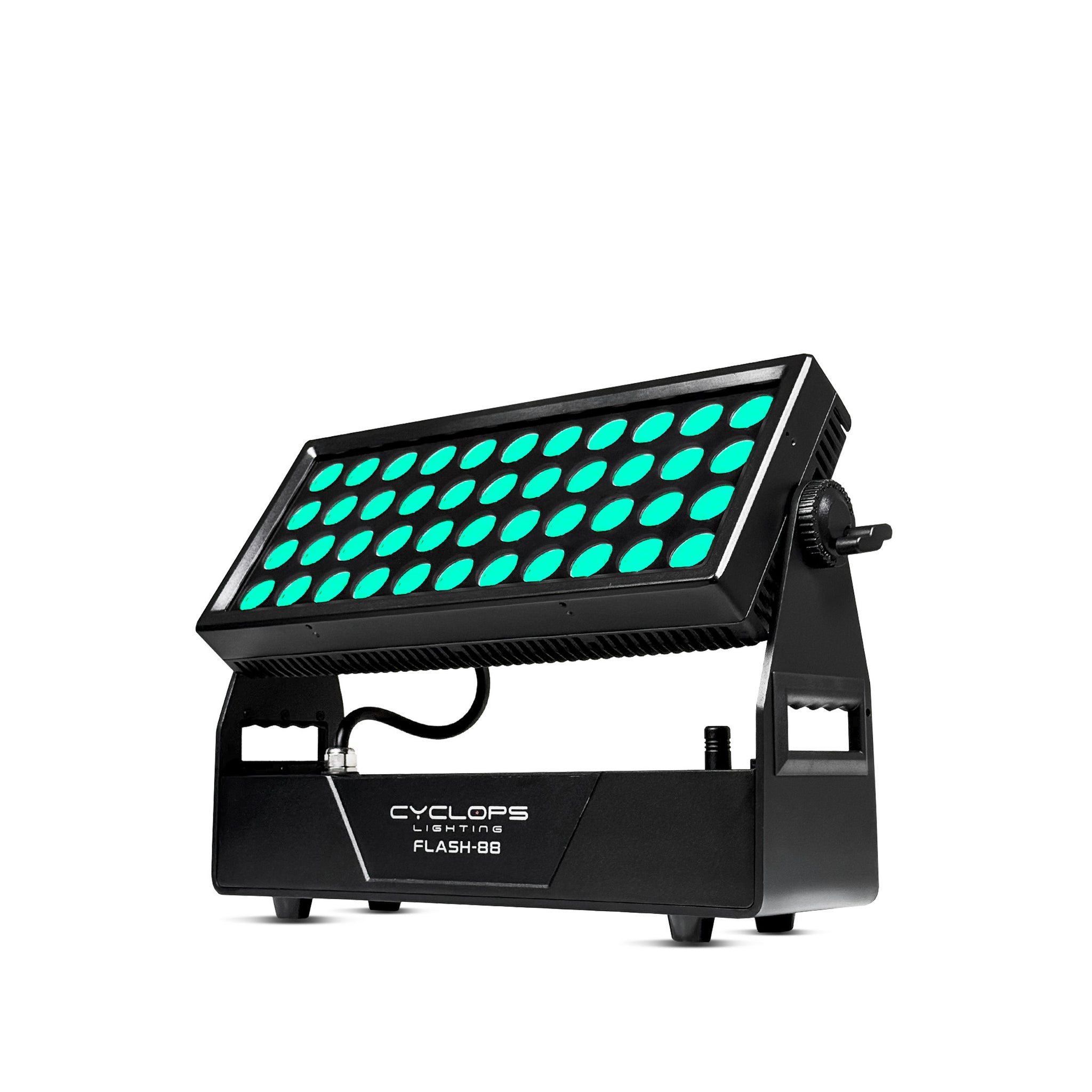

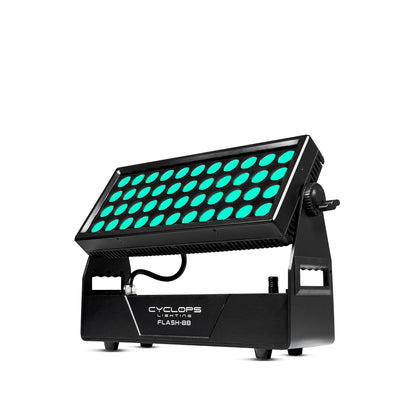

Technical Specifications

Description

SOURCE

  • Light source: 44 x 20 watts, RGBW LEDs
  • LED life expectancy: 50,000 Hrs.
  • CRI <80

OPTICAL SYSTEM

  • Beam angle: 20°
  • 40° with a magnetic diffuser filter
  • Light output: 85,000 Lux @ 2m @ 20°

DYNAMIC EFFECTS

  • Dimmer: 4 selectable dimming curves
  • Color mixing: RGBW
  • Strobe effect
  • Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX, RDM, W-DMX™ by Wireless Solution
  • Display: OLED graphical display with 4 buttons
  • Control channels: 2, 3, 4, 9 & 12 CHs

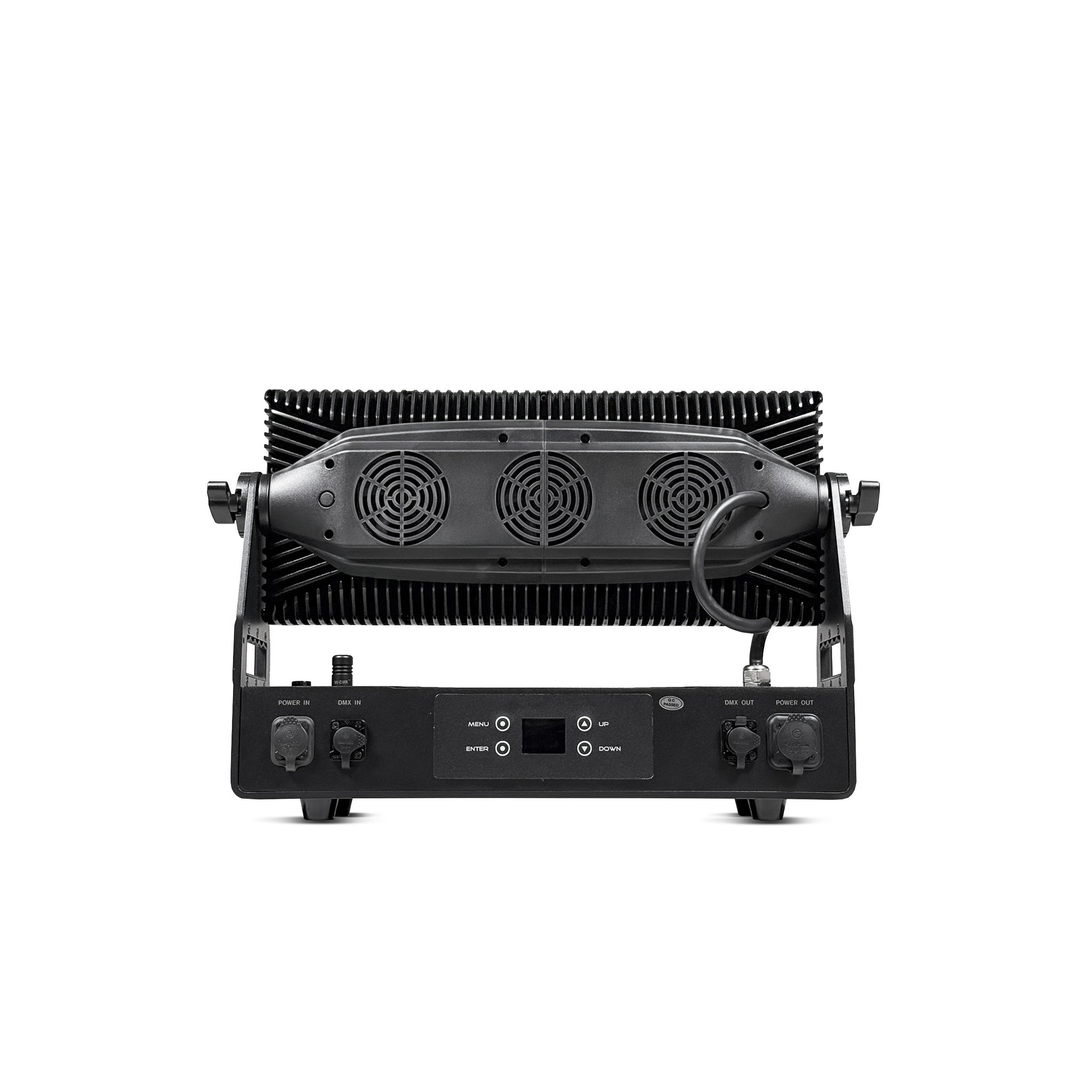

CONNECTIONS

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: IP Powercon In/Out

ELECTRICAL

  • Input voltage: 190-264V/50-60Hz
  • Power consumption: 880 watts
  • Power supply: Auto-ranging electronic switch-mode

PHYSICAL

  • Dimensions: 575 x 210 x 334mm
  • Net weight: 13.5 Kg
  • Color: Black
  • Housing: Die-cast Aluminum
  • IP Rating: IP65
  • Operating temperature: -40°C/50°C
