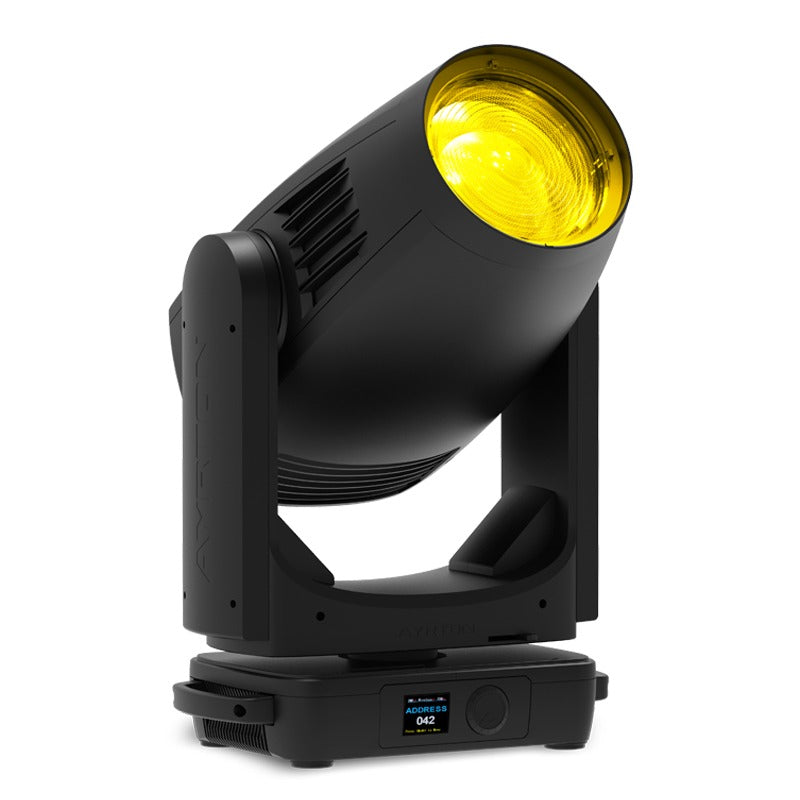

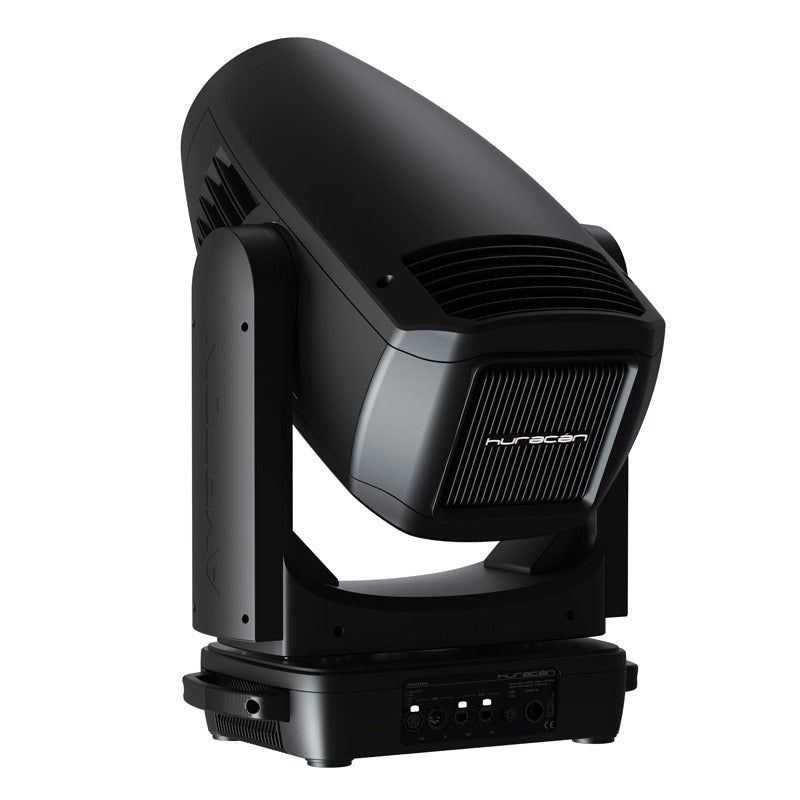

HURACÁN WASH introduces a brand new 1000 W monochromatic LED source specially developed for studio and theatre applications, called the ST.

This LED source delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For shows that need cooler metallic white light, the S version offers a record luminous flux of 52,000 lumens, a colour temperature of 7,000 Kelvin and a CRI of 70. For applications requiring perfect colour rendering, the TC version offers a CRI greater than 95 with extremely high TM30 values and a colour temperature of 6000 K. HURACÁN WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four barndoors on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. HURACÁN WASH also offers a wheel of seven rotating gobos, a 15-blade iris diaphragm and a beam ovaliser filter. HURACÁN WASH is an exceptional luminaire designed to satisfy the most demanding users.

Performance:

Specifications:

OPTICS

• 13-element 12:1 zoom high-resolution optic system
• Beam aperture: 6.2° (half peak) to 75° (one-tenth peak)
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 210 mm Fresnel frontal lens

LIGHT SOURCE

• 80,000-lumen white light engine
• Total luminaire output: up to 52,100 lumens (integrating sphere measurement, Auto Fan Mode)
• Colour temperature output: 7000 K
• CRI: greater than 70

• 68,000-lumen white light engine
• Total luminaire output: up to 45,300 lumens (integrating sphere measurement, Auto Fan mode)
• Colour temperature output: 6500 K
• CRI: greater than 80

• 49,000-lumen white light engine
• Total luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode)
• Colour temperature output: 6000 K
• CRI: greater than 95

• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

• Extremely accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving head range: 540° (pan), 260° (tilt)

COLOURS

• Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).
• Variable CTB colour temperature correction
• Variable CTO colour temperature correction
• Variable CTP colour temperature correction
• Fixed colour wheel with six complementary colours

GOBOS

• Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 30.0 mm
• Image diameter: 25.0 mm
• Gobo thickness: 1.1 mm

FRAMING SYSTEM

• 4 individually positionable barndoors on a 100% surface area in all positions
• Rotation of barndoor module: +/- 60°

IRIS DIAPHRAGM

• Fast iris diaphragm with adjustable dynamic effects
• Iris range: 15% to 100% open

FROST

• 0% to 100% variable linear frost

EFFECTS

• CMY & RGB colour graphic animation effects-wheel with continuous rotation in both directions
• Indexable de-focusable rotating beam-shaping optic

DIMMER / STROBE

• Electronic dimmer allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

HARDWARE FEATURES

• Graphic LCD display for addressing and special functions settings, with flip function
• Clicking jog wheel to set functions
• Excess-temperature protection
• Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
• XLR 5-pin male and female connectors for DMX connection
• Ethercon RJ45 IN / OUT connectors for ArtNet™ connection
• PowerCON TRUE1 male and female connectors for power connection

CONTROL

• DMX 512 protocol, through DMX cable or a wireless system
• DMX RDM-compatible
• Stand-alone mode and Master/Slave modes
• ArtNet & sACN protocol through Ethernet cable
• Local control panel, with LCD display
• Choice of 3 DMX modes (from 39 to 61 DMX channels)

POWER SUPPLY

• Electronic supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 1,600 W maximum

COOLING SYSTEM

• Advanced liquid cooling system
• Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes with a new Super Silent Mode
• Safety protection against temperatures excesses

HOUSING

• Moving-head skeleton made of aluminium and steel plates
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP20 protection rating
• Exterior finish: black (carbon)

INSTALLATION

• Fastening-bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety-cable attachment point

OPERATING PARAMETERS

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45° C (113° F)
• Minimum permitted ambient temperature (Ta min): -10° C (14° F)
• Minimum usage distance: 3.0 m (9.84 ft)

COMPLIANCEEU (EMC & LVD):

• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU

US (Safety & EMC)

• UL 1573
• FCC Part 15, Subpart B:2018

SIZE

• Product: 494 x 788 x 294 mm (l x h x d)
• Flight-case foam : 715 x 555 x 630 mm (l x h x d)

WEIGHT

• Product: 42.5 kg

PRODUCT CODES

• 011880: HURACÁN WASH S – CLASSICAL 9 SERIES
• 011883: HURACÁN WASH ST – CLASSICAL 9 SERIES
• 011885: HURACÁN WASH TC – CLASSICAL 9 SERIES
