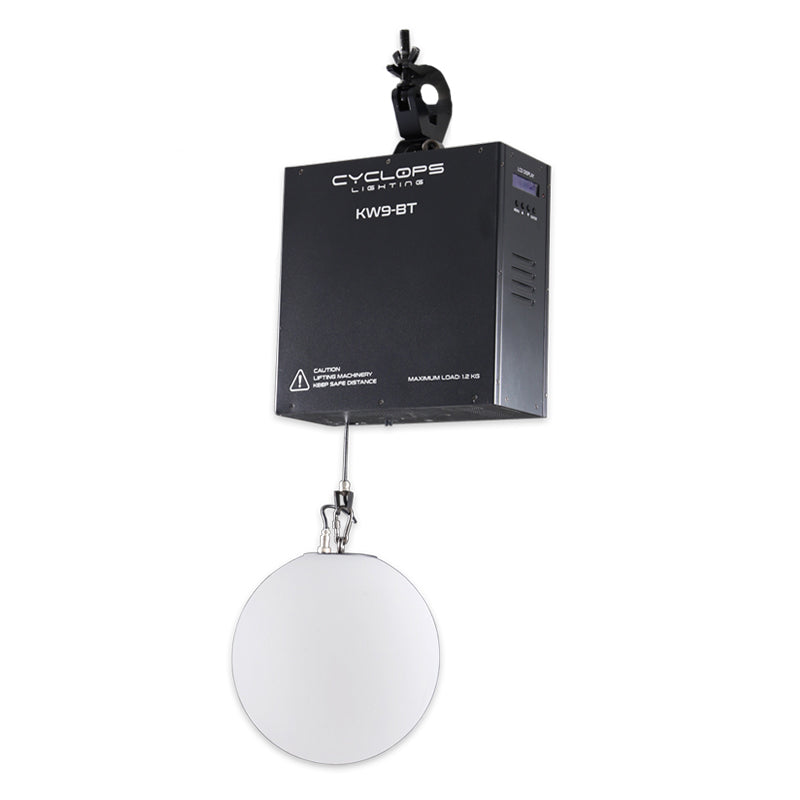

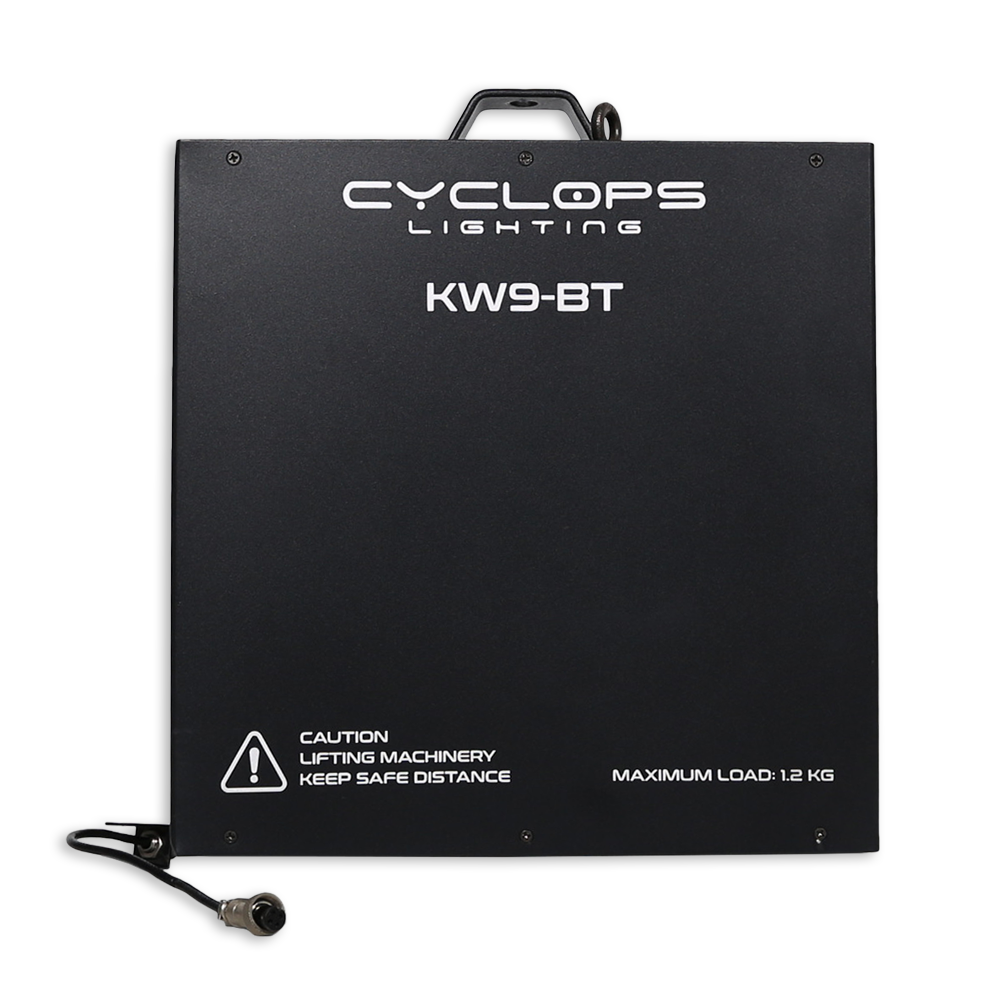

KW9-BT is a DMX controlled Kinetic Winch with a travel height of 9 meter. It can control both the KW-B RGB Balls and KW-T RGB Pixel Tubes giving a full flexibility to create multiple creative designs. With a precise 16-bit motor movement, the KW9-BT can deliver the most complex kinetic and dynamic shows.

Product variants

On Demand

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Pairs well with

Technical Specifications

Description

LIFTING MECHANISM

Lifting Height: 9m Long mode / 4.5m Short mode
Lifting Speed: 75cm per second
Maximum Load on wire: 1.2kg
Lifitng Precision: 8 and 16 bit channel
Winch: 3 Phase Motor

CONTROL & PROGRAMMING

Control protocols: DMX
RGB Ball Control channels: 5, 6, 9, 10 CHs
Pixel Tube Control channel: 9, 74, 75, 82, 83 CHs
Display: LCD Screen Display

ELECTRICAL

Input voltage: 100-240V/50-60Hz
Power consumption: 80 watts

CONNECTIONS

Fixtures Cable: 4 Core Power and Data cable 1-24V DC
DMX connections: 3 pin and 5 pin XLR In/Out male and female
Power connections: PowerCon In and Out
Maximum quantity in series: 20

PHYSICAL

Dimensions: 292 x 292 x 125mm (without clamp)
Weight: 5.7kg
Color: Black
Working Temperature: 5° to 45°
IP rating: 20
