Photometrics

• LED expected lifetime: 50,000 hours
• Light source: 2x 750W Red, Green, Blue, Amber, Warm White
• Optical system: Reflector with ROXX DWE glass lens
• LED PWM frequency: Selectable 800Hz, 1,200Hz, 2,000Hz, 3,600Hz, 12kHz, 25kHz
• Beam angle (50%): 73°
• Maximum field angle (10%): 117°
• Colour temperature range: 2,000–10,000K
• CRI/Ra (5600K): 90
• Efficacy @ 3000K: 57 lm/W
• Luminous flux @ 3000K: 39,428 lm
• Illuminance @ 5m / 16.4ft (3000K): 1,057 lx / 98.2 fc

Dimensions & Weight

• IP rating: IP66
• IK rating: IK08
• Body material: Aluminium, Nylon
• Lens material: Tempered glass front
• Net dimensions without yoke (W x H x D): 400 x 200 x 191 mm (15.75 x 7.87 x 7.52 in)
• Net weight (incl. yoke): 8.55 kg (18.85 lbs)
• Tilt: 360°
• Tilt locking system: Toothed locking system with angle indicator

Thermal Characteristics

• Cooling: Active, forced air, temperature-regulated
• Humidity (max.): 95%
• Operating temperature: -40°C to 45°C
• Start-up temperature: -20°C to 45°C
• Storage temperature: -40°C to 80°C
• Thermal protection: Automatic over-temperature protection

Electrical Data

• AC power, max: 90–285V 50/60Hz
• AC power, nominal: 100–240V 50/60Hz
• Electrical protection: Overload protection with automatic recovery
• Max power consumption: 887W @ 100V / 825W @ 230V
• Max power thru @ 100V: 3A (ETL) / 6A
• Max power thru @ 230V: 8A (ETL) / 11A
• Power linking @ max consumption (Boost Mode): 0 units @ 120V / 2 units @ 230V (ETL)
• Power factor: 0.99 (120V) / 0.99 (230V)
• Power supply: Built-in auto-ranging electronic switch-mode

Included / Optional

• Included items: Yoke 4.1, 2m power cable, Puk
• Optional accessories: Yoke 2.2, Yoke 4.3, Yoke Floor Extension, Yoke Floor Bracket, Rigging Bracket G2, Line-Array Accessories, Omega Bracket ST
• Colour options: Black RAL 9004 (standard); any custom RAL colour on request

Operation & Control

• DMX functions: Master Dimmer, Master Dimmer Fine, Shutter, Duration, Dimmer 1–2, Dimmer 1–2 Fine, Red 1–2, Red 1–2 Fine, Green 1–2, Green 1–2 Fine, Blue 1–2, Blue 1–2 Fine, Amber 1–2, Amber 1–2 Fine, Warm White 1–2, Warm White 1–2 Fine, CTC 1–2, Tint 1–2, Colour Macro 1–2, Colour Macro Crossfade 1–2, Dimmer Curve, Dimmer Response, Redshift, Effect, Device Settings
• DMX modes: 19
• DMX channel modes: 1CH DWE, 2CH DWE, 4CH DWE, 9CH DWE+, 6CH Strobe, 11CH Comp RGB, 11CH Section RGB, 6CH RGB, 10CH Basic RGB, 14CH Basic RGB, 13CH Standard RGB, 22CH Standard RGB, 24CH Extended RGB, 33CH Extended RGB, 10CH Direct, 12CH Direct, 17CH Direct, 24CH Direct, 41CH Direct
• Protocol: USITT DMX512-A, RDM ANSI E1.20
• Setting & addressing: TFT display with 4 controls, RDM ANSI E1.20, NFC (Near Field Communication), KLSTR.tech
• Standalone modes: Auto Program, Colour Macro, Quick Colour, Tunable White, User Colour
• Wireless DMX: Not available
• Display: TFT display
• Controls: 4 backlit buttons
• Strobe: 0–20Hz
• DMX I/O: IP67 XLR 5-pin male/female
• Power in: IP67 TRUE1-compatible input and link-thru sockets
• Firmware update: IP67 USB socket

Installation

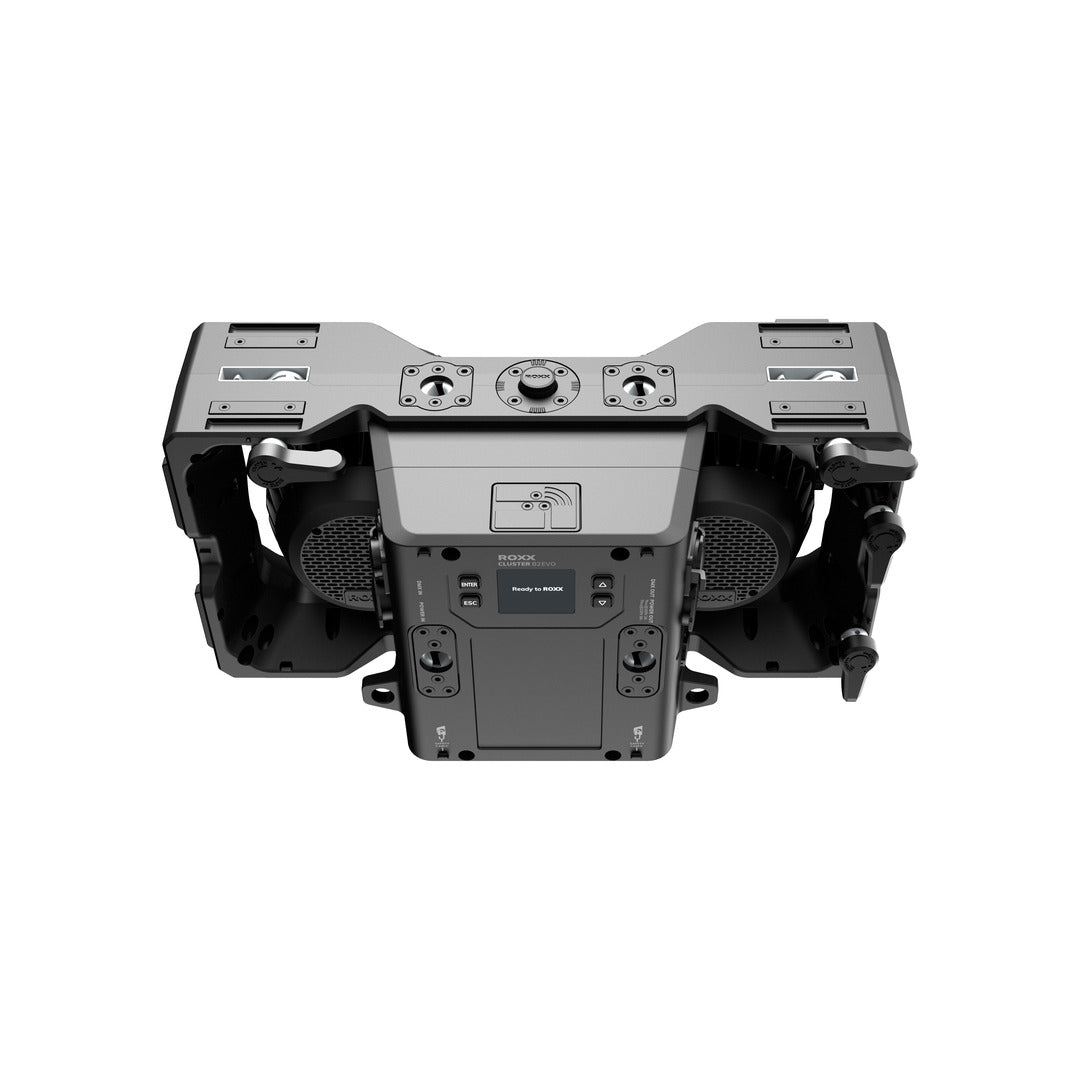

• Mounting via yoke (included): 3x 13mm / ½" holes, 1x central TV spigot attachment, 3x integrated camlocks for Omega brackets
• Mounting on fixture: ¼-turn Omega bracket on top and rear
• Mounting with optional Rigging Bracket: 2x 13mm / ½" holes for clamp fixing
• Orientation: Any

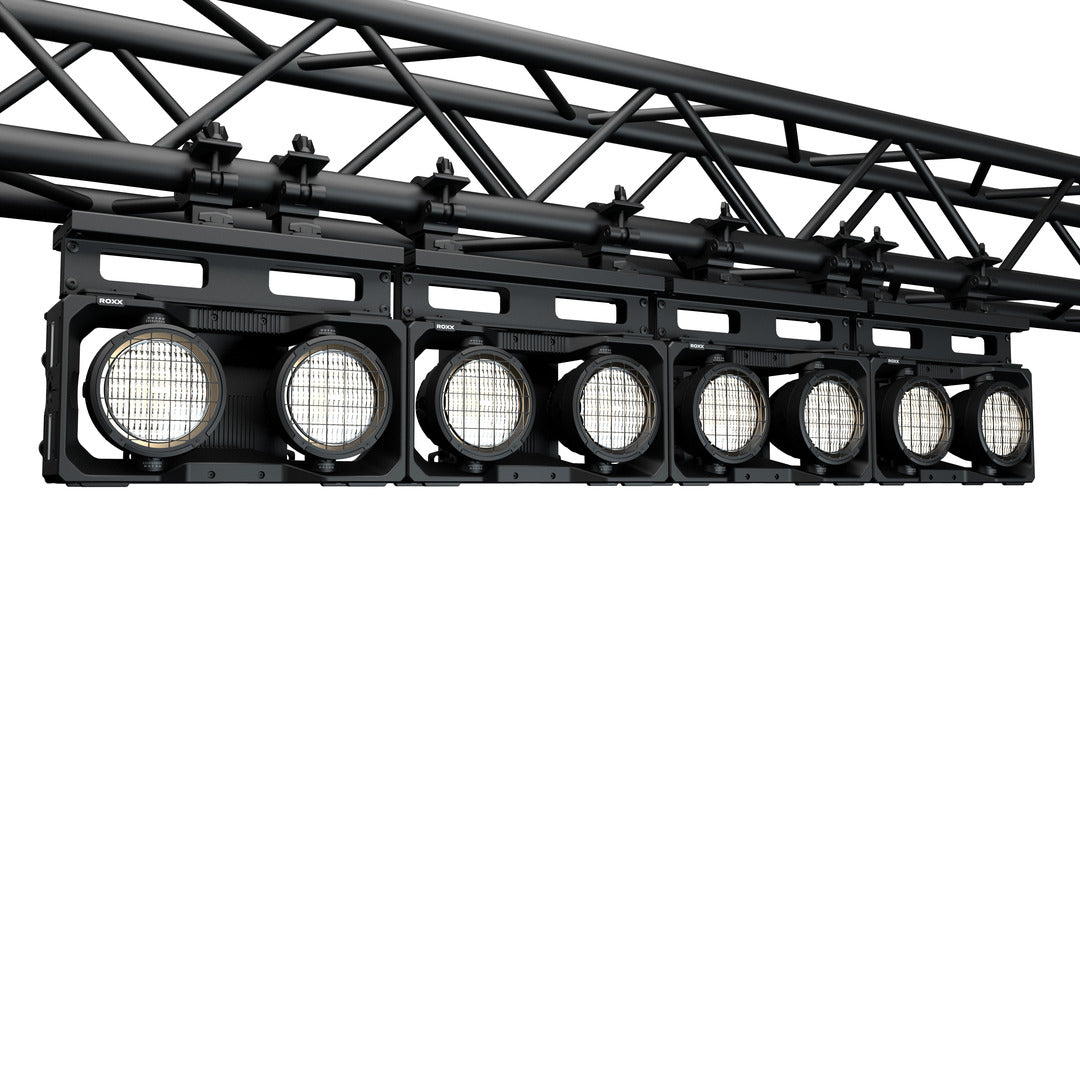

• Rigging options: Hanging or ceiling/pendant mount
• Safety features: 2x rear mounting points for safety wire
• Minimum distance from flammable materials: 0.3 m (11.8 in)
