Photometrics

• LED expected lifetime: 50,000 hours
• Light source: 200W RGBALC
• Optical system: Fresnel lens 4" with manual zoom
• LED PWM Frequency: selectable 800Hz, 1,200Hz, 2,000Hz, 3,600Hz, 12kHz, 25kHz
• Beam angle @ narrow (50%): 18.1° / Field angle @ narrow (10%): 31.7°
• Beam angle @ wide (50%): 75.2° / Field angle @ wide (10%): 85°
• Color temperature range: 2000-10,000K
• CRI/Ra: up to 98 | TLCI: up to 99
• Luminous flux @ 5600K (High CRI) narrow/wide: 1,776 lm / 3,135 lm
• Illuminance @ 5m (5600K High CRI) narrow/wide: 636 lx / 94 lx
• Efficacy @ Full (max): 31 lm/W

Dimensions & Weight

• IP class: IP65 | IK class: IK06
• Body material: Aluminum, Nylon | Lens material: Plastic
• Net dimensions incl. Yoke: 209.04 x 298.50 x 227.00 mm (8.23 x 11.75 x 8.94 in)
• Net dimensions without Yoke: 170.0 x 209.5 x 227.00 mm (6.69 x 8.25 x 8.94 in)
• Net weight without Barndoor: 3.9 kg / 8.59 lbs
• Net weight incl. Barndoor: 5.0 kg / 11.02 lbs

Electrical Data

• AC Power, max/nominal: 100–240V 50/60Hz
• Power Max. Out: 108W @ 100V / 103W @ 230V
• Power Linking: 12 units @ 120V / 24 units @ 230V
• Standby Power: 3.5W
• Power Thru max: 10A (ETL) / 13A @ 100V, 11A (ETL) / 14A @ 230V
• Power Supply: Inbuilt auto-ranging electronic switch-mode

Operation & Controller

• DMX channels: 1CH QUICK up to 21CH DIRECT (11 DMX modes total)
• Protocol: USITT DMX512A, RDM ANSI E1.20; optional CRMX, W-DMX™ G2-G4S, Bluetooth (Low Energy); KLSTR technology ready
• Setting & addressing: TFT display, RDM ANSI E1.20, Near Field Control (NFC)
• Standalone mode: Auto Program, Color Macro, Quick Color, Tunable White, User Color

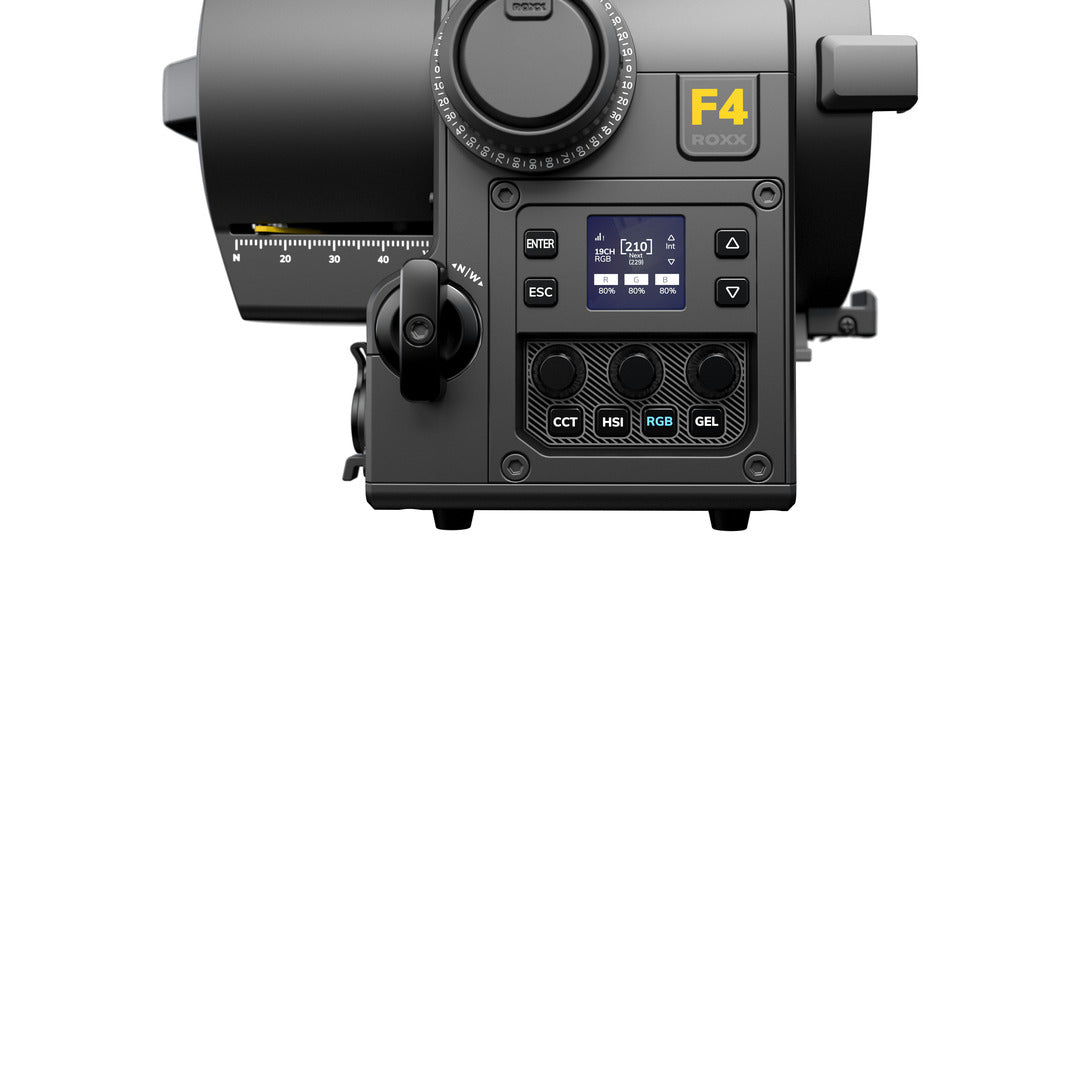

• Controls: 8 backlighted controls | Strobe: 0-30Hz

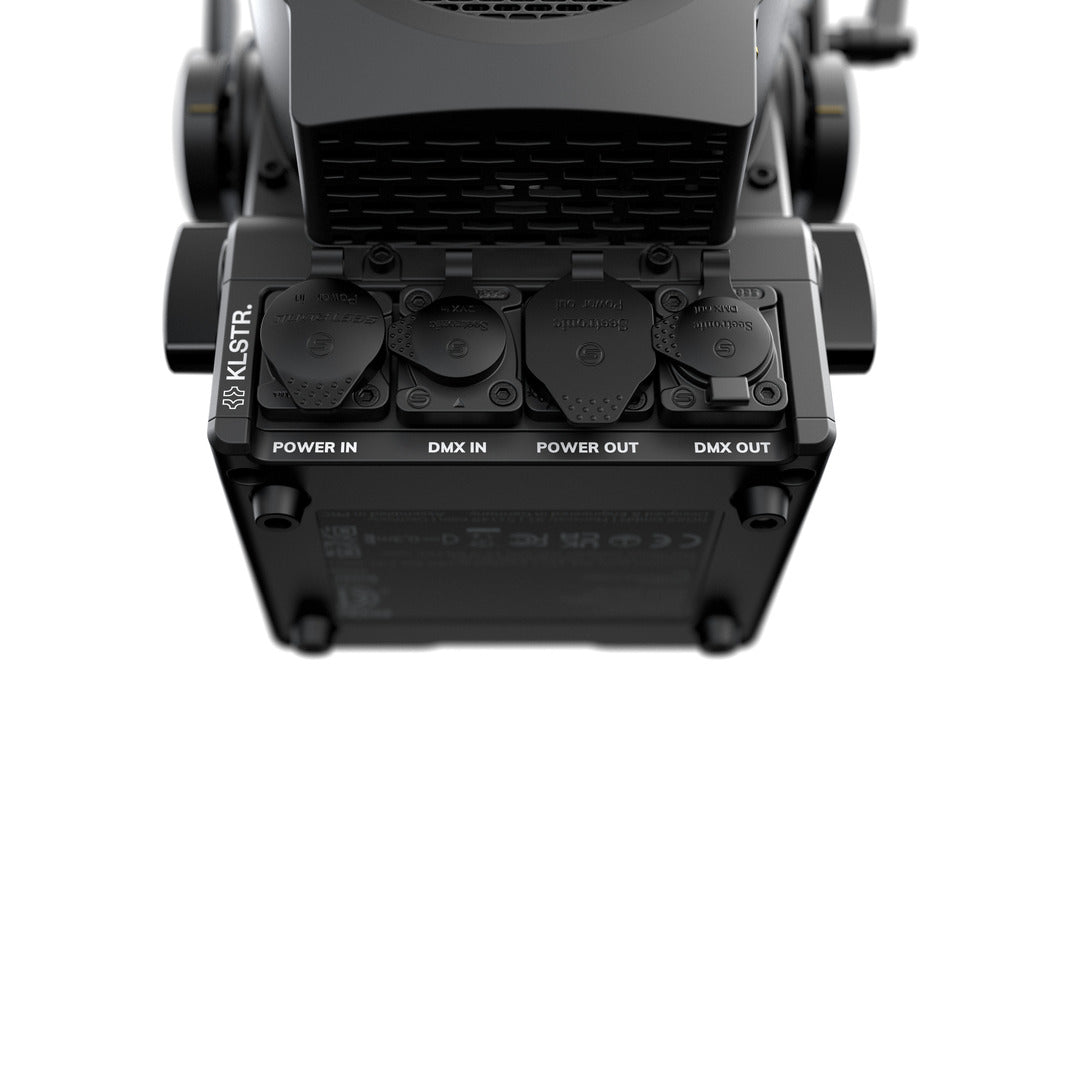

• DMX I/O: IP65 XLR 5-pin male/female | Power I/O: TRUE1 compatible
• USB Firmware Update: IP65 USB socket

Installation

• Orientation: Any | Rigging: Hanging direct
• Safety features: 1x safety eye
• Minimum distance from flammable materials: 0.3 meters (11.8 in)

Thermal Characteristics

• Cooling: Active, Heatpipe-System, temperature-regulated
• Humidity (max): 95%
• Operating temp (AC): -40°C to 45°C | Start-up: -20° to 45°C | Storage: -40°C to 80°C
• Thermal protection: Automatic overtemperature protection

Included / Optional

• Included: Advanced 8-Way Barndoor, 2m Power Cable
• Optional accessories: Gel Frame, Grids (Single/Double), Tracklight Kit
• Color options: Black – RAL 9004 (Standard); Custom RAL on request
