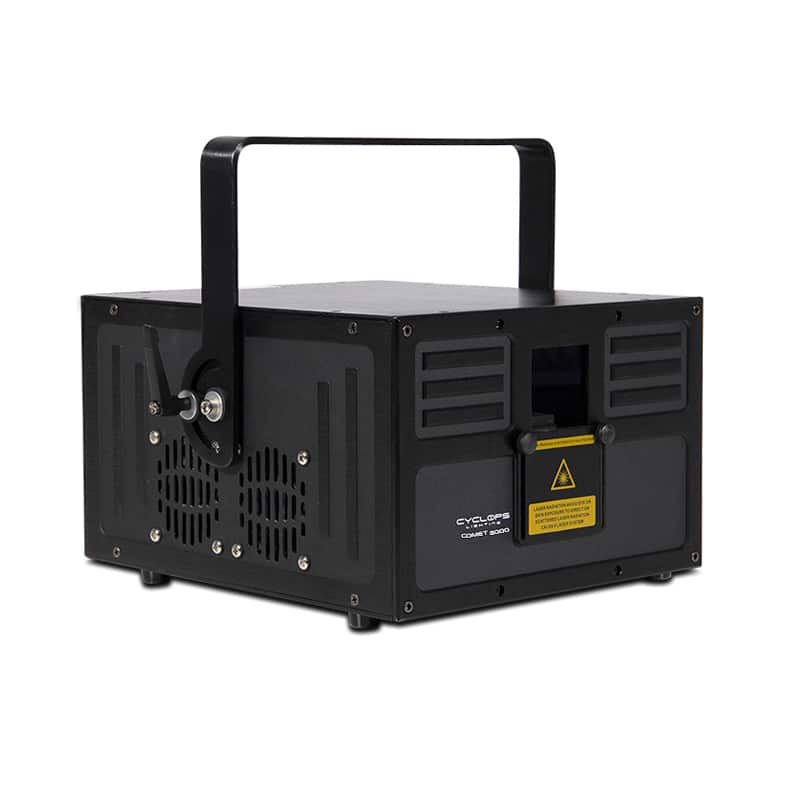

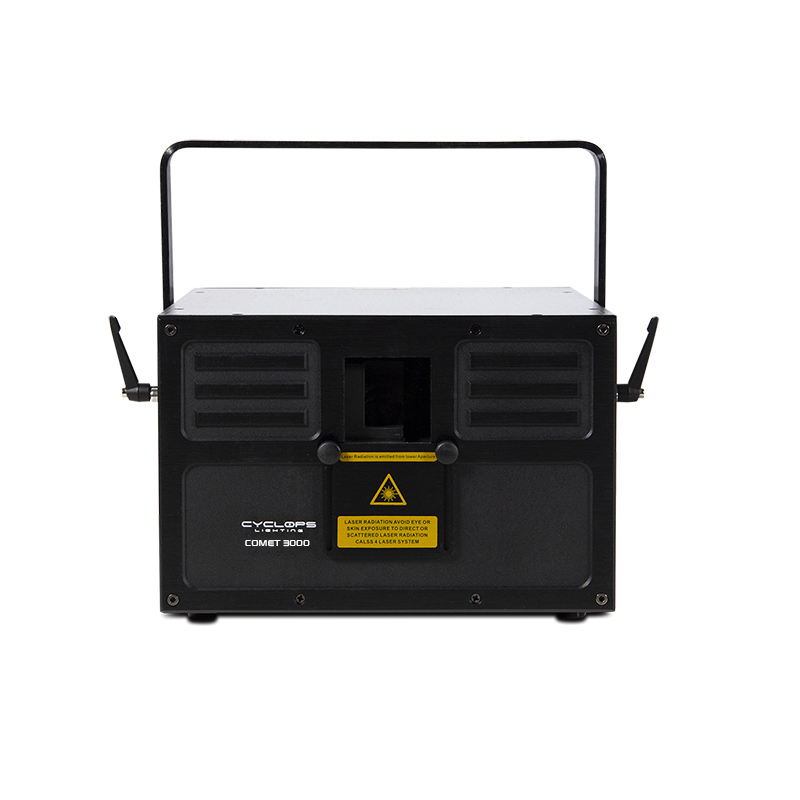

Product Description
Laser
- Source: 3000 mW diode
- Red power/wavelength: 600mW/638nm
- Green power/wavelength: 600mW/520nm
- Blue power/wavelength: 1800mW/450nm
- Color mixing: RGB
- Safety class: 4
- Modulation: Analog
Scanner
- Scan system: ILDA 30K
- Scanning angle: ±30°
Control & Programming
- Control protocols: DMX, ILDA, Auto, Sound, Master-slave
- Display: LCD
- Internal patterns: 256
- Control channels: 17 CHs
Electrical
- Input voltage: AC100-240V/50-60Hz
- Power consumption: 70 watts

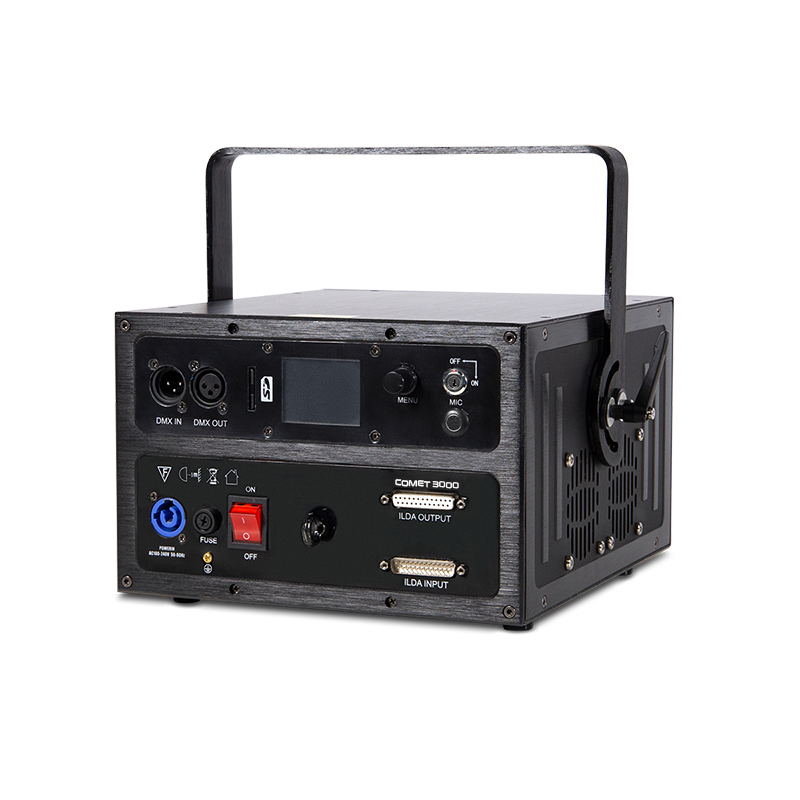

Connections
- DMX connections: 3 pin XLR In/Out male and female
- Power connections: PowerCon In
Physical
- Dimensions: 300 x 250 x 260mm
- Net weight: 4.1 Kg
- Color: Black
- IP rating: 20
- Operating temperature: 0°C/40°C
