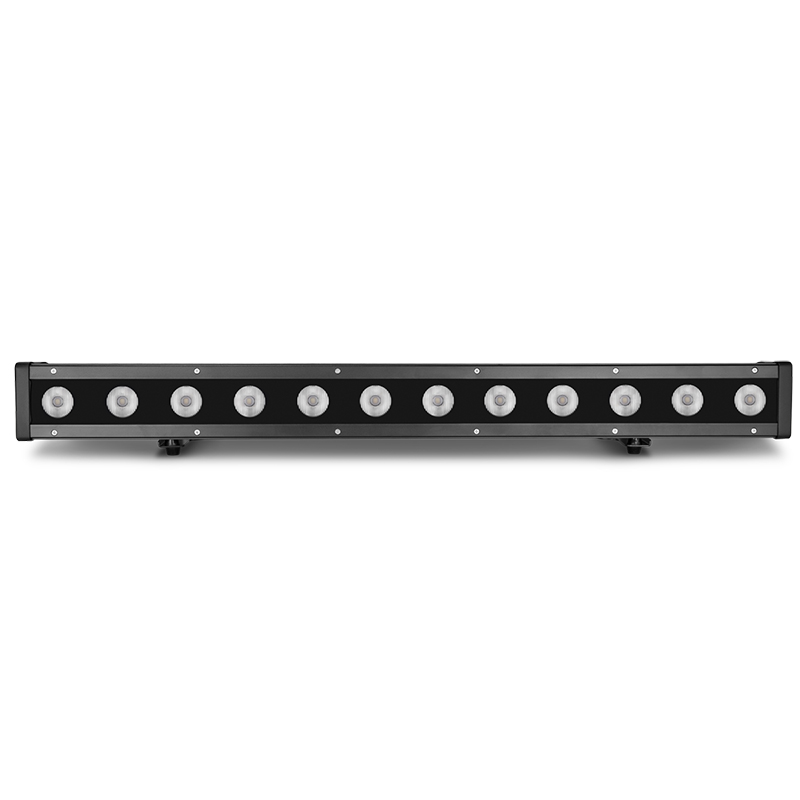

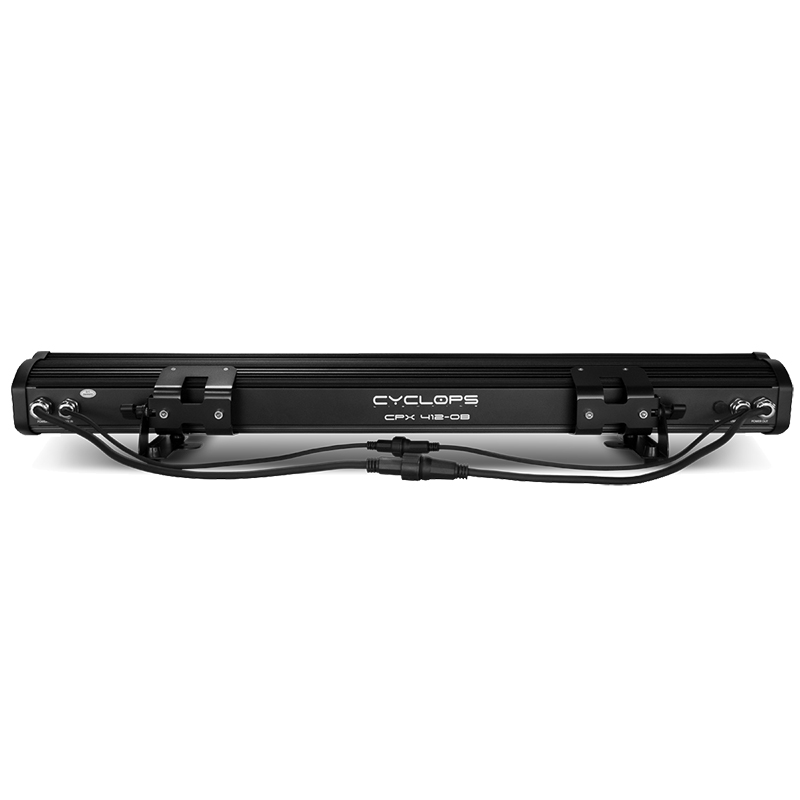

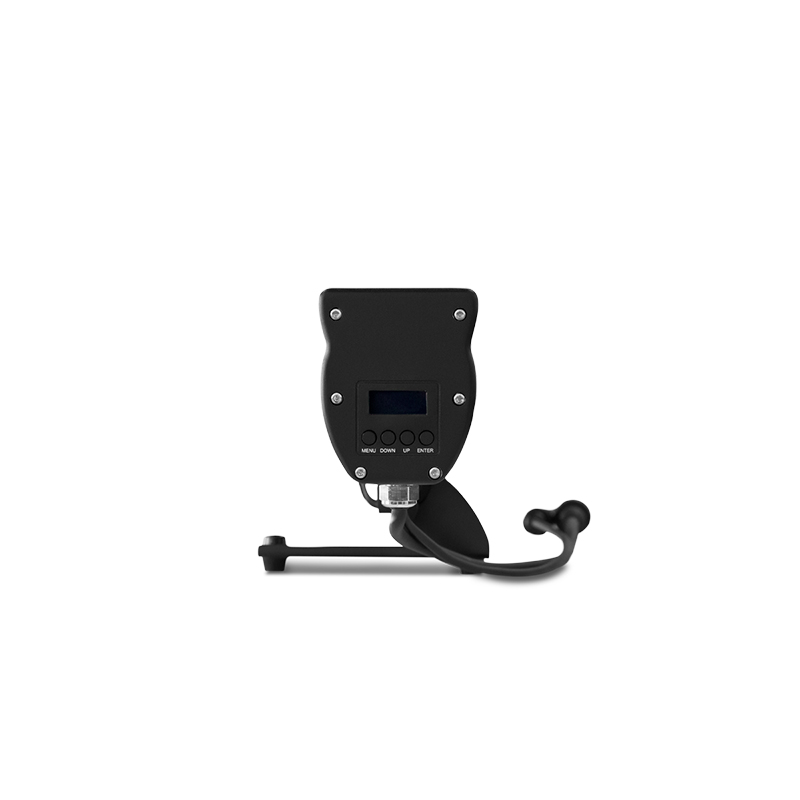

CPX 412OB - Outdoor RGBW LED Wash Bar

CPX 412-OB is an outdoor pixel controlled RGBW LED wash bar. It is powered by 12 high performance LEDs that can be controlled individually. It is IP65 rated and therefore serve any outdoor long term installation or event. It can deliver a bright static wash and a dynamic pixel mapping which makes it suitable for both architectural washing and stage events.

SKU: CPX412OB Categories: , , Brand: Series:

Product Description

CPX 412-OB is an outdoor pixel controlled RGBW LED wash bar. It is powered by 12 high performance LEDs that can be controlled individually. It is IP65 rated and therefore serve any outdoor long term installation or event. It can deliver a bright static wash and a dynamic pixel mapping which makes it suitable for both architectural washing and stage events.

SOURCE

  • Light source: 12 x 15 watts, 4 in 1 RGBW LEDs
  • LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

  • Beam angle: 40° x 10°
  • Light output: 5,700 Lux @ 2m @ 40°
  • Lumen output: 3,000 Lm

DYNAMIC EFFECTS

  • Dimmer: Linear adjustment
  • Color Mixing: RGBW
  • Strobe and Fade effect
  • Built-in color and dynamic macros

CONTROL & PROGRAMMING

  • Control protocols: DMX
  • Control Channels: 3, 4, 5, 8, 11, 59 CHs

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 200 watts

CONNECTIONS

  • DMX Connections: IP DMX In/Out Cables with 3 pin Screw Lock connectors
  • Power Connections: IP Power In/Out Cable, 3 pin Screw Lock connectors

 PHYSICAL

  • Dimensions: 1034 x 171.27 x 208.77mm
  • Net weight: 10 Kg
  • Color: Black
  • Housing: Die cast and extruded aluminum
  • IP rating: 65
  • Operating temperature: -20°C/45°C



Download

Data Sheet
