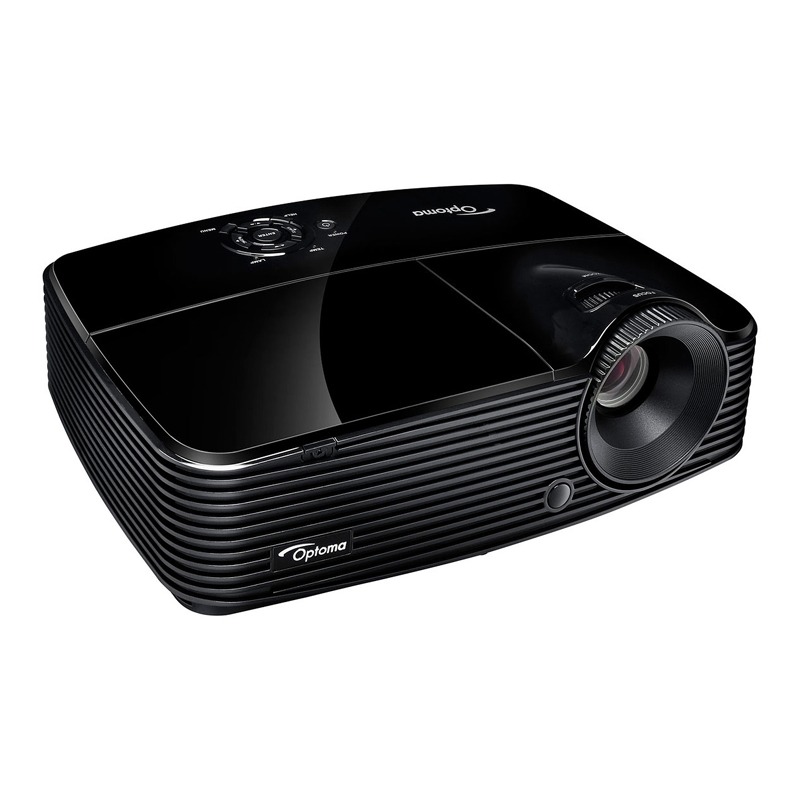

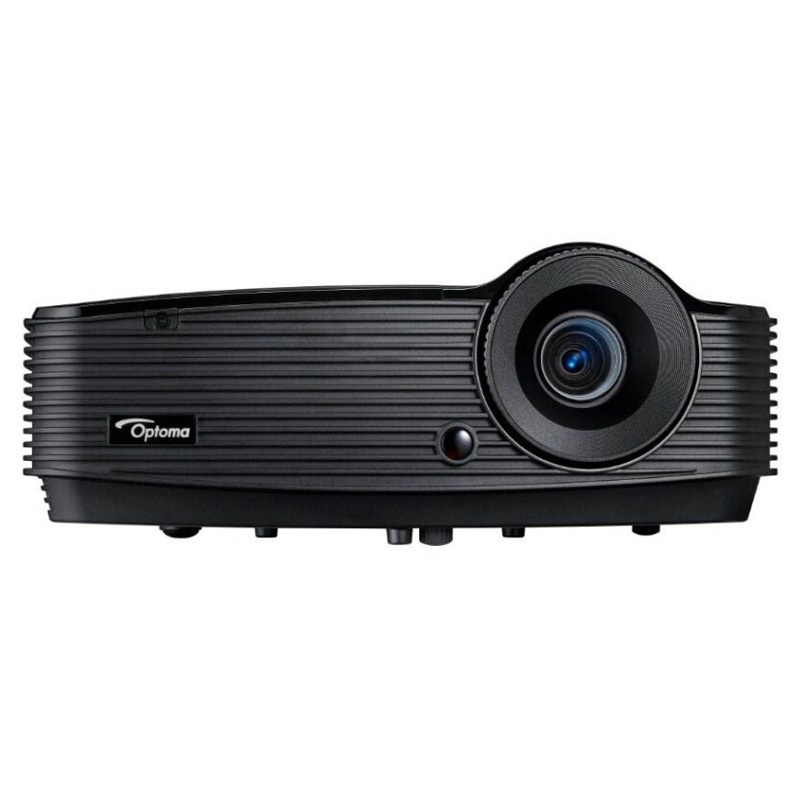

DX330/1 - 2800 ANSI Lumens Bright Projection

Product Description

Key Features:

• Bright projection – 2800 ANSI Lumens
• XGA resolution, 13,000:1 contrast ratio, HDMI input
• Low ownership costs – up to 10,000 hours² lamp life
• Lightweight and portable

Specifications:

• Display Technology: Single 0.55” XGA DC3 DMD chip DLP® Technology by Texas Instruments
• Native Resolution: XGA 1024 x 768
• Brightness (Bright Mode): 2800 ANSI Lumens
• Contrast: 13,000:1
• Noise Level: 26dB (min)
• Weight: 2.21 kg
• I/O Connectors:
  Inputs: HDMI (v1.4a 3D), 2 x 15 Pin D-sub (RGB/YPbPr), S-Video, Composite, Audio In, USB (remote mouse)
  Outputs: 15 Pin D-sub, Audio Out
  Control: RS232 – 9 Pin
• Preset Mode:
  PC: For computer or notebook (Brightest image)
  Movie: Maximum contrast and Colour accuracy
  Game: Bright vivid colour
  sRGB: For Standard PC Colour (Best Colour Reproductiion)
  User: Memorises user’s settings
• Maximum Resolution: UXGA 1600 x 1200
• Computer Compatibility: UXGA, SXGA, XGA, SVGA, VGA, Mac
• Video Compatibility: PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)
• Displayable Colours: 1073.4 Million
• Projection Lens: F/2.51~2.69; f=21.95~24.18mm, 1.1x Manual Zoom
• Throw Ratio: 1.97 – 2.17:1
• Projection Screen Size: 0.69m – 7.62m (27.24” – 300.04”) Diagonal 4:3
• Projection Distance: 1.2 – 12 metres
• Horizontal Scan Rate: 15.3 – 91.1kHz
• Vertical Scan Rate: 24 – 85Hz
• Lamp Type/Lamp Life: 2 190W, 10,000 hours² (Education Cycle) 6500/6000/4500 hours (Eco+/Dynamic/BRIGHT mode)
• Keystone Correction: ± 40° Vertical
• Audio: 2W
• Dimensions: (W x D x H) 316 x 224 x 124mm
• Remote Control: Full function remote with remote mouse and direct source selecting
• Power Supply: 100-240V, 50-60Hz
• Power Consumption: 226W BRIGHT mode < 0.5W Standby mode, 194W Eco+ mode < 0.5W Standby mode
• Operating Conditions: 5°C – 40°C, Max. Humidity 85%, Max. Altitude 3000m
• Uniformity: 85%
• Security: Security Bar, Kensington Lock, Password Protection
• Standard Accessories: Carry Bag, AC Power Cord, VGA Cable, Infra Red Remote Control with Batteries, Quick Start Card, CD User Manual, WarrantyCard
• Optional Accessories: Ceiling Mount Kit
• RoHS: Compliant
• 3D Support: The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3Deducational or
• 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D gamesfrom the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
• 3D Viewing: Requires the Optoma DLP-Link shutterglasses – available separately.
• 3D Compatibility: Side-by-Side:1080i50 / 60, 720p50 / 60
• Frame-pack: 1080p24, 720p50 / 60
• Over-Under: 1080p24, 720p50 / 60
• Offset: 115%;
