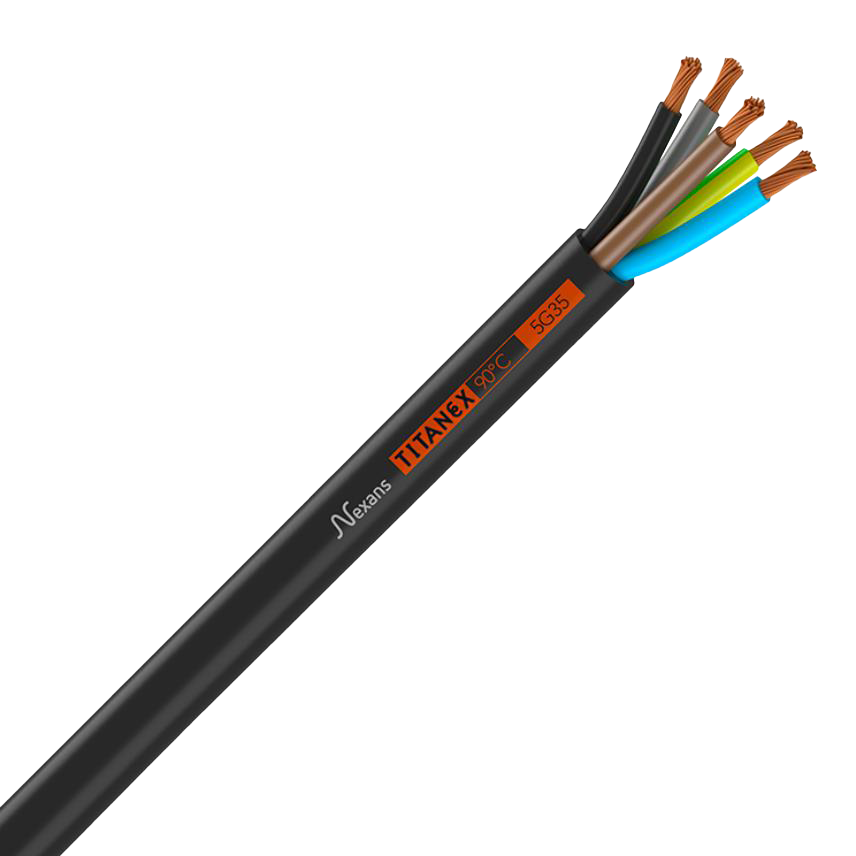

H07RN-F TITANEX 5G35 - Industrial Flexible Rubber Cable, 5 core x 35mm2

Product Description

Technical Specifications:

Construction characteristics

• Conductor material: Bare copper
• Conductor flexibility: Flexible class 5
• Insulation: Special cross-linked elastomer
• Outer sheath: Special cross-linked elastomer
• Sheath colour: Black
• Lead free: Yes
• With Green/Yellow core: Yes
• Conductor shape: Circular
• With smaller neutral conductor: No

Dimensional characteristics

• Number of cores: 5
• Conductor cross-section: 35 mm²
• Average insulation thickness: 1.4 mm
• Average sheath thickness: – mm
• Approximate weight: 2690 kg/km
• Maximum outer diameter: 45.1 mm
• Minimum outer diameter: 35.6 mm
• Neutral conductor section (when smaller): – mm²

Electrical characteristics

• Rated Voltage Uo/U (Um): 450 / 750 V
• Permissible current rating in open air: 158 A
• Voltage drop, single phase: 1.04 V/A.km

Mechanical characteristics

• Mechanical resistance to impacts: AG3
• Cable flexibility: Flexible

Usage characteristics

• Silicone free: Yes
• Chemical resistance: Accidental
• Water proof: Good
• Flame retardant: C2, NF C 32-070 & IEC 60332-1
• Packaging: Cut to length
• Field of application: –
• Length: – m
• Max. conductor temperature in service:m90 °C
• Minimum dynamic operating bending radius: 270.6 mm
• Minimum static operating bending radius: – mm
• Oil resistance: Yes
• Operating temperature, range: -25 … 55 °C
• RoHS compliant: Yes
• Short-circuit max. conductor temperature: 250 °C
