INGROUND BAR 112-W

in ground
IMG 3044IMG 3043IMG 3035

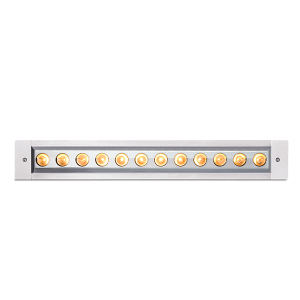

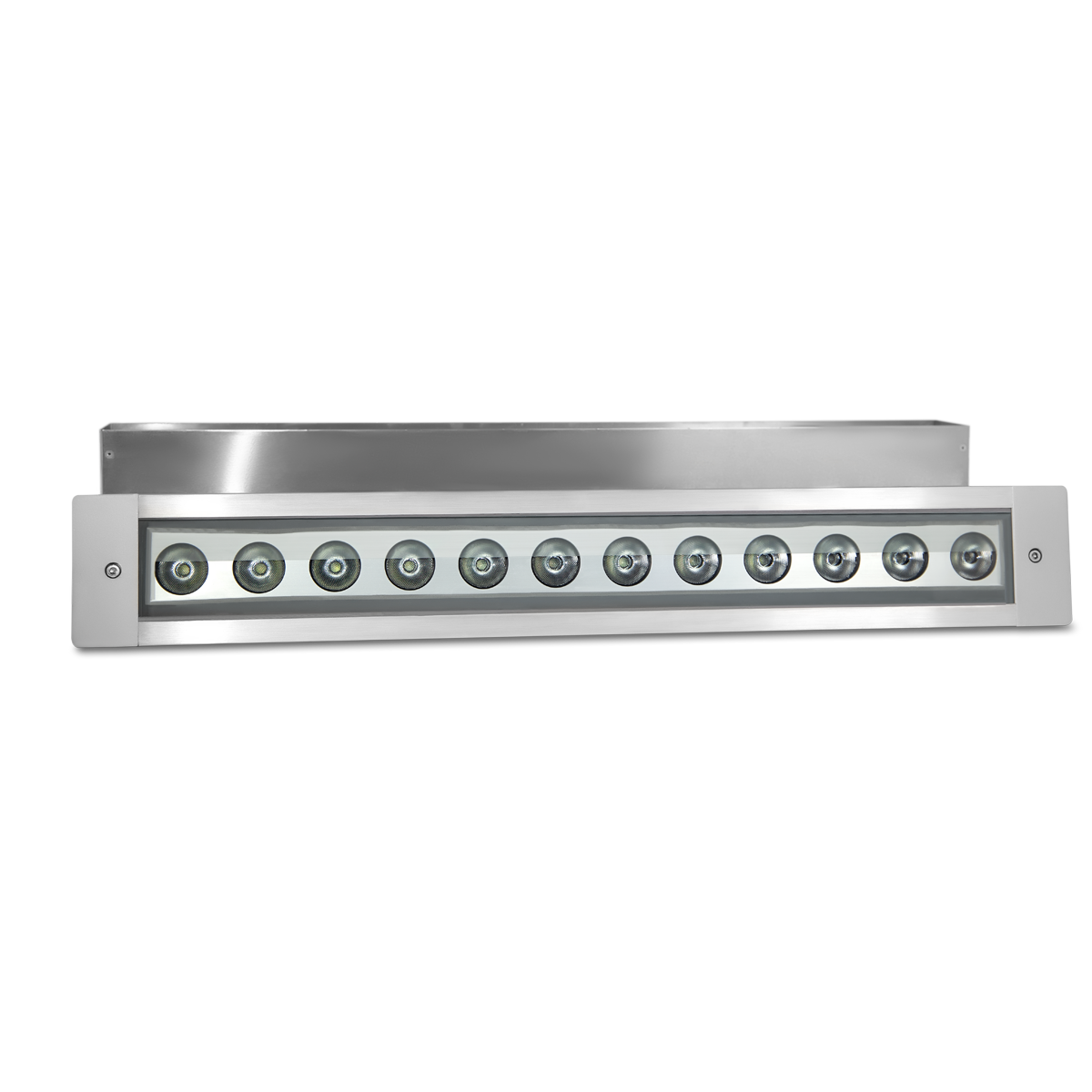

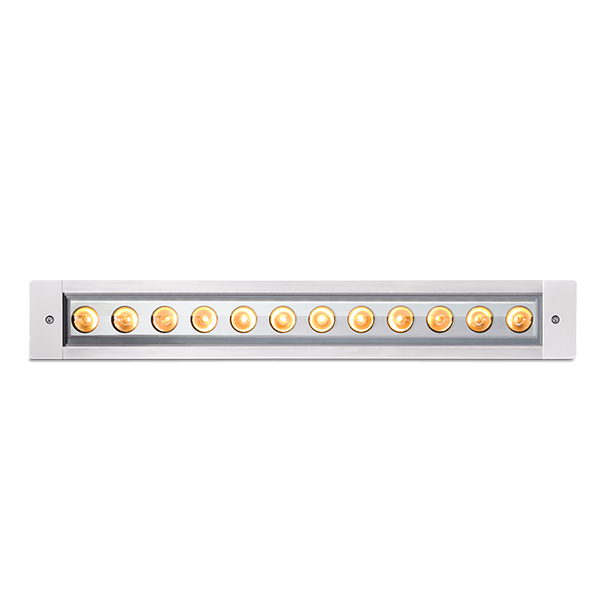

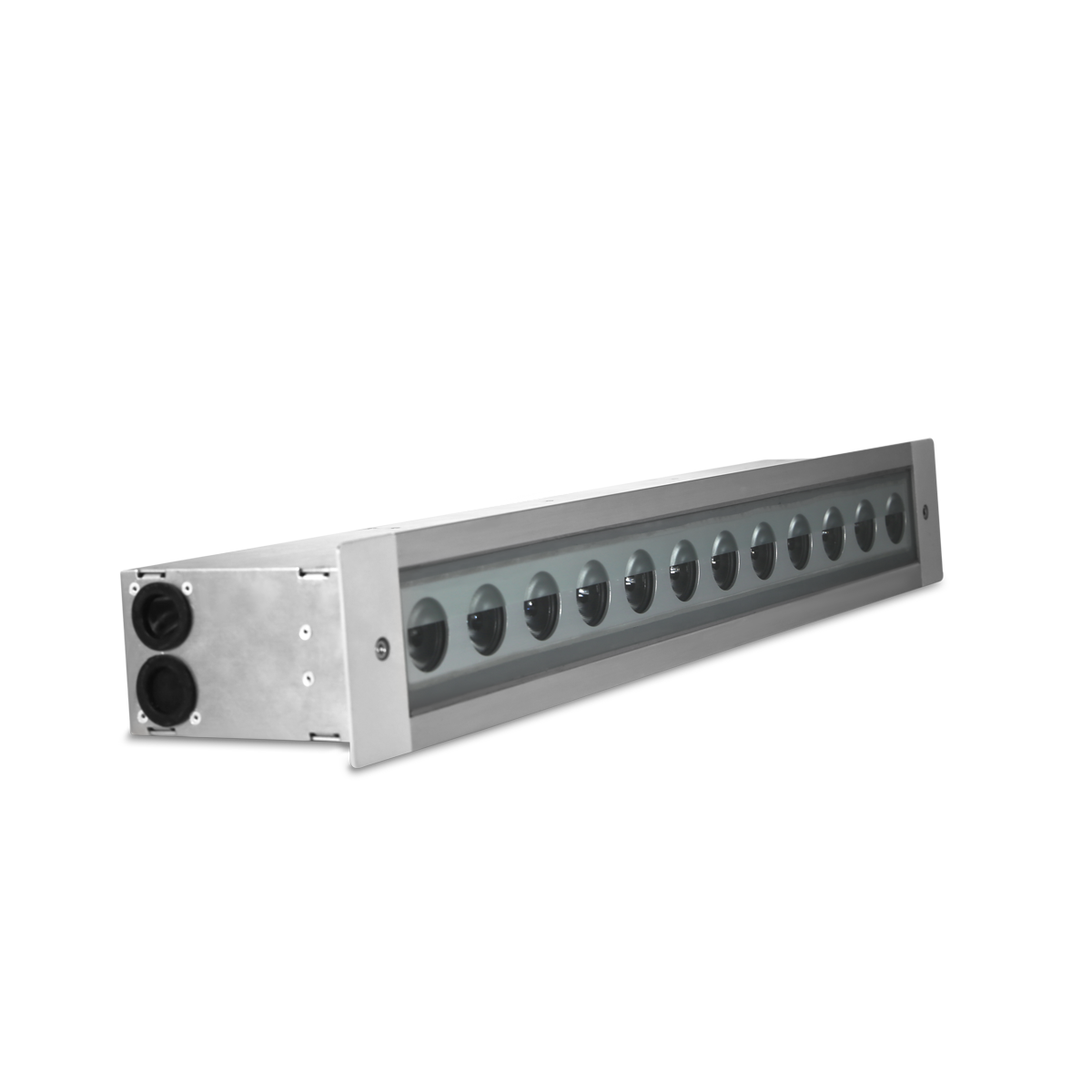

INGROUND BAR 112-W is a 12×3 watts Warm White LED inground bar wash. Ituses customized optics in order to create both excellent performance and high output. Its all-weather IP67 housing design allows it to be installed in a wide range of outdoor in-ground or in-wall installations.

Product Description

INGROUND BAR 112-W is a 12x3 watts Warm White LED inground bar wash. Ituses customized optics in order to create both excellent performance and high output. Its all-weather IP67 housing design allows it to be installed in a wide range of outdoor in-ground or in-wall installations.

SOURCE

  • Light source: 12x3 watts Warm White
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 6276 cd

OPTICAL SYSTEM

  • Optics: 16°
  • Light output 2,250 Lux @2m @16°

CONTROL & PROGRAMMING

  • Control Protocols: DMX
  • DMX control channels: 0-100%
  • Controllable sections: 1
  • Color: Warm White

ELECTRICAL

  • Input Voltage: AC100-240V, 50/60Hz
  • Max Power: 40 W

CONNECTIONS

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input output)

PHYSICAL

  • Dimensions: 660 x 128 x 96 mm
  • Net Weight: 3.5 kg
  • Color: Silver
  • Housing: Extruded aluminum
  • IP Rating: 67
  • Operation temperature: - 40°C~45°C (operating) /- °20C~°45C (startup)

Download

Data Sheet
