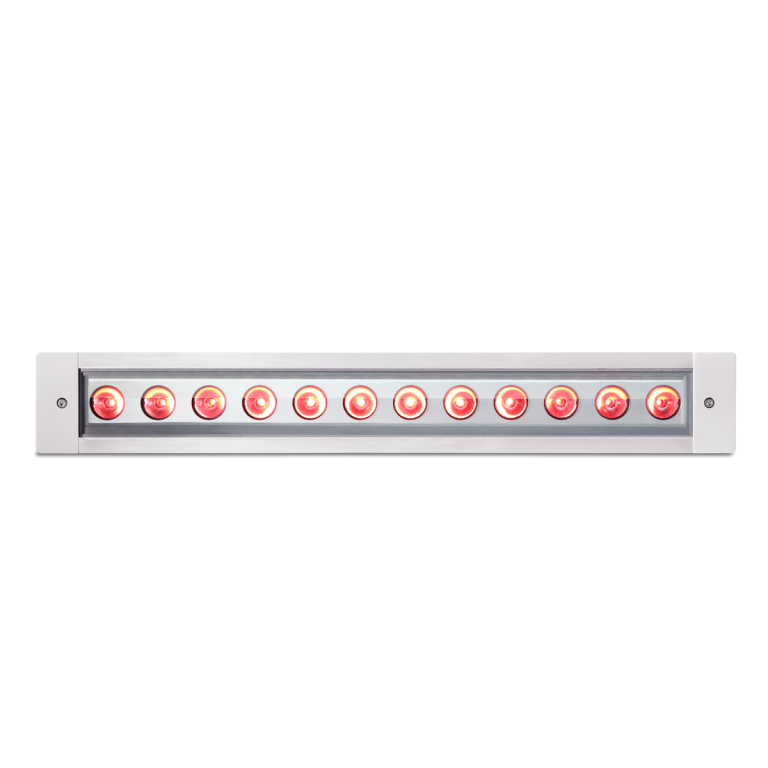

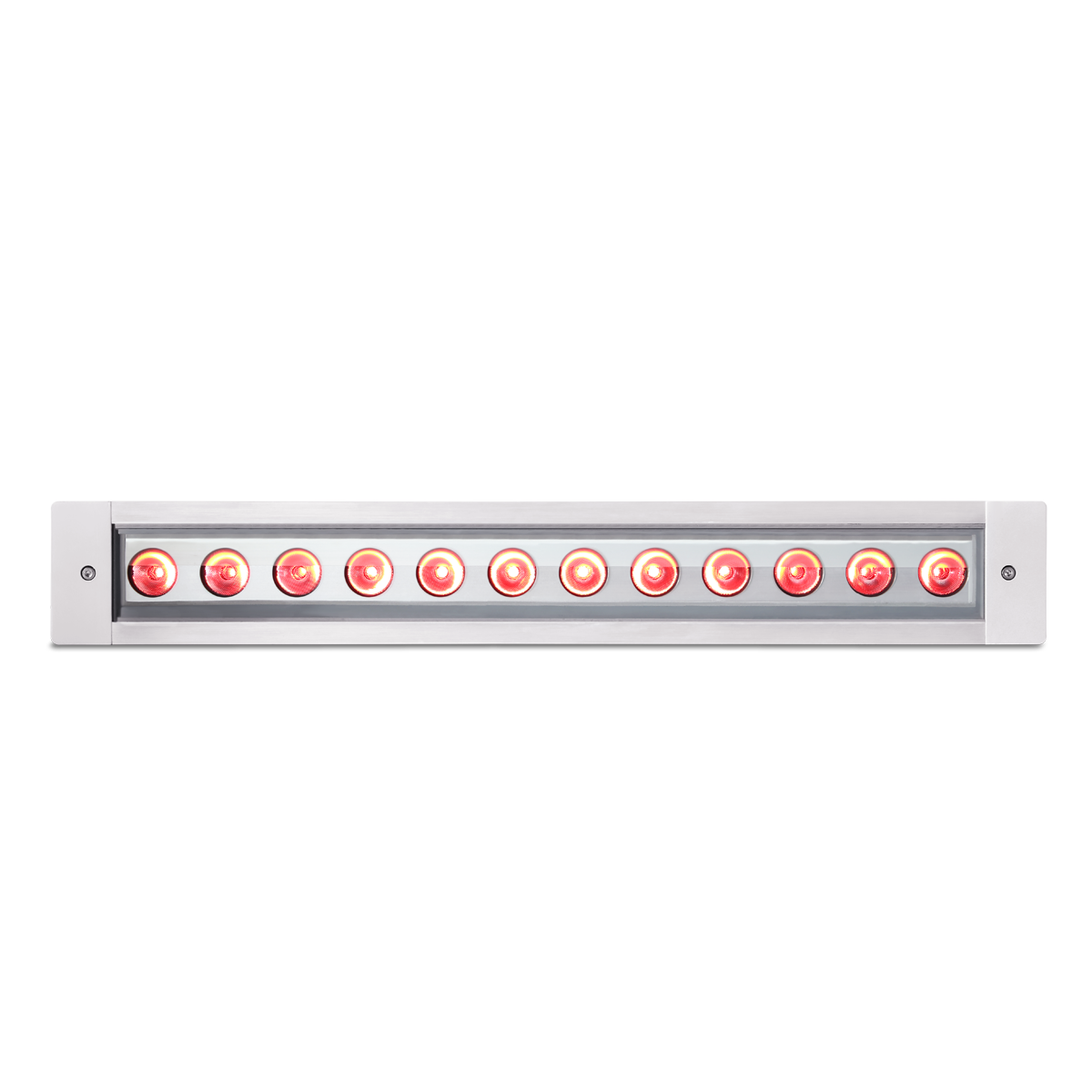

INGROUND BAR 412-RGBW - Multi-chip RGBW LED Inground Bar Wash

Product Description

INGROUND BAR 412-RGBW is a 12×3 watts multi-chip RGBW, LED inground bar wash. It uses customized optics in order to create both excellent performance and high output. Its all-weather IP67 housing design allows it to be installed in a wide range of outdoor in-ground or in-wall installations.

SOURCE

• Light source: 12×3 watts multi-chip RGBW
• LED life expectancy: 50,000 Hrs
• Peak Intensity: 10000 cd

OPTICAL SYSTEM

• Optics: 16°
• Light output: 2,500 Lux @2m @16°

CONTROL & PROGRAMMING

• Control Protocols: DMX, RDM
• DMX control channels: 0-100%
• Controllable sections: 2
• Color Mixing: RGBW

ELECTRICAL

• Input Voltage: AC100-240V, 50/60Hz
• Max Power: 43 W

CONNECTIONS

• Power connections: 3m cable (input only)
• Data connection: 3m cable (input output)

PHYSICAL

• Dimensions: 660 x 128 x 96 mm
• Net Weight: 3.5 kg
• Color: Silver
• Housing: Extruded aluminium
• IP Rating: 67
• Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
