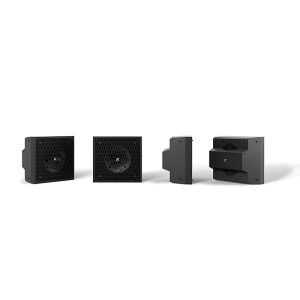

KX12 - Ultra-slim 12" Coaxial Passive Line Array

The Dragon-KX12 is a radical reinterpretation of a traditional coaxial 12” speaker. Its compact shape and different accessories allow the KX12 to perform as a powerful audio point source or as part of a line array. The speaker delivers a peak SPL of 132 dB and has a frequency range of 120 Hz to 19 kHz. Additionally, dedicated accessories assist in the set up of joining, flying and stacking the speaker. The Dragon-KX12 is compatible with all K-array Thunder subwoofers.

Clear
SKU: N/A Categories: , Brand: Series:

Product Description

GENERAL:

  • Type: Point source
  • Transducers: Coaxial 12″ woofer with 2.4″ compression driver
  • Frequency Response: 120 Hz – 19 kHz (-6 dB)
  • Maximum SPL: 133 dB (peak)
  • Rated Power: 1200 W
  • Coverage: User sel. V./H. 30°/100° | 100°/30°
  • Connectors: 2 x SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
  • Nominal Impedance: 8 Ω

HANDLING AND FINISHES:

  • Dimensions (W x H x D): 340 x 320 x 201 mm (13.4 x 12.6 x 7.9) in
  • Weight: 12.2 kg (26.89 lb)
  • Material: Stainless Steel
  • Color: Black, Custom RAL

REGULATIONS:

  • IP Rating: IP21

Additional information

Color

Black, Custom RAL

Download

Data Sheet
