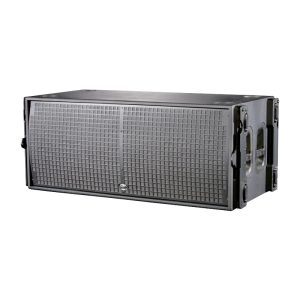

LX-218CRA – Powered Subwoofer System

The LX-218CRA is a powered subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension, and distortion. The LX-218CA incorporates the 18LXN long excursion cone transducer. The newly developed 18LXN loudspeakers are a significant improvement over their predecessors offering increased power handling, reduced distortion, and power compression.

Product Description

FEATURES – Powered high performance subwoofer system – 2400 W Class “D” amplifier – Two 18LXN long-excursion loudspeakers – Front loaded bass-reflex configuration The LX-218CRA is a powered subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension, and distortion. The LX-218CA incorporates the 18LXN long excursion cone transducer. The newly developed 18LXN loudspeakers are a significant improvement over their predecessors offering increased power handling, reduced distortion, and power compression. The LX-218CA incorporates a new high power (2400 W) and high-volt­age amplifier design providing ample headroom and accuracy. The amplifier uses the latest Class D design. The automatic dual voltage selector ensures a “no hassle” mains setup anywhere in the world. The amplifier incorporates a selectable preset allowing users to arrange cardioid configurations of 2 or 3 units. “R” versions are equipped with a captive rigging system that is compatible with D.A.S. Aero line array accessories. The subwoofers can be stacked vertically on the optional PL-218CS dolly panel facilitating the transport in touring applications of up to 3 units. A front dolly panel (PL-LX218CS) is included with “R” version cabinets and is available as an option for LX-218C cabinets upgraded with rigging hardware. TECHNICAL DATA
Nominal LF Amplifier Power 2400 W
Frequency Range (-10 dB) 28 Hz – 100 Hz
Rated Peak SPL at 1 m 142 dB
Enclosure Material Birch Plywood
Color/Finish Black/Iso-Flex Paint
Connectors Input: Female XLR Loop Thru: Male XLR AC Input: powerCON AC Output: powerCON
AC Requirements Universal Mains 85-250 V 50 Hz/60 Hz
Current Draw (1/3 power @ 230 V) 3.1 A
Dimensions (H x W x D) 55 x 135 x 69.6 cm 22 x 53.2 x 27.4 in
Weight 99.5 kg (218.9 lb)
