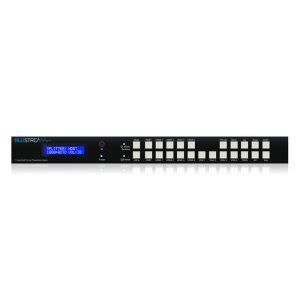

MFP112 – Multi-Format Presentation Switch

MFP112 is a multi-format presentation switcher with in-built video scaling, audio embedding, de-embedding, EDID management and HDBaseT™ input and output. The MFP112 works in 2 modes, first as an 11 input dual output switcher, alternatively each output can work independently with HDMI output 1 routing the 1x HDBaseT™ & 4 x HDMI inputs only and output 2 switching all 11 video + audio inputs. With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Product Description

Key Features
  • Switcher can function in 2 modes:

    – Splitter mode – Both HDMI output 1 & HDBaseT™ output 2 display the same selected input.

    – Matrix Switcher mode – HDMI inputs are independently switchable to HDMI output 1 & HDBaseT™ output 2. HDMI output 1 has access to HDBaseT™ input + HDMI inputs 1-4 ONLY (HDMI signal pass-through including 4K resolution), whilst HDBaseT™ output 2 has access to all HDMI, HDBaseT™ and analogue video inputs with associated audio.

  • HDBaseT™ output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving and EDID management

  • HDBaseT™ input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving

  • Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions).

  • Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K.

  • Scaled video output resolutions include 720p, 1080P, 1280×1024, 1024×768, 1360×768, 1440,900, 1680×1050

  • Audio embedding – independent analogue L/R audio input can be embedded to HDMI/HDBaseT™ outputs & analogue L/R audio and Coaxial digital outputs concurrently (feature available on HDMI / HDBaseT™ outputs 1 & 2 in Splitter mode and HDBaseT™ output 2 only in Matrix Switcher mode).

  • HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)

  • Volume control of HDMI, line-level analogue L/R audio and Coaxial digital outputs

  • PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)

  • Supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission

  • Front panel display for status feedback

  • Control via front panel, IR, RS-232 and TCP/IP

  • 3rd Party drivers available for all major home control brands

  • Advanced EDID management

  • HDCP 1.4 compliant

Specifications
  • Video Input Connectors: 4 x HDMI Type A, 1 x HDBaseT™ RJ45 connector, 4 x VGA, 1 x Composite, 1 x Component (YPbPr)

  • Video Output Connectors: 1 x HDMI Type A, 1 x HDBaseT™ RJ45 connector

  • Audio Input Connectors: 11 x Analogue audio 3.5mm stereo jack

  • Audio Output Connectors: 1 x Analogue audio 3.5mm stereo jack, 1x SPDIF Coaxial digital

  • RS-232 serial port: DB-9 connector (Matrix control), 1 x 3-pin Phoenix connector for RS232 pass-through

  • IR Input ports: 2 x 3.5mm stereo jack

  • IR Output ports: 2 x 3.5mm mono jack

  • Casing Dimensions (W x H x D): 438mm x 45mm x 225mm, without feet

  • Dimensions Including Connections (W x H x D): 438mm x 45mm x 235mm

  • Shipping Weight: 1.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 12V/5A DC

Box Contents
  • 1 x MFP112
  • 1 x 12V/5A DC Power Supply
  • 1 x Remote Control
  • 4 x IR Receiver
  • 3 x IR Transmitters
  • 1 x IR Control Cable – 3.5mm-3.5mm Cable
  • 1 x Serial cable – 9-pin RS232 to 3-pin Phoenix Connector
  • 1 x Mounting Kit
  • 1 x User Manual
Sold Separately
  • 1 x HDBaseT™ 100m transmitter (HDBaseT™ source input)
  • 1 x HDBaseT™ 100m receiver (HDBaseT™ output)
