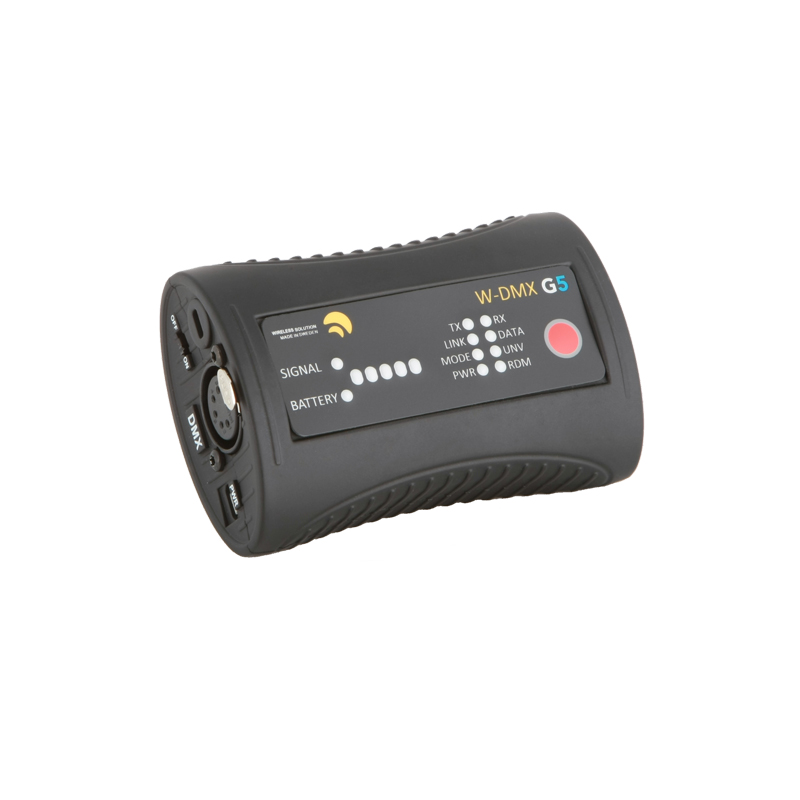

MICRO R-512 G5- compact Receiver

The Micro R-512 G5 is the most compact DMX receiver offered by W-DMX™. Built into a slim-line casing, with mounting options for any location or practically any type of structure encountered in the entertainment and architectural lighting business, this portable receiver is well-suited for smaller events, film sets or anywhere space is a problem.



Product Description

The Micro R-512 G5 is the most compact DMX receiver offered by W-DMX™. Built into a slim-line casing, with mounting options for any location or practically any type of structure encountered in the entertainment and architectural lighting business, this portable receiver is well-suited for smaller events, film sets or anywhere space is a problem. The unit is also suitable for smaller rental applications where the distance does not need to exceed 820.2 ft (250 m), and where fewer universes need to be transmitted wirelessly in one area.

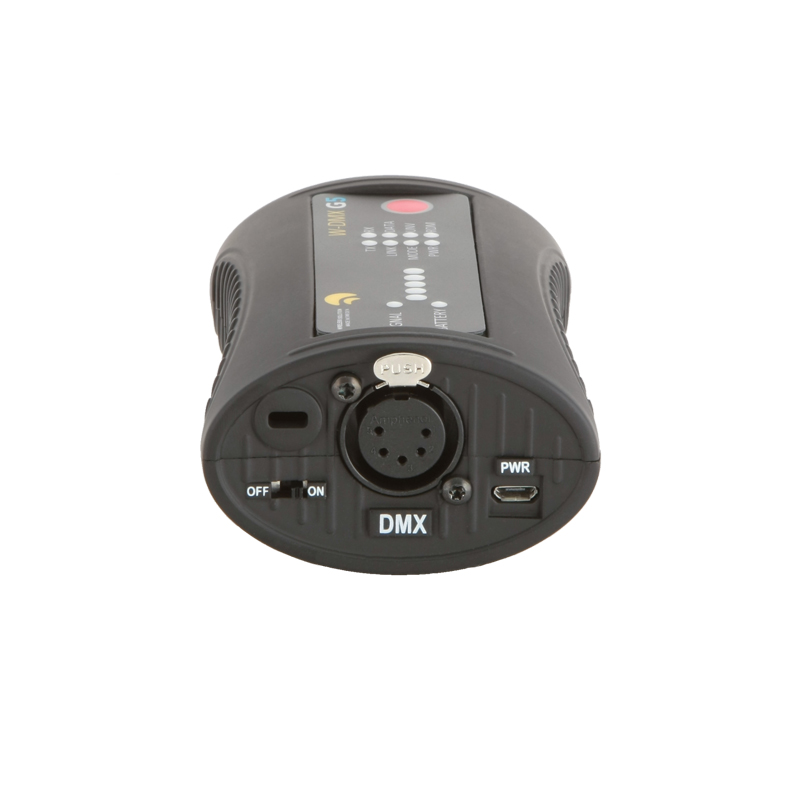

Equipped with a battery compartment that accepts four standard AAA batteries, the Micro R-512 G5 can be powered off battery power for considerable lengths of time. DMX is supported through a standard 5-pin XLR connector, and a helpful display on the front of the unit conveys useful information at a glance.

The Micro R-512 G5 is compatible with the entire W-DMX range, and with its one-button-to-go technology, setting up a W-DMX system is as simple as pushing a single red function button.

W-DMX Micro R-512 G5 Includes:

  • Micro R-512 G5
  • USB adaptor with universal plugs
  • Velcro strap
  • User manual

W-DMX Micro R-512 G5 Features:

  • Receiver mode only
  • Up to 650 feet (200 meters)
  • 512 DMX channels

W-DMX Micro R-512 G5 Specifications:

  • Part Number:
  • W-DMX™ G5 Protocol
  • 2.4 GHz
  • DMX
  • Adaptive Frequency Hopping
  • Data-Safe
  • 5V USB power supply
  • Backward compatible with G3 and G4S
  • Compatible with OEM products
  • (4) AAA batteries – up to 8 hours
  • Kensington security slot

Downloads

Data Sheet
