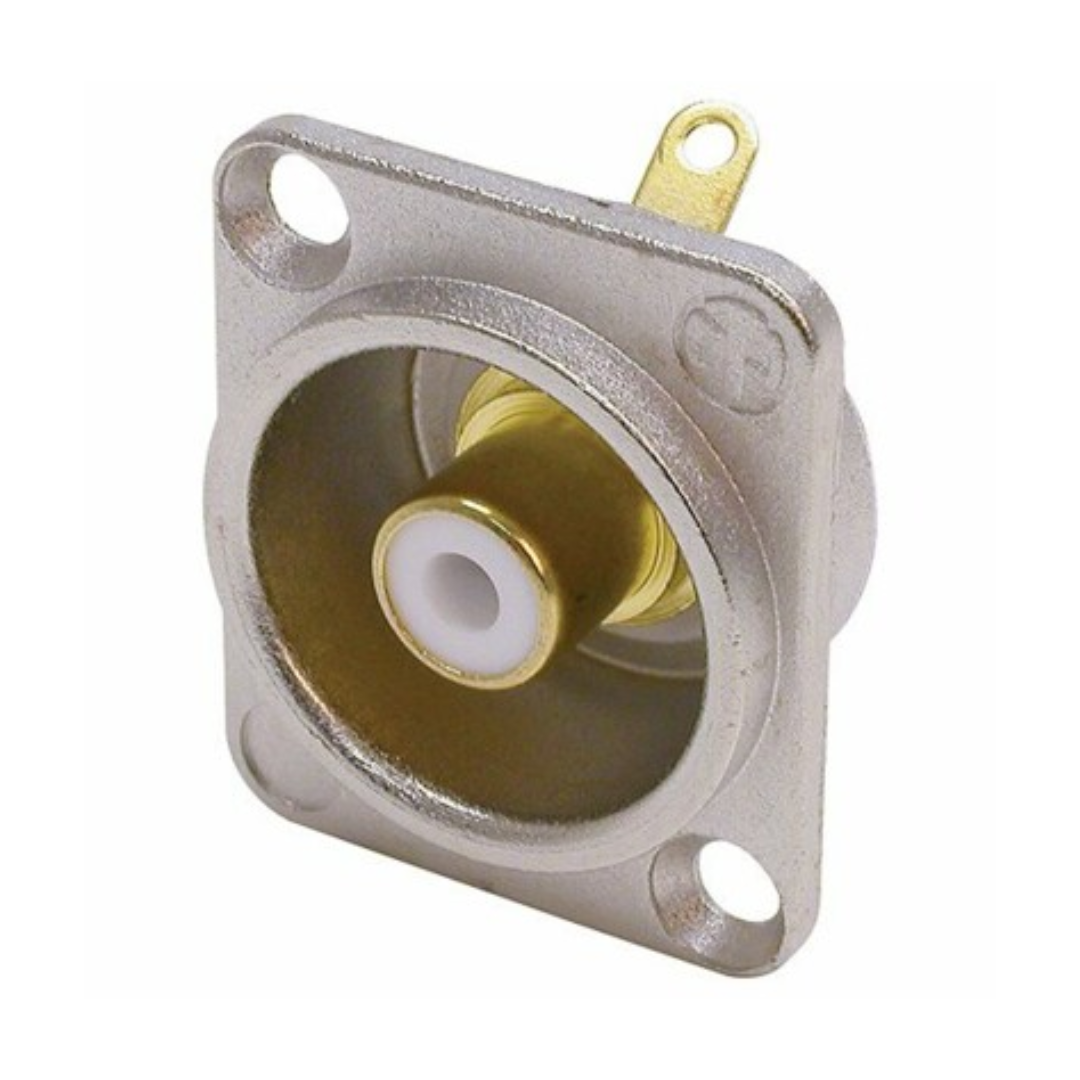

NF2D-9 - RCA CHASSIS - WHITE

Product Description

Key Features

• Precisely machined to our demanding quality standards
• Gold plated contacts

Technical Information

Product

• Connection Type: RCA
• Gender: Female

Electrical

• Capacitance between contacts:   ≤ 9 pF
• Contact resistance: <10 mΩ
• Dielectric strength: 0,5 kVdc
• Insulation resistance: > 5 GΩ
• Rated current per contact: Depends on mating connector / A
• Rated voltage: < 50 V

Mechanical

• Lifetime: > 2000 mating cycles
• Wiring: Solder contacts
• Mounting direction: Front mounting
• Chassis shape: D

Material

• Contacts: Brass (CuZn39Pb3)
• Shell: Zinc diecast (ZnAl4Cu1)
• Contact plating: 0.05 µm Au over 2 µm Ni

Environmental

• Flammability: UL 94 HB
• Standard compliance: IEC 601-14
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
