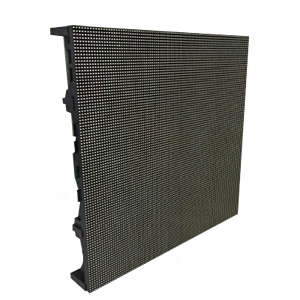

PH6.67- 6.67mm Indoor LED Screen

Brand: VisioTekk

The PH6.67 is a 6.67mm pixel pitch 640x640mm indoor die-casting aluminum LED display.

Brand:

Product Description

The PH6.67 is a 6.67mm pixel pitch 640x640mm indoor die-casting aluminum LED display.

Product features

  • SMD3528 BlackEpistar(R)+silan(G、B)   8X8mil
  • Packaging materials:copper bracket \ golden thread
  • Pixel Pitch:6.67mm
  • Drive mode:constant current
  • Module Resolution:48dots × 24dots
  • Module Pixles:1152 dots
  • PCB:KB A level FR-4/2 layers
  • Module Size:320mm X 160mm
  • Cabinet Size(WXH):640mm × 640mm
  • Cabinet Resolution:96dots × 96dots
  • Module Quanity:8pcs
  • Pixel Density:22500 dots/m2
  • Material:Die-casting Aluminum
  • Cabinet Weight:10KG
  • Brightness:≥1000cd/㎡
  • Driving Method:JXI5020 1/12scan
  • View Angle:Horizontal 120° Vertical 120°6Min.
  • Viewing Distance≥3.5 meter
  • Gray scale:16bits
  • Colors:65536×65536×65536
  • Refresh rat:≥800Hz
  • Input VoltageAC220V/50Hz or AC110V/60Hz
  • Power Consumption (Max./Ave.)420/150 W/㎡
  • Screen weight:25kg/㎡
  • MTBF:>10,000 hours
  • Life span≥100,000 hours
  • IP rating(Front/Rear)IP40/IP4016
  • Source compatibility(with video processor)AV,DVI,HDMI,SDI,S-Videom,DP,etc.
  • Power Supply: 5V60A 1PCS/1Cabinet
