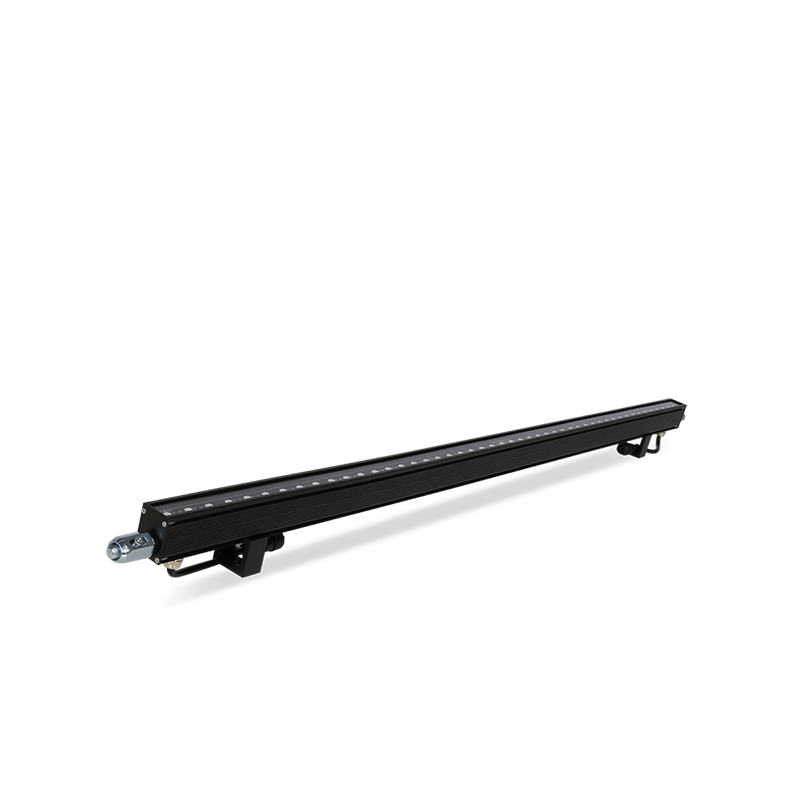

PIXIBAR D 48-IC - Indoor RGB Digital Multi Directional LED Bar

PixiBar D 48-IC is a 48 SMD5050 RGB LED pixel bar with fixing ball for multi directional installation. This one meter 3D bar has double side lighting effects, with clear diffuser cover, which makes it a unique pixel mapping media bar with great color mixing and pixel effects. It is ideal for 3D LEDs lighting structures for stage, events and all applications.

Categories: , , Brand: Series:

Product Description

PixiBar D 48-IC is a 48 SMD5050 RGB LED pixel bar with fixing ball for multi directional installation. This one meter 3D bar has double side lighting effects, with clear diffuser cover, which makes it a unique pixel mapping media bar with great color mixing and pixel effects. It is ideal for 3D LEDs lighting structures for stage, events and all applications. SOURCE
  • Light source:  SMD5050 RGB LEDs
  • LED quantity: 48 LEDs
OPTICAL SYSTEM
  • Cover: Clear diffuser
  • View angle: 120°
CONTROL & PROGRAMMING
  • Pixels control: 16
  • Color mixing: RGB
  • Control protocols: DMX, 44 FPS
  • Control channels: 48 CHs
  • Address setting: Manual
ELECTRICAL
  • Input voltage: 24V
  • Power consumption: 10 watts
CONNECTIONS
  • Power and data connection: 15cm 5 pin female and male connection
  • Cable entry: Bottom
PHYSICAL
  • Dimensions: 1000 x 28 x 39mm (without bracket) 1000 x 35 x 79mm (with bracket)
  • Color: Silver
  • Operating temperature: -40℃/50℃

Download

Data Sheet
