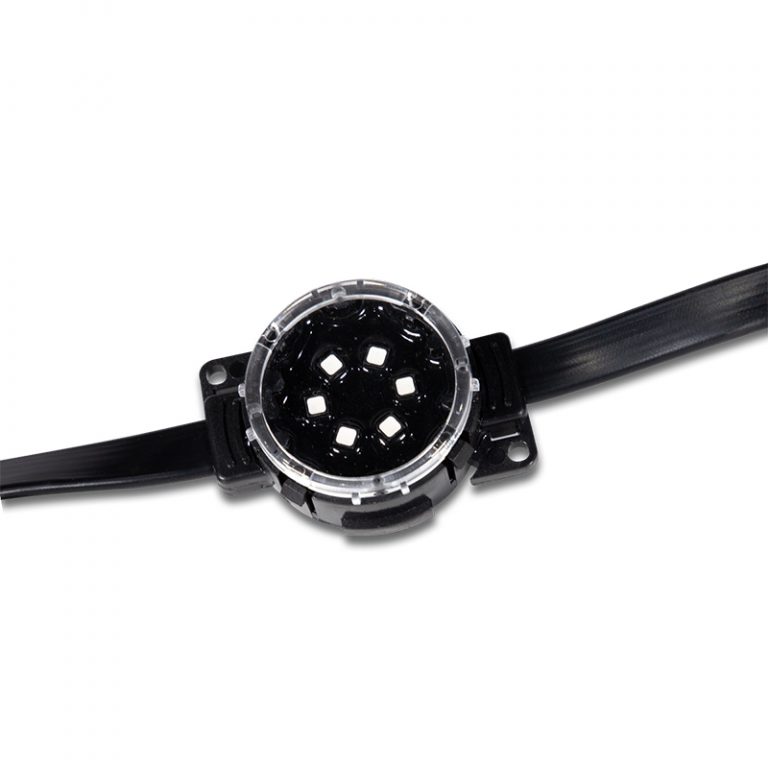

PIXIDOT STRING-OC - Outdoor RGB LED Pixel Dots String with Clear Diffuser

Product Description

PixiDot String-OC is an outdoor IP67 rated lightweight string of bright pixels created in customizable versions with predefined quantities and center to center distance. With 6 bright SMD 3535 RGB LEDs and clear cover, these string of pixels are ideal for pixel mapping effects on bridges, buildings’ facades, stadiums, retail shops and outdoor applications.

SOURCE

• Light source: 6 SMD RGB 3535 LEDs

OPTICAL SYSTEM

• Cover: Clear diffuser
• View angle: 120°

CONTROL & PROGRAMMING

• Pixels control: 1 pixel per dot
• Color: RGB
• Control protocols: DMX, 44 FPS
• Control channels: 3 CHs per dot
• Address setting: Manual

ELECTRICAL

• Input voltage: 24V
• Power consumption: 1.2 watts per dot

CONNECTIONS

• Power and data connection: 5 pin female and male connection
• Cable entry: Side

PHYSICAL

• Dimensions: 50 x 44 x 20mm
• Color: Black
• IP rating: 67
• Operating temperature: -40℃/50℃
