ROD 112-C

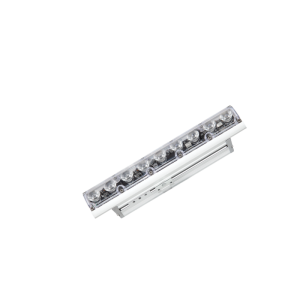

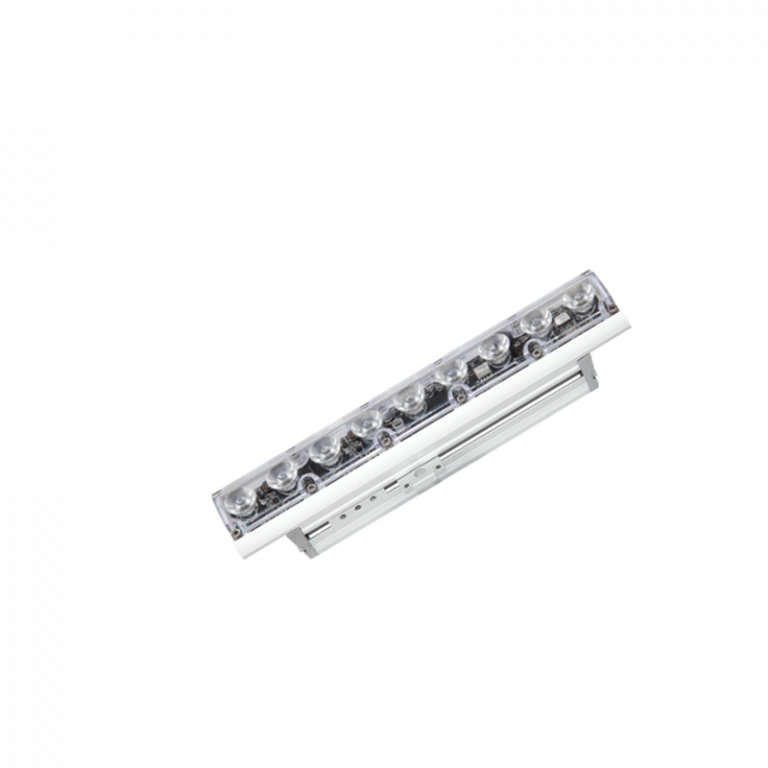

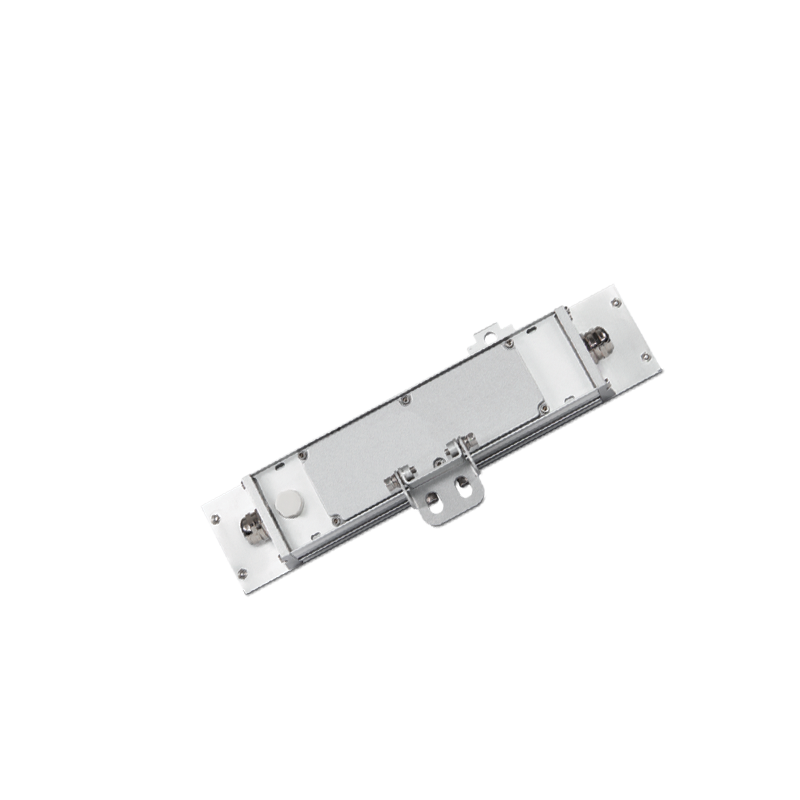

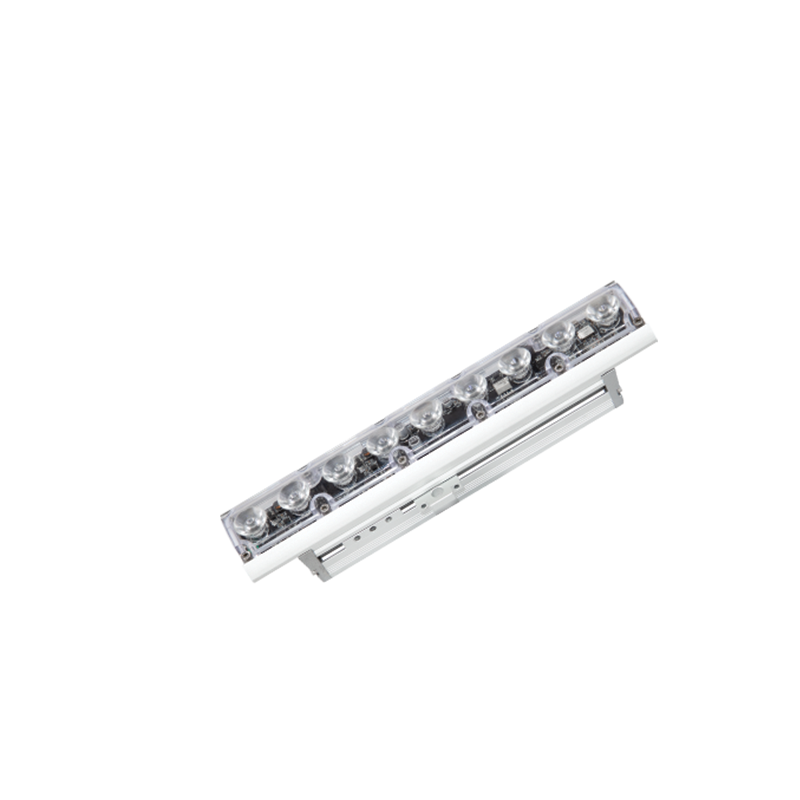

ROD 112-C is a seamless 12×3 watts Cool White linear wash with a length of 305 millimeters. It has a built-in lamp body power supply and driver, and an integrated power and DMX signal cable. Flexible lighting device for application in a variety of building structures.

Product Description

ROD 112-C is a seamless 12×3 watts Cool White linear wash with a length of 305 millimeters. It has a built-in lamp body power supply and driver, and an integrated power and DMX signal cable. Flexible lighting device for application in a variety of building structures.



SOURCE

  • Light source: 12×3 watts Cool white
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 15101cd (15°)

OPTICAL SYSTEM

  • Optics: 15°(10°, 25°, 30°, 60°, 15°x30°, 10°x60°)
  • Light output: 3,800 Lux @2m @ 15°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100%
  • Dimmer: 0%-100%
  • Controllable sections: 1
  • Color: Cool white

 ELECTRICAL

  • Input Voltage: AC100~277V
  • Max Power: 40 W
  • Power Factor: > 0.9
  • Built-in power supply

CONNECTIONS

  • Power connections: Integrated power and signal cable

PHYSICAL

  • Dimensions: 305 x 62 x 84 mm
  • Net Weight 1.2 kg
  • Color: Silver
  • Housing: Extruded Aluminium
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)

Download

Data Sheet
