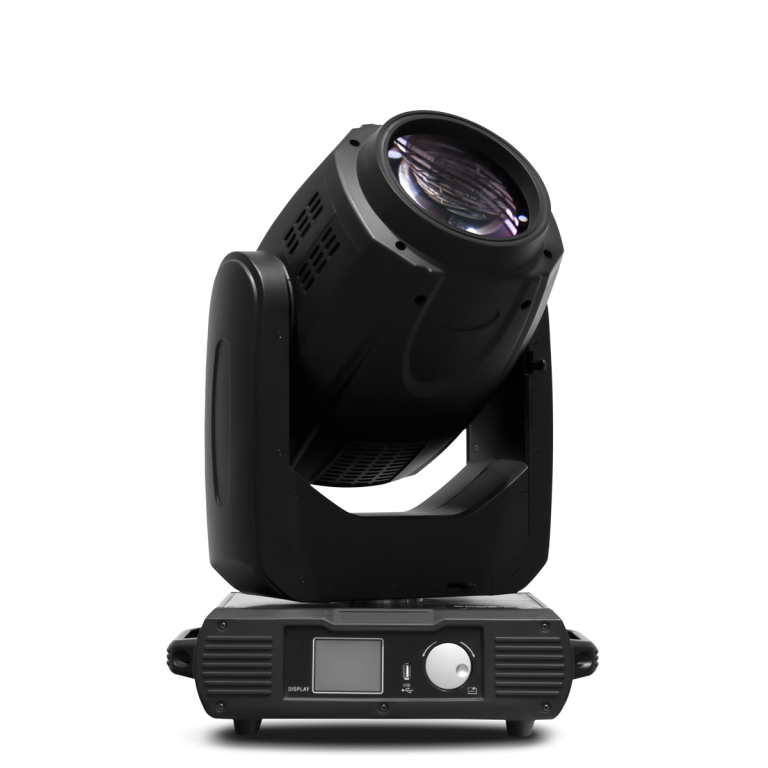

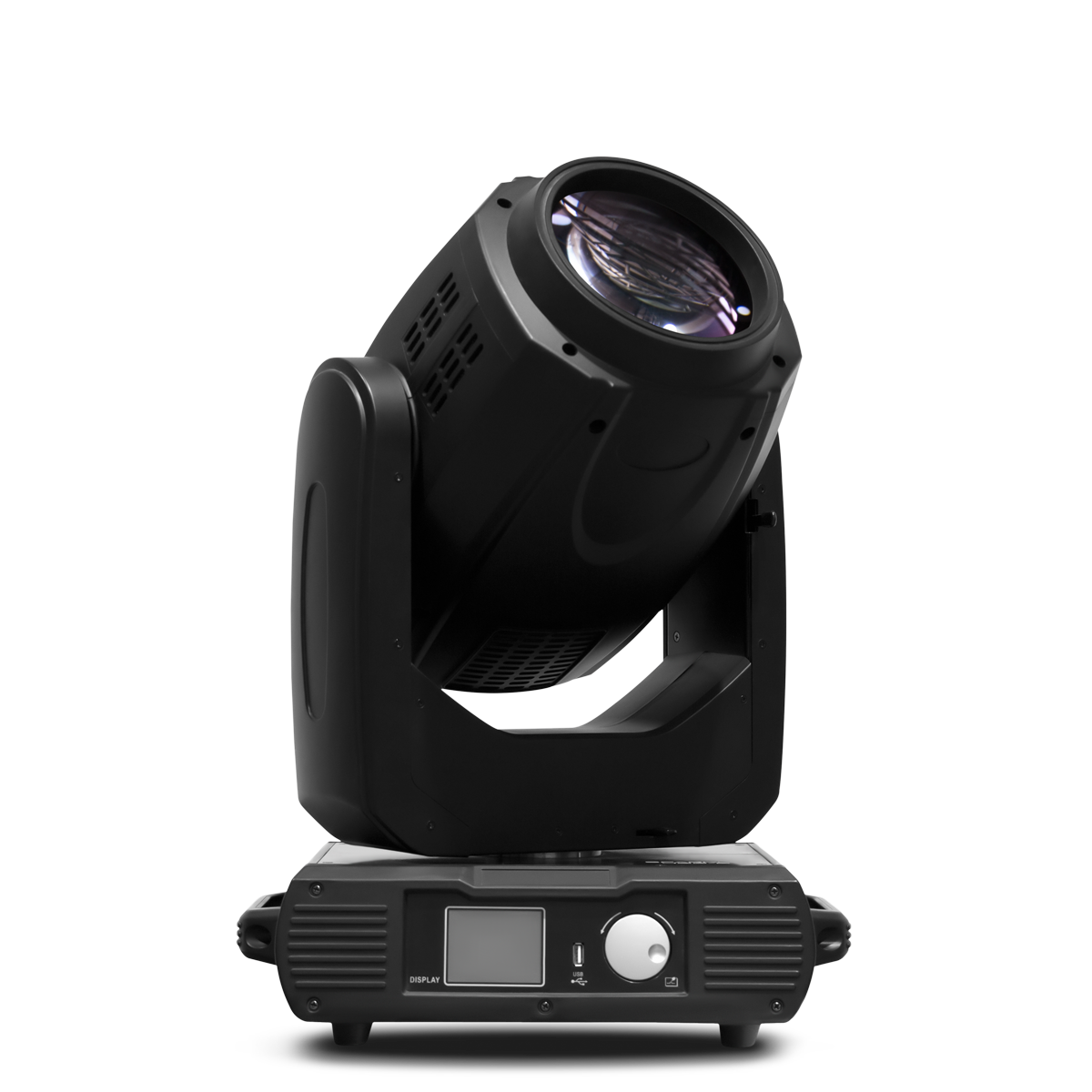

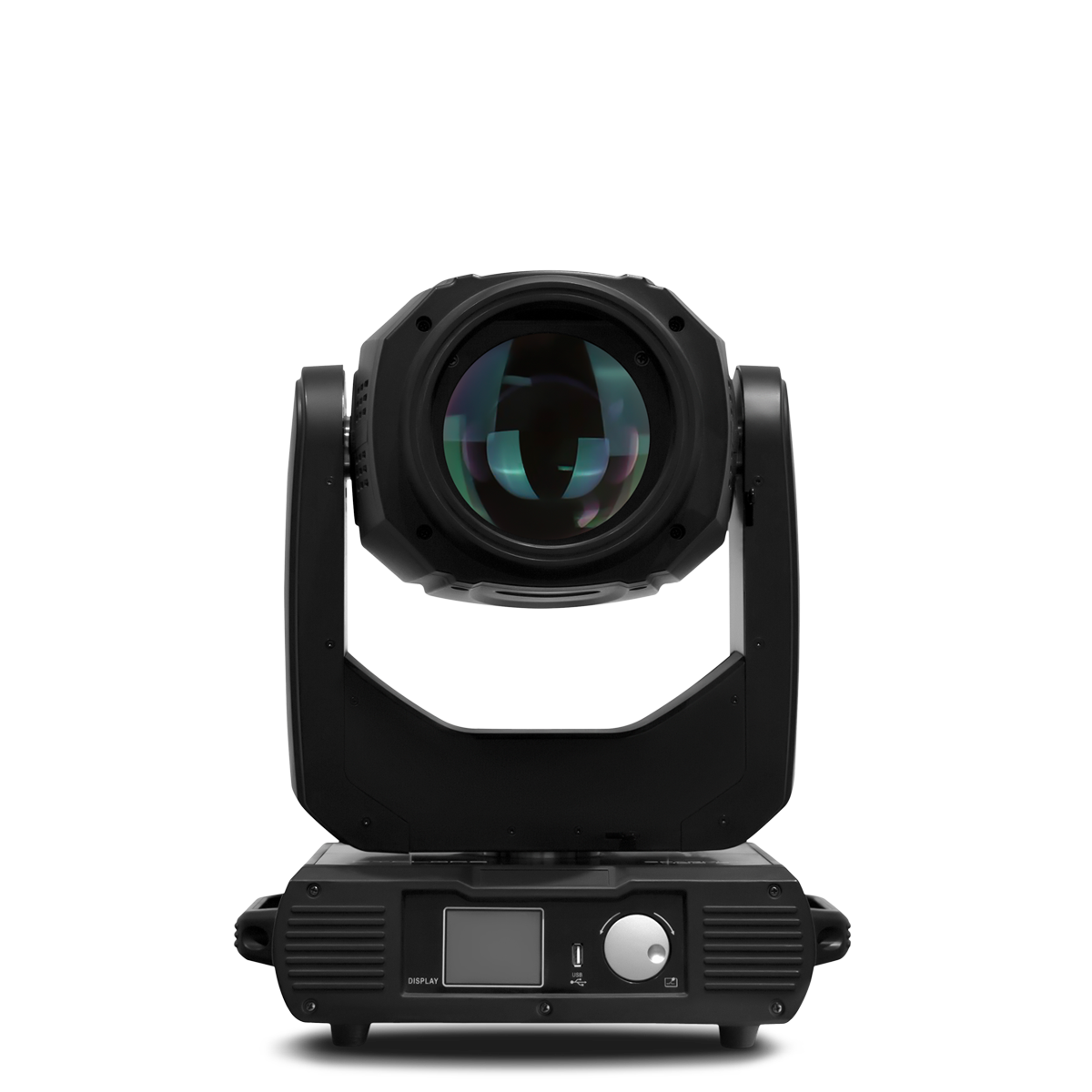

SPARKLY 400B – High Power Beam Moving Head

SPARKLY 400B is a 350 watts beam moving head. It features a narrow beam angle of 4° or 6° and delivers incredible light output and effects with 15 different colors, 14 gobos, and two combinable prism wheels offering 11 possible combinations

Product Description

SPARKLY 400B is a 350 watts beam moving head. It features a narrow beam angle of 4° or 6° and delivers incredible light output and effects with 15 different colors, 14 gobos, and two combinable prism wheels offering 11 possible combinations

SOURCE

  • Light source: Yodn MSD 350 watts
  • Lamp life expectancy: 1,500 Hrs.

OPTICAL SYSTEM

  • Beam angle: 4° and 6°
  • Light output: 321,000 Lux @ 10m @ 4°
  • Electronic focus

DYNAMIC EFFECTS

  • Dimmer: Linear adjustment
  • Color wheel: 15 colors + open
  • Electronic variable strobe
  • Rainbow color filter
  • Static gobo: 14 gobos + open
  • Gobo shake functions
  • Prism: 2 combinable prism wheels with 11 possible combinations
  • Frost

CONTROL & PROGRAMMING

  • Control protocols: DMX
  • Display: 2.8’ full color touch screen, reversible 180°
  • Control channels: 16, 19 CHs

MOVEMENT

  • Pan: 540°
  • Tilt: 280°
  • Resolution: 16 bit

ELECTRICAL

  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 470 watts

CONNECTIONS

  • DMX connections: 3 pin and 5 pin XLR In/Out Male and Female
  • Power connections: PowerCon In

PHYSICAL

  • Dimensions: 409 x 350 x 592mm
  • Net weight: 18.3 Kg
  • Color: Black
  • IP rating: 20

Download

Data Sheet
