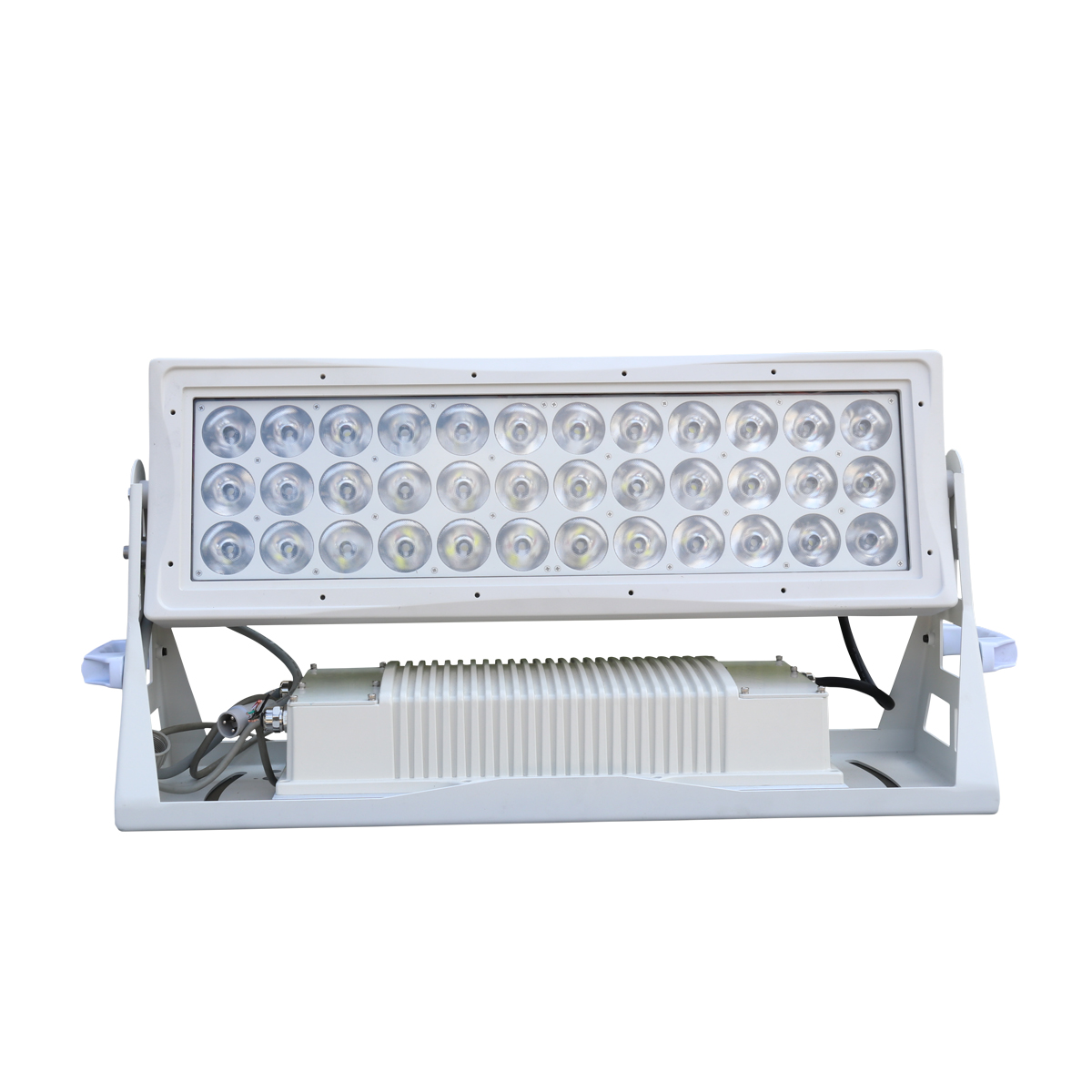

TITAN 136-C

TITAN 136-C is a high-power LED floodlight with high light efficiency, high illumination, high performance, and stability. It has an optional wireless DMX512 control and provides diverse lighting solutions for a variety of large outdoor projects, an ideal lighting fixture for towers, bridges, large venues, integrated commercial building, and other large occasions.

Product Description

TITAN 136-C is a high-power LED floodlight with high light efficiency, high illumination, high performance, and stability. It has an optional wireless DMX512 control and provides diverse lighting solutions for a variety of large outdoor projects, an ideal lighting fixture for towers, bridges, large venues, integrated commercial building, and other large occasions.

SOURCE

  • Light source: 36×15 watt – cool white
  • LED life expectancy: 50,000 Hrs
  • Peak Intensity: 118800cd (4°)

OPTICAL SYSTEM

  • Optics: 4°,10°, 20°
  • Light output: 12000 Lux @10m @ 4°

CONTROL & PROGRAMMING

  • Control Protocols: DMX, RDM
  • DMX control channels: 0-100% dimming
  • Controllable sections: 1
  • Color: Cool White

ELECTRICAL

  • Input Voltage: AC100-240V, 50/60Hz
  • Max Power: 350 W
  • Power Factor: > 0.9

CONNECTIONS

  • Data Connection: 3m cable(input output)

PHYSICAL

  • Dimensions: 824x252x381mm
  • Net Weight: 31.3 kg
  • Color: Off White (Gray, Black Optional)
  • Housing: Die-cast aluminum
  • IP Rating: 66
  • Operation temperature: – 40°C~45°C (operating) /- 20°C~45°C (startup)
